Smile FJ Old Man Emu Install LIVE...NOW...Watch...Tire Install Update...pictures

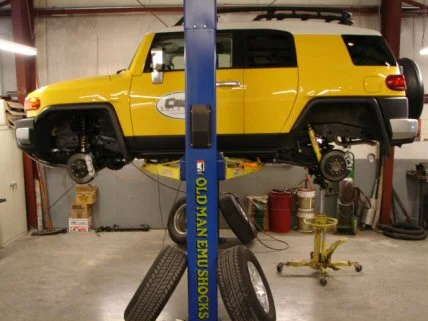

We are installing an OME Full Suspension on the FJ TODAY...NOW. I will be updating this thread as we go. We have started at 8:30am ECT. Should be fun, here are the first pictures..... Enjoy
Tedd
Attached Images

Last edited by Gilead; 04-21-06 at 03:27 PM. Reason: New pictures of tire install
Gilead is offline   Reply With Quote
Old 04-19-06, 08:27 AM   #2
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

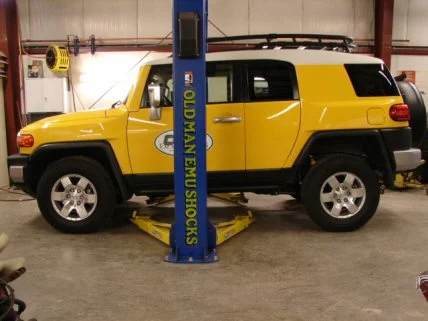

Here is the first picture. It seems that we are limited on the space(amount) of pictures that we allowed to post. We will try to work with smaller attachments.
Attached Images

Last edited by Gilead; 04-19-06 at 02:15 PM.
Gilead is offline   Reply With Quote
Old 04-19-06, 08:34 AM   #3
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

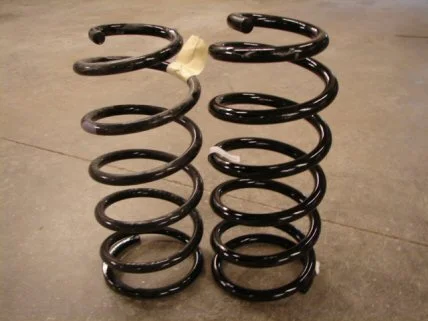

Compare stock on the left and OME on the right. Yeah, there is a fairly significant weight difference between the two....say 10-15 pounds...
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 08:43 AM   #4
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

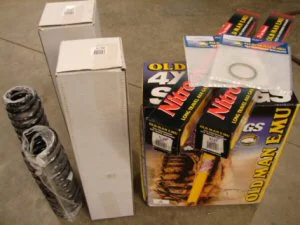

Here are prodcuts being used....OME 893 front coils...light duty, N139S Strut, OME 895 rear coils....light duty(listed as medium), N141 shocks. We do have the OME95PF5's for trim packers if needed. This is the Prado 120 suspension we are testing. We have two OME suspension that we will be installing/testing and reporting on. The first here being the light duty....the next, in a week or so, the medium duty one.
Attached Images

Last edited by Gilead; 04-19-06 at 08:49 AM.
Gilead is offline   Reply With Quote
Old 04-19-06, 08:48 AM   #5
IH8MUD Thread Killer

Koffer's Avatar

Join Date: Jul 2003
Location: Hopewell NJ
Posts: 989
Quote:
Originally Posted by Gilead
Here is the first picture. We seems that we are limited on the space(amount) of pictures that we allowed to post. We will try to work with smaller attachments.

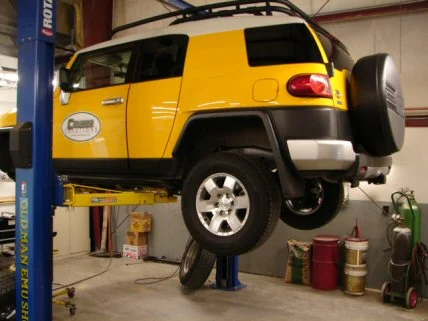

That looks like a 2 post Rotary lift, not a OME no matter what stickers you put on it


__________________
Todd
64' FJ40, 79' FJ40,(gone) 86' BJ70, 92' FJ80,(gone) 96' FZJ80
just 3 cruisers now 66'M416 and a 92' M101CND
Koffer is offline   Reply With Quote
Old 04-19-06, 08:53 AM   #6
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

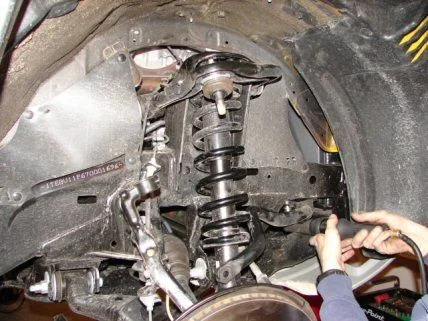

Front coil and strut installed. As a point of information. The stock coil measured 14" and the OME 13 15/16". We did use the trim spacer beacuse the coils were a bit loose without it....
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 09:05 AM   #7
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Talking
The front Struts, N139S were shipped via air frieght from Australia last week.
Gilead is offline   Reply With Quote
Old 04-19-06, 09:10 AM   #8
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Angry

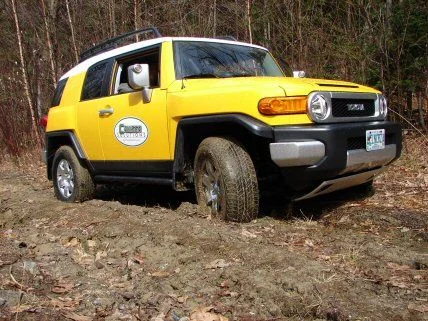

Just so that we had a point of reference, we took the FJ for a trail ride last weekend. Yeah, the tires sucked in the mud.
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 09:24 AM   #9
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Talking

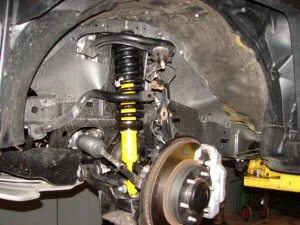

THe front LH coil and strut have been installed. The RH is coming off as I type here. The front sway bar seems to be giving us a run for the $. We will be able to post bigger pictures now...thanks Woody. Here is the RH side...
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 09:33 AM   #10
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

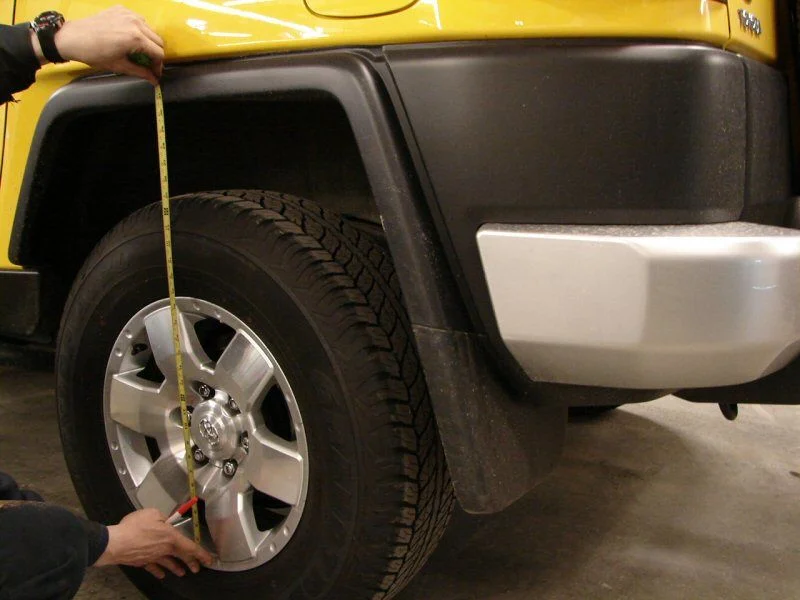

Here are some stats on the stock height. Front RH- 28 3/4",LH- 29", Rear RH- 30 7/8", LH- 30 3/4".
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 09:38 AM   #11
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

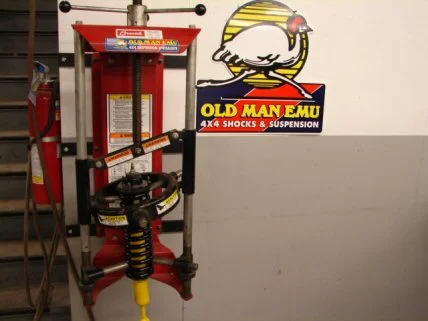

The RH coil ands strut are in the Branick 7200 strut machine. The amount of tension to compress this coil verses the stock one is much greater!
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 09:57 AM   #12
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

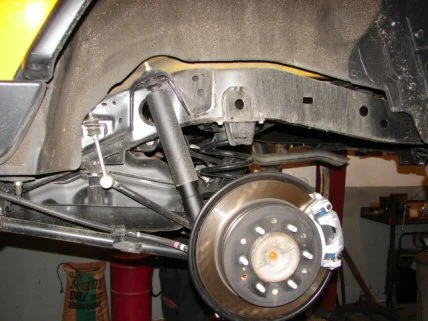

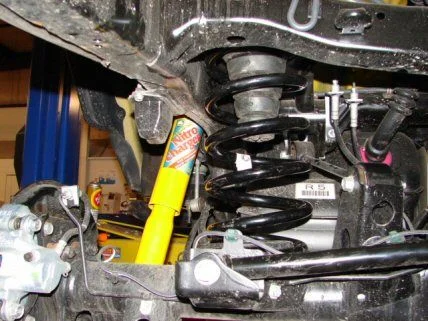

We now move onto the rear suspension. Here it is stock..
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:06 AM   #13
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
The stock rear coil information is as follows...Stock RH-14 13/16" LH- 14 13/16"...the same. The OME's are 15 3/8" each. The stocker is on the left, the OME is on the right...cleaner too....
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:14 AM   #14
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

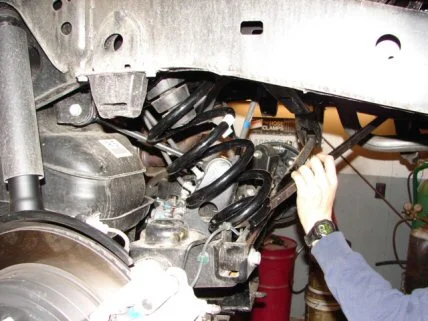

Install of the rear coil, LH side....
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:25 AM   #15
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

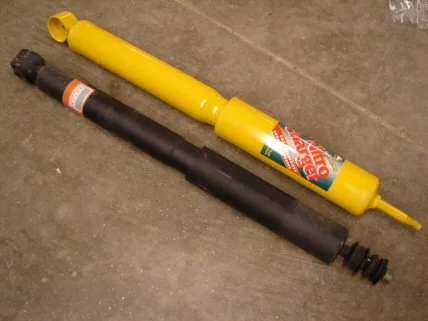

Picture of the stock rear shock and OME shock.
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:29 AM   #16
IH8MUD Rookie

Join Date: Apr 2006
Posts: 8
Notice that the OME shock is a thicker body?? It also has a bell housing around the shaft to keep mud dirt and grime from staying inside as a shock boot would. It also keeps the rod from getting pitted. That's another thing you can't see, but the rod is a thicker shaft!!

This is great to watch Tedd!! Very impressive!!
smc4wd is offline   Reply With Quote
Old 04-19-06, 10:30 AM   #17
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Angry

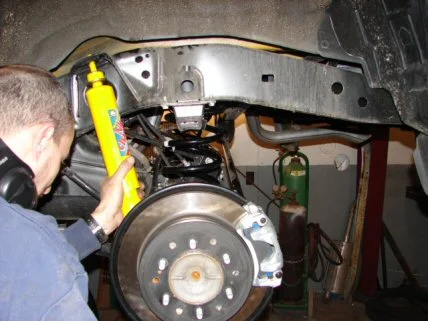

The shock goes in. Yeah, the installer got in the way...
Scott Cohen at ARB is also coaching us on the phone...sort of. Thanks Scott for all your help and insight.
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:36 AM   #18
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

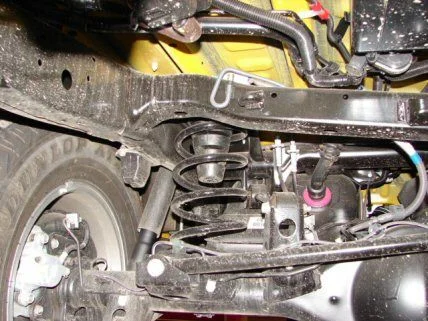

Just about done....in the rear
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:39 AM   #19
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
To install the rear "stuff" we had to unbolt the rear sway bar and track bar.
Gilead is offline   Reply With Quote
Old 04-19-06, 10:40 AM   #20
Admin

woody's Avatar

Join Date: Jan 2002
Location: Appleton, WI
TLCA# 1548
Posts: 7,688
Blog Entries: 2
blow by blow tech rocks


__________________
Brian 'woody' Swearingen

1974 FJ40 'The Raisin' - Pitbull Rockers, 30-spline Longfields, SOA - 1/4 ellip
1996 FZJ80 'Gretchen' - MetalTech, ARB, OME, IPOR, 4x4Labs
2003 2500HD Duramax - Edge/Juice/Attitude, 285 Nitto Terra Grapplers, 4" exhaust

Forum Questions? Click Here!

'America will never be destroyed from the outside. If we falter and lose our freedoms, it will be because we destroyed ourselves.' Abraham Lincoln
woody is online now   Reply With Quote
Old 04-19-06, 10:44 AM   #21
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
We are getting there.
Gilead is offline   Reply With Quote
Old 04-19-06, 10:45 AM   #22
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Here we go...now the picture is here...
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 10:58 AM   #23
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

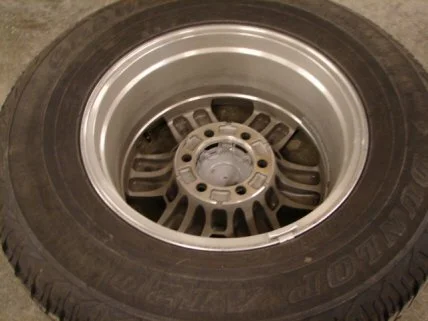

Here is the back of the wheel. Yeah, the wheel is 17 x 7.5, but the back spacing was not know....at least by me at this point. So after measuring I would say it is 5 inches.
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 11:01 AM   #24
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Tires are going back on...
Gilead is offline   Reply With Quote
Old 04-19-06, 11:03 AM   #25
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
Tires and in the air...
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 11:05 AM   #26
IH8MUD Rookie

Join Date: Apr 2006
Posts: 8
Almost three hours, by a trained professional...
smc4wd is offline   Reply With Quote
Old 04-19-06, 11:17 AM   #27
IH8MUD Junior

FusionCruiser's Avatar

Join Date: Mar 2006
Location: Winnipeg, Manitoba
TLCA# 16070
Posts: 143
Quote:
Originally Posted by Gilead
Tires and in the air...
VERY Cool!!

Now where can I buy that kit?

Thanks for the Uber Install Post.

Now that it's finished I guess I should get back to work.

Shawn


__________________
-'07 SunFusion FJ Cruiser C Pak
-33" GY MTRs
-Regrets... None!
FusionCruiser is offline   Reply With Quote
Old 04-19-06, 11:32 AM   #28
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85

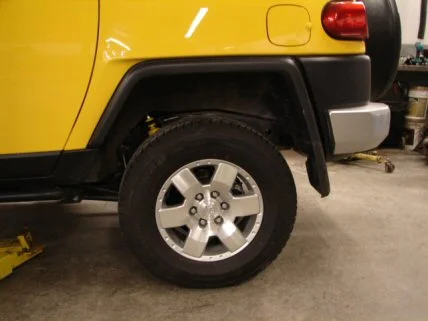

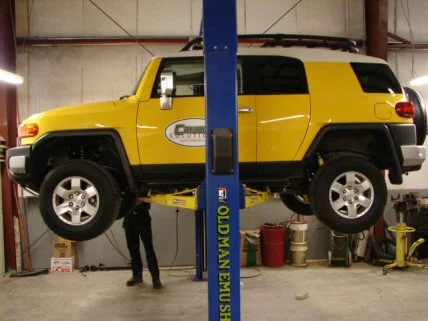

Okay, it is now on the ground. Here is the deal at this point. As you can see the front is "diving" Big Time. This is because we have the OME 893 and this is a non-USA coil that is specifically designed for low height Prado's. We are now putting the Cruiser back in the air and swapping out the coils for a set of OME 895's. We have been on the line with Tim the Tech guy at ARB who knows his stuff inside-and-out about installs. Watch as we continue with the process....
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 11:35 AM   #29
IH8MUD Junior

Join Date: Oct 2003
TLCA# 1272
Posts: 85
The rear suspension is looking good. Here at the numbers there.
RH- 33", LH- 32 3/4". Now we have not driven it yet...obviously, but this should come down just a fraction when we hit the road.
Attached Images

Gilead is offline   Reply With Quote
Old 04-19-06, 11:37 AM   #30
IH8MUD Rookie

Join Date: Apr 2006
Posts: 8
Quote:
Originally Posted by Gilead
Okay, it is now on the ground. Here is the deal at this point. As you can see the front is "diving" Big Time. This is because we have the OME 893 and this is a non-USA coil that is specifically designed for low height Prado's. We are now putting the Cruiser back in the air and swapping out the coils for a set of OME 895's. We have been on the line with Tim the Tech guy at ARB who knows his stuff inside-and-out about installs. Watch as we continue with the process....

Tedd, let's hope you meant OME884's on the front...
The OME895's should have been correct for the rear.
smc4wd is offline   Reply With Quote
