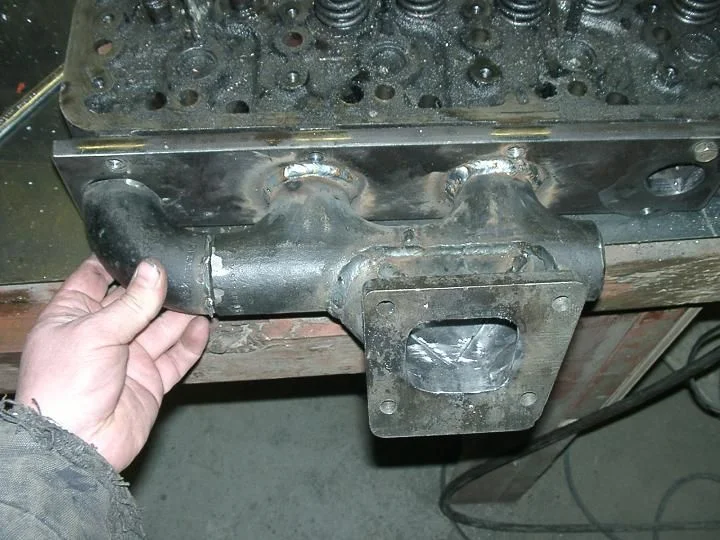

What I did this weekend.
I'm missing 2-1.5" 90s to finish the job. __________________ Rocky Mountain Land Cruiser Association TLCA # 5513 '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn I support our Troopies |
|
|
|
05-01-05, 07:39 PM
|
#2 |
|
IH8MUD Lifer
Join Date: Feb 2004
Posts: 9,793
|
you look like you are having fun...
is that the 3B or for the 3B II? cheers __________________ pulling this info out of my ass so take it with a pound of salt "People are poor because they don't spend money wisely, tough sh!t !!! " John Galt 09/22/08 "educate yourself. Sorry if that seems too blunt." John Galt 11-01-08 Wayne in Ontario http://www.ivoac.ca join today |
|
|
|
|
05-01-05, 07:41 PM
|
#3 |
|
IH8MUD Lifer
|
Its for my 3B but it might end up on Charla's 3B.
__________________ Rocky Mountain Land Cruiser Association TLCA # 5513 '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn I support our Troopies |
|
|
|
|
05-01-05, 07:49 PM
|
#4 |
|
IH8MUD Lifer
Join Date: Feb 2004
Posts: 9,793
|
i though Charlas was a 3B II?
i will have to stop by and take a closer look... cheers __________________ pulling this info out of my ass so take it with a pound of salt "People are poor because they don't spend money wisely, tough sh!t !!! " John Galt 09/22/08 "educate yourself. Sorry if that seems too blunt." John Galt 11-01-08 Wayne in Ontario http://www.ivoac.ca join today |
|
|
|
|
05-01-05, 08:00 PM
|
#5 |
|
IH8MUD Regular
Join Date: Feb 2005
Location: South of the 49th. just.
Posts: 398
|
Looks very nice, but I'm not sure its BEEFY enough???
__________________ 1982 BJ60... Rusty... and not so trusty... RIP - Rust In Peace 1989 HJ61 12H-T Steve "This was a particularly bad case of somebody being cut in half." "no sore knot know" Lunyou. |
|
|
|
|
05-01-05, 09:32 PM
|
#6 |
|
IH8MUD Lifer
Join Date: Sep 2002
Location: Vancouver Island BC Canada
Posts: 3,831
|
Nice......
Is the flange heavey enough to prevent warping when welding? One guy made a plate 1 inch thick to bolt up his flange prior to welding to keep it from deforming. Guessing your are stick welding it also? __________________ Come and visit us in Duncan, BC www.raddcruisers.ca --> 60 Series Cable Lockers available - 4.11s or 3.70s - handles and cables included --> 12HT & H55F combos available - complete & running --> in stock and ready to go. |
|
|
|
|
05-01-05, 09:44 PM
|
#7 | |
|
Ramblin Wreck
Join Date: Mar 2003
Location: Georgia Tech
Posts: 5,437
|
Quote:
Why not just take it to a machine shop and have them check and mill it if necessary? __________________ Bailey Quintrell '74 FJ40--37 Irocks-32 Bolt 'Locks-SM420-ARB-XD9000i-FJ60 PS-MetalTech Cage '93 FZJ80-DD-Part Time 4wd-locked-5" lifted-snorkel-bullbar-315 AT's '97 FZJ80 '98 UZJ100-OEM RR locker ΣΧ
|
|
|
|
|
|
05-01-05, 11:30 PM
|
#8 | |
|
IH8MUD Lifer
|
Quote:
3BII started in Oct 88? __________________ Rocky Mountain Land Cruiser Association TLCA # 5513 '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn I support our Troopies |
|
|
|
|
|
05-01-05, 11:34 PM
|
#9 |
|
IH8MUD Lifer
|
Its not a lot heavier than the factory 13BT one that's kicking around here. I likley would have gone with 3/8s but the 1/2 was sitting in the metal bin. I bolted it to an old head when I welded it and that limited the movement. The big thing is vibration, its a heavy turbo that's hanging off the side of a four cylender ciesel. Its gonna shake a lot.
__________________ Rocky Mountain Land Cruiser Association TLCA # 5513 '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn I support our Troopies |
|
|
|
|
05-02-05, 12:27 AM
|
#10 |
|
Mod in Hibernation
|
would it be for an old chrysler turbo? Start doing a few and you have a business. I am sure many of us would pick them up. Head to the wreckers get a bunch of turbos, rebuild them, provide the fittins and hoses. Ya it might be a good side thing.
__________________ -84 BJ60, Finally on the FN road! -91 FJ80, wife's ride Iron Butt award winner of the Cruise Moab 08 ! |
|
|
|
|
05-02-05, 04:27 AM
|
#11 |
|
IH8MUD Lifer
Join Date: Feb 2004
Posts: 9,793
|
for about $50 you can get the fisihed pieced planed flat at the local machine shop.
cheers __________________ pulling this info out of my ass so take it with a pound of salt "People are poor because they don't spend money wisely, tough sh!t !!! " John Galt 09/22/08 "educate yourself. Sorry if that seems too blunt." John Galt 11-01-08 Wayne in Ontario http://www.ivoac.ca join today |
|
|
|
|
05-02-05, 10:04 AM
|
#12 |
|
rust and moth consumables
Join Date: Jan 2005
Location: Wet Coast
Posts: 844
|
Well, I'm inspired. I was just gonna flip my manifold but that looks like something I can maybe handle. What have you got into it for material costs? Did you mig weld that? Can you give us a breakdown of what you used and where you where you got it? Sorry for the heap of questions but like I said, I'm inspired!
Mac |
|
|
|
|
05-02-05, 11:35 AM
|
#13 |
|
IH8MUD Lifer
|
I have about 12 hours into it
2 - 1.5" weld 90s (about $5 each) 2 - 1.5" weld Ts 1 - 2" weld 90 4" x16"? (didn't measure) x 1/2" hot rolled... would be better if it was 3/8" cold rolled 4"x4" x1/2" cold rolled for the turbo flange A few scraps of 1/4" to fill the funnel to the turbo flange It is designed for the Garret T-03 that comes on the Chrysler products but we have a source for brand new turbos (same spec) at a good price so I'm undecided if I'll spend a day at the wrecker pulling one or just pay the extra $400 for a new one. Yes I used the little mig. (Miller 135) Figured to go back and reweld with the big mig (Miller CP-200)but it wasn't necessary. Marc Ritchie is talking about having the plates water jet cut. This will save a bunch of time and we could sell everything as a kit. Let's wait and see if it all fit under the hood. It takes a bit of time to port match everything, but I'm surprised how little. I'm sure I could do it again in about 8 hours. __________________ Rocky Mountain Land Cruiser Association TLCA # 5513 '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn I support our Troopies |
|
|
|
|
05-02-05, 11:49 AM
|
#14 |
|
IH8MUD Lifer
Join Date: Sep 2002
Location: Vancouver Island BC Canada
Posts: 3,831
|
Well done, I think most guys have had good luck with a bigger mig if you preheat the material a bit before welding.
Thats a smoking good deal for a new turbo, why pull a junkyard dog at that price. __________________ Come and visit us in Duncan, BC www.raddcruisers.ca --> 60 Series Cable Lockers available - 4.11s or 3.70s - handles and cables included --> 12HT & H55F combos available - complete & running --> in stock and ready to go. |
|
|
|
|
05-02-05, 06:05 PM
|
#15 | |
|
IH8MUD Lifer
Join Date: Feb 2004
Posts: 9,793
|
Quote:
and not cheap either... cheers __________________ pulling this info out of my ass so take it with a pound of salt "People are poor because they don't spend money wisely, tough sh!t !!! " John Galt 09/22/08 "educate yourself. Sorry if that seems too blunt." John Galt 11-01-08 Wayne in Ontario http://www.ivoac.ca join today |
|
|
|
|
|
05-02-05, 10:21 PM
|
#16 |
|
IH8MUD Rookie
Join Date: Feb 2005
Location: Calgary
Posts: 31
|
How about that electronic machine shop from one of the lists a couple years ago?
http://www.emachineshop.com/ Might be worth a shot. I remember trying the CAD interface, it wasn't too bad. __________________ 79 FJ40 Turtle 72 FJ55 Brain 76 FJ55 Junior 85 BJ70 Falcon 79 FJ40 Lucky I either need to start a business, or seek professional help!!!!!!!!!! |
|
|
|
|
