[Stone]

Many of the diesels, especially JDMs, run on a 24v electrical system. Sometimes it's easier to find replacement 24v bulbs if you already have the part number in hand.

With that thought in mind, post up any part numbers that you use, specifying its application, in this thread.

This post will be linked to our International FAQ.

Thanks.

[Stone]

I'll start with a few: (Toyota Part Numbers)

1) Dashboard Peanut Bulb, sz Small: 90981-11022.
Application: Climate Controls, Cigarette Lighter, etc.

2) Dashboard Peanut Bulb (Small) Green Plastic Sleeve: 90339-04014.

3) Dashboard Peanut Bulb, sz Medium: 99134-12030.
Application: Instrument Cluster, E-brake indicator, etc.

4) Rear Combination Signal Light: 90981-16015.
Application: Rear Brake/Running light.

5) Rear Single Element Light: 90981-16014.
Application: Rear Turn signal (possibly also front turn signal), Reverse (?).

6) Front Single Element Light: 90981-16016.
Application: Front Running light.

[A2B in a TLC]

Thanks Stone,

Good thinking. Much better to share rather than answering just my email.

B

[A2B in a TLC]

Do you buy from Lordco or somewhere else? The guy at Tsawwassen Lordco did not recognize the part numbers.

B

[Stone]

Hi Bruce:

THose are all Toyota part numbers.

[mjohn7]

24 Volt Bulbs from Gregg Distributors, Calgary;
Instrument panel - GE-13256 5W
Stop / Turn (double filament)
Clearence - GE-1683 (single filament)
Maker - Wagner 1251
Headlight ;H4 - GE-13342 (75/70W)

Should be available at any auto / electrical distributors.

[fitchik]

Originally Posted by A2B in a TLC

Thanks Stone,

Good thinking. Much better to share rather than answering just my email.

B

Ditto on that

Thanks Stone... Looking into the FogLight Bulb at Lordco... Did you have a part number for that one?

[Stone]

Hi Petra:

You foglights take an H3 bulb, and the Hella 24V H3 bulb part numbers are as follows:

-70W 78145

-100W 78132

[fitchik]

Originally Posted by Stone

Hi Petra:

You foglights take an H3 bulb, and the Hella 24V H3 bulb part numbers are as follows:

-70W 78145

-100W 78132

Thanks Stone... You are an awesome help..

[FJota]

I'll second that . Thanks for the info.

[Greg_B]

ARB H3 bulb numbers from Noah:

HB24130 (24 volt 130W H3)
HB12110 (12 volt 110W H3)

[Diesel42]

Warning light cluster on 83-84 BJ42's-(four wheel drive light,E-brake light, seatbelt light-each have one bulb-Toyota part#90981-11022(24volt 1.2watt) $4.99 C-Dan price

[dieseldan]

Hey Guys, I used to work with an outfit who supplies virtually any lamp - locomotive, marine whathave-u

www.specialtybulb.com (Langley BC)

Not much of a website, but even if you have no part number, send them a fax sketch of the lamp and any #'s on it, they will have it or get it and at a reasonable price!

(how about a set of locomotive headlamps PAR56 24V - those will light up the sky)

[mikehj60]

Out here in chilliwack I have had no luck getting 24V lights from lordco, but either Toyota or NAPA have everything in stock usually. And you can usually get a better deal at NAPA.

[polarweasel]

In a BJ42:

Dual-filament bulbs (stop/tail): 1662
Single-filament bulbs (turn/reverse): 1683

NAPA numbers (both were in stock in Boulder, CO store this morning) are "LMP 1662" and 1683.

[pedroemillan]

hi there!

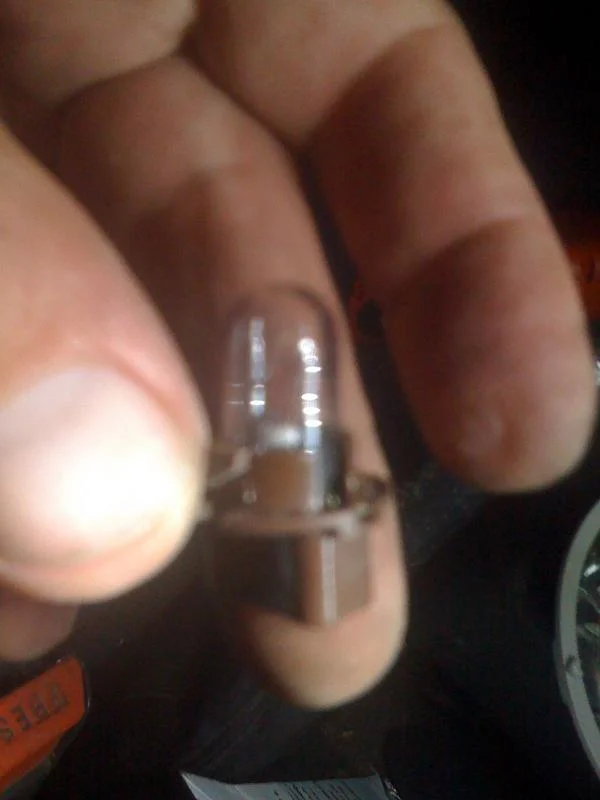

I am in need of finding 24 Volts Light Bulbs for my BJ71, especifically for the dashboard (speedometer, gauges). Mine are brown and cordless. Not sure of their part numbers. Do you know them? I see that you had some part number for some, I wonder if they're the same.

[Chang-kuao-lo]

^that's a wedge bulb. it should pull out of the plastic base-thingy. http://www.rallylights.com/detail.aspx?ID=2223

sorry, no part #s.
But for those in the US who are really stuck:
Susquehanna MotorSports - Auto Performance Products Catalog , and pretty much anything hella makes has a 24V version.
