Anyone read Japanese?

crawlin cruiser · 01-17-08, 06:39 PM

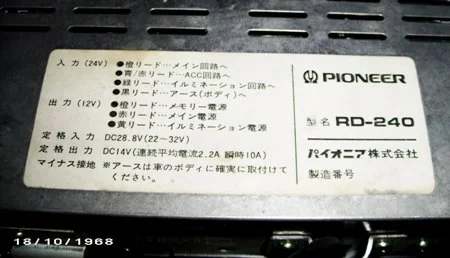

I pulled apart the epic stereo system that came with my HJ61 and came across a 24-12v converter. Theres seven wires on the unit. 4 goin in, and 3 going out. Ive attached a pic of the colour code but low and behold............... I cant read japanese

thanks Dan

canucksafari · 01-17-08, 08:57 PM

I can't read Japanese but think I have the same or similar one in my Safari. It can only supply a 2.2 amps continuous. If you are going to have any other 12 V in there beyond a stock stereo, you will need something like the Solar from G&S or a converter from EBI. I would want well over 15 amp continuous. I haven't done it yet. Just another thing on my list. Whatever I do it will feed 13.8 to another 12V battery which I will wire an aux fuse panel for all my 12 V electrics. This will allow me to take bigger draws from the battery then would be possible from a 20 or 30 amp reducer. Not sure where to put the other 12V battery. A gel battery could go in the cab in the rear quarter panel. I have also seen pics of weather proof (not rock proof) battery boxes mounted to a frame rail.

Cruiser804 · 01-17-08, 09:02 PM

Mot can. Send it to him

JohnnyC · 01-17-08, 09:24 PM

PM owensexport ...he is a great guy who can read that in 2 seconds

Henry James the 47th · 01-17-08, 10:15 PM

I can read it...

Incoming Power (24V) * orange lead ...main
* blue/red lead ... acc circuit
* green lead ... illumination
* black lead...earth

Output Power (12v.) * orange lead ... memory
* red lead ... main
* yellow lead ... illumination

It says below to connect the earth lead to the body. And list the electrical performance details just above that.

hope that helps!

Tapage · 01-18-08, 06:37 PM

Need to start my Jap lessons ..

crawlin cruiser · 01-18-08, 07:26 PM

Quote:

Originally Posted by Henry James the 47th

I can read it...

Incoming Power (24V) * orange lead ...main
* blue/red lead ... acc circuit
* green lead ... illumination
* black lead...earth

Output Power (12v.) * orange lead ... memory
* red lead ... main
* yellow lead ... illumination

It says below to connect the earth lead to the body. And list the electrical performance details just above that.

hope that helps!

thank you

BiffS · 01-18-08, 07:52 PM

Old photo eh Dan? taken in 1968?

mot · 01-18-08, 08:11 PM

As usual, I'm a little late, but you are better off with the 47's translation than my slaughtered version.

UpsideDown · 01-19-08, 01:40 AM

Quote:

Originally Posted by BiffS

Old photo eh Dan? taken in 1968?

Amazing how digital images hold up over time. The Kodachromes of me from 1968 look all washed out
