3B diaphragm replacement

Thought I would post some pics of this. I did one earlier this summer and had some issues finding info on removal. Specifically, the nut that holds it to the shaft is an 8mm.

Pics might be useful to someone.

This engine is hanging on a hoist and the edic motor and mount is removed for better access.

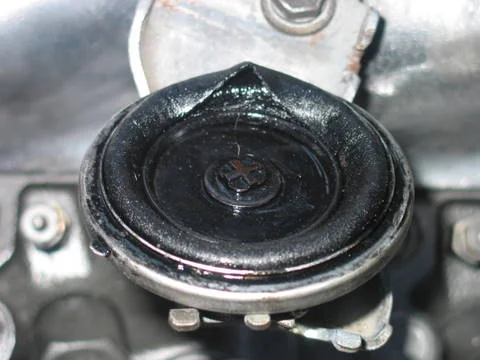

1. Where to find the diaphragm

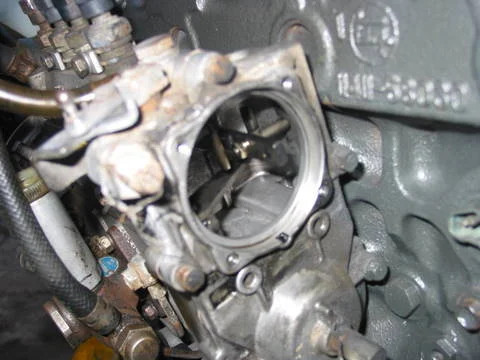

2. With the cover removed
3. Close up so you can see where the nut goes - you can see the threads on the right side of the shaft inside the housing.
Attached Images

lynchmob is offline   Reply With Quote



Old 10-15-07, 09:02 PM   #2 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
The nut is tough to get to. Its an 8mm and I didnt see the size posted anywhere on mud - maybe I missed it. If you are removing a bad diaphragm its a little easier to cut the leather section with a razor knife just to get it out of the way.
lynchmob is offline   Reply With Quote
Old 10-15-07, 09:05 PM   #3 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
1. Diaphragm removed. The shaft there (rack) is what the diaphragm connects to.

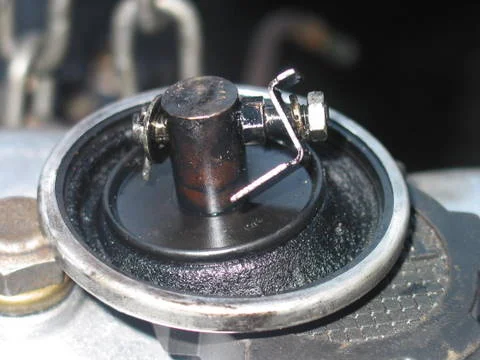

2. Diaphragm with attachments
3. Why I replaced this one.
Attached Images

lynchmob is offline   Reply With Quote
Old 10-15-07, 09:15 PM   #4 (permalink)
250+ Club


Big Blue 84BJ60's Avatar

Join Date: Aug 2007
Location: brampton ont
Posts: 374
what are the symptoms of a bad diaphragm?
Big Blue 84BJ60 is offline   Reply With Quote
Old 10-15-07, 09:34 PM   #5 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
Quote:
Originally Posted by Big Blue 84BJ60 View Post
what are the symptoms of a bad diaphragm?

black smoke under load, high EGT and/or coolant temps. My 70 also had a flat spot in the power around 2500 RPM that seemed to be gone after replacement.
lynchmob is offline   Reply With Quote
Old 10-15-07, 09:58 PM   #6 (permalink)
Forum Lifer


wesintl's Avatar

Join Date: Mar 2003
Location: Denver
TLCA# 4180
Posts: 3,833
usually it's high idle...

__________________
1964 FJ40 | 1966 M416 | 1976 FJ40 | 1985 BJ70 Volvo Power| 1997 FZJ80 | TDI commuter car
Rising Sun
; Former CLCC
You should be able to delete your own thread. Communists abound

Real Change is here --> Cato Institute
wesintl is online now   Reply With Quote
Old 10-15-07, 10:09 PM   #7 (permalink)
Forum Regular


Scoot Jockey's Avatar

Join Date: Mar 2005
Posts: 180
Thanks for taking the time to post those pics. The diaphragm on my 2H is fine right now, but I sure need to do a replacement on my old Mercedes!

__________________
1983 HJ60 GX Sahara
1984 HJ47 Troop Carrier
1973 FJ55 Rusty Wagon
2003 KTM LC4 Adventure 640
Scoot Jockey is offline   Reply With Quote
Old 10-16-07, 01:38 AM   #8 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
Quote:
Originally Posted by wesintl View Post
usually it's high idle...
that too, but mine only changed about 75 rpm after the install. I put new injectors in the 70 and it only seemed to help my black smoke issue a little so I was looking for other things to change.

I couldnt find any holes in the diaphragm on that one. It was just old and stretched a bit. It runs quite a bit different and I really have to try to make it smoke now.

It can be a time consuming procedure with the engine in the truck, but Id recommend it. I got the part at a local diesel shop for $26.
lynchmob is offline   Reply With Quote
Old 10-16-07, 03:14 AM   #9 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
You can test your diaphragm easily by sucking on that clear plastic tube attached to the cover (on the end of the injector pump). You should be able to build up vacuum quickly and easily (with your mouth) and feel the diaphragm hold that vacuum (if it's not torn).
I replace my diaphragm "in situ" but it IS tricky and you need a SMALL spanner (I have a tiny ring and open-ender set) and lots of care/patience.
It is easy to drop things inside if your not careful but I've successfully replaced mine twice now and I've never had the engine out of the vehicle.
(I did drop something inside during one of the diaphragm changes but I got it out successfully with a magnet.)


__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
lostmarbles is offline   Reply With Quote
Old 10-16-07, 05:54 AM   #10 (permalink)
250+ Club


brisveganbj42's Avatar

Join Date: Jan 2005
Location: brisneyland.qld.au
Posts: 352
whats the consequences of not having the 8mm nut on the end of the diaphragm??

I recall when i replaced mine (due to excessive black smoke under load), that it slipped right off and was a matter of slipping it back on the rod (that was the hard bit) before doing it all back up again. this is while the engine is in the truck, no edic removal and banana arms..

__________________
'84 BJ42 with all the fruit - fun to drive 7 days a week!
Got a BJ42? Join the crew @ PHAT42!
my 'shed'
3rdrock4x4 club
QLD 4WD Spares and Repairs
brisveganbj42 is offline   Reply With Quote
Old 10-16-07, 09:27 AM   #11 (permalink)
Forum Lifer


lowenbrau's Avatar

Join Date: Jan 2003
Location: Calgary AB
TLCA# 5513
Posts: 2,757
I've never removed the nut but rather pulled the cotter pin from the other side. The tricky part is not dropping the washer.

__________________
Rocky Mountain Land Cruiser Association TLCA # 5513
'91HDJ81, '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn and a Dodge
I support our Troopies
lowenbrau is offline   Reply With Quote
Old 10-16-07, 11:24 AM   #12 (permalink)
250+ Club


Big Blue 84BJ60's Avatar

Join Date: Aug 2007
Location: brampton ont
Posts: 374
should i remove the HAC or will i be able to work around it
Big Blue 84BJ60 is offline   Reply With Quote
Old 10-16-07, 01:08 PM   #13 (permalink)
Forum Lifer


lowenbrau's Avatar

Join Date: Jan 2003
Location: Calgary AB
TLCA# 5513
Posts: 2,757
HAC should be OK. I'd pull the EDIC though.

__________________
Rocky Mountain Land Cruiser Association TLCA # 5513
'91HDJ81, '87BJ74, '86BJ70, '78FJ45, '53M100, '90M101cdn and a Dodge
I support our Troopies
lowenbrau is offline   Reply With Quote
Old 10-16-07, 02:34 PM   #14 (permalink)
Forum Regular


Join Date: Nov 2006
Location: Muriwai Beach NZ
Posts: 32
I agree that the symptom of a damaged diaphragm is slightly higher idle. If you do not deal with it it will just get worse until one day your 3b will just rev till its screaming .... I've heard one do it.

__________________
1984 BJ45 FlatDeck 3B - Stock
1949 BSA A7 Star Twin
Muriwai Beach, Auckland, New Zealand
--------------------------------------------
Flatdeck is offline   Reply With Quote
Old 10-16-07, 03:36 PM   #15 (permalink)
250+ Club


Rig of Mortis's Avatar

Join Date: Jan 2006
Location: Toronto
Posts: 717
Quote:
Originally Posted by Flatdeck View Post
I agree that the symptom of a damaged diaphragm is slightly higher idle. If you do not deal with it it will just get worse until one day your 3b will just rev till its screaming .... I've heard one do it.
I'd have to agree with Flatdeck.

When I had to replace my diaphragm, the symptoms were high idle and the last day I could drive it (which was to the mechanic to swap out the diaphragm), white smoke was pouring out of my tailpipe and my RPMs were so uncontrollably high, that at every traffic light, I had to shut down my truck via the key ignition, or my idle would have just kept climbing and filling the intersection with white plumes of smoke.

That was ten years ago, been flawless ever since.
Rig of Mortis is online now   Reply With Quote
Old 10-16-07, 03:55 PM   #16 (permalink)
Turbo Diesel Lover


Tapage's Avatar

Join Date: Apr 2003
Location: Panamá
Posts: 11,423
I just replace ( ok ok ok ok not me the Shop ) mine 5 years ago or so .. the only issue that I have with my old one it's the smoke .. coul be not much worse at all ..

__________________
HJ-60 2H-T Intercooled Tencha
HDJ-80 1HD-T not stock at all ! Marilu
FZJ-80 1FZ-FE ready to Play ( wife rig ! )
Join us at our local Panamá Off Road Forum
Quote:
Originally Posted by crushers View Post
if you are achieveing the max boost then it isn't the boost that is going to kill your engine... it is your right foot.
Tapage is offline   Reply With Quote
Old 10-16-07, 04:14 PM   #17 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
Helps to understand how it works I feel.

Unlike most diesels, our Toyotas have the accelerator pedal controlling simply a butterfly valve in the air intake manifold. (Most connect the pedal directly to the injector pump.)

The injector pump then varies the fuel quantities according to the amount of vacuum created by a "venturi device" that is situated at that butterfly valve.

When the butterfly is closed, the increased pressure drop across it (and across the venturi device) creates increased air speed (m/sec) through the venturi. And this in turn increases the vacuum applied to the diaphragm.

The injector pump varies the fuel by having its "rack" connected this diaphragm.

High vacuum (foot off accelerator) pulls the rack against spring-pressure (via the diaphragm) towards the "idling-fuel-quantity" end. Low vacuum (foot hard down) allows the spring to move the rack back in the opposite direction towards the "full-power-fuel-quantity" end. So when the diaphragm is torn and you have your foot off the accerator, the butterfly is almost closed starving the engine of air but the injector pump doesn't know your foot is off the accelerator anymore. It thinks your foot is still "hard down" (because the tear tends to equalise the pressures across the diaphragm rather than allowing the vacuum to suck-and-move the diaphragm) so it supplies more fuel.

Understanding this explains all the symtoms.

__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........

Last edited by lostmarbles; 03-01-08 at 02:03 PM. Reason: Added info on "venturi" (and corrected things that weren't quite right!)
lostmarbles is offline   Reply With Quote
Old 02-29-08, 05:56 PM   #18 (permalink)
Forum Regular


Join Date: Oct 2007
Location: Winter Garden, FL
Posts: 12
I just received the part did the install and what a difference. I bought the cruiser with this symptom and couldn't figure it out for the life of me until i found this forum. Feels like a brand new motor now that she is finally back to normal. Who knows how long it went without the fix. Thanks for pics posted, was a big help!

__________________
1978 BJ40 RHD (AUS)
1984 F60 (US)
golfinw71 is offline   Reply With Quote
Old 02-29-08, 06:18 PM   #19 (permalink)
250+ Club


ohrly?'s Avatar

Join Date: Nov 2007
Posts: 394
I ripped my diaphram out, it was all rottenish; i ripped it into 6.37 pieces with my hands. This is not necessarily a hard job, but it isnt easy. I had to do it twice because I installed it upside down
ohrly? is offline   Reply With Quote
Old 03-01-08, 02:13 PM   #20 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
Quote:
Originally Posted by lostmarbles View Post
Helps to understand how it works I feel.....Understanding this explains all the symtoms.
Sorry. Looking at this post some months later made me see that I had been talking a bit of sh*t.

So I've edited that post.

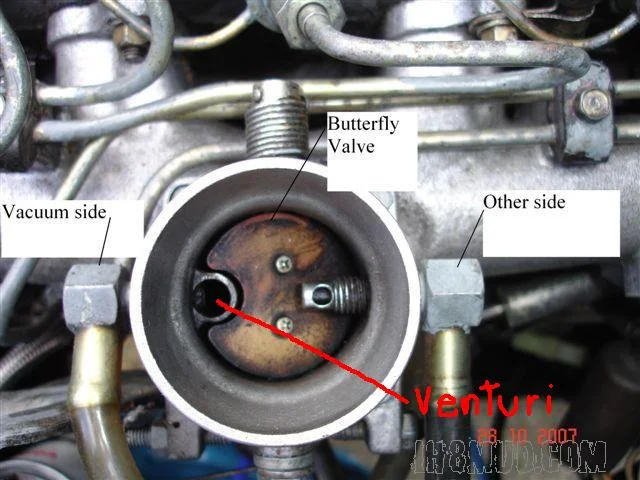

And here is a photo that helps explain what I was rabitting on about. I welcome any comments pointing errors I may be still making.

Name:  butterfly.jpg
Views: 831
Size:  53.6 KB



PS. Ya never stop learning

__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
lostmarbles is offline   Reply With Quote
Old 03-01-08, 02:18 PM   #21 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046

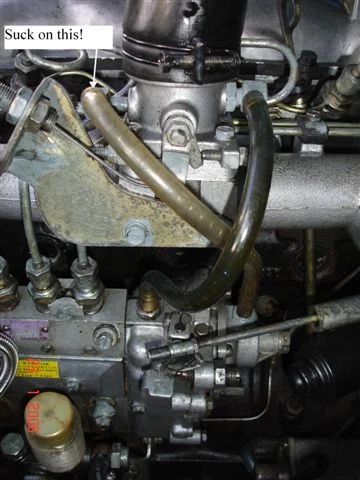

And here's another photo that would be a good addition to this thread and my earlier reference to "sucking on a hose" to test your diaphragm:

Name:  diaphragm1.jpg
Views: 858
Size:  54.6 KB


__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
lostmarbles is offline   Reply With Quote
Old 03-01-08, 10:57 PM   #22 (permalink)
250+ Club


RufusTheDufus's Avatar

Join Date: Jan 2008
Location: Maine
Posts: 836
Sucking might help if there's serious issues. A vacuum gauge is very helpful and far more accurate.

FSM provides a test for the diapgragm: put a vacuum gauge on it at 36.8 mmHg. It should take longer than 10 seconds to drop below 35.3 mmHg. My vacuum gauge isn't that sensitive but it's close enough to be able to see if there's a leak in the diaphragm.
RufusTheDufus is offline   Reply With Quote
Old 03-02-08, 08:42 PM   #23 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
Quote:
Originally Posted by lostmarbles View Post
And here's another photo that would be a good addition to this thread and my earlier reference to "sucking on a hose" to test your diaphragm:

Attachment 213419

Whatever you do - DO NOT remove the line on the right side in this picture while running. I did this once and the engine races to max RPM. I quickly shut it down, but it scared the crap out of me.
lynchmob is offline   Reply With Quote
Old 03-02-08, 09:42 PM   #24 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
Quote:
Originally Posted by lynchmob View Post
Whatever you do - DO NOT remove the line on the right side in this picture while running. I did this once and the engine races to max RPM. I quickly shut it down, but it scared the **** out of me.
The lines cross over each other so it is hard to tell which one you're referring to Lynchmob.

But I would think it must be the "vacuum" line that connects from the LH side of the intake-manifold-throat to the RH side of the diaphragm because removing that one would make the injector pump think your foot was "flat to the floor - and then some".

I don't think I'd be game to try that

__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........

Last edited by lostmarbles; 03-03-08 at 12:52 AM. Reason: Added word "to" that I had left out by mistake
lostmarbles is offline   Reply With Quote
Old 03-03-08, 01:22 AM   #25 (permalink)
250+ Club


american psycho's Avatar

Join Date: Oct 2007
Location: switzerland
Posts: 369
Quote:
Originally Posted by lostmarbles View Post
the increased pressure drop across it
Trying to understand this phrase makes my brain hurt.

__________________
just did it!
american psycho

american psycho is offline   Reply With Quote
Old 03-03-08, 01:21 PM   #26 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
Quote:
Originally Posted by american psycho View Post
Trying to understand this phrase makes my brain hurt.
Sorry. I'm not too good at explaining things sometimes. My years spent in refrigeration/air-conditioning (where pressures/vacuums are studied in detail) probably means I've left stuff out of the explanation. Try this:

When the butterfly valve is wide-open, it is like a "wide-open tap" within a water pipeline. The pressure either side of the tap is roughly the same. But when the "tap" is closed - you normally have "supply pressure" on the upstream side and "little or no pressure" on the downstream side. So the valve "closing" has increased the "pressure-drop across itself".

So I was trying to say that closing the butterfly valve increases the pressure drop across the "venturi tube" and this forces a higher air speed through the venturi. (A higher pressure drop across a tap would force more water through it.)

A Venturi is also used in a paint spray-gun (where the "pot" hangs down below the gun). The air speed through the gun (when you pull the trigger) then sucks up the paint from the pot by means of the vacuum produced by the venturi. Pulling further on the trigger further increases the air speed and this further increases the vacuum/suction to suck the paint up faster.

In the air intake of a diesel engine the "supply pressure" is "atmospheric pressure" and downstream of the butterfly valve, the engines pistons and valves are together trying to pull a vacuum (below-atmospheric pressure).


My apologies - I used to teach in a polytech and maybe writing all this sh*t is just me "playing pretend" at being a teacher again. (I'm fully aware that I'm IGNORANT in comparison to many others who post on MUD.)

__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
lostmarbles is offline   Reply With Quote
Old 03-03-08, 06:34 PM   #27 (permalink)
Site Addict


rchalmers3's Avatar

Join Date: Jun 2007
Location: Playas de Nosara, Nicoya Peninsula, Costa Rica
Posts: 1,287
Quote:
Originally Posted by lostmarbles View Post
My apologies - I used to teach in a polytech and maybe writing all this sh*t is just me "playing pretend" at being a teacher again. (I'm fully aware that I'm IGNORANT in comparison to many others who post on MUD.)
I think you did a great job of explaining pressure differentials and how they are used. Thank you for your willingness to contribute. No more apologies needed!

Rick
rchalmers3 is offline   Reply With Quote
Old 03-04-08, 12:27 AM   #28 (permalink)
Kon
Forum Regular


Kon's Avatar

Join Date: Sep 2005
Location: Perth, Western Australia
Posts: 114
has anyone who has done this repair found there is a loss of power?

i did this repair and have noticed a small drop in power. As we all know, the 3b needs as much power as it can get!

__________________
Mine:
'83 BJ61
'84 FJ45

Dad's:
'82 FJ40LX
Kon is offline   Reply With Quote
Old 03-05-08, 02:41 PM   #29 (permalink)
Forum Lifer


lostmarbles's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
Quote:
Originally Posted by Kon View Post
has anyone who has done this repair found there is a loss of power?

i did this repair and have noticed a small drop in power. As we all know, the 3b needs as much power as it can get!
I was kinda hoping someone else would reply but since it has been a while since you posted this question Kon -----------.....................

I didn't experience any change (increase or decrease) either time I renewed my diaphragm. (Gosh I feel like a woman talking about an IUD )

If you are experiencing a loss of power immediately after having the diaphragm renewed - I would think something may have been done incorrectly - or perhaps the new diaphragm was of poor quality.

But if the loss of power is minimal - then I can understand that you may be unsure about whether it is worth delving into it. (I would be uncertain too.)

That's why I like doing ALL work myself. When I do it myself, I have a much better idea of what has gone wrong (if anything).



__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981

A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
lostmarbles is offline   Reply With Quote
Old 03-05-08, 10:14 PM   #30 (permalink)
Diesel Trucker


lynchmob's Avatar

Join Date: Feb 2007
Location: Portland OR - USA
Posts: 1,475
I wouldnt say I experienced a loss of power, but the engines I have done do have different power characteristics. They both just seemed to run better over the entire driving rpm range whereas before the diaphragm was changed there was probably a little quicker throttle response from start and between gears. I also had black smoke while there is none now.
Neither of the ones I changed were so bad that I had the high idle condition described by others. I suspect mine were just worn and stretched which allowed more movement and more fuel by moving the rack farther.

If you have a pyrometer maybe you could turn your fuel up a bit to get some power back?
lynchmob is offline   Reply With Quote
Reply

Bookmarks


Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


LinkBacks (?)
LinkBack to this Thread: http://forum.ih8mud.com/diesel-tech-24-volts-systems/182948-3b-diaphragm-replacement.html
Posted By For Type Date
Offroad-Express • View topic - dam diesel This thread Refback 04-17-09 01:43 AM
Offroad-Express • View topic - dam diesel This thread Refback 10-02-08 05:54 PM
Outer Limits 4x4 Board :: View topic - 3b high idle, slow rpm drop issue This thread Refback 09-29-08 02:16 AM
Offroad-Express • View topic - dam diesel This thread Refback 08-01-08 03:48 AM
Mon Diesel boucane Noir... tu vois la boucane sur 300 pied - www.quebec4x4.com This thread Refback 06-23-08 04:56 PM
Mon Diesel boucane Noir... tu vois la boucane sur 300 pied - www.quebec4x4.com This thread Refback 06-23-08 09:37 AM
Offroad-Express • View topic - dam diesel This thread Refback 02-20-08 12:01 PM
Offroad-Express • View topic - dam diesel This thread Refback 02-18-08 07:03 PM







All times are GMT -7. The time now is 10:01 PM.


vBulletin® v3.8.4 ©2000 - 2009, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.3.1
Clubs, Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
©2000-2009 by IH8MUD Inc. - ALL RIGHTS RESERVED


Thanks to all those who have contributed!
One of the largest message boards on the web !
