Old 11-08-07, 10:32 PM   #511
IH8MUD Lifer

Join Date: Jun 2007
Location: Being stalked by 2 hillbillies
Posts: 1,382
Quote:
Originally Posted by AJ60 View Post
Rhino, thanks for that link came in real handy. I still might need to get the 4bd1t engine manual because my engine is dated 10/85 and the turbo housing is in a different place which is where all my question are coming from. I have to do a little work on this motor because its spent all its life on Kodiak island (cosmetic wise). The good thing is that the motor only has 39K original miles (purres like a kitten) and I got it at a really good price so I guess a little elbow grease will pay off at the end. I think I am leaning more on the Chevy NV4500, its cheaper than the H55 but better than having the H42.
There are 3 different turbos that I know of.
A wastegated IHI-RHB6. My 85 year engine had one of these fitted. Good turbo but hard to get parts for.
A wastegated Garrett T25. Like bigfoot, I've seen blurry photos and individual parts but don't know where to find one.
A freefloating T25 (as per Rhino's engine) which bolts up to a T3 flanged exhaust manifold.

The freefloating T25 is the latest of the three and is the same turbo used on the 4BD2. I'm currently running a wastegated T25 (from a nissan 1.8l petrol engine) on mine with excellent results. Gives me 10psi boost before 1500rpm and delivers 19psi at 2000rpm if needed.


__________________
VOODOO Engineering: Doing it first time with one clay doll, not four times with two.
Dougal is offline   Reply With Quote
Old 11-09-07, 09:26 AM   #512
IH8MUD Lifer

euclid's Avatar

Join Date: May 2002
Location: Jackson, MS
TLCA# 13014
Posts: 2,913
Quote:
Originally Posted by RHINO View Post
i just noticed that were over 500 replies and 23 thousand views, is that some kinda record??
Gotta be a record for the most theoretical thread ever.


__________________
Greg Thompson
CottonLand Cruisers
00 Camry: Stock 5SFE - 27 MPG
89 FJ62: OME 2.5, 2" BL, Superior shackles, F250 towers, 315 BFG KM2's on zj80 wheels, Extreme A440, FF,4:88,RDB,longs,ARB front,Lockright rear,Warn XD9K in Rover AL bumper, Wildernes Roofrack, Marlin Sliders, SROR 1/4 sliders.
euclid is offline   Reply With Quote
Old 11-09-07, 10:14 AM   #513
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by euclid View Post
Gotta be a record for the most theoretical thread ever.
RHINO has one running!


__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-09-07, 12:40 PM   #514
IH8MUD Lifer

euclid's Avatar

Join Date: May 2002
Location: Jackson, MS
TLCA# 13014
Posts: 2,913
Quote:
Originally Posted by astr View Post
RHINO has one running!
that makes 1


__________________
Greg Thompson
CottonLand Cruisers
00 Camry: Stock 5SFE - 27 MPG
89 FJ62: OME 2.5, 2" BL, Superior shackles, F250 towers, 315 BFG KM2's on zj80 wheels, Extreme A440, FF,4:88,RDB,longs,ARB front,Lockright rear,Warn XD9K in Rover AL bumper, Wildernes Roofrack, Marlin Sliders, SROR 1/4 sliders.
euclid is offline   Reply With Quote
Old 11-09-07, 02:06 PM   #515
IH8MUD Regular

theSherpa's Avatar

Join Date: Dec 2003
Posts: 344
ASTR and I looked at that...search for our posts. The backside of the AW450 has the same bolt pattern as the A440F, so the A440F's transfer case adapter would likely bolt up, BUT the A440F's output shaft is different length, diameter and spline count than 2WD AW450. *Maybe* an A440F's output shaft would swap in to the AW450, that's something he was hoping to investigate (he had the AW450, I had the A440F). Used A440F output shafts usually have heavily worn splines, so that's a factor when looking to junkyard this dealio. A440F's are also same bolt pattern on the front side, so you could conceiveably do a bellhousing swap to put the A440F/transfer behind the 4HE1, but not only is the A440F input shaft different, but nobody thinks a stock, used A440F is going to hold up to a 4HE1 even if you ignore the high stall of the A440F's torque converter. And building up an A440F wouldn't be cheap.

And I have no idea how similar an A440F's transfer case is to an HF2AV...

Does seem like it could likely work with a custom AW450 output shaft, to me, if the A440F's output shaft would not swap into the AW450.

If I misspoke at all in any of the above, please holler, as I'm a bear of very little brain.

Steve

Quote:
Originally Posted by alaskacruiser View Post
Hi everyone- looks like I'm late to the game here, but I just finished reading up on this thread. I've been considering an Isuzu diesel swap for over a year now, but did not have enough info. This thread answered a lot of questions.

Is anyone looking into this config for an FZJ80:
Engine: Isuzu 4HE1
Tranny: AW450
Transfer Case: existing HF2AV (FZJ80)

It seems to me this might be the easiest swap because:

1. it does not require an adapter from engine to tranny (although it may require one for the HF2AV transfer case)
2. for those of us in CA, we must obtain an engine with a build date equal to or newer than the vehicle it is going into for it to be legal, which narrows it down to the 4BD2 or the 4HE1

But has anyone looked into the basics of this config like clearance issues, etc? Has Rodney from Wholesale Automatics in AU responded to the questions about the AW450? Does he offer an extreme tranny rebuild on the AW450?


__________________
TornadoAlleyCruisers
theSherpa is offline   Reply With Quote
Old 11-09-07, 02:21 PM   #516
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by theSherpa View Post
ASTR and I looked at that...search for our posts. The backside of the AW450 has the same bolt pattern as the A440F.......
I have both the AW450 and a A440F transmissions in my possession. My intent is to do a side by side comparison of the two with hopes of combining parts from both to come up with a hybrid that will allow a 4HE1 to be mated to the TLC split t-case. I have great intention, just haven't had the time. When I do get to it, I'll post results.

The AW450 was never availble with the 4BD1/2 engines therefore this will be of little help for those looking to swap in a 4BD1/2.


__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-09-07, 02:24 PM   #517
IH8MUD Lifer

alaskacruiser's Avatar

Join Date: Mar 2003
Location: LA, CA
Posts: 1,286
theSherpa and astr- thanks for the info!

I was looking into the transfer case compatibility issue earlier in terms of A440F w/ an HF2AV and here is what I found:

http://forum.ih8mud.com/80-series-tech/147536-a440f-tranny-w-hf2av-tc.html

So it looks like one tranny option is a hydraulic A442F from Rodney at Wholesale Automatics. I will have to followup with him and find out about A440F compatibility with the HF2AV.

User lagwagon also said he would look into this since he has/had an A440F and HF2AV out to compare so I just PM'd him about it.

Hope this helps!


__________________
Ex-'93 LC Owner; Now w/ '97 LX, no lockers. Bought 7/02 stock w/35k mi. Now at 101k mi w/ARB bar, OME 850/860, Revo 285s, SS brake lines, Silicone PHH, Breather Ext, PCV Catchcan, CDL, ScanGauge2, Alpine GPS/VehicleHub, Aux Fan, landtank-fanclutch-mod, Slee Speedo, Mobil 1. Soon: sliders, TJM locker

Last edited by alaskacruiser; 11-09-07 at 02:41 PM.
alaskacruiser is offline   Reply With Quote
Old 11-09-07, 04:11 PM   #518
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by alaskacruiser View Post
theSherpa and astr- thanks for the info!

I was looking into the transfer case compatibility issue earlier in terms of A440F w/ an HF2AV and here is what I found:

http://forum.ih8mud.com/showthread.php?t=147536

So it looks like one tranny option is a hydraulic A442F from Rodney at Wholesale Automatics. I will have to followup with him and find out about A440F compatibility with the HF2AV.

User lagwagon also said he would look into this since he has/had an A440F and HF2AV out to compare so I just PM'd him about it.

Hope this helps!

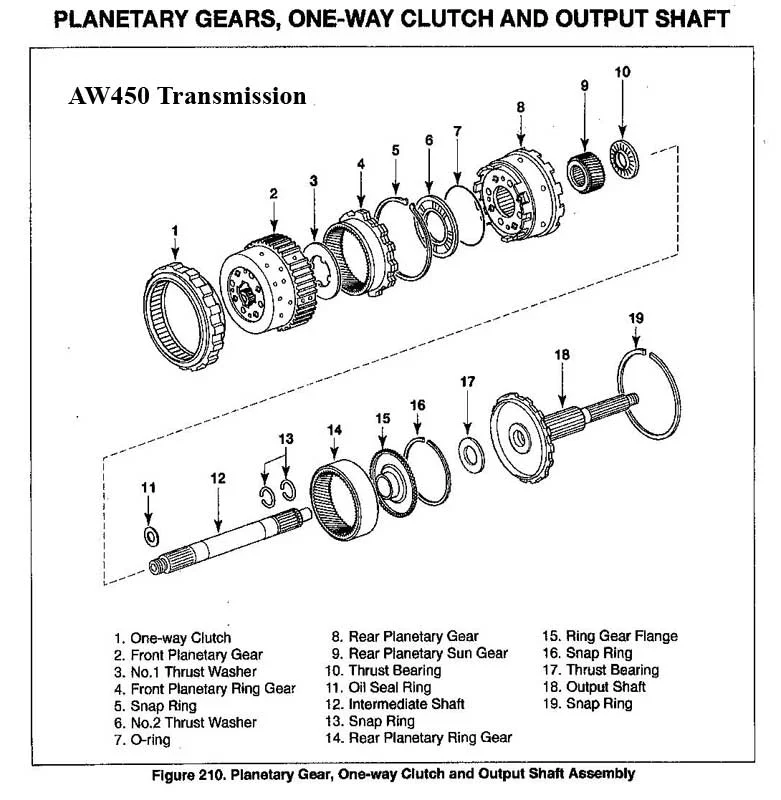

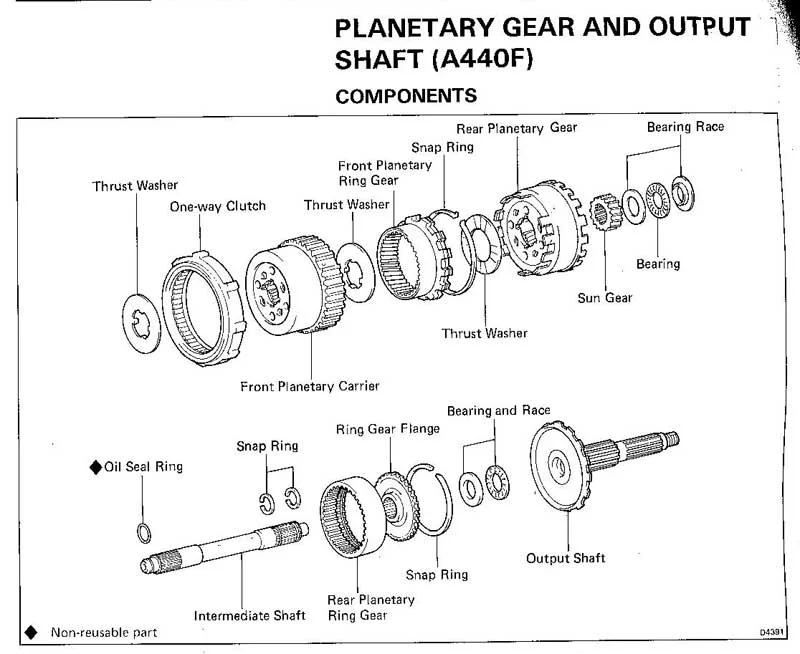

Just looking at pictures in the FSM, it looks like the output shaft configurations on the A440F and the AW450 are very similar so it might be feasible to swap them. I don't have any information on the A442F. Here are the FSM pictures for the A440F and AW450 transmissions:
Attached Images



__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-09-07, 04:13 PM   #519
IH8MUD Rookie

Join Date: Jul 2007
Posts: 14
Quote:
Originally Posted by Dougal View Post
There are 3 different turbos that I know of.
A wastegated IHI-RHB6. My 85 year engine had one of these fitted. Good turbo but hard to get parts for.
A wastegated Garrett T25. Like bigfoot, I've seen blurry photos and individual parts but don't know where to find one.
A freefloating T25 (as per Rhino's engine) which bolts up to a T3 flanged exhaust manifold.

The freefloating T25 is the latest of the three and is the same turbo used on the 4BD2. I'm currently running a wastegated T25 (from a nissan 1.8l petrol engine) on mine with excellent results. Gives me 10psi boost before 1500rpm and delivers 19psi at 2000rpm if needed.
Yep, my turbo be the first one IHI-RHB6. Your right about it being pretty hard to find parts for. Dougal, are you running the free floating T25 on your 85' 4bd1 currently? If so, what type of mods did you have to do to use it?
AJ60 is offline   Reply With Quote
Old 11-11-07, 05:57 PM   #520
"rust never sleeps"

79fj40moneypit's Avatar

Join Date: Oct 2006
Location: CT.
Posts: 780
I just spent a bunch of time reading this thread, I would like this in a 60 also it should be a nice setup, I have driven a NPR and they go pretty well, I even considered putting one in my chevy box truck in place of the 6.5 (after I blew the second one) but the emmisons and computer would need to work so I passed. but in a 60 it should br great. especially if it didn't need a lift.


__________________
pat

79fj40 rebuild and 3B diesel conversion
85 fj60 gasser
00 Chevy 6.5 td 14' van
03 Camry
79 triumph T140
70 triumph T120Rt

"It's a dogs life" aren't we all just dogs anyway?

falfiles#19313FAL STG58 Aint no poodle shooter
79fj40moneypit is offline   Reply With Quote
Old 11-12-07, 12:26 AM   #521
IH8MUD Lifer

Join Date: Jun 2007
Location: Being stalked by 2 hillbillies
Posts: 1,382
Quote:
Originally Posted by AJ60 View Post
Yep, my turbo be the first one IHI-RHB6. Your right about it being pretty hard to find parts for. Dougal, are you running the free floating T25 on your 85' 4bd1 currently? If so, what type of mods did you have to do to use it?
I'm running a wastegated T25 at the moment. It's originally off a Nissan CA18DET petrol motor. Has 0.49 A/R exhaust housing for very quick spool.
I have some boost at 1200rpm, 10psi by about 1400rpm and 19psi before 2000rpm.

It goes very well.


__________________
VOODOO Engineering: Doing it first time with one clay doll, not four times with two.
Dougal is offline   Reply With Quote
Old 11-13-07, 06:11 PM   #522
IH8MUD Regular

andrew.fletcher's Avatar

Join Date: Jan 2006
Location: Fort Leavenworth, KS
Posts: 263
Can someone confirm vehicle weight on a '93 16' Isuzu box truck. I could only find one listing on line which gave it a weight of around 12-16,000 lbs. I'm looking at one that will need to be trailered so I've got to find a truck/trailer combo that can handle it.


__________________
1972 BDJ55-T Resto Mod 4BD2T/4L60
http://forum.ih8mud.com/fj55-iron-pi...resto-mod.html
1989 FJ62 Daily Driver / Family Car
1976 MGB w/ 2.8L Chevy and T-5. Lots o' fun
andrew.fletcher is offline   Reply With Quote
Old 11-13-07, 09:24 PM   #523
IH8MUD Lifer

Join Date: Jun 2007
Location: Being stalked by 2 hillbillies
Posts: 1,382
Quote:
Originally Posted by andrew.fletcher View Post
Can someone confirm vehicle weight on a '93 16' Isuzu box truck. I could only find one listing on line which gave it a weight of around 12-16,000 lbs. I'm looking at one that will need to be trailered so I've got to find a truck/trailer combo that can handle it.
Cab chassis is about 2500kg for the NPR59. The bodies aren't factory and can vary a lot.


__________________
VOODOO Engineering: Doing it first time with one clay doll, not four times with two.
Dougal is offline   Reply With Quote
Old 11-14-07, 08:06 AM   #524
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by andrew.fletcher View Post
Can someone confirm vehicle weight on a '93 16' Isuzu box truck. I could only find one listing on line which gave it a weight of around 12-16,000 lbs. I'm looking at one that will need to be trailered so I've got to find a truck/trailer combo that can handle it.
I have a 94 NPR 16' diesel box truck with automatic transmission and no lift gate. There is no weight on the title but an empty weight of 8,050 is placarded on the side of the truck. As Dougal pointed out, the weight can vary a lot depending on who made the box and what options there are. However, this shoulld give you a good ball park number. The 12-16,000 lbs is most likely the maximum gross weight.


__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-17-07, 12:28 AM   #525
IH8MUD Regular

andrew.fletcher's Avatar

Join Date: Jan 2006
Location: Fort Leavenworth, KS
Posts: 263
Astr and Dougal-
Thanks for the correct weights. I've decided to part it in place and drop the scrap off at a local scrapyard.

Well it's taken me 6 months+ to find one but I finally got my Isuzu diesel. It's a 4BD2T that was torn down for a rebuild then never quite put back together. After sitting out in the elements for 3 years it had to be torn down again, gaskets replaced and should be ready to go in my FJ55 in a couple of weeks. Now I just need a tranny behind it.

This brings up question 1. Can I use this transmission with an adaptor to either the transfer case that's in the 55 or the TC that I have from an '85 FJ60? It's an automatic which is what I'm looking for.

Since I bought the whole truck I'm trying to figure out what all I should take off of it either to use on mine or try and sell. The truck itself is a lost cause. Even though there's no damage and it's only got 67k on it, it sat unregistered for 3+ years so the back fees on it make it un-appealing in one piece.

Parts I think I need that aren't on the engine:
Intercooler

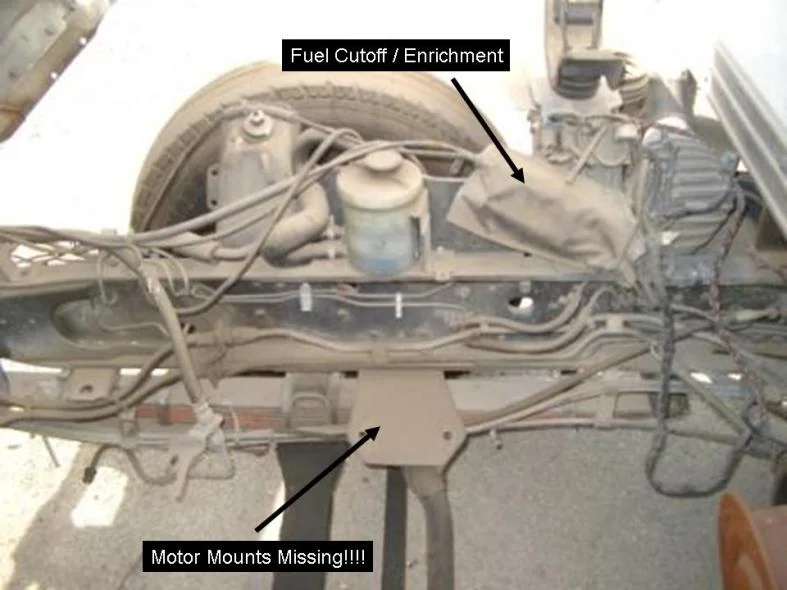

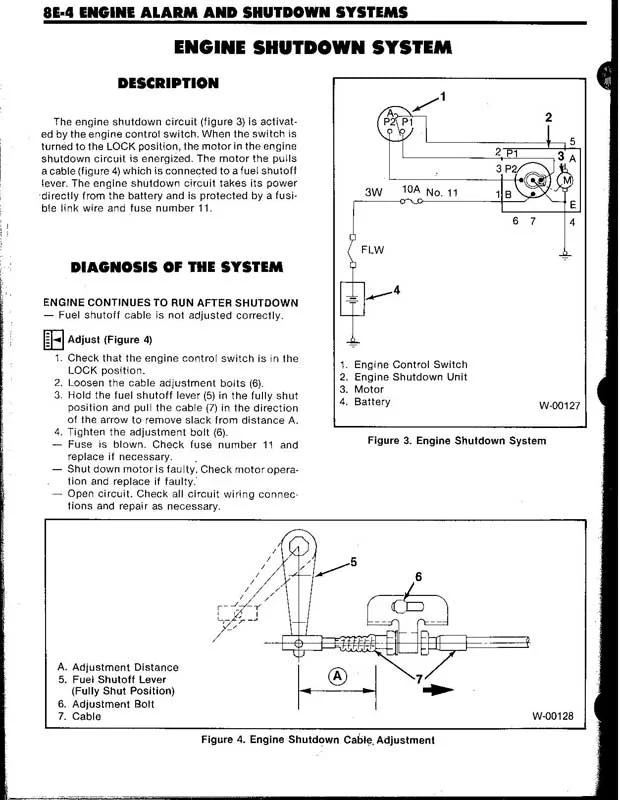

Fuel shut off/enrichment motor/cables
Tranny- see above
Fuel/water separator
Radiator?

If anyone else had one they parted out, what's worth taking off to try and sell?
Cab-no damage
16' box
Power steering box
Brake calipers
What else???? It's about a 6 hour drive to where it's at, so I'm driving down, getting what I need then having the rest towed down the street for the scrap metal.

Drew


__________________
1972 BDJ55-T Resto Mod 4BD2T/4L60
http://forum.ih8mud.com/fj55-iron-pi...resto-mod.html
1989 FJ62 Daily Driver / Family Car
1976 MGB w/ 2.8L Chevy and T-5. Lots o' fun
andrew.fletcher is offline   Reply With Quote
Old 11-17-07, 10:50 PM   #526
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by andrew.fletcher View Post

.... Parts I think I need that aren't on the engine:
Intercooler
Fuel shut off/enrichment motor/cables
Tranny- see above
Fuel/water separator
Radiator?...
Drew
If it came with an exhaust brake (vacuum-activated butterfly valve downstream from the turbo) get that as well as the associated solenoids. Get the vacuum reservoir and get the engine shutdown/enrichment motor assembly. It should be mounted on the right side frame rail and connects to the injection pump with one or two cables. It probably is enclosed in a white plastic bag. Also consider getting all the electrical harness with the connectors intact. It is a lot of work to pull it but you'll be glad you have it when you begin the install into your 55. If the truck came with an automatic transmission and your are considering using it, be sure to get the transmission computer and the associated wiring harness.

My philosophy has been to pull anything that might possibly be useful. If you don't use it, you can always throw it away later. If you need it and have to buy it latter, it will probably cost a bunch.

Seems that the biggest hangup that everyone has encountered with this swap is the lack of suitable engine to transmission abapters or Isuzu transmission to Toy t-case adapters. RHINO has successfully installed a 4BD1 in his 55 using the Isuzuswapper adapter. I don't remember which tranny he used but it is posted somwhere here on MUD.

Good luck and keep us posted as to your progress.


__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-18-07, 12:57 AM   #527
IH8MUD Lifer

Join Date: Jun 2007
Location: Being stalked by 2 hillbillies
Posts: 1,382
In addition to ASTR's comments, get the gear lever and clutch master/slave cylinders.

I'd also take the entire air intake system (cleaner, hose connections etc. They may be too big for what you need, but it's worth checking.


__________________
VOODOO Engineering: Doing it first time with one clay doll, not four times with two.
Dougal is offline   Reply With Quote
Old 11-18-07, 07:31 AM   #528
IH8MUD Regular

andrew.fletcher's Avatar

Join Date: Jan 2006
Location: Fort Leavenworth, KS
Posts: 263
My original plan was to go with the Isuzuswapper adapter which according to the website can use 200R4, 700R4, 4L60 and 4L60E automatic transmissions. Since I now have the transmission, I'm wondering if it will hold up. The challenge will be to either find an adapter or have one made for the transfer case. I don't plan to wheel it real hard so it may work for me.
You're right Astr, I think I'm gonna pull as much stuff off of it as I can or at least as much as will fit in the garage. I'm quickly running out of space as I keep getting more parts and haven't actually put anything on the truck yet! The biggest challenge for me is figuring out what's what. I never saw the engine in the truck and some parts were in storage, in the cab and in the back. What I really need is some diagrams.

I checked out Rhino's when I was in Phoenix last month, what a great ride! He's running the Isuzu adapter with an R150.


__________________
1972 BDJ55-T Resto Mod 4BD2T/4L60
http://forum.ih8mud.com/fj55-iron-pi...resto-mod.html
1989 FJ62 Daily Driver / Family Car
1976 MGB w/ 2.8L Chevy and T-5. Lots o' fun
andrew.fletcher is offline   Reply With Quote
Old 11-18-07, 10:57 AM   #529
IH8MUD Lifer

RHINO's Avatar

Join Date: Dec 2003
Location: valley of the sunstroke, AZ
Posts: 2,791
andrew, a handfull of us here can prolly identify everything, pop a few pics or something and we can get ya all sorted.


__________________
75 BDJ55 soy cruiser
01 TACO got salsa ?
RHINO is offline   Reply With Quote
Old 11-20-07, 12:47 AM   #530
IH8MUD Regular

andrew.fletcher's Avatar

Join Date: Jan 2006
Location: Fort Leavenworth, KS
Posts: 263

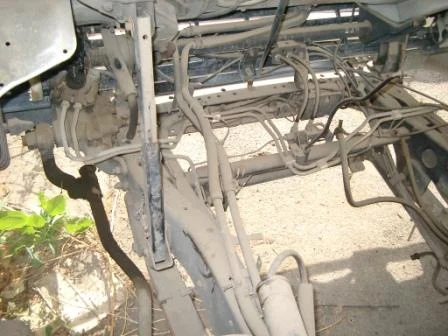

I took a few photos but not nearly enough of the underneath. Any help much appreciated. Looks like I've got a little bit of time before I head back down there again.
Attached Images



__________________
1972 BDJ55-T Resto Mod 4BD2T/4L60
http://forum.ih8mud.com/fj55-iron-pi...resto-mod.html
1989 FJ62 Daily Driver / Family Car
1976 MGB w/ 2.8L Chevy and T-5. Lots o' fun
andrew.fletcher is offline   Reply With Quote
Old 11-20-07, 07:55 AM   #531
IH8MUD Junior

astr's Avatar

Join Date: Jan 2006
Location: Michigan/Costa Rica
Posts: 173
Quote:
Originally Posted by andrew.fletcher View Post
I took a few photos but not nearly enough of the underneath. Any help much appreciated. Looks like I've got a little bit of time before I head back down there again.
Yes, that is the Fuel cutoff/enrichment thang. The motor mounts might still be attached to the motor.


__________________
Stock FJ62
SOA Samurai Tintop
Ford E-350 4x4 Diesel
M-29 Weasel
astr is offline   Reply With Quote
Old 11-22-07, 10:24 AM   #532
IH8MUD Rookie

Join Date: Oct 2006
Location: park city UT and Heber City UT
Posts: 63
isuzu to 4l60 to toyota transfer case

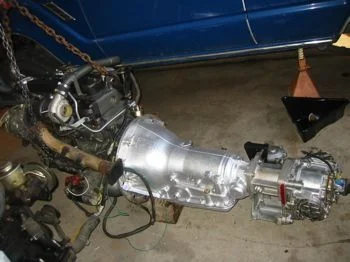

got the isuzu diesel, 4BD1T mounted up to a rebuilt 4L60 using the isuzu diesel swappers, then an AA adapter to the toyota transfer case. It all went to together really fast, it is amazing what you can do if you throw some money at it!

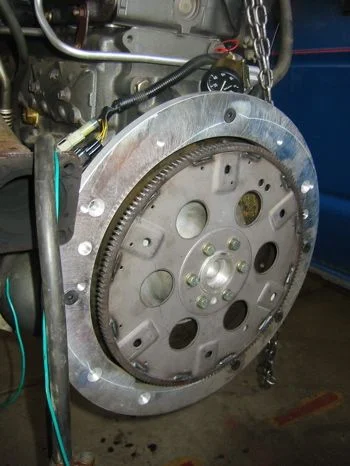

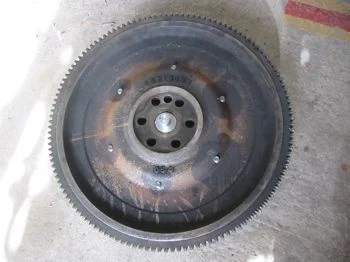

got the flywheel drilled by a machinist, so that I could attach the IDS spacer.

4L60 trans is a heavy duty K case transmission, with a custom converter for big torque low stall. the output shaft was replaced with the 2WD shaft, provided by the AA kit, so that it worked with the adapter and split case TC.

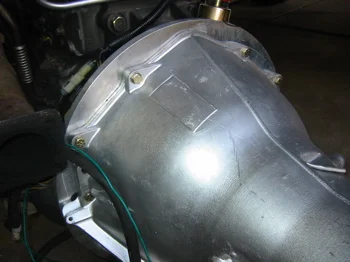

install flex plate, and adapter ring, and the 4L60 mounts up cleanly.
Attached Images

88tlc is offline   Reply With Quote
Old 11-22-07, 10:30 AM   #533
IH8MUD Rookie

Join Date: Oct 2006
Location: park city UT and Heber City UT
Posts: 63
Diesel Train for the FJ62

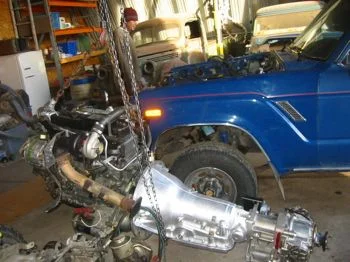

another few pictures of the Diesel Train!

4bd1T -IDS - 4L60 - AA - TLC splitcase transfer case.

some details I would love some input on.
Attached Images

88tlc is offline   Reply With Quote
Old 11-22-07, 10:37 AM   #534
IH8MUD Rookie

Join Date: Oct 2006
Location: park city UT and Heber City UT
Posts: 63
dieseltrain in the FJ62

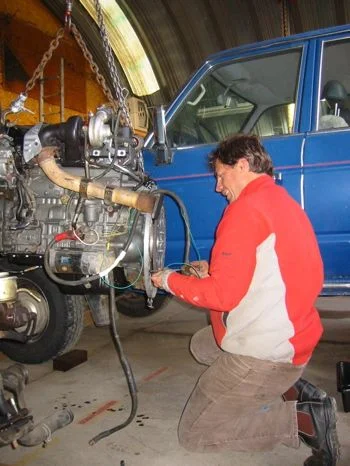

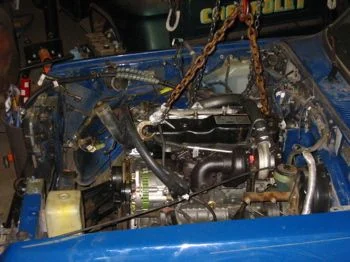

we slid the whole thing into the FJ62, and it really fits pretty good.

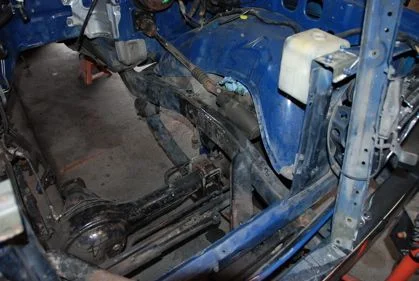

the rear crossmember looks like it can bolt into the same location saving some removal and remounting, and reusing the existing driveshafts.

the motor mounts will be fabbed up from scratch, using a ford mount shown.

plenty of room in the front of the engine.

good clearance on the starter, turbo is a little close to the brake assy but I think will be okay

the pan to pumpkin clearance is perhaps 3 or 4 inches. I have OME lift that I will install to help some of the clearance, but as it sits now without the engine weight on the frame it seems pretty good.
Attached Images

88tlc is offline   Reply With Quote
Old 11-22-07, 10:40 AM   #535
