Members Rigs

petescoffee · 08-18-06, 08:21 AM

Post up your pictures of your Rigs and the Specs

Here is the link from the PMC web site to rigs that have been posted on the PMC Web Site
www.pacificmountaincruisers.com/rigs.html

To attach a file (picture) to a new post, simply click the [Manage Attachments] button at the bottom of the post composition page, and locate the file that you want to attach from your local hard drive.

Only certain types of files may be attached: these are the valid file extensions for files to be attached to this forum: gif jpeg jpg.

After posting, the image attachments may display a thumbnail, depending on the forum settings. To view the contents of the attachment (if it is not already displayed) simply click the filename link that appears next to the attachment icon.

The picture file size is limited. Please see below. It is best to resize pictures before trying to post. If a picture will not upload, resize it smaller as 640 x 640 is the max JPEG. 600 on the width works well.

gif 48.8 KB 640 640
jpeg 87.9 KB 800 800
jpg 87.9 KB 800 80

petescoffee · 08-18-06, 10:46 AM

Owner: Dave Thomas (AKA Petescoffee), Walnut Creek, CA
Engine: 2F, Rebuilt w/Mudrak Cam Shaft, Head Shaved, Block Decked,
Bored .030 over, Downey Header and Flow Master Exhaust
Transmission: Stock 4 Speed
Transfer Case: Stock
Front Axle: 4.56 Gears, ARB and Longfield Inner Axles and Birfields
Rear Axle: 4.56 Gears, ARB and Poly Performance Axle Shafts
Suspension Lift: Sprung Under Skyjacker 4” with fitted leafs in the rear,
Man-A-Fre Shackles and Man-A-Fre 4+Plus U-bolt Flip Kit
Steering: MUDRAK IMPROVED- Shackle Reversal, Saginaw Steering and
4x4 Labs High Steer
Brakes: Front- Mini Truck Conversion; Rear- BTB Rear Disc
Tires: Trxus MT 35x12.5x15
Roll Cage: Decker’s
Sliders: Decker’s
Front Bumper, Fender Bar and Brush Guard: Decker’s
Rear Bumper, Tire/Cooler Carrier: Decker’s
Paint: Color- Toyota Color 2HT- Dark Green, PPG 5648
Painted by- Noguera’s Auto Body and Repair, Clyde, CA
Interior: Line-X
Storage: Tuffy Products

TRT2 · 08-21-06, 10:15 AM

1982 Toyota Hilux, Owners Cindy and Tony Twiddy, Healdsburg, CA
engine - stock tired 22R, w/ header, Rockstomper motor mounts and chain, Redwood radiator.
frame - front end boxed and reinforced with integrated shock mounts, 4x4 Labs
transmission - stock 5 speed
transfer case - single marlin crawler 4.7 w/ twin stick, Budbuilt cross member
front axle - 5:29 reverse cut hi-pinion with Detroit, Original longfields (folks were laughing)
rear axle - later style wide housing, 5:29s, Detroit
Suspension - 4" lift Alcan springs, custom long Alcans on rear, AOR BONZ shackles
Steering - Marlin Hysteer, IFS box tapped, Hydro assist ram
Tires - 36" swamper w/ Trail Ready beadlocks
Roll cage - entire truck is a roll cage, VooDoo built
Sliders - part of roll cage truck, VooDoo built
Storage - rear bed maintained when cage built, important to carry your own gear.
paint - rattle can black and primer gray.
Fright bars for Cindy with handle grips and bicycle bell
20lb CO2 air, Big Red air compressor,

Future mods - dual cases, engine rebuild, 8K winch on front, early style rear axle housing, CB

link to a photo of my truck... http://tlca.org/pow/

dtrain · 10-13-06, 05:46 PM

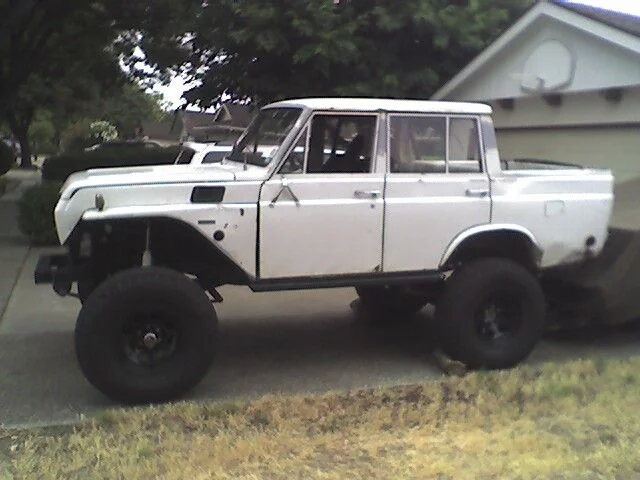

Owner: Damon Moss (south san jose)

2000 miles on a sbc 350, 4bolt main, HEI
new ram horn manifolds
Eldebrock intake
Eldebrock quadrajet (new)
dual exhaust
Dual jaguar fans
4core aluminum radiator

rebuilt sm465
ott adapter to clocked dual mini cases (first case is 23 spline)
Flat belly with FROR crossmember.
SOA
shackel reversal
F/R outboard stocck 55 springs & Conferr shackles (ALLs in rear)
D44 front, highsteer, 1 3/8" tie rod & draglink threaded with 7/8" x 3/4" FK heims. 4.10 Lincoln
2003 or 04 Tundra rear, factory limited slip. 4.10
37" x 12.5 on BFGs on 17 blk rock crawlers

Scout saginaw P/S
square tube front shaft
rear cage
8k Ramsey winch
PRP seats in front.
Red top optima.
final crawl: 140:1
refurb gastank
new electical
lights

First Trip - SNT 06 !!!

greenfox · 10-18-06, 10:32 PM

74 fj40 soft top s.o.a orion t/c

RubiRed · 03-04-07, 11:18 AM

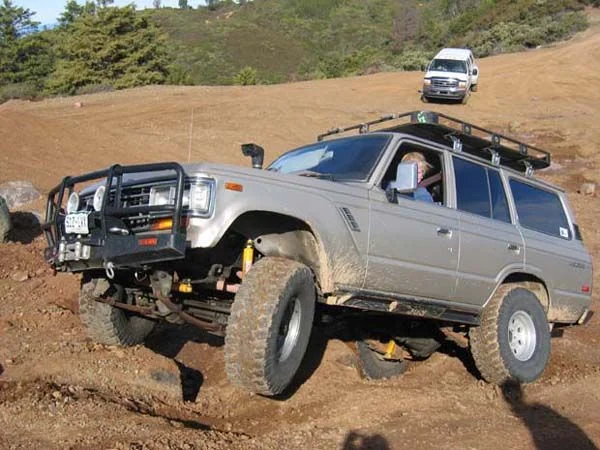

1989 FJ62
95 TBE bottom end
192 intake 64cc high flow Vortec heads
GM performance Vortec/TBI intake manifold
Ported and flowed throttle body with injector spacer and specialpolice interceptor injectors
Corvette HP center dump exhaust manifolds
4L60E tranny
NP203 reduction box mated to a stock splitcase
38 gallon gas tank
Extreme Air compressor
ARB Bullbar with Superwinch X9
Slee rear bumper and tire carrier
Slee sliders plumbed for air
OME heavy duty springs with extended 4" shackles
35" MT/r's
ARB in rear soon to be switched out to Detroit
Auburn up from soon to swiched out to Detroit
Chromo inners with Longfields
Thanks to my husband Joaquin for continually building up rigs for me while his sits in the driveway. Thanks to Brenda Ramsey for the picture. I'll see you on the trail! ~ Melissa

killer1954 · 03-04-07, 05:24 PM

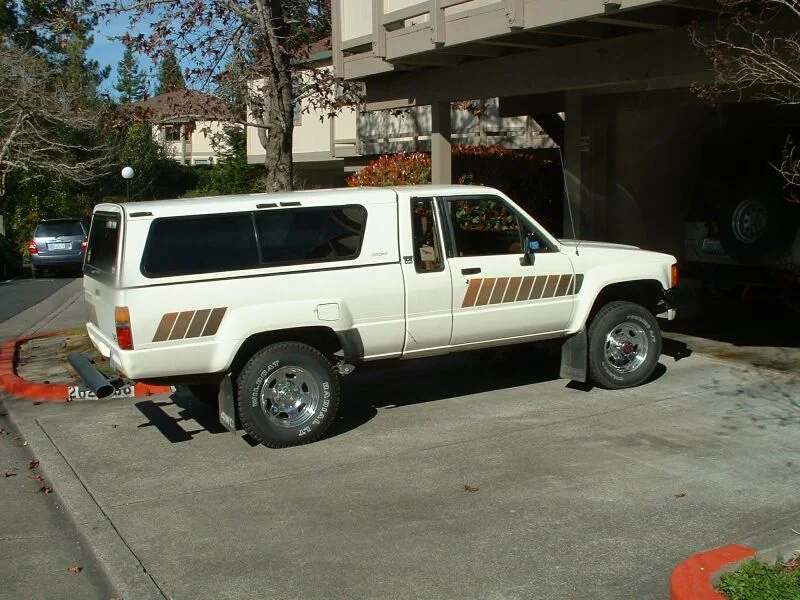

I just picked up this stock '85 SR5 pickup this weekend. Xtra Cab, EFI. The '74 FJ40 is still our baby, so gonna take some time to get around to upgrading anything on this thing. Now the kids have something to get on the trail with Dad. :-)

BB · 03-04-07, 07:54 PM

Cool ride Bob!

killer1954 · 03-04-07, 09:18 PM

Thanks Brian. Coming to McGrew this year? Who knows, maybe my kids'll drive the truck up hehehe. I'll keep my butt in the 40.

2ndGenToyotaFan · 03-04-07, 11:34 PM

He told me he was coming..... and that he was bringin' his 40!

My ride is an 89 4Runner named the James Caird. Read about the origin of the name here.

It has a 22R-E and a 5 speed and is pushing 291k now, but I have reason to suspect they engine and tranny have both been messed with at some point.

Tires are 33x10.5 BGF MT's.
1.5 inch lift.
Marlin 4.7 transfer case gears.
95 SR5 4Runner bucket seats.
Upgraded headlight wire harness and headlights.

I have a really nice bathroom... That's why I dont' have a locker, sliders, bumpers, and a winch yet........

killer1954 · 03-05-07, 07:12 AM

I remember your 4runner well Jerod. I came pretty close to buying one myself because of it. But a straight axle 4runner is rarer than my 85 pickup.

2ndGenToyotaFan · 03-05-07, 10:12 AM

That's a sweet truck Bob! My Dad has 2 84 longbeds..... one is on blocks now..... And the front axle will eventually end up under my 4Runner.

I had an 86 short bed, but I have a thing about being able to sleep inside my vehicle.......

BB · 03-06-07, 12:07 AM

Hey Jerod and Bob,

I'll be at McGrew in the 40. Just scored some gently used (Rubicon once) 2.5" lift springs tonight off craigslist so after the repair of the oil leak from the speedo housing, they'll probably go on.

Pics to follow....

Still thinking about that 84 xtra cab in SoCal I told you about Jerod. Must convince the wife.

2ndGenToyotaFan · 03-06-07, 12:26 AM

Try "We don't have a Toyota from the 80's...." Brian

BB · 03-06-07, 08:00 PM

I just did, she shook her head and laughed.....

jammindubs · 01-04-08, 02:41 AM

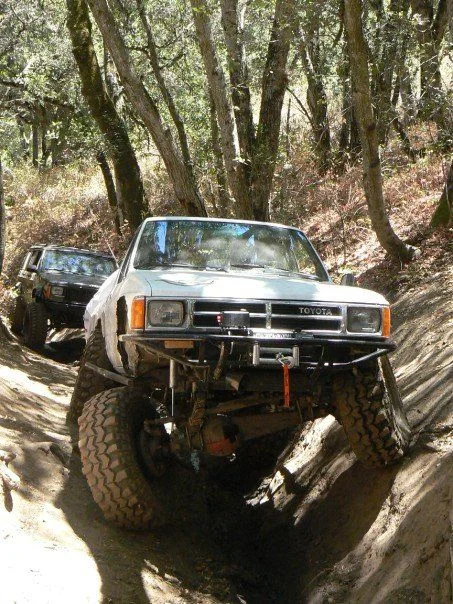

Benjamin Smith, Lafayette and Rohnert Park(SSU Campus)
Registered 1985, but who knows what year Mini Truck
5.5'' SAC lift, springs de-arched 2"
chevy 63's rear no block with the oribal shackles
bilsteins all around
22re, 5 speed, marlin duals
36 swampers
5.29 arb front and rear
longfields 30 spline
kick a$$ michael's diff armor specially painted red
custom bumpers and sliders
custom sawzall fender elimination
milemarker winch
professional spray can paint and eyes

2ndGenToyotaFan · 01-04-08, 10:59 PM

Nice ride Ben! Why are you being spotted in that pic? Seems like more of a "Point and shoot" kind of truck....

jammindubs · 01-05-08, 03:10 AM

Quote:

Originally Posted by 2ndGenToyotaFan

Nice ride Ben! Why are you being spotted in that pic? Seems like more of a "Point and shoot" kind of truck....

haha your pretty much correct the truck just about drives itself. as i recall i had slipped into the ditch after pulling my friends dad forward with the strap you see on the tailgate. gf got to endure some new pucker factor from the mini truck lean

rondu · 01-06-08, 12:16 AM

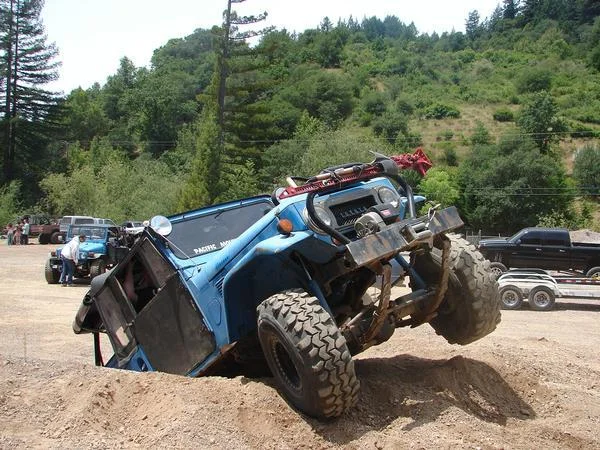

my 40 at fun day 2007 Name: l_0ce62fa288785be715668e9b5e42a57f.jpg
Views: 227
Size: 71.6 KB

2ndGenToyotaFan · 01-06-08, 12:48 AM

Ron's good side....

rondu · 01-06-08, 04:28 PM

jerod if you have any mor pic of me can you send them to me thanks
