Light Modifications - For FAQ

Post them up. Any lighting modification that you feel is worth sharing:

Underside lights for night wheeling.
other auxileray lights
back-up lights
turn signal modifications
George's LED Lights

someone who has switched out their headlights for the brighter beams, please post that with what the advantages are.

As usual, keep the commentary to a minimum

Thanks,

Romer and reffug

__________________
Ken Romer ~ K0ROM
04 UZJ100 - Lifted, Locked, Armored with other toys
97 LX450 - ROTW Thread - Sold
77 FJ40 - ROTW - Sold and now living in Texas
02 Kimberley Kamper
09 BMW Z4 sDrive30i
Romer is offline   Reply With Quote
Old 04-16-06, 09:53 PM   #2
Mickldo
Addict



Mickldo's Avatar

Join Date: Feb 2006
Location: Maryborough, QLD, Aust.
Posts: 1,025
A cheap headlight upgrade for Aussie spec cruisers (and other quad headlight models) is to replace the standard sealed beams with H4 and H1 inserts. With mine I went to the local wrecking yard and got some Nissan Urvan (yeah I know, I know) headlights for $15 ea. These bolted straight in to the standard headlight buckets. I used Narva Plus 50 bulbs in the H4 12V55/60W and H1 12V55W sizes. The standard wiring was used with the exeption of the wiring plug adaptor doo-hickey for the outer high/low bulb wiring. All that is needed is to remove the doo-hickey adaptor and plug the wiring loom directly onto the bulb. Sorry I don't have pics of this as it was done many years before I found MUD.

__________________
90 HZJ80 GXL, DTS turbo, 285/75R16 MTR's, 4" OME, Safari snorkel, ARB airlocker, ARB bullbar, ARB dual pivot rear bar, dual batts, etc.... SOLD

99 HZJ105R GXL 285/75R16 Bridgestone 673's, 2" OME, Safari snorkel, dual batts, etc

99 DR650SE Hoey suspension, Safari 30L fuel tank, Pro taper bars, etc
Mickldo is offline   Reply With Quote
Sponsor 04-16-06, 10:14 PM
Sponsored Link
advertisement
Old 04-16-06, 10:14 PM   #3
Mickldo
Addict



Mickldo's Avatar

Join Date: Feb 2006
Location: Maryborough, QLD, Aust.
Posts: 1,025
As 80s don't have a rear cargo light I fitted a fluro to provide light for getting bourbons out of the Engel. I used a Narva 87340 fluro.

http://www.narva.com.au/Truck-Trailer_31.html

The install was pretty staightforward. In fact I fitted my light, bought my lunch and ate my lunch in my 40min lunchbreak at work. The wiring is tucked up under the headlining at the rear. I soldered and heatshrunk the connections then used stainless steel self drilling screws to attach the light to the roof. I screwed through the headlining about 35mm to right of the centre line of the vehicle.

Some links to cargo light install threads.
/80-series-tech/82720-cargo-light-photos.html
/80-series-tech/28622-rear-cargo-light-tieing-into-existing-wiring.html


Photo of my light.

Name:  cargolight1.jpg
Views: 4850
Size:  7.5 KB

__________________
90 HZJ80 GXL, DTS turbo, 285/75R16 MTR's, 4" OME, Safari snorkel, ARB airlocker, ARB bullbar, ARB dual pivot rear bar, dual batts, etc.... SOLD

99 HZJ105R GXL 285/75R16 Bridgestone 673's, 2" OME, Safari snorkel, dual batts, etc

99 DR650SE Hoey suspension, Safari 30L fuel tank, Pro taper bars, etc
Mickldo is offline   Reply With Quote
Old 04-16-06, 10:34 PM   #4
Mickldo
Addict



Mickldo's Avatar

Join Date: Feb 2006
Location: Maryborough, QLD, Aust.
Posts: 1,025
Some pics of my rocklights. These were just some cheapo 12V55W spots from Super Cheap Auto. The front one was attached to the topside of the bottom edge of the ARB bullbar and the rear just above the rear crossmember. Both f & r were fitted centrally.

Name:  rocklights1.jpg
Views: 4807
Size:  8.7 KB

Name:  rocklight2.jpg
Views: 4791
Size:  6.9 KB

Name:  rocklight3.jpg
Views: 4809
Size:  9.3 KB

This setup works OK but would be better with some light in the centre of the vehicle. I'm thinking another pair of lights mounted to the g/box crossmember, maybe with one facing forward and the other facing back.
I wired these up to my aux battery but not through a relay. The switch is just a cheap Narva rocker switch fitted next to the cig lighter.

__________________
90 HZJ80 GXL, DTS turbo, 285/75R16 MTR's, 4" OME, Safari snorkel, ARB airlocker, ARB bullbar, ARB dual pivot rear bar, dual batts, etc.... SOLD

99 HZJ105R GXL 285/75R16 Bridgestone 673's, 2" OME, Safari snorkel, dual batts, etc

99 DR650SE Hoey suspension, Safari 30L fuel tank, Pro taper bars, etc
Mickldo is offline   Reply With Quote
Old 04-18-06, 06:39 PM   #5
TX_TLC
Addict



TX_TLC's Avatar

Join Date: Apr 2003
Location: Texas
Posts: 1,388

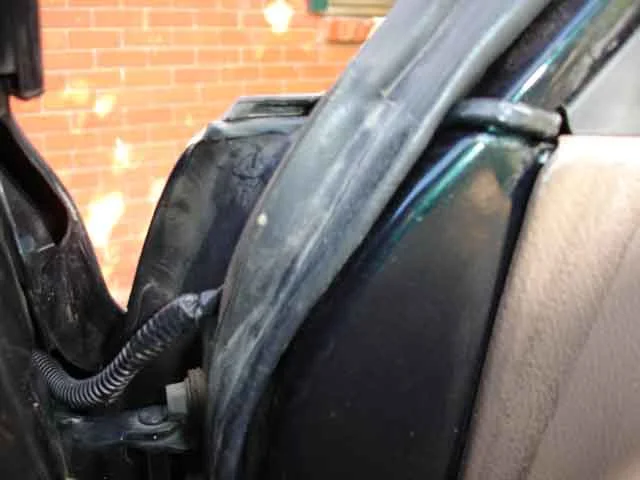

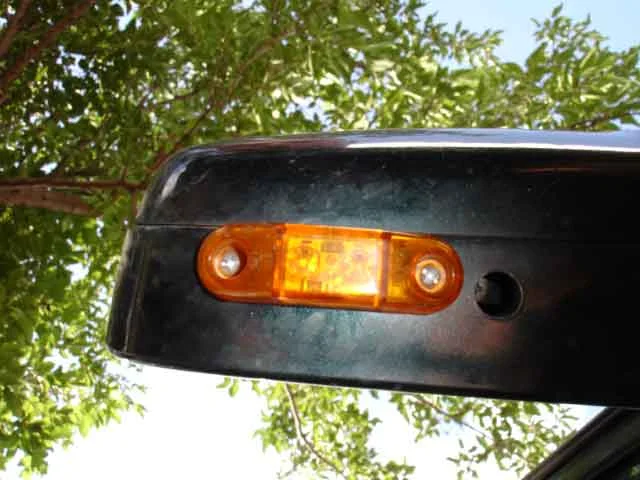

From the inspiration of T Y L E R (yikes ) I installed side blinkers on my mirrors. I used small L.E.D. amber marker lights from Wal Mart. It was the only place I could find small enough amber lights that would work. Installation was simple thanks to TYLERs thread. Simply tap into the wires from the front turn signal and route the wires back up through the mirror. I have been VERY happy with the added visibility of my turn signals. Before I did this mod, I turned my turn signal on and stepped to the side of my truck. It is AMAZING the area on the side of the truck in which you cannot see the signal flashing.

The nice thing with these L.E.D.s is the housing is completly sealed. So there is no way water can get to the connections. There are two small screws which hold them on to the mirror and I was able to retain full range of motion of the mirror.

The other picture shows the "short cut" wire routing. It cannot be seen at all when the door is closed.










__________________
1994 FZJ80, stock, emerald green, 175k
TLCA #14457
LSLC Member
TX_TLC ROTW

"We will know how long they last when the first one wears out."
TX_TLC is offline   Reply With Quote
Old 04-19-06, 07:03 AM   #6
TiredIronGRB
Addict



TiredIronGRB's Avatar

Join Date: Sep 2005
Location: Kingsport, TN
Posts: 1,283
This is a tractor fender light (Tractor Supply) that I use when winching at night so as to not run down the battery with the headlights.

Last edited by TiredIronGRB; 11-25-06 at 05:18 AM.
TiredIronGRB is offline   Reply With Quote
Old 11-24-06, 08:09 PM
Romer
This message has been deleted by Romer. Reason: Jerseycruiser posted it later so this became redundant
Old 11-24-06, 08:37 PM   #7
Romer
fatherofdaughterofromer



Romer's Avatar

Join Date: Sep 2003
Location: Centennial, Colorado
Posts: 9,104
Garage
Another one from Tch2fly, originall posted in this thread

Quote:
Originally Posted by TCH2FLY View Post
I have been wanting to improve the cargo area lighting in my 80. I have read all the threads and didn't find exactly what I was looking for. A few weeks ago while looking through my basement I found a set of low voltage lights designed to fit under cabinets. These are 12 volt/10 watt lights that use a transformer when run off household current. At a glance they appeared to be about the same size as opening for the cargo area speakers.

I pulled the cover off and discovered that except for a tiny lip the lights would slip into the cover nice and snug.

First step: pull the cover and remove the grill by bending the tabs on the backside. (I'm sure you could leave the grill and cut it out to fit the lights if desired)

Next using a dremel style tool or lots of elbow grease remove the lip inside the cover.

Push the light into the cover and fasten with screws.

I ran the wiring down the rear pillar and used power that I had already run to power my subwoofer. I chose to put the switch inside the old ashtray holder to prevent accidental activation. They are very bright and do a great job!
Pics of the install




__________________
Ken Romer ~ K0ROM
04 UZJ100 - Lifted, Locked, Armored with other toys
97 LX450 - ROTW Thread - Sold
77 FJ40 - ROTW - Sold and now living in Texas
02 Kimberley Kamper
09 BMW Z4 sDrive30i
Romer is offline   Reply With Quote
Old 11-25-06, 09:37 AM   #8
airlaird
Addict



airlaird's Avatar

Join Date: Jan 2005
Location: Dallas, Texas
Posts: 1,331
Damn Romer..very nice mod. Man I tried to pull that speaker cover off a few years ago...It never came out. Nice job.
airlaird
airlaird is offline   Reply With Quote
Old 11-25-06, 09:44 AM   #9
Romer
fatherofdaughterofromer



Romer's Avatar

Join Date: Sep 2003
Location: Centennial, Colorado
Posts: 9,104
Garage
Quote:
Originally Posted by airlaird View Post
Damn Romer..very nice mod. Man I tried to pull that speaker cover off a few years ago...It never came out. Nice job.
airlaird
Neither of those were my mods. If you look, you will see It is a qoute from another thread with the originators name. Just trying to keep things together.

__________________
Ken Romer ~ K0ROM
04 UZJ100 - Lifted, Locked, Armored with other toys
97 LX450 - ROTW Thread - Sold
77 FJ40 - ROTW - Sold and now living in Texas
02 Kimberley Kamper
09 BMW Z4 sDrive30i
Romer is offline   Reply With Quote
Old 11-25-06, 06:00 PM   #10
Bear80
Lifer



Bear80's Avatar

Join Date: Sep 2004
Posts: 2,898
Quote:
Originally Posted by airlaird View Post
Damn Romer..very nice mod. Man I tried to pull that speaker cover off a few years ago...It never came out. Nice job.
airlaird
On 95-97 the headliner must come down to remove the covers.

__________________
40th FZJ80 - Range Rover Recovery Vehicle
Alamo City Land Cruisers

-Benjamin-
Bear80 is offline   Reply With Quote
Old 11-30-06, 05:55 PM   #11
JerseyCruiser
250+ Club



JerseyCruiser's Avatar

Join Date: Jun 2006
Location: North Jersey
Posts: 513

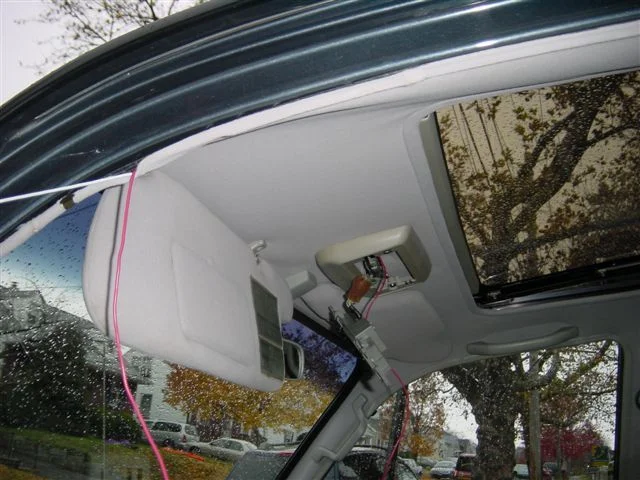

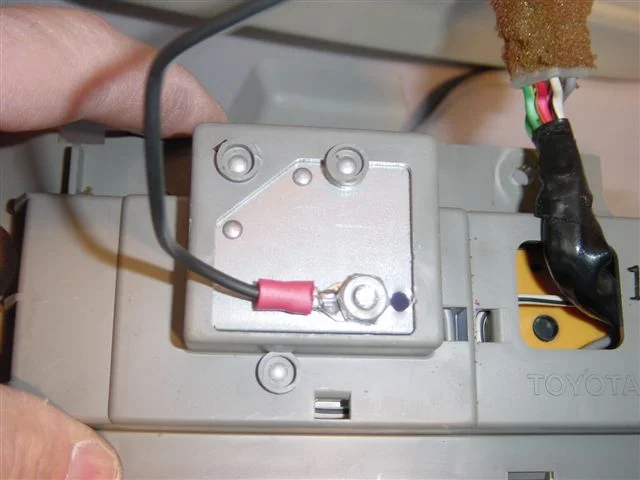

Front Map Light Modification

When I bought my Cruiser a year ago I was annoyed that when you open any of the doors especially the drivers door that the front map does not come on (FSM calls it "front personal light") I call it a map light. This became more annoying after installing George's LED's in all of the lights and having all that high powered light behind you and a darkened dash and front seats.

I did a mod to my 97 Tahoe when I bought it (can I say Tahoe in this forum?) same deal with dark front seats and figured it was time to fix my Cruiser as well. This is a very easy modification. All of the interior lights have constant positive voltage and illuminate when a ground path is provided by one of the door courtesy switches or by the switch on the lights themselves and same for the map light. What needs to be done is get a wire from the map light to one of the door switches or to one of the other dome lights. If you don't have a moon roof this is easily done by removing both lights in question and with a straightened out coat hanger snake the wire across the headliner. Be careful when poking around above the headliner with the hanger make sure you have made an eye at the end and taped it so it won't snag anything. Cdan has quoted prices of both suspended and molded headliners in excess of $1200.00 once again BE CAREFUL! I have the suspended headliner in my cruiser and this is what I did:

1- Remove weatherstrip from the both front and rear door on the DS (be careful at the top the headliner over the rear door may be stuck in the weatherstrip) and open up the map light.

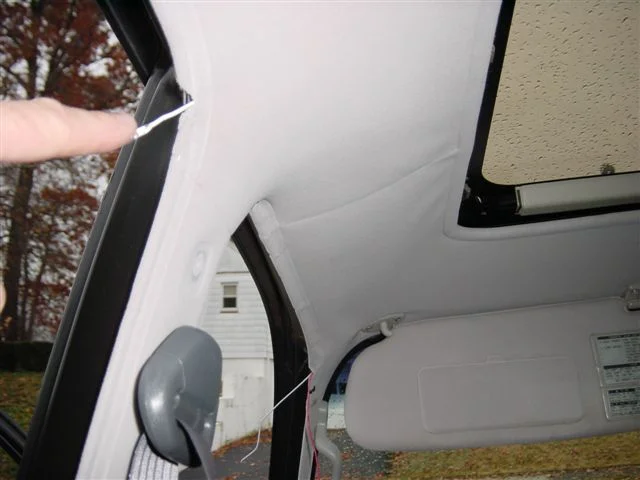

2- Peel back a small area of the headliner at the top of the DS A-pillar and pass you snake behind the map light attach your wire and pull it though.

3-peel back the headliner across the top of the rear DS door and snake your wire above the rear door.

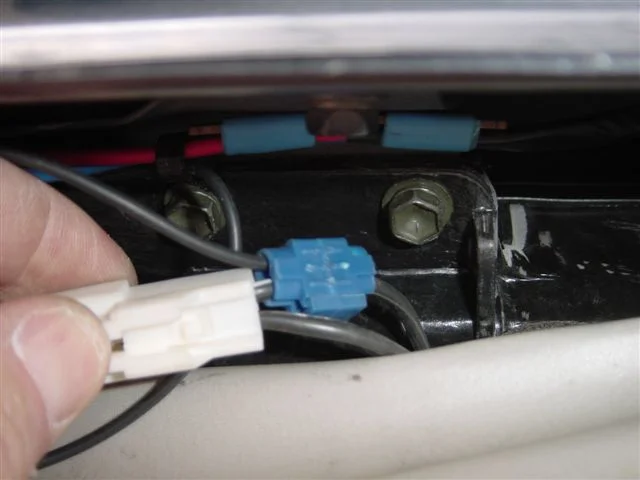

4- Above the rear door you will find a white plug that is next to the moon roof pan. Disconnect it for better acess and connect your wire to the black wire with the white tracer. I cheated and used a blue 3M T-tap crimp connector. The best way would be to solder and tape the connection but I did not want to risk tearing the headliner or burning a hole in it. Reconnect white plug and tie-wrap everything to so its not lying on the headliner. If this is being done at the dome light you would connect it to the same colored wire.

5-At the map light drill a hole in the heat shield and attach your wire as I did, and put everything back together you are done.

If you have a molded headliner I assume you could bring the wire down the B-pillar then to the door switch. Now when the doors open a ground path is provide by your jumper and lights the map light. An added bonus I discovered when testing it out was that when you turn on the map light manually it sends a ground path back to the other dome lights and lights them too. If you don't want this to occur you could block the ground path back feeding the other lights with diode. I think its great you have one switch control over all the lights like a domestic car!

Enjoy
George
Attached Images


__________________
1993 FZJ80 138,000 OEM rear locker, rear Slee bumper, Hanna Sliders, front ARB, Warn M12K, Lightforce 240's, Snorkel, OME 850/863, BFG AT KO 285’s, CDL with Pin 7 Mod, George's LEDs and more to come!
Gotham City Land Cruisers
JerseyCruiser is offline   Reply With Quote
Old 11-30-06, 05:59 PM   #12
JerseyCruiser
250+ Club



JerseyCruiser's Avatar

Join Date: Jun 2006
Location: North Jersey
Posts: 513
Front Map Light Modification

I posted this modification again because I didn't want the link to the original post to become inactive as it sometimes does and wanted to edit the post and add another picture.

George
Attached Images


__________________
1993 FZJ80 138,000 OEM rear locker, rear Slee bumper, Hanna Sliders, front ARB, Warn M12K, Lightforce 240's, Snorkel, OME 850/863, BFG AT KO 285’s, CDL with Pin 7 Mod, George's LEDs and more to come!
Gotham City Land Cruisers
JerseyCruiser is offline   Reply With Quote
Old 12-28-06, 09:53 AM   #13
wearsabrowncoat
250+ Club



wearsabrowncoat's Avatar

Join Date: Nov 2006
Location: LA - lower Alabama
Posts: 982
I just replaced the door lights with some LEDs from superbrightleds.com. I heard the 6-LED wedge base model would work (WLED 6-LED bulb) but I decided to give their other wedge base bulb a try (WLED 5-LED Wide Angle LED bulb). It only has 5 LEDs, 4 are radially mounted to give a wide angle of light and the center LED is a high flux LED that puts out a little more light. I figured this would give me the best of both worlds: wide angle and more light. The bulb worked and it apears slightly brighter than the stock bulb. It is hard to tell from the pictures but when I open the rear door I can see light coming from the door lights and that was never noticed before. The 4 lights cost $20.76 with shipping. They are the white bulbs so they cost an extra $0.95 each. Attachment 110955

Last edited by wearsabrowncoat; 12-28-06 at 10:02 AM.
wearsabrowncoat is offline   Reply With Quote
Old 12-28-06, 09:54 AM   #14
wearsabrowncoat
250+ Club



wearsabrowncoat's Avatar

Join Date: Nov 2006
Location: LA - lower Alabama
Posts: 982

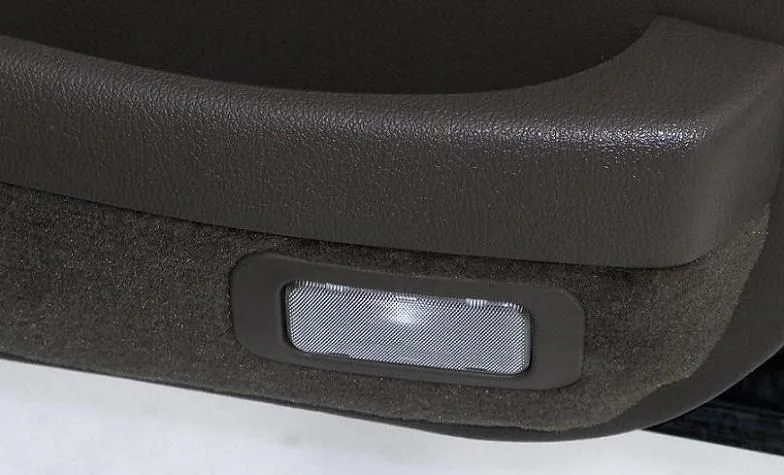

new light over old light.
Name:  New light.JPG
Views: 3739
Size:  62.1 KB
Attached Images


Last edited by wearsabrowncoat; 12-28-06 at 03:54 PM.
wearsabrowncoat is offline   Reply With Quote
Old 12-28-06, 10:02 AM   #15
wearsabrowncoat
250+ Club



wearsabrowncoat's Avatar

Join Date: Nov 2006
Location: LA - lower Alabama
Posts: 982

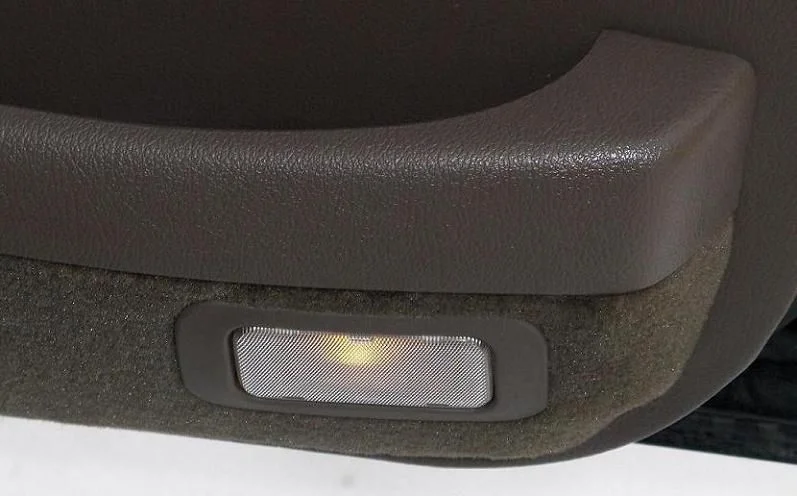

Old light
Attachment 110967
wearsabrowncoat is offline   Reply With Quote
Old 12-28-06, 10:06 AM   #16
wearsabrowncoat
250+ Club



wearsabrowncoat's Avatar

Join Date: Nov 2006
Location: LA - lower Alabama
Posts: 982

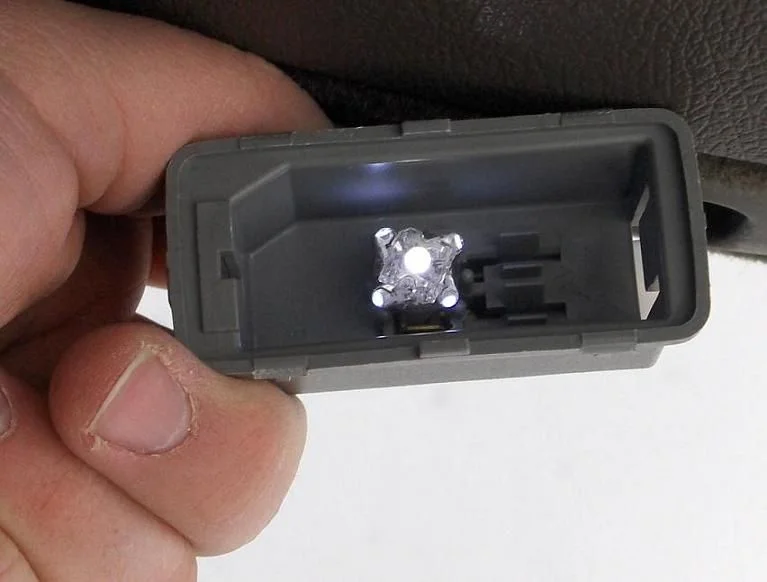

bulb
Name:  Bulb.JPG
Views: 3765
Size:  50.1 KB
wearsabrowncoat is offline   Reply With Quote
Old 12-28-06, 03:30 PM   #17
LandCrusher'70
Addict



LandCrusher'70's Avatar

Join Date: May 2006
Location: Sandy Eggo, CA
Posts: 1,918
Garage
That doesn't seem very bright to me. (The LED bulb, that is.)

__________________
'70 FJ40 'Land Crusher' Sold-
'71 FJ55 Stock!
'97 FZJ80 Modded DD

,ǝןɔıɥǝʌ ɹnoʎ oʇ ǝƃɐɯɐp ʎpoq ǝsnɐɔ ʎɐɯ ǝɯ ƃuıʍoןןoɟ,
LandCrusher'70 is offline   Reply With Quote
Old 12-28-06, 03:57 PM   #18
wearsabrowncoat
250+ Club



wearsabrowncoat's Avatar

Join Date: Nov 2006
Location: LA - lower Alabama
Posts: 982
It is slightly brighter than the original bulb. It is hard to tell with all the glare coming off the snow in the background. Looking at it in the picture the radial bulbs aren't reflected out very well. The 6 LED model might put out more light than the 1 high flux LED in this one but I am not sure. As it is I am happy, I'm getting slightly more light and the drain won't kill the battery if my boys don't close the door all the way (once I have George's overhead lights in that is).

Last edited by wearsabrowncoat; 12-28-06 at 04:04 PM.
wearsabrowncoat is offline   Reply With Quote
Old 08-17-07, 11:45 AM   #19
sandcruiser
Lifer



sandcruiser's Avatar

Join Date: Sep 2004
Location: Menlo Park, CA
Posts: 3,550
Garage
seems like you could get a lot more reflection by taking the bulb out of the housing and hitting it with some white paint. Or you could get more complicated and cut out an aluminum reflector of some sort (beer can= good source of thin aluminum)

__________________
91 j80 w/93 1HDT. OME 850+1"/860 & nchargers, LED domes, Full rack, HIRs, Pyro/Boost, -ACSD, Geolander MT's 33x12.50, Tuffy center, lightforce lights, body damage, Temp Gauge(M), OBA, ARB RR locker, blue fan, aux electric fan.
Now Selling Solar in CA, TX, AZ, OR, CO, MD, MA, NJ, PA, NY and DC. PM me!


Last edited by sandcruiser; 08-17-07 at 01:19 PM.
sandcruiser is offline   Reply With Quote
Old 08-18-07, 01:05 PM
Sponsored Link
advertisement
Old 08-18-07, 01:05 PM   #20
latinoguy
250+ Club



latinoguy's Avatar

Join Date: Sep 2006
Location: Tierra y Libertad
Posts: 853

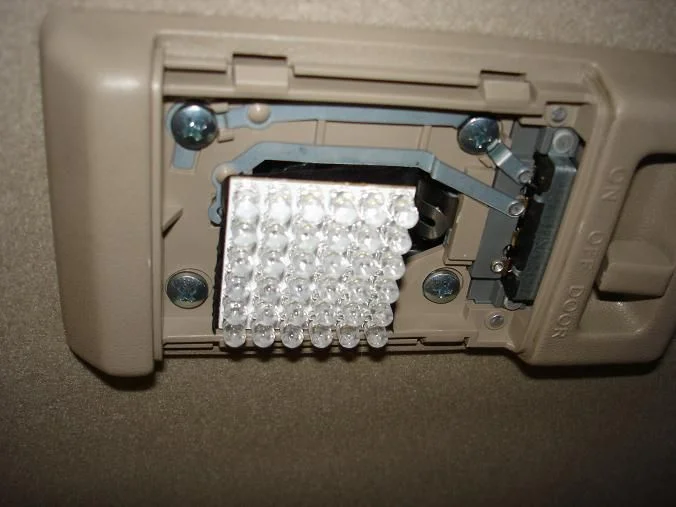

Don't forget heckler's DOME LED lights mod...here is the link...http://forum.ih8mud.com/showthread.p...&highlight=LED

The lights are 31" 36 led light array that can fit into the domes very easily.....I did this mod and very happy with the light quality for a cost of about $30.....
Attached Images


__________________
James
97 FZJ80, "La Mula," Expedition Vehicle. worthy mods: rear Aussie locker, dual batteries, 12v fridge, rack, 10K winch. lifted. 33" mud terrain shoes.
DD: 01 325I Sport Sedan with H&R Sport Springs and Bilstein Struts.
http://bohemianjsr.blogspot.com/
latinoguy is offline   Reply With Quote
Reply



Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump


All times are GMT -7. The time now is 10:58 PM.


vBulletin® ©2000 - 2013, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.3.2
Garage Plus, Vendor Tools vBulletin Plugins by Drive Thru Online, Inc.
©2000-2013 - Tie Rod Media, LLC - ALL RIGHTS RESERVED
