Old 04-09-06, 08:09 PM   #1
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
Rotw Brklyn1

Who

One day, on a fiendish wave of inspiration incited by this very forum, I singed up for ROTW week 4/10/06. Have you ever mailed a love letter, only to find out ten minuets after you have put your soul in the mail box, that you girl is cheating on you? You can’t get the letter back and reality has hit you with a bucket of ice water. I’m a rookie, a native New Yorker, a city mouse, no a Central Park squirrel trying to get a nut. Why did I sign up for ROTW?


After the shock wore off, I shifted gears to the realization that my rig cannot compete with the heavy hitters of past ROTWs, such as Manrigdude, NorCalDoug, White Shark and many, many others! Oh and lets not forget “Tired Iron GBR.” OUCH…holy shee-ites… his truck hurt us all. And all in good time maybe I will sign up for the “where are they now ROTWs.” Then I will have the portals, the sub tanks, hot and cold water and cable TV.


For now I will work the theory of relativity angle.In New York City my 33s look like 35s-maybe even 37s on some streets. My 3” OME like a Slee 6” kit.

I am a city slicker who has always played on the dirt, from my first BMX bike in 1979 to my mountain bike in 1983. Mountain biking brought me to my first off road experience at the 24 hour team endurance race held in Davis West Virginia (24 hours of Canaan). Good fun if you like being wet and cold, and you want to ride 2 hours in the stickiest mud in world in the middle of the night ( I did 6 years in a row). While down there, I was invited to sit in the back of a Jeep Cherokee that had no seats, two dogs, four other friends (also first timers, except for the driver), a cooler full of Coors Light and a big bag of ammo. The tales of that first day of wheeling the Black Water area of WV (before it was closed) are many and worth telling, but for now I will leave that for later, only to say I was hooked.


Hooked Bad! All I saw in my future were plans and schemes on how to get a 4X4. It took from June1992 till August 10th 1:30 PM 2004 until I got a 4X4(the day I got my locked ‘96). Now some may be crying for (or laughing at) me as it took 12 years to have a vehicle capable of off road exploration. But I think all in all I did good in that time. I read every 4x4 rag article I could and logged every mod in to a dream list of mods for my vehicle. With 20/20 hind site (that I did not use when I backed into a tree… more on that later), I realized I might have gotten myself into a Jeep earlier. But I think of all the misery, expense and time(in repairs) that it would have taken to get to a point where I would have gotten an 80. Even though I have been keen on 80’s forever, only recently have they become affordable.


I was ready for 4 months to make a move on an 80. In NYC and surrounding areas, buying a used car is well like buying a mail-order bride. You know what you want, but can’t think about what you are getting. From dealerships to private-party sellers, the hunt is one run around after another. Finally, after hovering over the internet for months, appears “1996 LC 101k $10,500 dark blue” 10-5 w 101k and lockers. Yeah right. What’s the catch? Despite suspicions of the price, I called, and to my surprise, I was the first to call. With a bag of cash I was off to CT to take a look at LC #12. Two hours later, a shiny, blue and new looking 96 with lockers rolls up. Can this be happening? I don’t see any smoke or dripping oil or hear any weird noises. Inside it looks 3days old. I stay calm. I access my photographic memory and read the Slee newbie guide in my head for the 365th time so I don’t make any major blunders. It looked too good to be true. Time for the test drive. Smooth, quiet and smells new (compared to my previous stinky 91 Jimmy 164k). Now with the owner in my clutches, and with all native New Yorker suspicions, I ask, “Why are you selling her?” (I already new she would be mine). “We are moving to Nashville.” (a good answer) Then the trip-up question: “How did you come up with the price?” (Listening with my spider senses on 11), he said his wife looked up the price on Kelly Blue book and then she subtracted a few hundred for the few minor dings and scratches(she must have blue booked the wholesale value and not the retail, as this was way under Galvis at the time). The test drive included a low range and locker test, both of which he said his wife never used (hence the stuck rear locker). With a hand shake I said Yes- $10,500.

Wow that was $4500 less than I had planned to spend, and I got me a genuine Connecticut soccer mom car. So I took the left over money and bought a T bill. Yeah right! On the way home I ordered my OME kit and BFGs, and I kept saying, “Now I am a Made man.”

I would say that since then, two things don’t add up. It seems to me that every time I get my next modification done, I am still always just halfway through the list. I will start with mods that are done and then I will talk of the day I get to drive my own car in Moab (I have rented Jeeps from Slick Rock Jeep a few times and done all the tourist spots, Fins and Things, Hell Revenge etc…) That said, from NYC to Moab and back will cost me $997 in gas alone. How to talk the misses into that one? For now with a great tip and tour from Lovey and Cruiserhead, now I at least have one decent spot just 35 minuets from Manhattan. Not that I haven’t found all sorts of things to throw a wheel up and over (unattended car carrier trailers, loading docks and even the occasional construction site).

I started with the standard OME 3” Js & Ls and steering, with SS lines and castor correction bushings

BFG AT 295/75-16s on the stock rims that I will soon have anodized or Powder coated black (it would have already been done had I not been distracted in the last five minuets of the EBay auction that let a set of 5 go for $102.95 !thanks guys for dropping by just then, really thanks)

Did my own drop block for the front and the rear sway bar drops. The rears have held up well
/80-series-tech/57426-mcmaster-rear-sway-bar-drops.html


Welded in the Slee front and rear DIY weld in panhard adjusters

Plugged in a CDL switch from Slee

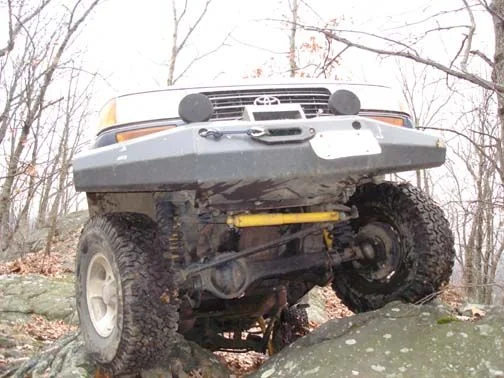

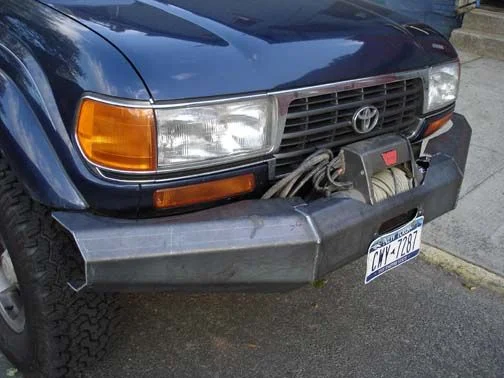

I picked up a used XD9000 for a song and started my bumper that I fabed up, in a long weekend /80-series-tech/57222-new-bumper.html

Installed my oem toy aux light switch ($70 ouch, since that pain in the wallet I have gotten hip to the Hella switch $7.50) and the Pia’s that my good friend Bluemax

Then after an incident on a pile of construction barricades I bent my rear control arms. So I fabed up this set up as seen on this thread (a thread that turned into a cat fight)
/80-series-tech/60801-4130-beef-mod-lower-controle-arm.html
and while I was at it I made a exhaust pipe guard – future slider mount /80-series-tech/63113-pancakes-breakfast.html

for my birth day last fall some great friends got me a Iron Pig skid plate. A great piece of mind to be had with that addition.

Then it was time to get my rear bumper and hopefully my sliders before the looming ROTW day. But then this happened /80-series-tech/78334-best-time-2-back-into-tree.html
A four weekend set back and big shot to the ego. I went for a 2 piece rear bumper it is fabed from 3/16 as is the front bumper.


I had a Stink Bug problem that I corrected with a little help from My CNC mill (brag, brag boast, boast. but really don’t get too jealous I still have to do all my work on the sidewalk, in Brooklyn). I ended up going with a 1” spacer. I may try to use a 1.5” some day, when I have the cash for a front drive shaft. I also have made my fair lead on the mill in both plastic and aluminum. I am using the plastic at the moment, but I may one day get one of the three extra aluminium fair leads I have, anodized to match my LC

The list of projects to be done as soon as I can,
1 Fix sticky rear locker, I am being a chicken shit about this one because I have to do it on the street in front of my shop
2 breather extensions for the transmition and TC (already did the axles)
3 Slee DIY upper control arm adjusters
4 sliders, that are some what under way
5 hard mount my compressor


Well now that I have made Charls Dickins sound short winded, I will get ready for a pelting of all the pro’s ?
Attached Images


__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust

Last edited by BRKLYN1; 04-10-06 at 07:15 AM.
BRKLYN1 is offline   Reply With Quote
Old 04-09-06, 08:30 PM   #2
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
more 1

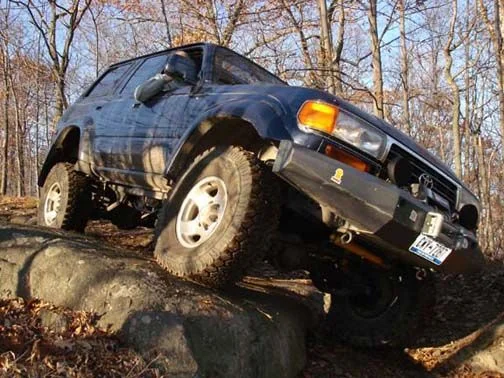

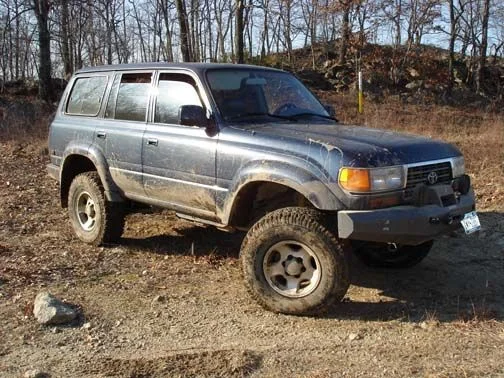

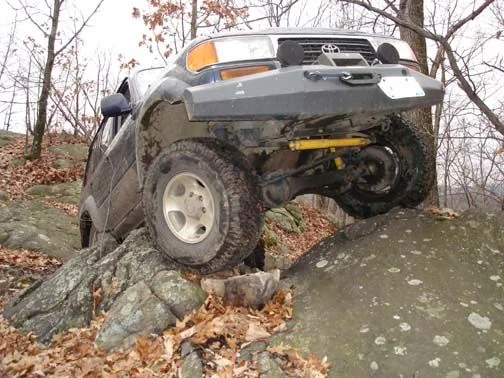

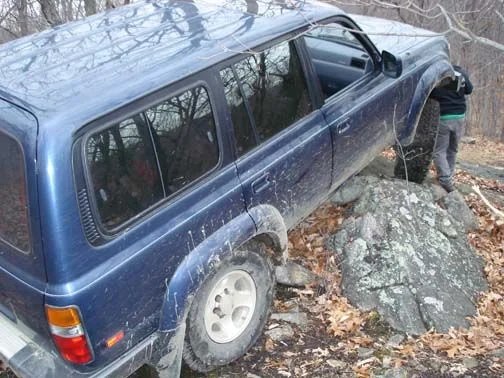

some pics
Attached Images


__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Sponsor 04-09-06, 09:11 PM
Sponsored Link
advertisement
Old 04-09-06, 09:11 PM   #3
Romer
fatherofdaughterofromer



Romer's Avatar

Join Date: Sep 2003
Location: Centennial, Colorado
Posts: 9,099
Garage
Nice story. Thanks for contributing

__________________
Ken Romer ~ K0ROM
04 UZJ100 - Lifted, Locked, Armored with other toys
97 LX450 - ROTW Thread - Sold
77 FJ40 - ROTW - Sold and now living in Texas
02 Kimberley Kamper
09 BMW Z4 sDrive30i
Romer is offline   Reply With Quote
Old 04-10-06, 01:47 AM   #4
topend yobbo
250+ Club



topend yobbo's Avatar

Join Date: Oct 2005
Location: Darwin, Northern Territory, Australia
Posts: 495
I dont think there are to many ''PRO'S'' on here , just people with the same interests.
I think thats a perfectly good wagon for your needs.My budget will never stretch to my imagination.
Looks good keep it up.

__________________
93 hzj80 Aussie spec cruiser with 9000 pound warn winch , old man emu suspension , engel fridge, ARB front & rear lockers,GME UHF 2 way and ARB compressor.
topend yobbo is offline   Reply With Quote
Old 04-10-06, 02:37 AM   #5
Mickldo
Addict



Mickldo's Avatar

Join Date: Feb 2006
Location: Maryborough, QLD, Aust.
Posts: 1,025
Looks good. Nice and clean and straight(compared to my POS). At least you've got lockers.Sensible mods for your needs, not over the top.

Good work

__________________
90 HZJ80 GXL, DTS turbo, 285/75R16 MTR's, 4" OME, Safari snorkel, ARB airlocker, ARB bullbar, ARB dual pivot rear bar, dual batts, etc.... SOLD

99 HZJ105R GXL 285/75R16 Bridgestone 673's, 2" OME, Safari snorkel, dual batts, etc

99 DR650SE Hoey suspension, Safari 30L fuel tank, Pro taper bars, etc
Mickldo is offline   Reply With Quote
Old 04-10-06, 06:07 AM   #6
TiredIronGRB
Addict



TiredIronGRB's Avatar

Join Date: Sep 2005
Location: Kingsport, TN
Posts: 1,283
Very good write-up, I still love that bumper.
TiredIronGRB is offline   Reply With Quote
Old 04-10-06, 07:17 AM   #7
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
I will post pictures tonight of the rear bumper that is half done

__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-10-06, 08:17 AM   #8
Walking Eagle
Lifer



Walking Eagle's Avatar

Join Date: Sep 2003
Location: Tulsa, OK
Posts: 3,143
Quote:
Originally Posted by TiredIronGRB
Very good write-up, I still love that bumper.
Ditto.... Just wish ya' had some build up pics on the bumper...

__________________
'97 LX450 - locked, Goodyear MT's 37x12.5 R16.5 , J's, RS9000XL 14" shocks, 3" front drop brackets, 1" body lift, FOR custom front bumper,
Owner fabed rotating slider steps, rear bumper / hitch, front and rear extended shock mounts, front spring spacers 1.375",
Walking Eagle is offline   Reply With Quote
Old 04-10-06, 09:39 AM   #9
Junk
Lifer



Junk's Avatar

Join Date: Dec 2002
Location: buggerville nj
Posts: 6,177
Hey BRKLYN1 - those pics look like up where Cruiserhead and Lovey go. Is it the same place?

Cool writeup.
Junk is offline   Reply With Quote
Old 04-10-06, 10:49 AM   #10
Beowulf
The quick brown fox .....



Beowulf's Avatar

Join Date: Mar 2003
Location: Somewhere in the foothills...
Posts: 12,517
Quote:
Originally Posted by topend yobbo
My budget will never stretch to my imagination.
Isn't that the truth!

-B-

__________________
97 FZJ80 - Locked, 315 GY MT/Rs, 4.88s, Slee 4", George's sliders, Slee bumpers, Warn M12000, OBA, Yaesu 7800, Outback drawers, INTI rack + other stuff.

Sometimes you find yourself in the middle of nowhere. And sometimes in the middle of nowhere, you find yourself.
Beowulf is offline   Reply With Quote
Old 04-10-06, 11:11 AM   #11
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
Quote:
Originally Posted by Junk
Hey BRKLYN1 - those pics look like up where Cruiserhead and Lovey go. Is it the same place?

Cool writeup.
Yes they took me there last fall. I hope to find (or get a lead) for some simaler places to go wheelin near NYC. Paragon ends up being an expensive and long day.

__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-10-06, 03:06 PM   #12
Turbo Turtle
Forum Regular



Turbo Turtle's Avatar

Join Date: Dec 2005
Location: up a creek
Posts: 122
sweet ride N.Y. still lotsa cool mods on a way gnarly rig.
maybe, if I ever grow up! I too may one day get to dress one out.
girl-friend type scored a 91' a coupla years ago, so no lack of enthusiasm exists here, just opportunity.
might have to get my own though as she might have issues with where I will want to drive it.
enjoy it while you can, and remember, off road to drive it like you stole it!!

__________________
74'FJ40-locked,lifted,winched,geared,tired & tore-up
84'ext Mini- ARB'd,lifted,geared,tired,tunes& not too tore-up. yet!
Turbo Turtle is offline   Reply With Quote
Old 04-10-06, 04:36 PM   #13
rockclmbr
250+ Club



rockclmbr's Avatar

Join Date: Oct 2004
Location: Bay Area
Posts: 598
First off, you have a "Blue" FZJ80, that beats all the mods out there IMHO

Second, you fab'd your own front bumper, not too many people can say that. Nice work!

__________________

2000 UZJ100 "Grey Ghost" - Outback Rack, Sliders, 285 Nitto Terra Grapplers, Norcal 80s Sticker


2010 Tear Drop Trailer - Next Project
rockclmbr is offline   Reply With Quote
Old 04-10-06, 05:38 PM   #14
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
rear bumper, half any way

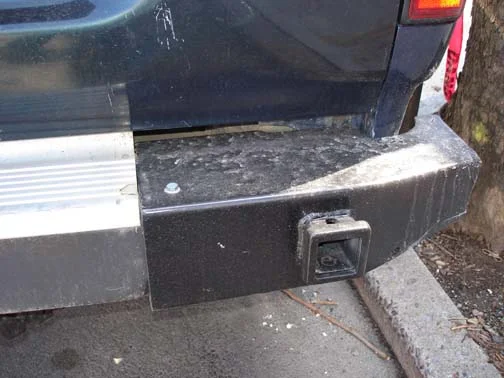

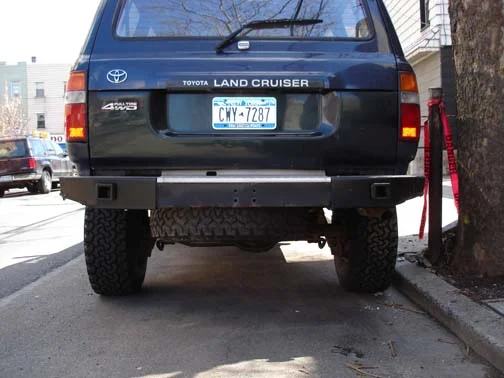

My rear bumper is only half done. Due to an incident with a rude tree, I got delayed. When done it will wrap around to the wheel well and bolt to the frame. The side mounted receiver hitches are for my bike rack for carrying me and my Down hill buddy’s rigs to the mountain.
Attached Images


__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-10-06, 05:46 PM   #15
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
Quote:
Originally Posted by Walking Eagle
Ditto.... Just wish ya' had some build up pics on the bumper...

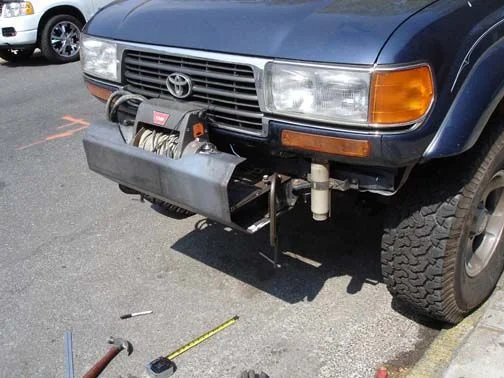

Here are some bumper build up pictures. Unfortunately I did not take more to document the steps. Next time it will do it on a water jet from a cad file instead of a jigsaw file.
Attached Images


__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-10-06, 06:00 PM   #16
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
Also before I get slack from my copilot here is a picture of him and his fastback 80 and pickup 70. I got him hooked on the top truck challenge series and he is no newbie to off-road facts and lingo.
Attached Images


__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-10-06, 06:31 PM   #17
notyourmomslx450
250+ Club



notyourmomslx450's Avatar

Join Date: Jan 2006
Location: Houston, TX
Posts: 894
Nice write up. I like the front bumper as well. BTW, how do those last two rigs do on the RTI?


__________________
-Jason
'85 4Runner- Geared, locked, bobbed, tired, fun.

'97 LX 450- It's a little wet right now. Still big.

'94 Xtra Cab P/U - 5.29s & Detroits F/R, SAS, Marlin Hysteer, 30 spline Longfield birfs and axleshafts, chromo hub gears, dual cases (2.28/4.7) w/ 10* rotated adapter, FROR dual rotated case xmember/skid, 12 " Bob, 37" MT/Rs

"I got the J==p thing, and now it burns when I pee."
notyourmomslx450 is offline   Reply With Quote
Old 04-10-06, 07:26 PM   #18
BRKLYN1
250+ Club



BRKLYN1's Avatar

Join Date: May 2005
Posts: 379
Funny you should ask, my son and I have been making Lego 4x4s for some time, we have been working on a set of playing cards much like top trumps playing cards (our British IH8MUD’ers will know what these are). One of the stats is lean angle, we actually have taken measurements. So to almost answer your question the black one can do 45 deg. and the red one 43 deg. We have 23 rigs so far, I think when we finish the set of cards we will post them for sale on the forum for all to play.

__________________
96 Locked 153K,305/70 GY Duratracks, custom bumpers, CDL, PIA's(front and rear),IPO skid plate, XD9000i w Amsteel blue. OME 3" Js & Ls, Slee diy panards,custom rear controle arms, lots of trail scratches. 7 pin mode, painted OEM rims. Metaltech rock sliders, rear sub woofer + ampEMS SS exhaust
BRKLYN1 is offline   Reply With Quote
Old 04-11-06, 02:23 AM   #19
reffug
Lifer



reffug's Avatar

Join Date: May 2004
Location: 'in dat der briar patch'
Posts: 3,931
Excellent write up, really enjoyed the story.

Thanks for contributing.

Oh and wheelin with cruiserhead, you better watch out he's not sane.......

__________________
"If it wasn't a Landcruiser and hadn't been built the way it was you do realize you would be DEAD." VA State Police Officer
reffug is offline   Reply With Quote
Old 04-11-06, 02:38 PM
Sponsored Link
advertisement
Old 04-11-06, 02:38 PM   #20
NorCalDoug
problems solved daily...



NorCalDoug's Avatar

Join Date: Oct 2003
Location: uhhhh...duh...Northern CA
Posts: 6,022
Sweet write up and a very nice rig!

I like the work you've done -- keep it coming


__________________
a couple pairs of pink panties...

Another convert to the Church of Latter Day Swank, a sub-cult of Shahrislam

"...Opportunity doesn't knock, you have to kick the fuckin door in and drag the bitch out screamin." -- Ullr
"I have more respect for people who change their views after acquiring new information than for those who cling to views they held thirty years ago. The world changes. Ideologues and zealots don't." - Michael Crichton
NorCalDoug is offline   Reply With Quote
