cargo light photos

loquito · 03-07-06, 03:17 AM

These are from a 94 LC

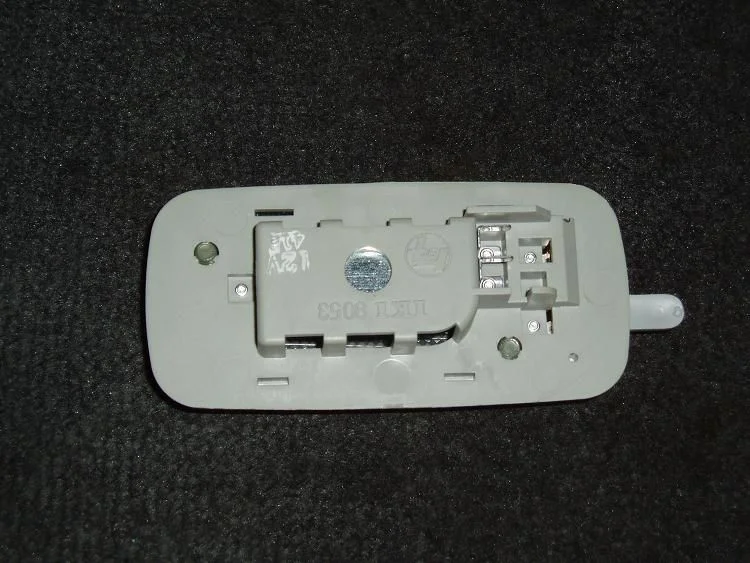

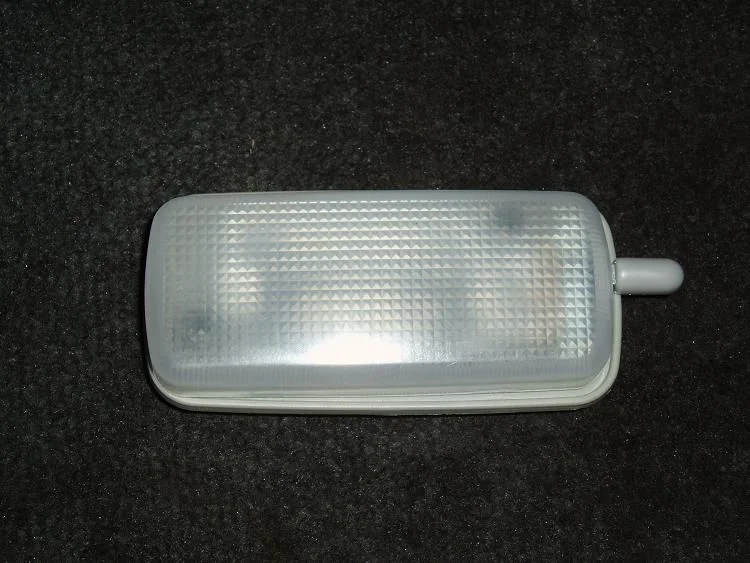

The cargo light is differant than all the other lights, it is smaller but does put out alot of light and lights up the cargo area well.

I just cut out a hole large enough for the rear protruding area to sit down in, The light is held up with two self tapping screws. The hole was cut with the little cut off wheels for a Dremel.

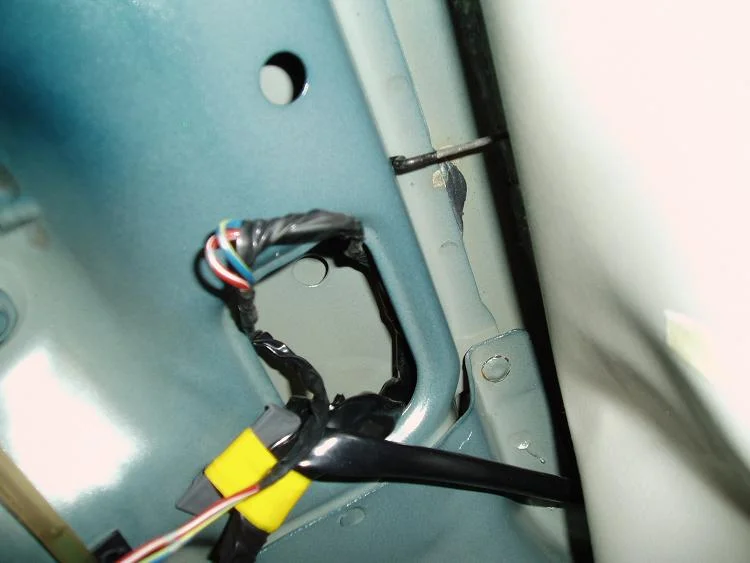

The 3rd pic is the recess in the upper corner on the drivers side, the wiring was behind the metal taped to the other wiring, Like Dan said in another post it extends to almost the middle of the roof line, perfect length for adding this light, pretty much plug and play.

It comes on manualy or with the rear hatch being opened and can be set to Off.

loquito · 03-07-06, 03:18 AM

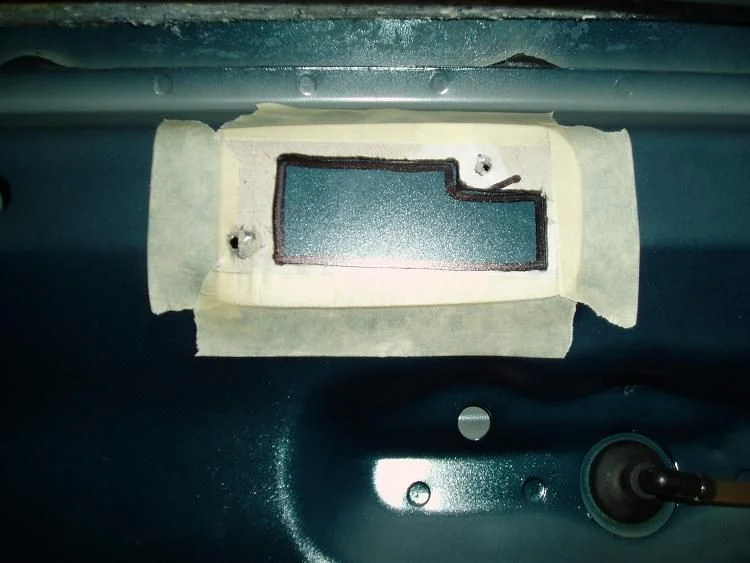

one more, this is the flat plate/area that is sized for the factory cargo light.

Its right next to the spray nozzle hose.

Alot of questions about the cargo light but I have never seen photos of the Factory Cargo light on the board.

alaskacruiser · 03-07-06, 03:49 AM

hey loq- can you please post a pic from further away showing us where this light is mounted in the cargo area?

topend yobbo · 03-07-06, 04:00 AM

I f you had bought an Australian vehicle you would have got that light automatically.We use it to get beers out of our Engel fridges.

loquito · 03-07-06, 04:09 AM

Quote:

Originally Posted by alaskacruiser

hey loq- can you please post a pic from further away showing us where this light is mounted in the cargo area?

If you can wait a few days I can, I need to make a disk at Wally world or somewere and then bring that to my graveyard. I'll have it done in a few days.

alaskacruiser · 03-07-06, 04:38 AM

loq- that sounds like a lot of trouble! Gotta get yourself a digital camera, sir!

Mickldo · 03-07-06, 04:50 AM

Quote:

Originally Posted by topend yobbo

I f you had bought an Australian vehicle you would have got that light automatically.We use it to get beers out of our Engel fridges.

That must only be on 93 update models and up as my 90 model HZJ80 GXL and my mates 91 model HDJ80 GXL didn't come with a light but the wires were still under the hoodlining. We have both fitted some Narva fluoros to the cargo area. They're OK for getting beers out but heaps better for getting bourbons out of the Engel.

topend yobbo · 03-07-06, 05:05 AM

I tell a lie as I have not seen an earlier model.I added a fluoro earlie on as well.
Pardon me.
Why dont you add a fluoro LOC?

topend yobbo · 03-07-06, 05:06 AM

Sorry , LOQ.

Mickldo · 03-07-06, 05:17 AM

I'll check the part # of the Narva fluoro at work tomorrow. I can highly recommend these lights, the switch has on/off/door positions is super bright and uses very little power.

loquito · 03-07-06, 05:23 AM

Quote:

Originally Posted by alaskacruiser

loq- that sounds like a lot of trouble! Gotta get yourself a digital camera, sir!

That is using a digi camera, it's the computer that needs updating, and the computer at work has restrictions on it. No trouble though.

topend yobbo · 03-07-06, 05:25 AM

LOQ your avoiding the question

loquito · 03-07-06, 05:41 AM

Quote:

Originally Posted by topend yobbo

LOQ your avoiding the question

what question

Boston Mangler · 03-07-06, 07:55 AM

Nice Work! You had to cut the sheetmetal to get to the plug??

I plan on this too!

Is there a "George LED" available for this particular light?

Is it an OEM part?

Thanks

loquito · 03-07-06, 08:24 AM

Quote:

Originally Posted by Boston Mangler

Nice Work! You had to cut the sheetmetal to get to the plug??

I plan on this too!

Is there a "George LED" available for this particular light?

Is it an OEM part?

Thanks

No the plug is in the sheetmetal pocket in the upper corner of your roof in the rear drivers side. some report that they do not have the wires present, my 94 was wired up already.

Yes it is OEM I called Dan and asked him for the Factory cargo light.

you only have to cut the little flat shelf that is in the middle of the roof so that the light can sit down flush.

The little flat shelf that the light mounts to is perfectly sized to match the light.

stayalert · 03-07-06, 08:32 AM

With Dan's help (providing the part and install tips) I did this mod on my '94 - GREAT improvement. Wear gloves or have clean hands when you're futzing with the headliner..

Boston Mangler · 03-07-06, 09:25 AM

As mentioned earlier, if you could post some pics further away, that would be awesome! I really want to do this mod!

Tanks

loquito · 03-07-06, 09:50 AM

Quote:

Originally Posted by Boston Mangler

As mentioned earlier, if you could post some pics further away, that would be awesome! I really want to do this mod!

Tanks

will do

loquito · 03-25-06, 01:51 AM

Quote:

Originally Posted by Boston Mangler

As mentioned earlier, if you could post some pics further away, that would be awesome! I really want to do this mod!

Tanks

Hi I posted a pic in this thread that was a little farther away, I hope this helps.

http://forum.ih8mud.com/80-series-tech/28622-rear-cargo-light-tieing-into-existing-wiring.html

Mickldo · 03-25-06, 03:50 AM

Quote:

Originally Posted by loquito

Hi I posted a pic in this thread that was a little farther away, I hope this helps.

http://forum.ih8mud.com/showthread.php?t=28622

Yeah I didn't find this thread when I posted my pics in the thread loquito linked to above. The photo of my fluro is the one above loqs.

tech_dog · 03-27-06, 10:53 PM

I was going to hunt down one of the dome lights that's in the front and middle position. Does anyone know if those lights use the same type of connector as the OEM rear light, so that it can still be a plug and play solution using the in-place wiring harness?

Rich · 03-27-06, 11:23 PM

Same connector.

tech_dog · 03-28-06, 12:38 AM

Danka.

alia176 · 03-28-06, 09:50 PM

Any of the Narva Fluor lights from this page ring a bell for anyone

http://www.camec.com.au/marine-30%2012%20volt.htm

Thanks.

alia176 · 03-31-06, 07:57 AM

Anyone?

Boston Mangler · 03-31-06, 09:24 PM

Quote:

Originally Posted by alia176

Any of the Narva Fluor lights from this page ring a bell for anyone

http://www.camec.com.au/marine-30%2012%20volt.htm

Thanks.

Yeah, this one should work:

alia176 · 03-31-06, 09:47 PM

Always a wise guy, eh

Mickldo · 03-31-06, 10:37 PM

The fluro in mine is one of these
http://www.narva.com.au/Truck-Trailer_31.html
The part # of mine is the 87340

mickldo

alia176 · 04-01-06, 04:59 AM

Thanks man. Now, I wonder where they sell this particular light in the States!

Ali

LoneStar · 04-01-06, 02:39 PM

How about these fluorescent lights by Wolo? FL95 & FL115
http://www.wolo-mfg.com/light.htm
