01-30-06, 08:55 PM
|
#1 (permalink)
|
|
fatherofdaughterofromer
Join Date: Sep 2003
Location: Englewood, Colorado
Posts: 7,896
|
Forum Members Rear Bumpers
We are making a new FAQ. The purpose of this thread is to show your Rear Bumper. There will be others for Front Bumpers, Sliders, etc.
Here is what you need to do. Post pics of your bumper and state if it is a Slee, Hanna, 4x4 Labs, TJM, Kaymar, Self Made, etc.
DO NOT ADD POSTS COMMENTING ON OTHERS BUMPERS.
1 User 1 Post - including pic.
Lets give this a try and see how it comes out
__________________
Ken Romer ~ Friend of Shaman
Keeper of the FAQ, Defender of Newbies, and Slayer of Tards
Commander Rising Sun 4WD Club - K0ROM
97 LX450, Supercharged, Locked, and lots of other stuff ROTW
96 LX450 - ROD's
06 4Runner - Wife's
99 4Runner - daughterofromer's
03 BMW Z4 Roadster
05 AT Horizon
Last edited by Romer; 01-30-06 at 09:42 PM.
|
|
|
|
01-30-06, 08:56 PM
|
#2 (permalink)
|
|
fatherofdaughterofromer
Join Date: Sep 2003
Location: Englewood, Colorado
Posts: 7,896
|
__________________
Ken Romer ~ Friend of Shaman
Keeper of the FAQ, Defender of Newbies, and Slayer of Tards
Commander Rising Sun 4WD Club - K0ROM
97 LX450, Supercharged, Locked, and lots of other stuff ROTW
96 LX450 - ROD's
06 4Runner - Wife's
99 4Runner - daughterofromer's
03 BMW Z4 Roadster
05 AT Horizon
Last edited by Romer; 01-30-06 at 09:25 PM.
|
|
|
|
|
01-30-06, 09:19 PM
|
#3 (permalink)
|
|
Parts Geek, M1 Mechanic
Join Date: Mar 2003
Location: Wheelin' a Camry
Posts: 14,949
|

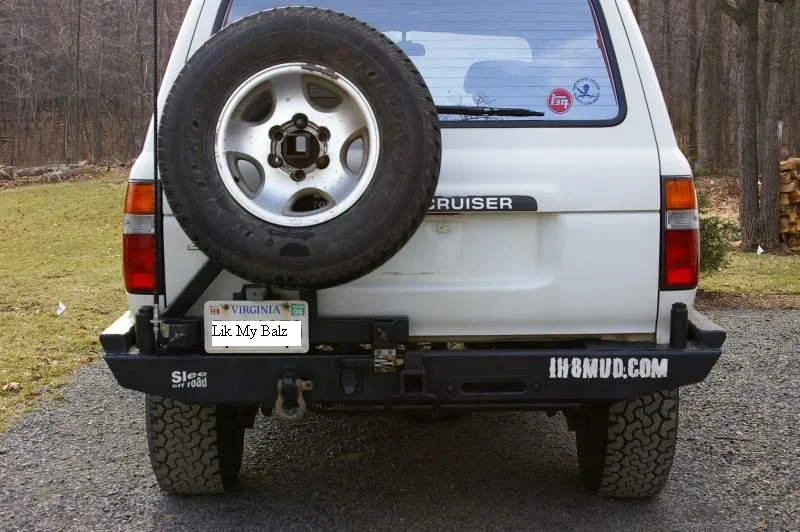

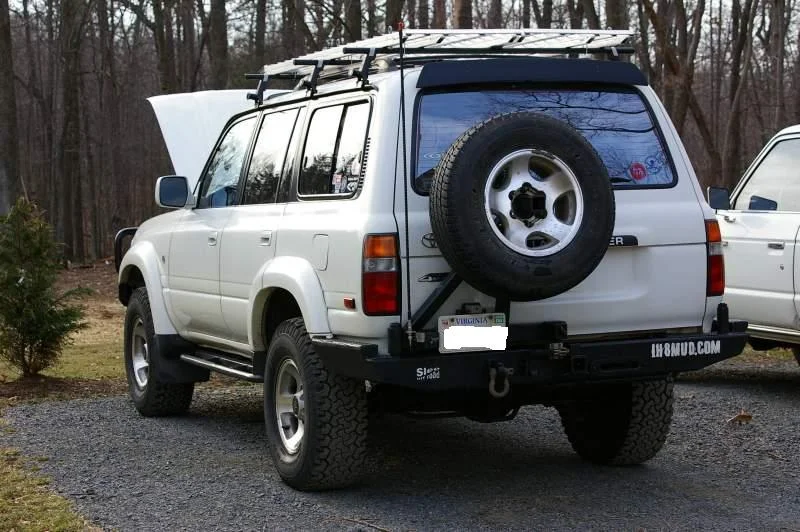

Slee rear with my design receiver added:
__________________
Original owner 93 FZJ80,locked,blown,water/methanol injected(like a WWII fighter aircraft),lifted,winched,snorkeled,slidered,Sleeed ,moneypit. Balanced on a pin head. 95 FZJ80 trail truck (hers), 94 FZJ80 320K with a knock and a lumpy old Dodge car.
http://i487.photobucket.com/albums/r...Gastrap063.jpg
http://i487.photobucket.com/albums/r...frifles004.jpg
|
|
|
|
|
01-30-06, 09:29 PM
|
 Rich
|
This message has been deleted by Rich.
|
|
01-30-06, 09:30 PM
|
#4 (permalink)
|
|
Unleash the Beast
Join Date: Nov 2004
Location: Pasadena, CA
Posts: 2,549
|
I was going to buy rear bumper from the same company where i bought the front bumper but since i got the JDM dual cat back exhaust, it may requires lots of work/ modifications.So i skip the rear bumper.Maybe later on  Well everybody have different opinion right?
|
|
|
|
|
01-30-06, 09:36 PM
|
#5 (permalink)
|
|
250+ Club
Join Date: Apr 2005
Posts: 347
|
From my web site:
http://Rzeppa.org

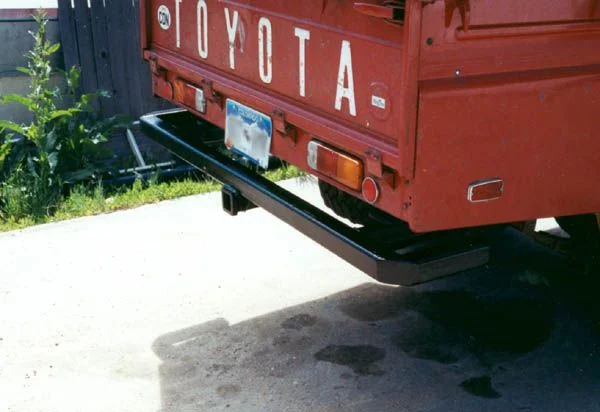

The bumper I built for my 1978 FJ45
__________________
Jeff Zepp
Kittredge CO USA
1971 & 1976 FJ40s, 1978 FJ45
Rising Sun 4WD Club, TLCA #4063, TLCA President
Rzeppa.org
|
|
|
|
|
01-30-06, 09:42 PM
|
#6 (permalink)
|
|
Forum Regular
Join Date: Oct 2005
Posts: 59
|

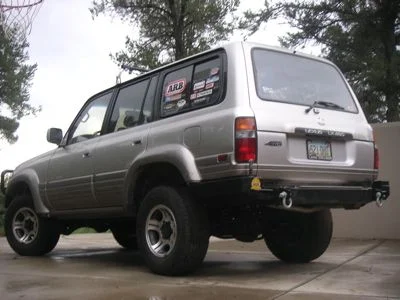

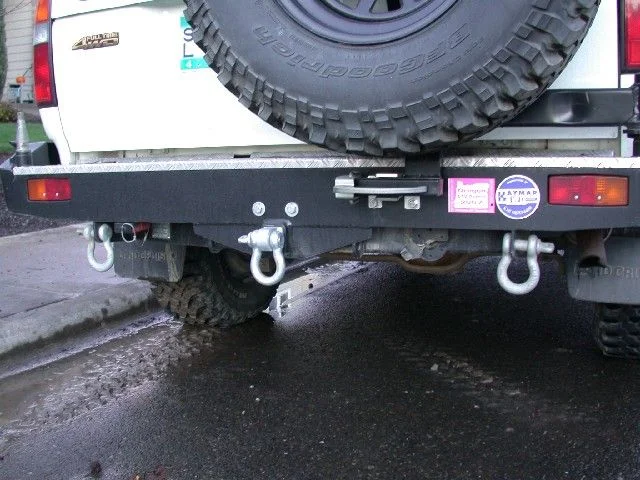

Kaymar Tow Bumper with dual pivots. The center shackle is removable for towing.
__________________
'95 FZJ80, OME lift, BFG MT 33's, Factory Lockers, ARB w/ Warn 12K front, Kaymar rear, Slee sliders, dual batts, custom drawers, full roof rack and a couple of lights! ROTW
|
|
|
|
|
01-31-06, 07:18 PM
|
#7 (permalink)
|
|
On the Golf Course!
Join Date: Mar 2003
Location: The OC, CA
Posts: 6,210
|

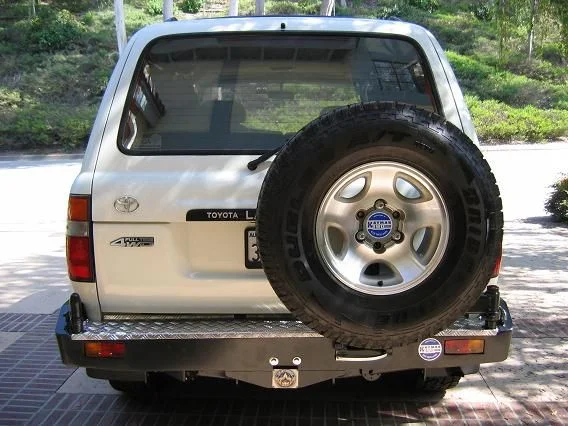

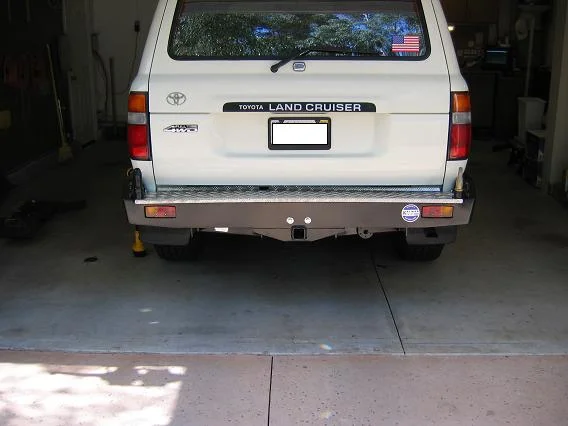

Kaymar Rear bumper plain and with tire carrier.
__________________
Brent
'94 White LC; Kaymar Rear Bumper w/tire carrier; Hanna Sliders; ARB winch ready Front Bumper; Slee Transfer Case Skid Plate; BFG MT KM2 285's, OME 850/863 Heavy 2" lift, INTI Rack; Warn M12000 Winch, Snorkel; Sputnik!
TLCA Member #13420; KI6SGO
|
|
|
|
|
01-31-06, 07:25 PM
|
#8 (permalink)
|
|
Forum Regular
Join Date: Apr 2005
Posts: 230
|

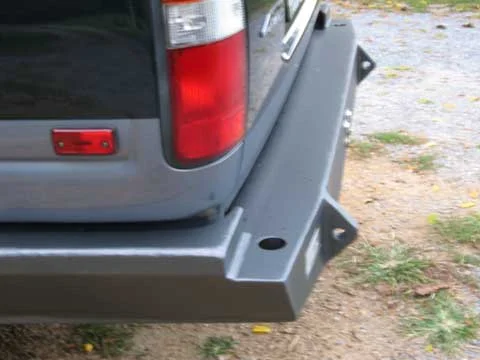

mine - by me
__________________
john henley
forgings | john henley designs
forgings design dot com
sculpture|furniture|fabrication
Last edited by green_machine; 02-08-07 at 08:13 PM.
|
|
|
|
|
01-31-06, 09:14 PM
|
#9 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: Arizona
Posts: 610
|

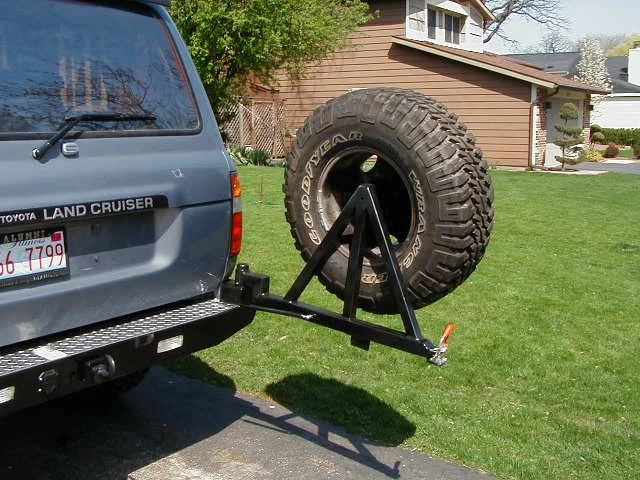

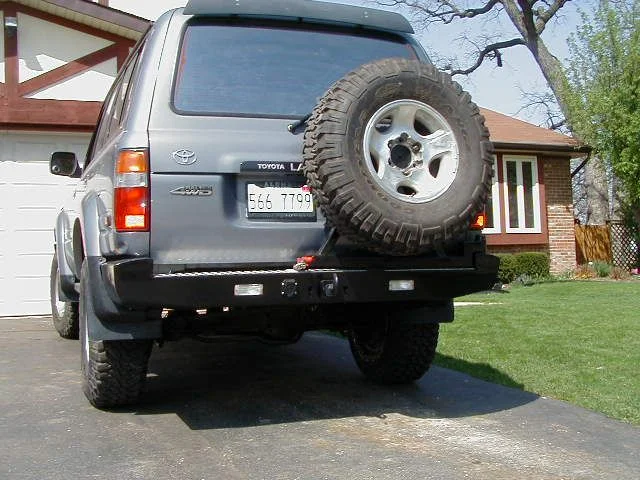

Up-N-Over. I like the way it tilts the tire in a little closer to the body. I don't have a side shot.
__________________
Rob G
1995 FZJ80 2000 UZJ100
AZ
Copper State Cruisers #046
|
|
|
|
|
01-31-06, 10:52 PM
|
#10 (permalink)
|
|
Forum Lifer
Join Date: Sep 2003
Location: bellingham wa/prescott az
Posts: 2,663
|

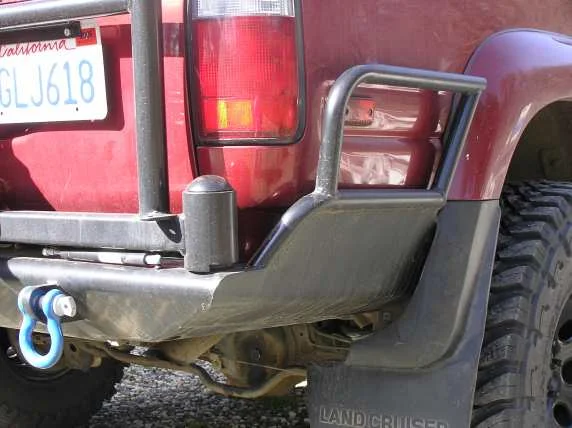

Home made, Custom two piece wing design, not cutting or moddifying the truck. has exhaust guard and spindle for added tire carrier.
mike
__________________
1996 LX450 ARB, dual batteries, remote starter, 760 watt sub woofer, in dash CB, Custom switch pannel, cut and turn mod, magnaflow, custom rear bumper, rock lights, 2.5 lift, snorkle. clear side lights, CSC alum spacers, 33s, and more to come.
|
|
|
|
|
02-02-06, 02:08 PM
|
#11 (permalink)
|
|
Forum Lifer
Join Date: Jun 2003
Location: Northern VA
Posts: 2,963
|

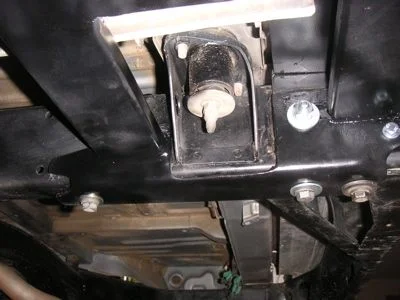

One-off rear bumper with integrated rear winch mount and receiver.
Replaces factory X-member.
Thanks junk
__________________
Brandon L. Downs
'97 LX
Pictures
BusinessBenefitsGroup
Group Benefits
Individual Life, Health, Disability
Business Insurance
Retirement Planning
|
|
|
|
02-02-06, 06:03 PM
|
#12 (permalink)
|
|
250+ Club
Join Date: Jun 2003
Posts: 469
|
Swingout/receiver hitch are in progress.
__________________
------96-FZJ80 the snowchasing, gear hauling, mountain machine--------
|
|
|
|
|
02-03-06, 04:58 PM
|
#13 (permalink)
|
|
250+ Club
Join Date: Aug 2005
Location: Grass Valley CA
Posts: 689
|

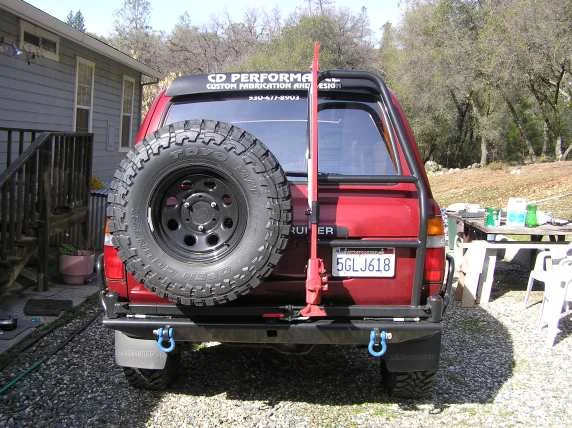

4x4 labs on the rear
We have a custom 4x4 labs on the rear. This is the first rear bumper that was adapted to work with the oem mudflaps. Also added was the extra side protection on the rear quarter panel as shown.
__________________
Snorked & Locked with CDL 94 FZJ80 \ F.O.R 4" Lift kit \ 315 Toyo Mts , 4.88 gears \ Inti Roof Rack with Lightforce 170s \ ARB front with Warn 12000 \ Labs Rear \ Hanna Sliders \ Slee skid plates, Rear lower control arms, and tie-rods \ Landtank CC plates \ NAV system \ CB & 2 Meter Radio \ Diff Breather \ Con tested, Expedition ready
|
|
|
|
|
02-03-06, 05:02 PM
|
#14 (permalink)
|
|
250+ Club
Join Date: Aug 2005
Location: Grass Valley CA
Posts: 689
|
4x4 Labs on the rear

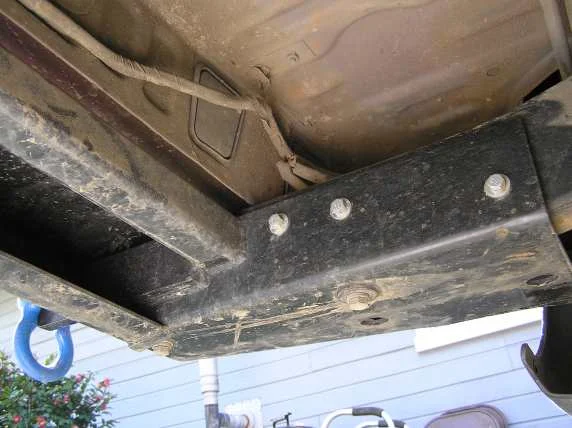

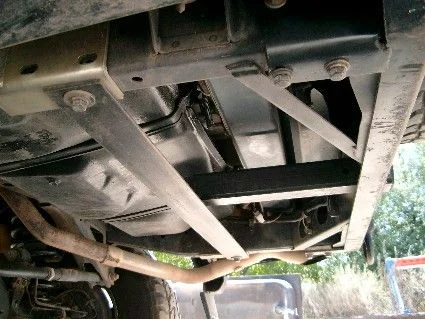

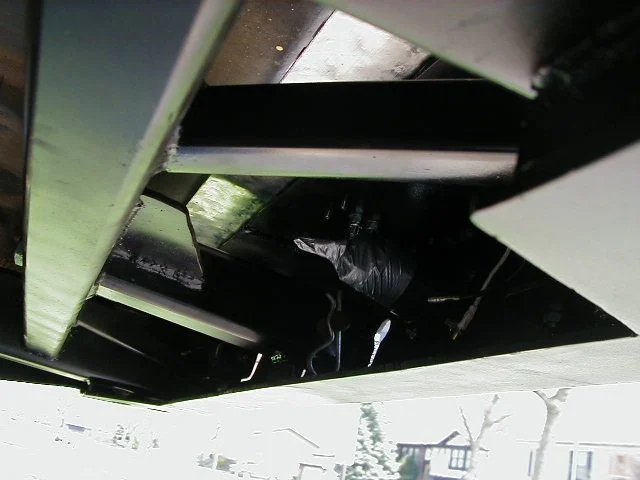

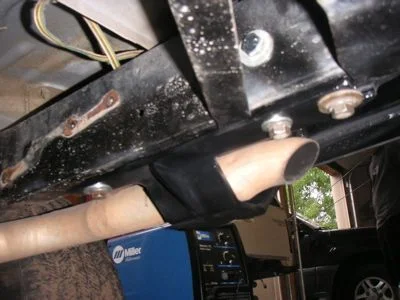

Here's 2 more, a side shot and a pic that shows the attachment to the frame, remember the rear crossmember gets removed for this bumper.
Sam and LittleBoss (Tree)
__________________
Snorked & Locked with CDL 94 FZJ80 \ F.O.R 4" Lift kit \ 315 Toyo Mts , 4.88 gears \ Inti Roof Rack with Lightforce 170s \ ARB front with Warn 12000 \ Labs Rear \ Hanna Sliders \ Slee skid plates, Rear lower control arms, and tie-rods \ Landtank CC plates \ NAV system \ CB & 2 Meter Radio \ Diff Breather \ Con tested, Expedition ready
|
|
|
|
|
02-03-06, 05:33 PM
|
#15 (permalink)
|
|
Forum Lifer
Join Date: Aug 2003
Location: Tijeras, NM
Posts: 4,581
|

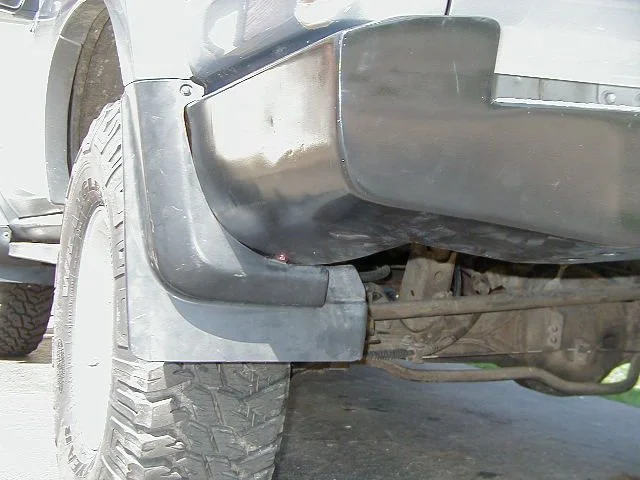

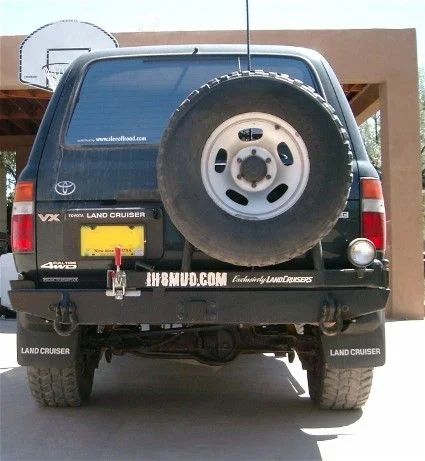

Another home made one! I like the fit of the mudflap around the lower part of my bumper!
Material - 3/16" metal for the outer skin, 1/4" metal for the chassis area and hitch receiver, trailer stub axle for the tire carrier
Ali
__________________
'96 his
'97 hers
|
|
|
|
|
02-03-06, 05:35 PM
|
#16 (permalink)
|
|
Forum Lifer
Join Date: Aug 2003
Location: Tijeras, NM
Posts: 4,581
|
More pics....
__________________
'96 his
'97 hers
|
|
|
|
|
03-21-06, 12:19 PM
|
#17 (permalink)
|
|
tlcwagons.org
Join Date: Nov 2003
Posts: 3,745
|
Hanna Quality Rear Bumper
Hanna bumper with optional dual swingouts & side protection hoops.
Avail with tire on either side (customer preference) and single or double swingouts.
Made by Ken Hanna hannaquality.com
|
|
|
|
|
03-21-06, 12:22 PM
|
#18 (permalink)
|
|
tlcwagons.org
Join Date: Nov 2003
Posts: 3,745
|
Hanna more pix

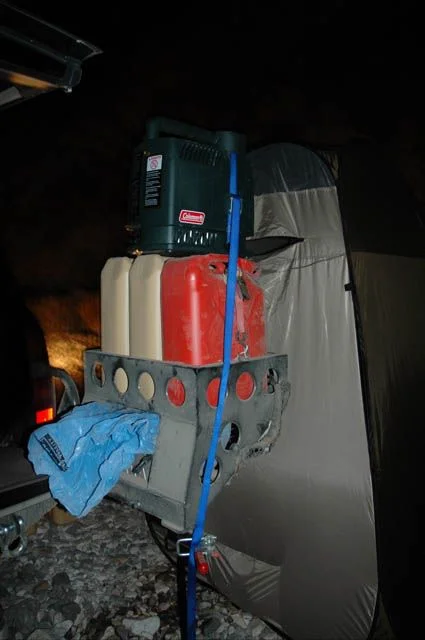

Jerry can holder shown. Makes a great tool for backcountry camping as a swingout water station/garbage hold
Features-
60" Hi-Lift can fit without sticking out past the body
Spare can hold up to 37" tire w/ dual carrier
Fully boxed (I mean FULLY enclosed) wings for max. strength
DOM tube side hoops (max dent resistance)
Triple can holder- holds NATO cans
Swingouts are removable
Last edited by FirstToy; 03-21-06 at 12:27 PM.
|
|
|
|
|
03-21-06, 08:16 PM
|
|
BOUNDER
|
This message has been deleted by Romer.
Reason: FAQ Not Chat
|
|
03-21-06, 09:03 PM
|
#19 (permalink)
|
Join Date: Oct 2005
Location: Hungary - CA
Posts: 389
|
Here is my rear TJM
here is mine for all to see...
Last edited by mickey_rubicon; 09-25-06 at 06:13 PM.
|
|
|
|
|
03-23-06, 02:22 AM
|
#20 (permalink)
|
|
Site Addict
Join Date: Feb 2006
Location: Maryborough, QLD, Aust.
Posts: 1,015
|

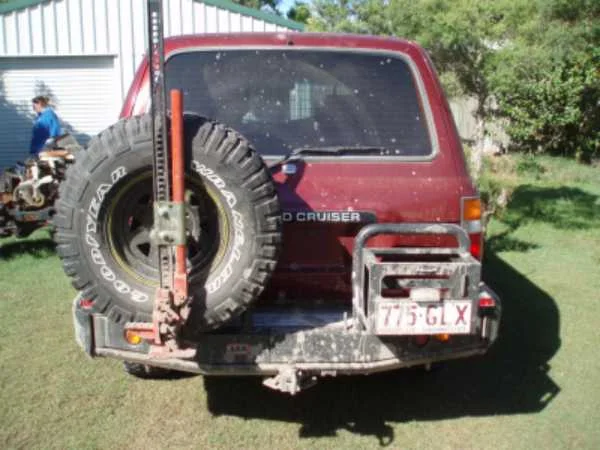

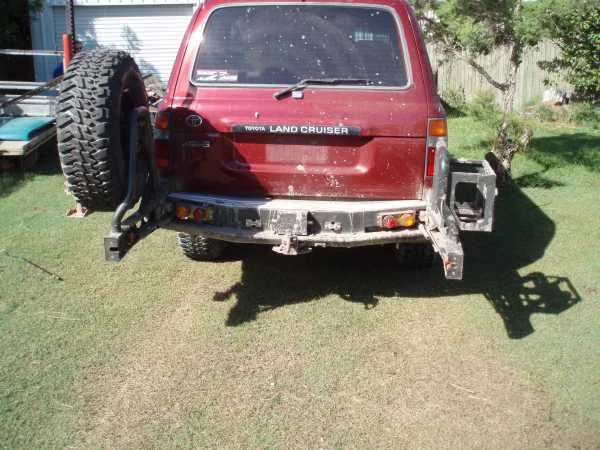

Here's my new style ARB rear bar, twin pivot with spare tyre and jerry can mount.
I know it's a bit dirty but if anybody wants some more pics of it I'll give it a wash and take some more close ups.
__________________
90 HZJ80 GXL, DTS turbo, 285/75R16 MTR's, 4" OME, Safari snorkel, ARB airlocker, ARB bullbar, ARB dual pivot rear bar, dual batts, etc.... SOLD
99 HZJ105R GXL standard for now.....
|
|
|
|
|
08-05-07, 10:12 PM
|
#21 (permalink)
|
|
250+ Club
Join Date: Feb 2006
Location: Oregon
Posts: 973
|

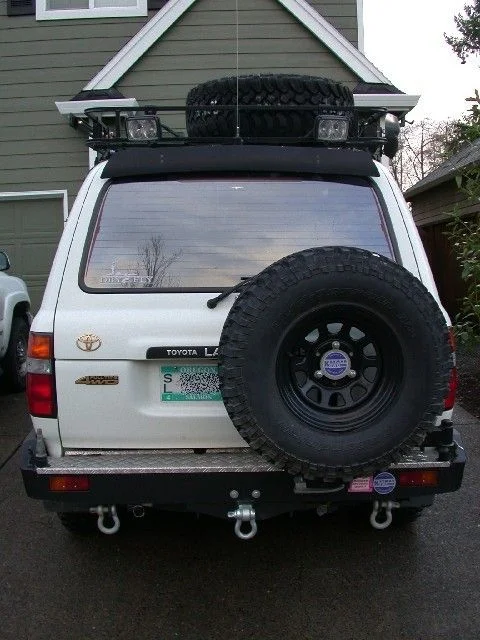

My rear bumper by 4X4labs
Drove down to GrassValley Ca 2 months ago to have Luke put his rear bumper on my rig!
It's sweet and I love it.
Enjoy
The boys at 4X4labs are great!
__________________
1996 TLC, Cooper D. STT 305/70/16, CDL, 7 PIN, OME steer & 850/863, Bilstein HD, IPA fog. Slee's front bumper, skid plate, CC bushings, SS brake lines x 7, light/aux harness & speedo gear. Warn XD 9000, Hanna sliders. 4X4labs rear bumper. OEM sub tank & overhead console. Projection headlamps, clear lenses, rear tail LED, George's inside LED's. MagnFlow exhaust (cat back). Eclipse Nav.
2005 GX470, KDSS, Revo's, running boards off!
|
|
|
|
|
08-05-07, 10:46 PM
|
#22 (permalink)
|
|
250+ Club
Join Date: Jun 2007
Location: Kuwait
Posts: 485
|

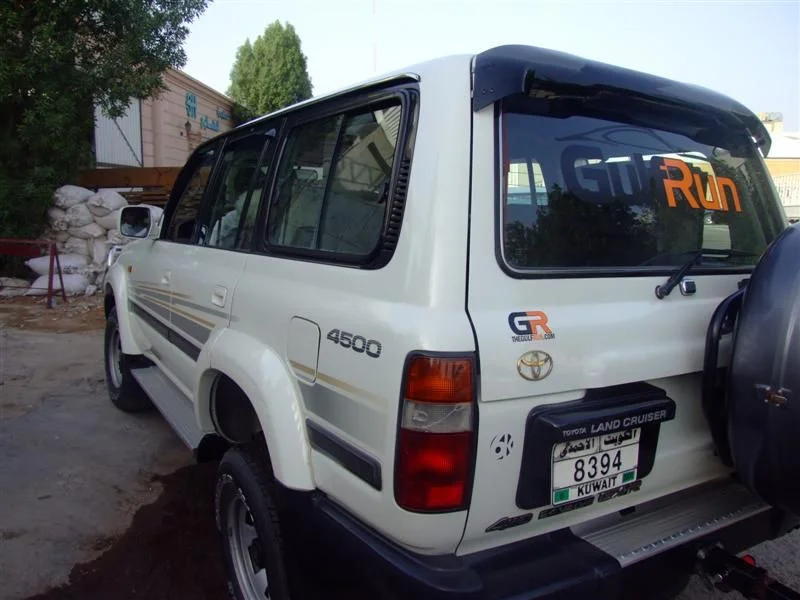

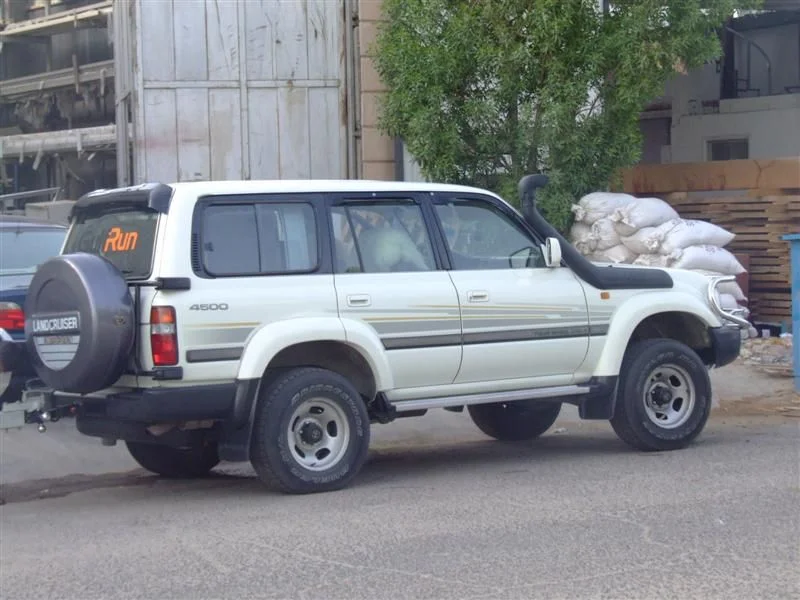

These are a few pics that I have on my computer of the rear bumper! I might take a few more later but there's nothing special about my rear bumper! It's actually the factory bumper with a piece cut out of it since I installed the second spare tire!
__________________
9K7ALI
1997 Toyota Land Cruiser GXR
Dual battery set up, 4.88, rear ARB locker, 315s, Outback TX-1 wheels, custom front bumper w/ winch and tow hitch, custom rear bumper w/ winch and tow hitch, snorkel, OME heavies all around, IPF light, HID lights (driving and high beams), custom drawer system ...
|
|
|
|
|
08-06-07, 09:16 AM
|
#23 (permalink)
|
|
Forum Lifer
Join Date: Oct 2003
Location: North Cadillac
Posts: 6,758
|
the stallion.... thanks for posting those pics. That further identifies that even though it is not "rated for DOT towing" the rear stock bumper of the 80 will pull a large load.
__________________
95' FZJ80 OME med./J lift, ARB rack, ARB Bull Bar w/tmax 12,500, 35" truxus, Aussie locker-rear, Center Diff Lock, Sliders, IPOR Skid, IPOR rear bumper, upgraded slee sticker, custom dents, more to come. . .
Remember it's a gateway drug, so it will actually lead to "crystal meh".
Go 80, or go unsatisfied
|
|
|
|
|
08-06-07, 10:39 AM
|
#24 (permalink)
|
|
Site Addict
Join Date: Jan 2003
Location: Syracuse, Utah
Posts: 1,144
|
|
|
|
|
|
08-06-07, 10:44 AM
|
#25 (permalink)
|
|
Forum Regular
Join Date: Jan 2007
Location: SoCal
Posts: 163
|
Here's a kaymar with a jerry can holder and spare 35" tire
Not a bad bumper for overlanding. I have a hi-lift adapter as well, not pictured.
For more technical trails the side wings can definitely use some reinforcement.
I'll eventually end up getting a 4x4labs or hannaquality bumper in the future for the added protection.
__________________
Mark Lachica
1995 Fzj80
|
|
|
|
|
11-21-07, 05:29 PM
|
#26 (permalink)
|
|
ONSC triad VP
Join Date: Jun 2005
Location: NC
Posts: 2,587
|

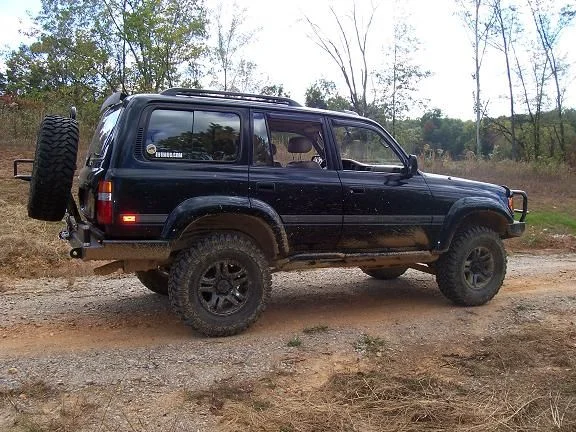

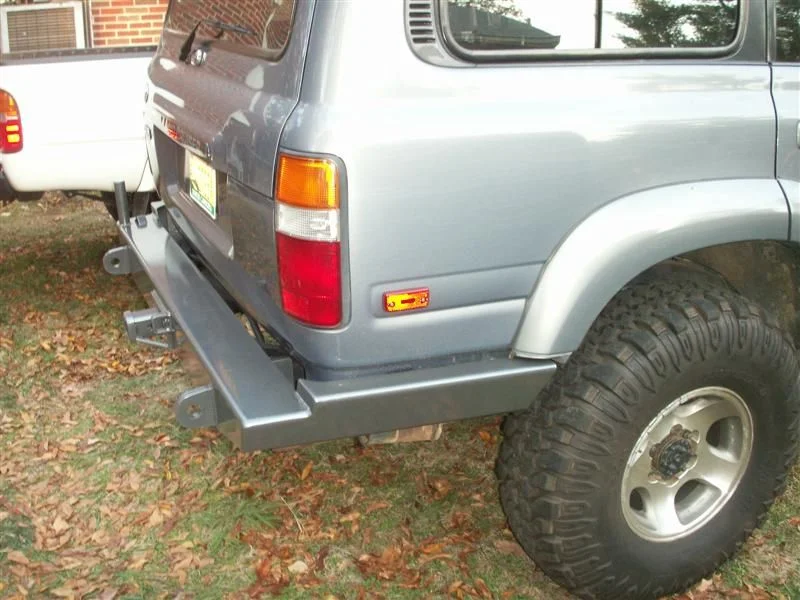

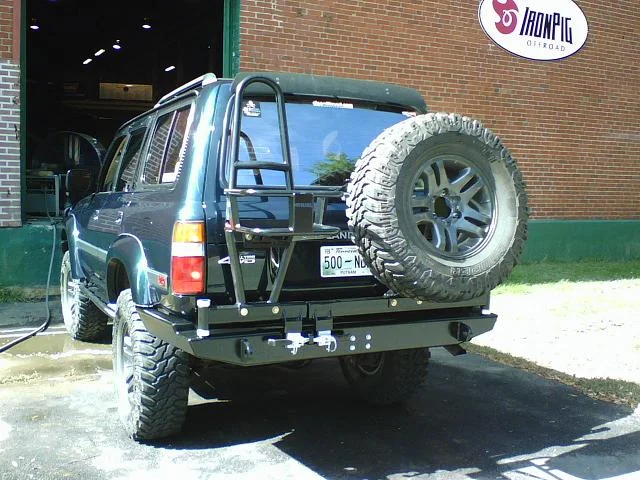

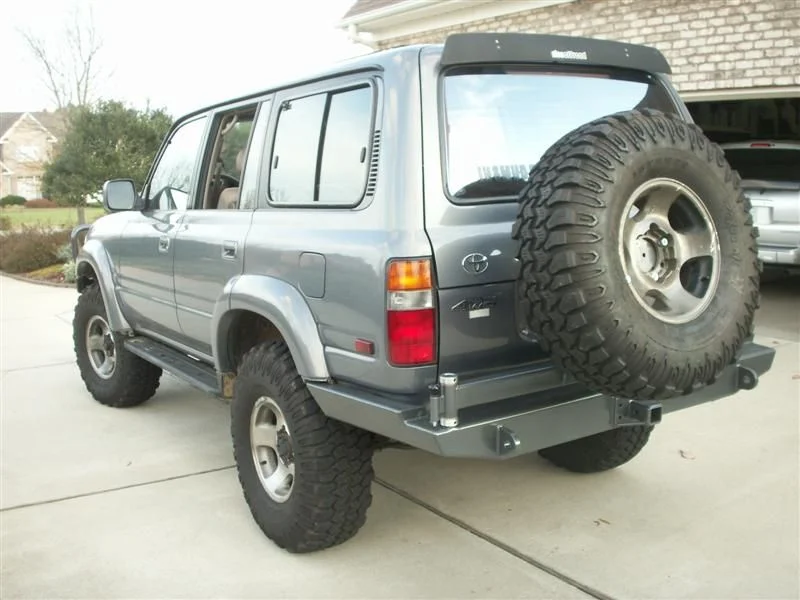

Iron Pig Off Road rear bumper FZJ-80
I dont see an iron pig bumper on the list so here is mine.
__________________
Jason---- I live vicariously..........................through myself
__________________________________________________ __________
95 80 -- Slee4''/omeJ, 37's, factory locked, full armor and a s/c too
72 55-- w/ 76 4sdp 78 f. disc 79 2F -- SOA + 3'' w/ 35's, IPOR protection
92 P/U -- no "D" light, no umph, no fun except at the pump
Last edited by jfz80; 11-26-07 at 08:42 AM.
Reason: adding more pics per request
|
|
|
|
|
11-21-07, 07:50 PM
|
#27 (permalink)
|
|
Site Addict
Join Date: Sep 2006
Location: Nashville, TN
Posts: 1,570
|
seeing all these bumpers/ crash guards makes you wonder how much damage they would inflict on todays modern bumpers/ crumple zones
__________________
98 4runner 150k
04 Sequoia 85k 4x4 Limited
|
|
|
|
|
10-12-08, 12:42 PM
|
#28 (permalink)
|
|
250+ Club
Join Date: Dec 2006
Location: TN
Posts: 912
|

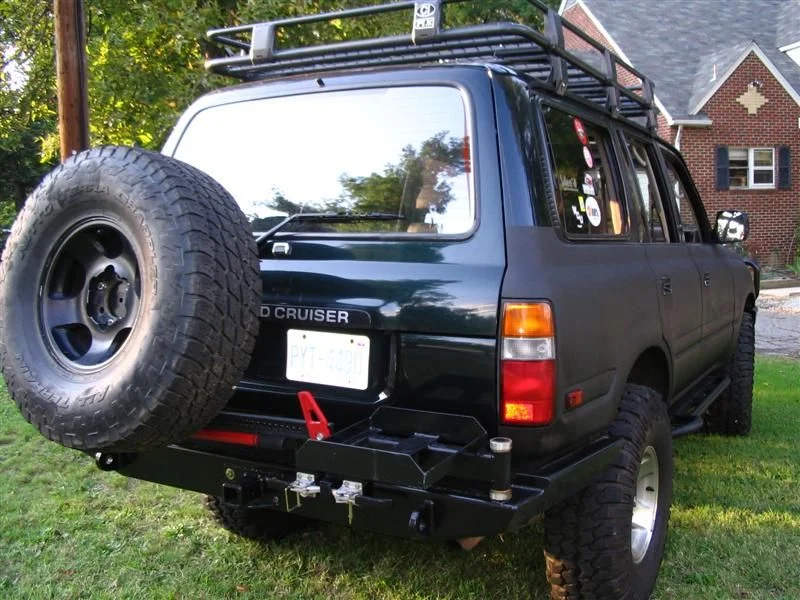

IPOR hybrid
Another IPOR rear.
Dual Swing outs with 4x4 Labs tire carrier and ladder/basket.
__________________
1996 T O Y O T A LAND CRUISER FZJ-80
132K, Locked, Snorkeled, Pin7+CDL, ARB front Hella'd, IPOR rear and skid plate, Metal Tech Sliders, Slee 4", 4.88's, 35" Cooper STT's, 17" Sequoia wheels, Line-X'd roof Warfield Storage System
Last edited by ERG80; 10-12-08 at 03:15 PM.
|
|
|
|
|
10-12-08, 03:10 PM
|
#29 (permalink)
|
|
Forum Lifer
Join Date: Oct 2003
Location: North Cadillac
Posts: 6,758
|
I"ll go ahead and add pics of my IPOR with dual swingouts. These are not the 4x4 lab swingouts like the post above, but IPOR's design.
__________________
95' FZJ80 OME med./J lift, ARB rack, ARB Bull Bar w/tmax 12,500, 35" truxus, Aussie locker-rear, Center Diff Lock, Sliders, IPOR Skid, IPOR rear bumper, upgraded slee sticker, custom dents, more to come. . .
Remember it's a gateway drug, so it will actually lead to "crystal meh".
Go 80, or go unsatisfied
|
|
|
|
|
10-12-08, 05:05 PM
|
#30 (permalink)
|
|
Forum Lifer
Join Date: Sep 2004
Location: San Antonio, TEXAS
Posts: 2,754
|
Here is my TJM with modified tire carrier. The original carrier mounted the tire low which kept rear window visability great but limited the tire size to a 33. The bumper is not nearly as heavy duty as others but I like it for several reasons, nice matching lines with the plastic top covers, low profile, light weight, and hidden away dual spindles. The main down sides are the powder coating simialr to those used on trailier hitches, and the recovery loops that could be stronger while not sticking down so much.
Last edited by Bear80; 10-12-08 at 08:17 PM.
|
|
|
|
|
|
