How to Replace Oil Pump seal w/ Pics

I recently noticed that I had an oil leak coming from the front of my motor. After cleaning up the front of the motor to determine where the leak was coming from it was easy to see that it was coming from where the oil pump cover mated to the timing chain cover. I crawled under the truck once running and oil was coming out in a slow but steady stream from the area shown in the attached picture below.
Name:  leak areas04.jpg
Views: 2678
Size:  49.5 KB

After reading several posts on what others have done when they have had a bad oil pump seal I was concerned that I would end up having to pull the timing chain cover to get the philips head bolts off that hold the oil pump cover on. I went ahead and took a gamble and decided I would try and pull the oil pump cover off without removing the timing chain cover as well as the Radiator. I spent quite a bit of time thinking about how I would do this to keep from stripping out the heads as they are very soft and tend to strip out easily as others have said. For those of you that need to replace or may someday need to replace this seal I have documented a successful method of removing the oil pump cover in place, on the motor, that I have found made this a very easy task.

There is no way you can do this with a standard screwdriver as there is not enough room with the radiator in place, as well as you can not get enough leverage to turn the bolts. What you will need to purchase is a short #3 philips head bit that will fit on a 1/4 inch socket. This will allow you to get the leverage you need using a ratchet. I purchased several different short #3 philips head bits from different stores to find the one that had the tightest fit. The one that had the best fit was from Harbor Freight. See attached picture of needed philips head. I purchased two just in case.
Name:  #3 philips head.jpg
Views: 2621
Size:  24.6 KB

These are the steps I took to complete this job:

Step One: Remove all belts as well as the fan clutch. To remove fan and clutch take top two bolts off of fan shroud that attach it to the top of the radiator. Once you have all four bolts pulled that hold the fan clutch on, pull the fan and clutch out between the shroud and radiator being careful not damage your radiator.
Step Two: Remove steering stabilizer and small front splash shield.
Step Three: I drained motor oil as I replaced the front crank shaft seal. (don’t know if I needed to do this, but I didnt want any surprises while doing the job)
Step Four: Remove crank shaft pulley. Use ¾ inch 30mm socket w/ breaker bar placed under passenger side of frame. Disconnect distributor lead. Then bump the starter and the bolt will break loose.
Step Five: Remove Idler puller (I replaced new from Toyota)

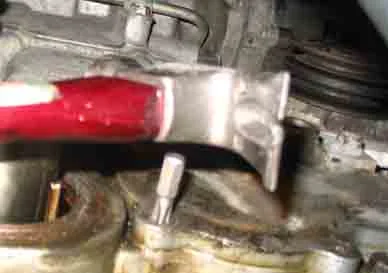

Step Six: Take your short #3 philips head bit and place it in one of the screws holding the oil pump cover in place. Tap it with a small hammer for about 30 seconds. Be careful not to accidentally hit your radiator. I found that this does two things. It seats the philips bit into the head and shocks the bolt helping loosen things up.
Name:  Tapping philips 3.jpg
Views: 2655
Size:  31.6 KB

continued on next post...


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-25-05, 10:26 PM   #2
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567

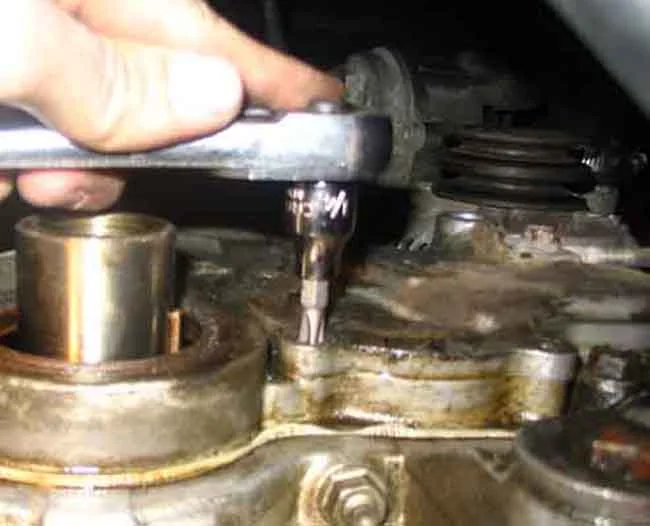

Step Seven: Attached your driver to the philips bit after tapping on it and place your right hand flat against the end of the ratchet keeping pressure on the bit to the bolt. Use your left hand to loosen the bolt. Take your time and apply pressure slowly. Not a single philips head stripped out on me and came out. I ended up having to apply quite a bit of foot pounds to loosen each one, but remember to do is slowly. Do this to all phillips head bolts holding the oil pump cover in place. The key to this is a bit that fits perfectly!
Name:  ratchet and #03 philips.jpg
Views: 2651
Size:  45.7 KB

Step Eight: Place something directly under the oil pump to catch the small amount of oil that will come out when you pull the cover off.

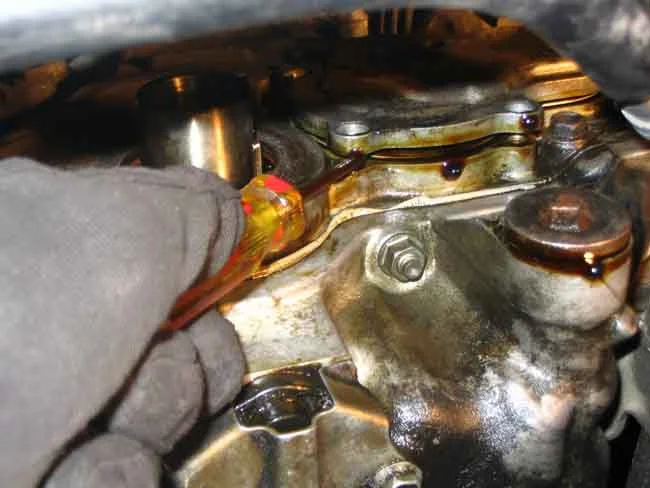

Step Nine: Use a small flat head screwdriver and lightly pry the cover off.
Name:  prying Oil pump cover01.jpg
Views: 2646
Size:  49.5 KB

Step Ten: Remove old seal using the same flathead screwdriver. Clean up old oil off cover and surrounding area. Make sure not to get dirt in the pump area.
Name:  Oil pump seal.jpg
Views: 2650
Size:  54.2 KB


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-25-05, 10:32 PM   #3
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567

Step Eleven: Replace seal with new one. Place new rubber seal in grove using some engine oil to hold the seal in place.
Step Twelve: Place oil pump cover back in place without moving seal out of its grove. Use new Philips bolts from Toyota to replace the old ones.
Step Thirteen: Tighten philips bolts in chris cross pattern using short philips bit and ratchet. There is no ft/lbs spec in the FSM for these Philips bolts so I made them fairly tight making sure not to strip out the heads.

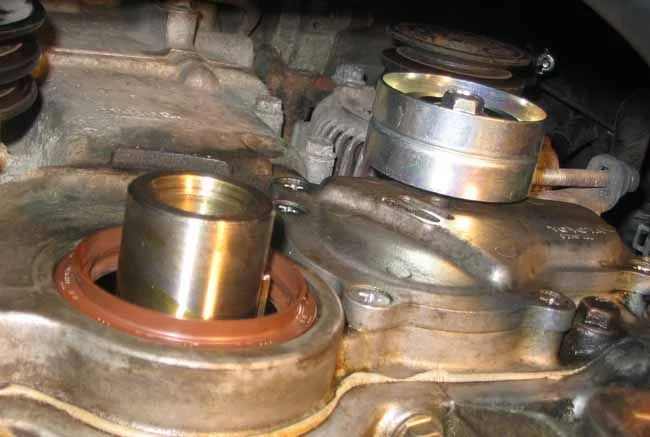

Step Fourteen: Replace front crank shaft seal (just because you are in there). Pull old seal out with seal puller or screwdriver. Put new seal in, by placing some motor oil around seal for easy placement. Make sure it is seated well.
Name:  project complete.jpg
Views: 2626
Size:  52.1 KB

Step Fifteen through Seventeen I will be doing tomorow
Step Fifteen: Put Crank shaft pulley back in place. Thread nut back in place by hand. Use good chain pliers to wrap around the pulley to keep motor from turning when lighting bolt. Place a rubber hose around chain to keep from damaging pulley. Use Torque wrench that will go up to 310 ft/lbs. Place bar in place to keep chain pliers from spinning and tighten using torque wrench. Or have some one attempt to hold it??? I am able to rent this torque wrench from a local rental store in town for a small fee.
Step Sixteen: Replace Idler pulley (new from Toyota), put fan and clutch back in place, replace two bolts holding top of shroud, Put belts back in (replace with OEM if yours are old), fill engine back up with oil.
Step Seventeen: Have a cold beer and smile at all the money and time you just saved yourself!


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-25-05, 10:47 PM   #4
Pinoy 4WD Journey

4x4CPOSEADOG's Avatar

Join Date: Jul 2004
Location: on the right coast
Posts: 1,168
A very nice and detailed removal and installation. Great job. I will keep and save those pictures for future use.

Thanks for your time detailing the process.


__________________
Noel
97 LX450 (lockers retro 50%), CDL, Pin 7, HIRs, Cup Holder, 100 pads, George's LEDs, OEM grab bar, sidemarkers, ARB winch bar, PIAA 520, 295/75R16 NTG, Kaymar Deluxe with tire carrier, OME850J/863, Slee speedo gear, ARB fridge, silicone PHH/FHH, Xantrex 1750 inverter. Awaiting installation: XD9000, OEM subtank, slee SS brake lines, 3* blue bushings/caster plates, BIC 95300B dual batts. ....
94 4Runner, OEM 4.88 gear, V6 3VZE
04 Taco Ext Cab SR5 V6 TRD RR DIFF LOCK, groucho sliders
4x4CPOSEADOG is offline   Reply With Quote
Old 12-25-05, 10:54 PM   #5
IH8MUD Lifer

firetruck41's Avatar

Join Date: Mar 2003
Location: Camas, WA USA
TLCA# 14300
Posts: 3,583
Great write up and pics!
If I was doing this job, I might consider replacing the phillips head with some allen head bolts, seems it would make it easier if there is a next time.


__________________
Ben Silva
IH8MUD Site Supporter since July 2004
1996 Lexus LX 450, 130k, locked, Cooper STT 285s, OME 850/863, CDL/Pin 7, 30qt freezer, 2@aux fuse blocks, aux powerpoint, 850w inverter
1998 Lexus LX 470, 139k Sold
1993 FZJ80 198k miles Sold
firetruck41 is offline   Reply With Quote
Old 12-25-05, 11:05 PM   #6
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
Quote:
Originally Posted by firetruck41
Great write up and pics!
If I was doing this job, I might consider replacing the phillips head with some allen head bolts, seems it would make it easier if there is a next time.
Yes you could and a good idea. I didnt want to monkey around trying to find the right size so I just ordered new OEM bolts prior to starting the job.


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-25-05, 11:20 PM   #7
IH8MUD Junior

Join Date: Aug 2003
Location: Tempe, AZ
Posts: 101
Great job Zane.

Could you measure the thread size and length of the "bolts", and post a pic of one, so that we can look for alternatives? I assume that they are standard flat head machine screws.

Mike
MikeB is offline   Reply With Quote
Old 12-26-05, 12:04 AM   #8
IH8MUD Addict

Elijah's Avatar

Join Date: Jul 2005
Location: slc area
TLCA# 16029
Posts: 742
Nice post Zane!! Sounds like this could possibly go in the FAQ. Thanks for the detailed write up!!


__________________
99 UZJ100, OME 2" lift, 315's, ARB front bar, 4x4 Labs rear bar
95 FZJ80, lockers, off-road monster, 37" Pitbull Rockers
84 FJ60, stock
76 FJ40, v8 conversion, discs all around, lock-right in back, 35's
Elijah is offline   Reply With Quote
Old 12-26-05, 12:31 AM   #9
Unleash the Beast

LX_TREME's Avatar

Join Date: Nov 2004
Location: Pasadena, CA
TLCA# 4500
Posts: 2,525
Blog Entries: 1
Quote:
Originally Posted by zjz4476
Step Sixteen: Replace Idler pulley (new from Toyota)
What a coincidence, I'm about to do samething after new year except i'm going to replace with new radiator, also got all the parts here just waiting for moment and the right time.By any chance do you remember the Idler pulley part #?

Thank you
LX_TREME is offline   Reply With Quote
Old 12-26-05, 09:02 AM   #10
IH8MUD Lifer

Join Date: Aug 2003
Posts: 6,548
Very nice. This should go in the FAQ and looks to be an excellent time saver.

DougM


__________________
Buy Head Gasket DVD for you OR for your mechanic HERE

'93 FZJ since new, 2.2kw starter, Revo 275s, locked, big Hellas, rr fog, rr flood, rr Airlift, synthetics, ARB bullbar. 97 FZJ - exact same stuff but Michelin Alpins in winter "Slicker than owl shit on a wet log." - Carter
IdahoDoug is offline   Reply With Quote
Old 12-26-05, 09:28 AM   #11
IH8MUD Lifer

RavenTai's Avatar

Join Date: Nov 2003
Location: Various
TLCA# 14809
Posts: 5,383
This seal is seeping on my 80, no where near a stream yet just a grimy stain, thanks for the write up,

Another tip on Philips screws is to use valve lapping compound on the tip, gives more grip.

If you run into trouble can the rad be removed and get a manual impact in there? Need about 8" plus room to swing a hammer


__________________
1988 FJ62 on 33s
1996 LX450 on 33s
RavenTai is online now   Reply With Quote
Old 12-26-05, 11:31 AM   #12
IH8MUD Lifer

scottm's Avatar

Join Date: Mar 2003
Location: Holland, Michigan
Posts: 1,448
Hmm, maybe that's what's leaking on mine. I thought it was the front crank seal, but I don't see any slinging like my other 80 did. Nice writeup, thanks!


__________________
'03 UZJ100: wife's ride; '97 FZJ80: Traded in; '97 FZJ80 40th: Totalled; Heep: Trail Rated; '06 Specialized Epic Comp Disk: Daily Driver
"if thou would have peace, be thou then prepared for war".
scottm is offline   Reply With Quote
Old 12-26-05, 11:48 AM   #13
Parts Shaman (per Romer)

cruiserdan's Avatar

Join Date: Mar 2003
Location: Where's my glasses?
TLCA# 11332
Posts: 14,053
Be sure to get the crank pulley bolt nice and tight when you go back togther...

Good job!.


D-


__________________
Original owner 93 FZJ80,locked,blown,water/methanol injected(like a WWII fighter aircraft),lifted,winched,snorkeled,slidered,Sleeed ,moneypit. Balanced on a pin head. 95 FZJ80 trail truck (hers), 94 FZJ80 320K with a knock and a lumpy old Dodge car.
cruiserdan is offline   Reply With Quote
Old 12-26-05, 01:38 PM   #14
IH8MUD Lifer

Join Date: Mar 2003
Posts: 1,823
He is holding the hammer sideways so to speak, so that the side of the hammer is striking the bolts. I'll probably be doing this repair to mine, but I think it was a poor RTV job by the user.


__________________
1972 C2500 longbed, 1993 FZJ80, 2005 Odyssey
Idaho
cruiserman is online now   Reply With Quote
Old 12-26-05, 07:10 PM   #15
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
OK, I completed steps 15 thru 17 with no needed updates to the step by step comments provided. I used a 600 ft/lb torque wrinch to tighten the crank bolt to 305 ft/lbs. I made it 310 for good messure just in case the calibration was off on it due to it being a rental tool.


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-26-05, 07:10 PM   #16
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
Quote:
Originally Posted by IdahoDoug
Very nice. This should go in the FAQ and looks to be an excellent time saver.

DougM
If you guys think this should be in the FAQ section that would be great. How can we git this done? My only concern is that even though I have compressed my pictures as much as possible I'm running out of space for future posts. When put in the FAQ section will this free up my allowed picture space? I sure would hate to pull some of these pictures out of my uploads to post something new and loose the value of them in the original post.


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-26-05, 07:21 PM   #17
IH8MUD Lifer

Join Date: Oct 2004
Posts: 1,554
nice write up-way usefull
Dusty is offline   Reply With Quote
Old 12-26-05, 07:21 PM   #18
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
Quote:
Originally Posted by LX_TREME
What a coincidence, I'm about to do samething after new year except i'm going to replace with new radiator, also got all the parts here just waiting for moment and the right time.By any chance do you remember the Idler pulley part #?

Thank you
Attached you will find all the Toyota part numbers needed for this job.

Idler Pulley Part # 16603-66010
Oil Pump Seal Part # 15188-66020
Philip head bolts part # 15183-66020 quantity #7

Front Crank Shaft Seal part #90311-52022


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-26-05, 07:27 PM   #19
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
Quote:
Originally Posted by RavenTai
This seal is seeping on my 80, no where near a stream yet just a grimy stain, thanks for the write up,

Another tip on Philips screws is to use valve lapping compound on the tip, gives more grip.

If you run into trouble can the rad be removed and get a manual impact in there? Need about 8" plus room to swing a hammer
You could remove the radiator and gain some room, but I only needed to Tap (as hard as I could while still in control of the hammer) the philips driver with the side of the hammer (as Cruiserman stated) to do the job.


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-26-05, 07:58 PM   #20
Unleash the Beast

LX_TREME's Avatar

Join Date: Nov 2004
Location: Pasadena, CA
TLCA# 4500
Posts: 2,525
Blog Entries: 1
Quote:
Originally Posted by zjz4476
Attached you will find all the Toyota part numbers needed for this job.

Idler Pulley Part # 16603-66010
Oil Pump Seal Part # 15188-66020
Philip head bolts part # 15183-66020 quantity #7

Front Crank Shaft Seal part #90311-52022
I bought all the parts already except the Idler Pulley Part# also have question here, do i really need to replace all the 7pcs of philip head bolts?
LX_TREME is offline   Reply With Quote
Old 12-26-05, 08:08 PM   #21
IH8MUD Addict

Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 567
Quote:
Originally Posted by LX_TREME
I bought all the parts already except the Idler Pulley Part# also have question here, do i really need to replace all the 7pcs of philip head bolts?
I would, they are CHEAP and good insurance just in case you mess up the heads when pulling them out.


__________________
Zane Zwerenz
2000 UZJ100: 285/75/16 BFG's, OME Torsion Bars, OME 866, Slee Diff Drop Kit, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's,Safari Snorkel, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT

1997 FZJ80 (SOLD):
Custom Built Sliders, Custom Built T-Case Skid Plate, Custom Built OEM Bumper Tire Carrier, Rear Storage Solution, Modified Mombassa RTT, 851/860 OME, 285/75/16 TOYO Open Country MT's,
www.tornadoalleycruisers.com
Zane is offline   Reply With Quote
Old 12-26-05, 08:20 PM   #22
Parts Shaman (per Romer)

cruiserdan's Avatar

Join Date: Mar 2003
Location: Where's my glasses?
TLCA# 11332
Posts: 14,053
Quote:
Originally Posted by zjz4476
If you guys think this should be in the FAQ section that would be great. How can we git this done? My only concern is that even though I have compressed my pictures as much as possible I'm running out of space for future posts. When put in the FAQ section will this free up my allowed picture space? I sure would hate to pull some of these pictures out of my uploads to post something new and loose the value of them in the original post.

Buy a star and you can post pics to your heart's delight.....


__________________
Original owner 93 FZJ80,locked,blown,water/methanol injected(like a WWII fighter aircraft),lifted,winched,snorkeled,slidered,Sleeed ,moneypit. Balanced on a pin head. 95 FZJ80 trail truck (hers), 94 FZJ80 320K with a knock and a lumpy old Dodge car.
cruiserdan is offline   Reply With Quote
Old 01-15-06, 02:14 PM   #23
IH8MUD Regular

spartan's Avatar

Join Date: May 2005
Location: The south. Is there somewhere else?
Posts: 421

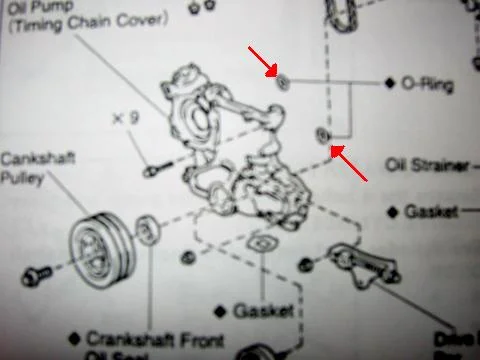

An add to this - lap ( sand your cover before reinstalling ) with wet /dry sandpaper on flat surface as robbie mentions in his replacement procedure post.

I replaced my seal to repair a pretty substantial leak, did NOT sand it flat and still have a slight weep of oil.
spartan is offline   Reply With Quote
Old 01-22-06, 11:09 PM   #24
IH8MUD Regular

spartan's Avatar

Join Date: May 2005
Location: The south. Is there somewhere else?
Posts: 421
Update - seems the o ring does swell. My leak is gone!!!!!!! Yippeee....


__________________
1997 40th, One Owner, Front 850 OME + 30MM Poly Spacers / Rear 860 OME, Castor Correction, Bilsteins, ARB, 9000# Superwinch, Hella 1000's / 500's, Landtank seat rail extensions, Husky Liners F-R, 285 Revo's.

Last edited by spartan; 01-22-06 at 11:19 PM.
spartan is offline   Reply With Quote
Old 01-23-06, 12:02 AM   #25
