08-19-08, 04:32 AM
|
 #121 (permalink)
| | 250+ Club
Join Date: Mar 2003 Location: Frederick, MD
Posts: 732
| Cool stuff rick!
I gotta say that it kind of scares me that you have those forms on your bed like that. It sets a new standard for loving your work.
__________________
TLCA # 14832
97 FZJ80, 6" Lift, Slee Armor, 35" TrXus, 12k Warn, Milford...
90 Xtracab 4x4
|
|  | |
08-19-08, 08:44 AM
|
#122 (permalink)
| | 250+ Club
Join Date: Jun 2004 Location: Portsmouth NH
Posts: 658
| Outstanding! Looking forward to the production units.
__________________
96 lx 450 stock, with 285's and R.B. MAF housing.
2006 Sienna LE 8 passanger, 3 kids and Room to spare!
| |
| | |
08-19-08, 09:21 AM
|
#123 (permalink)
| | Site Addict
Join Date: Nov 2005 Location: Calgary
Posts: 1,063
| In my books you have reached Icon status. Great work Rick.
Karl
__________________
1997 LX 450 202000kms, locked, 285 Revos, Supercharged.
2004 lx 470 61000kms stock
You cant kill yourself on a pogostick. (Harry Parker, world famous geostatistician)
| |
| | |
08-19-08, 11:09 AM
|
#124 (permalink)
| | Forum Lifer
Join Date: Oct 2003 Location: North Cadillac
Posts: 6,834
| Outstanding! nice hotel bed there buddy. please tell me you aren't trying to drag that thing around with you on your work road trips?
__________________
95' FZJ80 OME med./J lift, ARB rack, ARB Bull Bar w/tmax 12,500, 35" truxus, Aussie locker-rear, Center Diff Lock, Sliders, IPOR Skid, IPOR rear bumper, upgraded slee sticker, custom dents, more to come. . .
Remember it's a gateway drug, so it will actually lead to "crystal meh".
Go 80, or go unsatisfied
| |
| | |
08-19-08, 03:31 PM
|
#125 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| Thanks guys and I didn't sleep with them. I dropped them off at the foundry today and have to talk with the owner tomorrow to finalize the cost for the samples. The guy I talked to thinks it's going to be about two weeks as they need to install the runners and vents on the form before being able to poor. The owners son is a car guy and he thought that it looked good.
The sample run will consist of two manifolds so they can be machined and then test fit onto the truck. That's the part that kind of scares me. A lot of work, time and cash all culminating at that point.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | |
08-19-08, 05:35 PM
|
#126 (permalink)
| | Forum Lifer
Join Date: Oct 2003 Location: North Cadillac
Posts: 6,834
| let me know if you need paypal to put dibs on mine to help ease the burden.
__________________
95' FZJ80 OME med./J lift, ARB rack, ARB Bull Bar w/tmax 12,500, 35" truxus, Aussie locker-rear, Center Diff Lock, Sliders, IPOR Skid, IPOR rear bumper, upgraded slee sticker, custom dents, more to come. . .
Remember it's a gateway drug, so it will actually lead to "crystal meh".
Go 80, or go unsatisfied
| |
| | |
08-19-08, 06:45 PM
|
#127 (permalink)
| | I ruin surprises.
Join Date: Aug 2003
Posts: 6,044
| Hell, I feel the need to chip in for all the hard work he's put into this (and the MAF) even though I don't plan on buying his manifold!  | |
| | |
08-19-08, 08:14 PM
|
#128 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| Quote:
Originally Posted by mot  Hell, I feel the need to chip in for all the hard work he's put into this (and the MAF) even though I don't plan on buying his manifold! | thanks for offering. On that diagram of the intake system I could use that short section of pleated hose.
Actually I can use it and was going to contact you. If your not sure which item I'm talking about let me know.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | |
08-19-08, 08:33 PM
|
#129 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| Quote:
Originally Posted by concretejungle let me know if you need paypal to put dibs on mine to help ease the burden. | Thanks Alex. It means a lot to me that some of you have that kind of confidence in my engineering skills.
I've been thinking about a production run and I'd want to be able to stock some spares in the event that there is a problem. I would hate for someone to experience a crack if nothing more than a defect in pouring that one piece and be without a readily available replacement.
I need to think more about this and for anyone interested you should put some time into it as well. That way we could come to some kind of consensus and understand the risks involved.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | |
08-19-08, 09:08 PM
|
#130 (permalink)
| | Forum Lifer
Join Date: Nov 2004 Location: Pasadena, CA
Posts: 2,557
| Quote:
Originally Posted by landtank The sample run will consist of two manifolds so they can be machined and then test fit onto the truck. That's the part that kind of scares me. A lot of work, time and cash all culminating at that point. | Rick what beautiful ..piece of art, marvelous. But Rick don't forget the manifold need to be tested day or so after day in 1500 degree plus temperatures without cracking, warping or simply melting away. | |
| | |
08-19-08, 10:48 PM
|
#131 (permalink)
| | I ruin surprises.
Join Date: Aug 2003
Posts: 6,044
| Quote:
Originally Posted by landtank thanks for offering. On that diagram of the intake system I could use that short section of pleated hose.
Actually I can use it and was going to contact you. If your not sure which item I'm talking about let me know. | Rick,

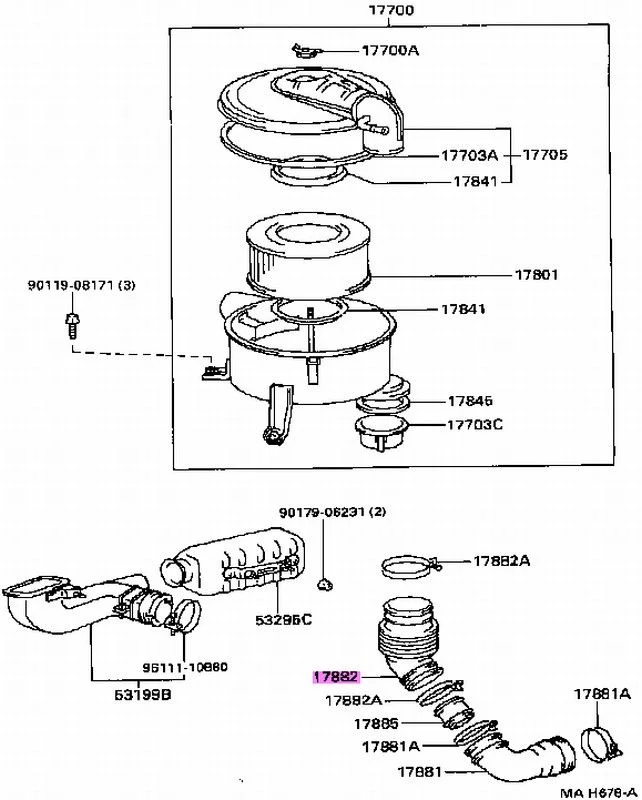

Is this the diagram you speak of, big guy?
If so, is the highlighted part the one that you speak of? (17882)
And if that's a yes, do you also need the clamps right above and/or below it? (17882A)
LMK if I can help you with your project, Rick!  | |
| | |
08-20-08, 03:14 AM
|
#132 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| well MOT this goes to show you how my memory is failing. I don't remember the elbow in that piece and it looks like it reduces from inlet to outlet so it matches the Turbo. Thanks for posting it up. I was hoping to put that bellows section in to hep deal with engine torque but it doesn't look to to be a solution now.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | |
08-20-08, 03:17 AM
|
#133 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| Quote:
Originally Posted by LX_TREME Rick what beautiful ..piece of art, marvelous. But Rick don't forget the manifold need to be tested day or so after day in 1500 degree plus temperatures without cracking, warping or simply melting away. | It's being poured out of ductile iron which is thought to be one of the better choices for corrosion resistance and stability. But like you said, you just have to run it and see how it performs.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | |
08-20-08, 05:12 AM
|
#134 (permalink)
| | Site Addict
Join Date: Oct 2002
Posts: 1,927
| You probably know this, but just in case... A ductile iron with high silicon and possibly moly is best for the heat. The stock 1FZ manifolds are actually cast from this stuff, which is normally reserved turbo type applications.... again showing the robustness and durability built into a Land Cruiser.
__________________
Brian
Jowett Engineering
Western Massachusetts
08 Tundra Double Cab 5.7 Supercharged AWD
93 FZJ80, locked, 4.6L, 6 speed, Orion FORSALE
04 VW Touareg V8 w/ locker (hers)
80 FJ40 , 83k, PS and AC
05 Yamaha RS Rage Snowmobile
06 Suzuki King Quad
93 VW Corrado Syncro AWD 3.0L
51 Jowett Jupiter Roadster
| |
| | |
08-20-08, 06:04 AM
|
#135 (permalink)
| | I ruin surprises.
Join Date: Aug 2003
Posts: 6,044
| Quote:
Originally Posted by landtank Thanks for posting it up. | Sure thing, Rick!
I'm here for ya if you need anything from this side of the pond.
We're all pulling for you! | |
| | |
08-20-08, 06:49 AM
|
#136 (permalink)
| | Forum Lifer
Join Date: Dec 2003
Posts: 3,449
| Quote:
Originally Posted by bjowett You probably know this, but just in case... A ductile iron with high silicon and possibly moly is best for the heat. The stock 1FZ manifolds are actually cast from this stuff, which is normally reserved turbo type applications.... again showing the robustness and durability built into a Land Cruiser. | And don't forget the nickel, high nickel content is important.
__________________
97 FZJ80, Locked & Loaded, Safari Turbo, Safari Intercooler, Ceramic Coated Custom Exhaust, Ron Davis Racing Radiator, OME HD 2.5" Suspension, DBA Slotted Rotors, New Toyota Calipers All Around, Toyota Pads, 33" Revos, ARB Front Bumper, Center Diff Switch, Slee Stuff: Roof Rack, Step Sliders, Skid Plates, SS Brake Lines, DC Drive Shaft. HG PM'd, 9.5psi and climbing, My Rocky Mountain Mojo Mobile!
| |
| | |
08-20-08, 07:27 AM
|
#137 (permalink)
| | Forum Lifer
Join Date: Oct 2003 Location: North Cadillac
Posts: 6,834
| I understand, but without risk often there is no reward.
__________________
95' FZJ80 OME med./J lift, ARB rack, ARB Bull Bar w/tmax 12,500, 35" truxus, Aussie locker-rear, Center Diff Lock, Sliders, IPOR Skid, IPOR rear bumper, upgraded slee sticker, custom dents, more to come. . .
Remember it's a gateway drug, so it will actually lead to "crystal meh".
Go 80, or go unsatisfied
| |
| | |
08-20-08, 12:30 PM
|
#138 (permalink)
| | 250+ Club
Join Date: Dec 2003 Location: The OC
Posts: 559
| Quote:
Originally Posted by landtank well MOT this goes to show you how my memory is failing. I don't remember the elbow in that piece and it looks like it reduces from inlet to outlet so it matches the Turbo. Thanks for posting it up. I was hoping to put that bellows section in to hep deal with engine torque but it doesn't look to to be a solution now. | The clamp on each side of the bellows has the same part number, so maybe no reduction there. Mot would have to take a look at the part to be sure; it's too tough to tell from the diagram.
Don't give up!
__________________ Boyd (stuck on rock)
KI6RCM
1997 White FZJ 80 - "SuperMilquetoast" aka JAFW80 I'm not satisfied until you're not satisfied. | |
| | |
08-20-08, 12:55 PM
|
#139 (permalink)
| | 250+ Club
Join Date: Nov 2006 Location: Traverse City, MI
Posts: 663
| Quote:
Originally Posted by landtank it's not your specific turbo build but the truck as a whole
omit factory air cleaner
omit snorkel
omit second battery tray
omit York OBA
. | With your setup you'll ba able to still house a second battery and a york??? If thats the case your maifold just became a MUST have.
Amazing stuff Rick, keep up the good work.
__________________ 97 TLC, 176k, Locked, CDL/7pin, 285 MTR, yellow box, ARB, slee headlights, so much more I want.......
01 Honda Civic LX - 42mpg baby! Quote:
Originally Posted by ed97fzj80 Alternatively, God reserves a certain luck for fools, children, and the criminally insane. | WTB: OME 850 & 860 springs!!!! | |
| | |
08-20-08, 01:52 PM
|
#140 (permalink)
| | ThinkTank Waterboy
Join Date: Mar 2003 Location: Boston MA
Posts: 13,109
| Quote:
Originally Posted by p8nt With your setup you'll ba able to still house a second battery and a york??? | That is the plan. Putting the turbo down under the manifold does so much good.
having room for the York and second battery is only part of it.
__________________
Rick Bigelow
'96 215k
Groveland MA 01834
If you're not the lead dog, the view never changes
| |
| | | |
