09-03-08, 12:18 AM
|
#1 (permalink)
|
|
Forum Lifer
Join Date: Feb 2006
Location: Inside the Orange Curtain
Posts: 2,879
|
Little Christo, Luke, and Ken. Another new rear bumper
I decided to make a bastard rear bumper and swingout with a little of my favorite aspects of each of the above greats creations. No earth shattering design elements but it turned out so cool I thought I would share.

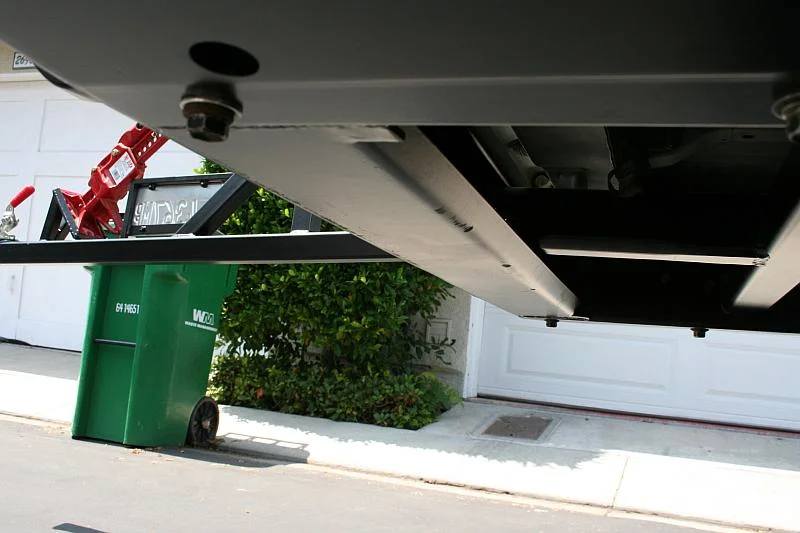

I did cut the rear cross member and the main part of the bumper is two 3/16" laser cut pieces and bent on a press brake. I didn't do the acute angle bend because I wanted to play with the two pieces to find the angle that looked best to my eye. The recovery points are 1" solid steel and go through the face of the bumper and tie in to mounts along the frame rail.
The wing portions are 1/4" and the tubing is 1 1/2" 0.120 wall mild tubing. They are done very similar to Luke's wrapping from the inside of the frame, under and up with two bends. I built the top boxed and tubed like Ken does on his but with the tubing a little lower. The tubing wound up directly in front of the side marker lights becuase I measured on the truck to the bottom of the tubing and when I bent and welded it all up on the bench I accidently built them to the same measurement but on the top of the tubing.  I had already welded it all together without a test fit. Oh well.

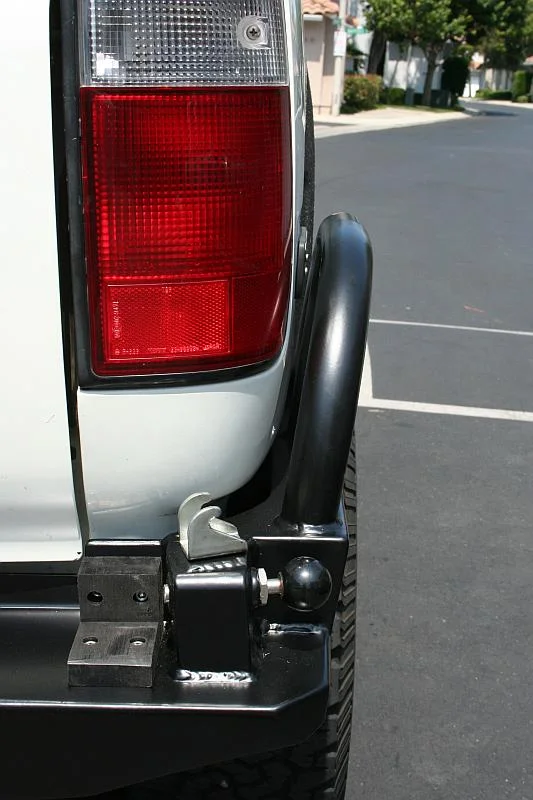

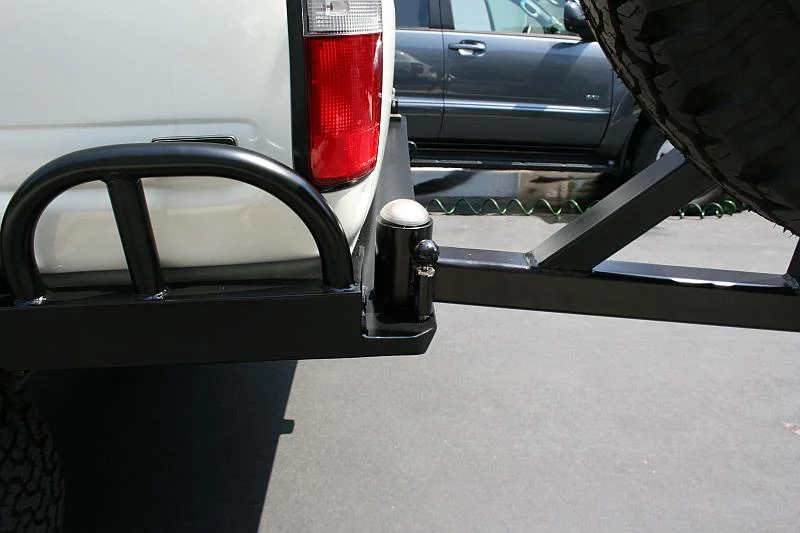

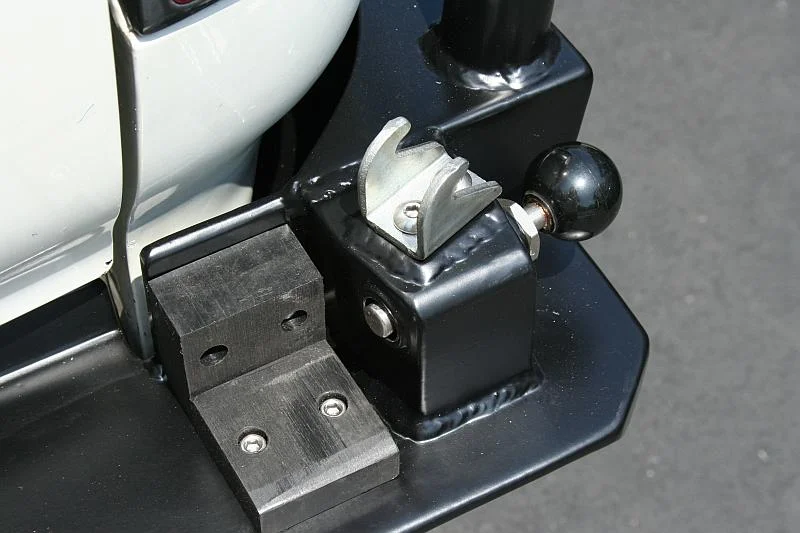

I decided on a single swing out with locking pins for the open and closed positions ala Slee but I did the latching mechanism and closed pin a little different. I wanted to keep the latch off the back of the bumper to protect it and to created a pull that would hold the swingout down and in, not just one or the other. I wound up angling it and mounting the catch hook lower than the latch itself. It works good so far but I have yet to wheel with it so the first wash board will show how well it will hold up.
__________________
Mo
97 FZJ, Tillie dog RIP my incredible friend and co-pilot, wheeling won't be the same without you  , locked, 6" Slee'd, Hanna'd, Mo'd, synthetics, flareless, air, 2 meter, other crap, work in progress.
"Congressmen who willfully take actions during wartime that damage morale and undermine the military are saboteurs and should be arrested, exiled, or hanged . " Abraham Lincoln
"The problem with Socialism is that you eventually run out of other people's money." Margaret Thatcher
Last edited by Slomo; 09-03-08 at 12:39 AM.
|
|
|
|
09-03-08, 12:19 AM
|
#2 (permalink)
|
|
Forum Lifer
Join Date: Feb 2006
Location: Inside the Orange Curtain
Posts: 2,879
|
Some more
__________________
Mo
97 FZJ, Tillie dog RIP my incredible friend and co-pilot, wheeling won't be the same without you , locked, 6" Slee'd, Hanna'd, Mo'd, synthetics, flareless, air, 2 meter, other crap, work in progress.
"Congressmen who willfully take actions during wartime that damage morale and undermine the military are saboteurs and should be arrested, exiled, or hanged . " Abraham Lincoln
"The problem with Socialism is that you eventually run out of other people's money." Margaret Thatcher
|
|
|
|
|
09-03-08, 12:20 AM
|
#3 (permalink)
|
|
Forum Lifer
Join Date: Feb 2006
Location: Inside the Orange Curtain
Posts: 2,879
|
even more
__________________
Mo
97 FZJ, Tillie dog RIP my incredible friend and co-pilot, wheeling won't be the same without you , locked, 6" Slee'd, Hanna'd, Mo'd, synthetics, flareless, air, 2 meter, other crap, work in progress.
"Congressmen who willfully take actions during wartime that damage morale and undermine the military are saboteurs and should be arrested, exiled, or hanged . " Abraham Lincoln
"The problem with Socialism is that you eventually run out of other people's money." Margaret Thatcher
|
|
|
|
|
09-03-08, 12:26 AM
|
#4 (permalink)
|
|
Forum Regular
Join Date: Dec 2007
Location: Klamath Falls, OR
Posts: 233
|
You have talent!!!! That looks awesome. Which I had the tools to try something like that.
__________________
2007 Tundra Limited CrewMax - 4WD, 5.7L Aluminum V8, 6 spd Auto, 2.5" Revtek lift, Factory
1994 FZJ80L 206,000+ Miles, with Lockers, HIR Headlights., George's LEDs, Pioneer spkrs, Slee Headlight Harness, HG replaced 198K, Aatlas Two tone Grey leather seat covers, MetalTech Sliders with LineX, 35" Interco Trxus Tires, F.O.R. Gen II Lift and Shocks......more to come!
|
|
|
|
|
09-03-08, 12:29 AM
|
#5 (permalink)
|
|
Forum Regular
Join Date: Nov 2007
Location: SF CA
Posts: 228
|

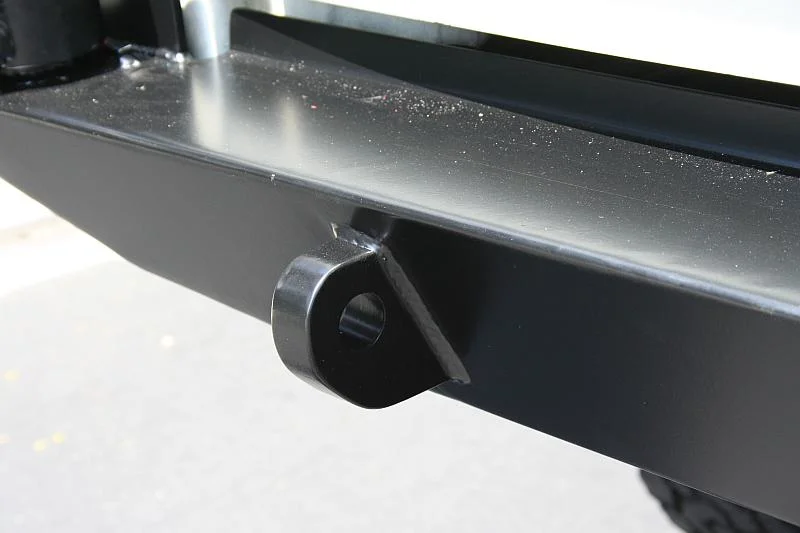

Looks great & very well built! I like the thick recovery points and the nice departure angle.

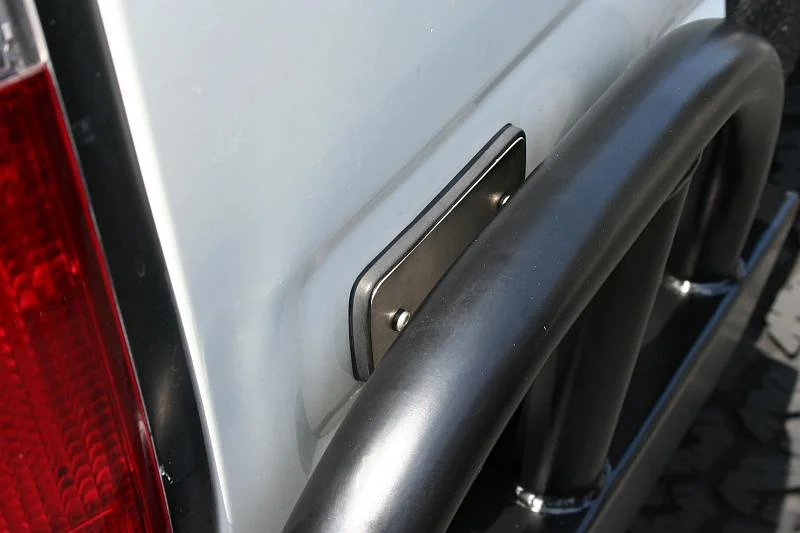

But the side protection, looks like it covers up the side marker? Maybe it's just the angle of the photos.
|
|
|
|
|
09-03-08, 12:30 AM
|
#6 (permalink)
|
|
Forum Regular
Join Date: Jun 2006
Posts: 236
|
DAMN good job!
__________________
'97 Lexus LX450 - CDL/7 Pin | Factory cup holder | Black LX wheels | 305/70 Toyo M/T | Optima Redtop | Auto-Up mod | George's LEDs | 1.5" Spacers |
|
|
|
|
|
09-03-08, 12:31 AM
|
#7 (permalink)
|
|
tlcwagons.org
Join Date: Nov 2003
Posts: 3,745
|
the truck is looking awesome! nice details on the bumper
|
|
|
|
|
09-03-08, 12:36 AM
|
#8 (permalink)
|
|
Forum Lifer
Join Date: Feb 2006
Location: Inside the Orange Curtain
Posts: 2,879
|
Thanks all.
Quote:
Originally Posted by SF80
But the side protection, looks like it covers up the side marker? Maybe it's just the angle of the photos.
|
Not the angle unfortunately. I mentioned it above but I accidently switched a measurement from the bottom of the tubing to the top of the tubing which put them in front of rather than above the side marker light. No biggie since I already smashed one prior. Now they are both hidden.
__________________
Mo
97 FZJ, Tillie dog RIP my incredible friend and co-pilot, wheeling won't be the same without you , locked, 6" Slee'd, Hanna'd, Mo'd, synthetics, flareless, air, 2 meter, other crap, work in progress.
"Congressmen who willfully take actions during wartime that damage morale and undermine the military are saboteurs and should be arrested, exiled, or hanged . " Abraham Lincoln
"The problem with Socialism is that you eventually run out of other people's money." Margaret Thatcher
|
|
|
|
|
09-03-08, 12:41 AM
|
#9 (permalink)
|
|
Forum Regular
Join Date: Nov 2007
Location: SF CA
Posts: 228
|
Ah yes, reading. Hard to do when there are so many nice pics! Nice job tho!
|
|
|
|
|
09-03-08, 08:23 AM
|
#10 (permalink)
|
|
250+ Club
Join Date: Oct 2006
Location: Manhattan, KS
Posts: 271
|
NICE WORK! My one eye is GREEN with envy!
Quote:
Originally Posted by Slomo
Now they are both hidden. |
An observant HIPO may use this for an excuse to pull you over. Don't come to KS, we use Flaw Enforcement to finance Law Enforcement. Pity to see a 100 on the auction block with warning Can never be retitled due to inspection for drug cache compartments. Sold only to licensed salvage for parts.
Maybe some neatO LED-style sidemarker lights? Lots of alternatives out there in a number of sizes which might require minor drilling to surface mount. With your design & fab skills, no one would ever know you hadn't planned it that way. Perhaps a plate w/tab(s) to clear hoop for small bullet-style LEDs to replace the plates you mounted over OEM sidemarkers? Thus no drilling to mount, & access to OEM elec. plug. Might be an idea for a cottage industry . . . .

__________________
Joe aka 4XODDIC (allow me to pronounce that for you: 4 By, Odd Eye, See!) aka the One Eyed Guy
Owning Toyotas Since 1975
TLCA 8537
99-00 Tundra LTD 4X4; 01-90 Samurai; 07-88 TinTop Samurai
|
|
|
|
|
09-03-08, 08:48 AM
|
#11 (permalink)
|
|
Forum Lifer
Join Date: Jun 2003
Location: Northern VA
Posts: 2,964
|
Is the finish power coating or something else?
__________________
Brandon L. Downs
'97 LX
Pictures
BusinessBenefitsGroup
Group Benefits
Individual Life, Health, Disability
Business Insurance
Retirement Planning
|
|
|
|
|
09-03-08, 08:51 AM
|
#12 (permalink)
|
|
Forum Lifer
Join Date: Dec 2003
Posts: 3,285
|
__________________
97 FZJ80, Locked & Loaded, Safari Turbo, Safari Intercooler, Ceramic Coated Custom Exhaust, Ron Davis Racing Radiator, OME HD 2.5" Suspension, DBA Slotted Rotors, New Toyota Calipers All Around, Toyota Pads, 33" Revos, ARB Front Bumper, Center Diff Switch, Slee Stuff: Roof Rack, Step Sliders, Skid Plates, SS Brake Lines, DC Drive Shaft. HG PM'd, 9.5psi and climbing, My Rocky Mountain Mojo Mobile!
|
|
|
|
09-03-08, 09:03 AM
|
#13 (permalink)
|
|
ONSC triad VP
Join Date: Jun 2005
Location: NC
Posts: 2,589
|
That is a great looking bumper. I love it !!! from the saftey back up pin for the latch to the profile an and protection. Very well thought out and executed.
__________________
Jason---- I live vicariously..........................through myself
__________________________________________________ __________
95 80 -- Slee4''/omeJ, 37's, factory locked, full armor and a s/c too
72 55-- w/ 76 4sdp 78 f. disc 79 2F -- SOA + 3'' w/ 35's, IPOR protection
92 P/U -- no "D" light, no umph, no fun except at the pump
|
|
|
|
|
09-03-08, 09:07 AM
|
#14 (permalink)
|
|
DUM8HI EVOL
Join Date: May 2006
Location: Sandy Eggo, CA
Posts: 1,741
|
Quote:
|
Originally Posted by turbocruiser
|
2X. Very nice.
I like that the top of the Hi-Lift is below the roofline and the "T" handle mount for it.
__________________
'70 FJ40 'Land Crusher' Sold-
'97 FZJ80  (Factory Locked, CDL Switch, 7 Pin Mod, RT Temp Gauge Mod, Slee Light Harnesses, 'Dynamat', Custom Pinstriping, Hvy/Med OME lift, 295's, "Lined" Flares, ARB front, Slee rear, Hanna Sliders, Anodized Bronze Wheels, YORK OBA)
|
|
|
|
|
09-03-08, 09:16 AM
|
#15 (permalink)
|
|
Forum Regular
Join Date: Dec 2006
Location: SLO, CA / Monterey, CA
Posts: 205
|
Simply just... wow
__________________
~Evan P.
~1997 - ARB - Kaymar w/ swingout tire & Hi-Lift - Warn xd9000 - 315's BFG A/T - Snorkel - Dual battery - Hella 4000's - Taco Wheels
~2008 Yeti DJ - 36 Float - Outlaws - Saint Brake
~2007 Yeti AS-X - 36 Van - Dee Trax - X9 - Code Brakes - DHX 5
|
|
|
|
|
09-03-08, 09:29 AM
|
#16 (permalink)
|
|
Deer season!
Join Date: Mar 2007
Location: KIRKSVILLE, MO
Posts: 350
|
Great design, welds, and powdercoat!

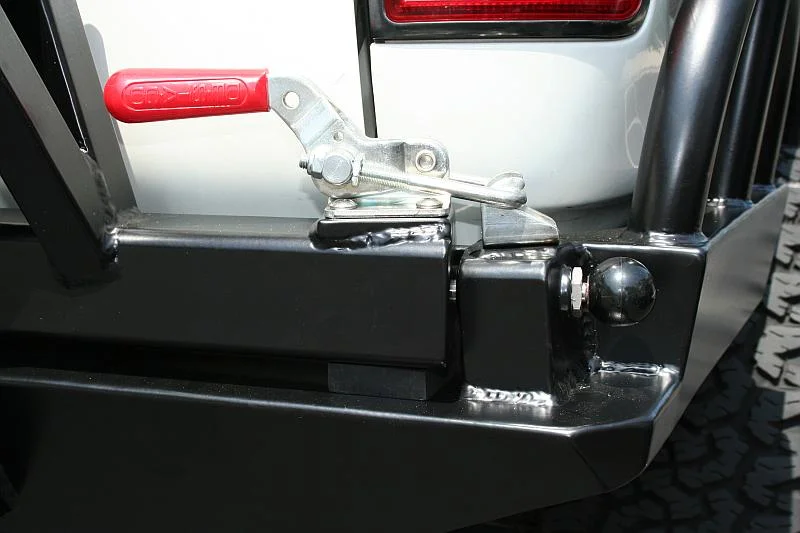

What kind of latch is that and where did you source it?
__________________
97' LX450 (WIFE'S) OEM CUPHOLDER, PHH, POWER ANTENNA FIXED & FRONT AXLE REBUILD.
01' TACOMA DBL CAB, LIFT, ARB, ARE SHELL, HI-LIFT, SLIDERS, CUSTOM REAR BUMPER, WINCH, 2" COILOVER SWAY-A-WAYS, GARMIN, ETC.
|
|
|
|
|
09-03-08, 10:27 AM
|
#17 (permalink)
|
|
Utarded
Join Date: Apr 2004
Location: Utah
Posts: 5,211
|
You got mad skills man....
__________________
Eric, Utah operations commander- Tall Corn Cruisers.
1993 Landcruiser, 197K miles. Lifted, Locked, Slidered, Slee'd, Snork'd, Winched, bobbed. Daily driver. ROTW
|
|
|
|
|
09-03-08, 10:31 AM
|
#18 (permalink)
|
|
beside La Caja China
Join Date: Sep 2005
Location: Ventura Ca. USA
Posts: 1,134
|
man, that's the shizznet!
Is the spare on a slide also?
will a production model be available?
|
|
|
|
|
09-03-08, 10:32 AM
|
#19 (permalink)
|
|
Forum Regular
Join Date: Oct 2004
Posts: 188
|
o-face...
|
|
|
|
|
09-03-08, 10:44 AM
|
#20 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: Closer to LAX than the Beach
Posts: 1,519
|
I would be intersted if a second one ever becomes available....or if this one does...very nice work...
__________________
Tim Coffey
87 FJ60 SBC 350 SOA and some other stuff SOLD 5-15-07
94 80 with some stuff New to me 04-28-08
TLCA # 6947
Parts and Carb Rebuilds
http://www.marksoffroad.net
|
|
|
|
|
09-03-08, 10:59 AM
|
#21 (permalink)
|
|
<><
Join Date: Mar 2004
Location: Due West, SC
Posts: 3,335
|
Nice bumper
Quote:
Originally Posted by 4xoddic
NICE WORK! My one eye is GREEN with envy!
An observant HIPO may use this for an excuse to pull you over. Don't come to KS, we use Flaw Enforcement to finance Law Enforcement. Pity to see a 100 on the auction block with warning Can never be retitled due to inspection for drug cache compartments. Sold only to licensed salvage for parts.
Maybe some neatO LED-style sidemarker lights? Lots of alternatives out there in a number of sizes which might require minor drilling to surface mount. With your design & fab skills, no one would ever know you hadn't planned it that way. Perhaps a plate w/tab(s) to clear hoop for small bullet-style LEDs to replace the plates you mounted over OEM sidemarkers? Thus no drilling to mount, & access to OEM elec. plug. Might be an idea for a cottage industry . . . .
|
Wow, good thing were not in Kansas anymore toto. We welcome almost any kind of mod here in SC. No inspections either. Its great. Window tint seems to be the only stickler issue. Note to self never move to KS or Cali....
__________________
'93 FZJ 39K miles - 850/860, Bilies, LED tails, sliders, & 285 MTRs Lightforce 240s waiting on a bumper.
'97 4Runner SR5 - 4x4, leather, Toyo AT, TJM T15, LF 240s.
'63 Biscayne Wgn - Kandy Green & Tweed. Family Wagon 3rd row in the garage.
'89 FJ62 & '83 fj60 SOLD
Erskine College Upstate Cruisers
|
|
|
|
|
09-03-08, 10:59 AM
|
#22 (permalink)
|
|
Site Addict
Join Date: Aug 2005
Location: ATL
Posts: 1,161
|
Mo,
You did an ok job.  I think for a first run prototype it is sufficient.  Now start working on the second one where you fix the little details that went wrong on this one. Once you get the second one done, ship that early prototype to the address I PMed you and let me see how it works here in the southeast. Good.
By the way it looks great and you are such a  .
Smit
__________________
97' - blk, OME HD, 3Xlocked, Pin7, ARB Dlx, Hanna Sliders, Snorkel,PHH, MAXXIS BH 315s, Slee T skid Plate,Garmin 2820,optima blue,extreme aire,137K ROTW
"...and we even had a Lexus wheeling with us, that was a first and it went out, kicked ass and took names." - Heep Guy
2 PHH's in 2 days
|
|
|
|
|
09-03-08, 12:26 PM
|
#23 (permalink)
|
|
Site Addict
Join Date: Jan 2003
Location: Syracuse, Utah
Posts: 1,144
|
Very nice looking bumper. The only thing I can see you second guessing over time is the single full width swing out. Depending on where you wheel it can sometimes be a pain to have to get into the back of the truck in tight quarters and not have quite enough room to get the swingout open. Little bit easier with a shorter swingout. Also seems like the horizontal tube that the tire is mounted to is awefully close to the liftgate. If you get any flex in the tire carrier on a washboard road or something that could give you a little headache.
But I'm picking at nits. Excellent job! very nice looking bumper and looks very stout and functional. I like to support vendors when I can but I'm all in favor of individuals using some of their own creativity and effort to come up with new solutions and ideas for others. Nice.
|
|
|
|
|
09-03-08, 01:21 PM
|
#24 (permalink)
|
|
Site Addict
Join Date: Jun 2006
Location: Ohio
Posts: 1,770
|
Very nice! It looks like it is tucked up closer to the body than most bumpers which will probably help with departure angles. Now build a few more and see if you can keep the cost under 1K
__________________
97LX450, 145K, 315CooperSTT's, OME851/860's, TRD S/C, Bump It Offorad Sliders, 4x4 Labs rear, J-Moose rack, Camping Lab RTT, CDL 7-Pin, George's LED's, Slee SS lines, 100 pads, silicone PHH, Raventai temp, Z34 Vent, Serious case of E-locker envy, CDan parts throughout. IM Scut monkey level I.
http://forum.ih8mud.com/80-series-tech/290251-rotf.html
|
|
|
|
|
09-03-08, 04:12 PM
|
#25 (permalink)
|
|
250+ Club
Join Date: Apr 2008
Location: So Cal
Posts: 407
|
That is amazing! Like calfj60, put me down for one if you decide to make more.....I am totally interested. Perhaps the price might be right if both of us commit to one. We are local so no shipping needed.....
__________________
'84 FJ60, OME lift, 33's, **SOLD**
'93 FZj80. OME 850J/863, CDL Switch, ARB winch-ready, 10K winch, Hannibal Roof Rack, George's LEDs, Toshiba HIRs, SROR Sliders , PHH'd, MAF SS Brake lines, BFG AT 285's.
And yes, I picked my screen name before I found SoCal80's....
|
|
|
|
|
09-03-08, 05:23 PM
|
#26 (permalink)
|
|
www.unwiredadventures.com
Join Date: Jan 2008
Location: Pasadena, California
Posts: 313
|
That is really beautiful!
|
|
|
|
|
09-03-08, 05:42 PM
|
#27 (permalink)
|
|
250+ Club
Join Date: Dec 2006
Location: TN
Posts: 912
|
Well done.
__________________
1996 T O Y O T A LAND CRUISER FZJ-80
132K, Locked, Snorkeled, Pin7+CDL, ARB front Hella'd, IPOR rear and skid plate, Metal Tech Sliders, Slee 4", 4.88's, 35" Cooper STT's, 17" Sequoia wheels, Line-X'd roof Warfield Storage System
|
|
|
|
|
09-03-08, 06:07 PM
|
#28 (permalink)
|
|
Forum Regular
Join Date: Dec 2006
Location: SLO, CA / Monterey, CA
Posts: 205
|
Quote:
Originally Posted by bowyer2002
Great design, welds, and powdercoat!
What kind of latch is that and where did you source it?
|
The clamps are made by Desta-Co. They have many different types. We used the same clamps on our X-ray equipment, the only difference is we had a "safety latch" to keep in from opening itself up.
__________________
~Evan P.
~1997 - ARB - Kaymar w/ swingout tire & Hi-Lift - Warn xd9000 - 315's BFG A/T - Snorkel - Dual battery - Hella 4000's - Taco Wheels
~2008 Yeti DJ - 36 Float - Outlaws - Saint Brake
~2007 Yeti AS-X - 36 Van - Dee Trax - X9 - Code Brakes - DHX 5
|
|
|
|
|
09-03-08, 06:23 PM
|
#29 (permalink)
|
|
Parts Geek, M1 Mechanic
Join Date: Mar 2003
Location: Wheelin' a Camry
Posts: 14,950
|
Did you see all the booger-welds?
Damn, that thing is really pretty.
__________________
Original owner 93 FZJ80,locked,blown,water/methanol injected(like a WWII fighter aircraft),lifted,winched,snorkeled,slidered,Sleeed ,moneypit. Balanced on a pin head. 95 FZJ80 trail truck (hers), 94 FZJ80 320K with a knock and a lumpy old Dodge car.
http://i487.photobucket.com/albums/r...Gastrap063.jpg
http://i487.photobucket.com/albums/r...frifles004.jpg
|
|
|
|
|
09-03-08, 06:29 PM
|
#30 (permalink)
|
|
250+ Club
Join Date: Jun 2006
Location: Memphis, TN
Posts: 551
|
Really nice job...I see demand for the Slomo bumper increasing by the hour...you better talk to Christo or Luke about producing it...
|
|
|
|
|
|
