HOW TO: installing a garage door opener into your 80 **updated**
Yes folks, I wanted to install the garage door opener as part of the vehicle instead of having it hang down from the visor. I didn't want to make access to my home that much easier and mainly...well I'm a big dork and I thought it would be cool. Someone else here did something very similar so I thought I would blatantly steal the idea and write up a How To.
Total time: 90 mins (but this was to figure out what I wanted to do) Tools needed: • Used warning/emergency lights switch • Garage door opener (Chamberlain used in this example) • Wire cutters • Soldering iron • Philips screw driver I bought both warning light switches from SNOWCRUISER a few days ago and they came in today. So I got right to work to making this into my new garage door opener. __________________ 70 FJ40-sold, worst day of my life 79 TOY 4WD pup-stolen, 2nd worst day of my life 91 4Runner 4WD-burned to ground, 3rd worst day of my life 83 FJ60- suckiest day of my life 97 LX450, 216k, non-locked. Expedition vehicle in progress Last edited by NLXTACY; 07-07-08 at 03:36 AM. |
|
|
|
|
|
#2 |
|
IH8MUD Addict
Join Date: Dec 2007
Location: Woodland Hills, CA
Posts: 941
|
HOW TO: installing a garage door opener into your 80

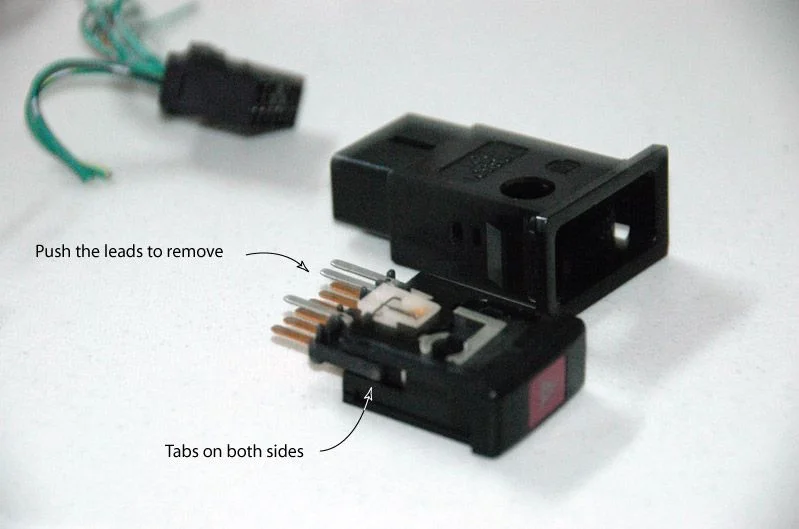

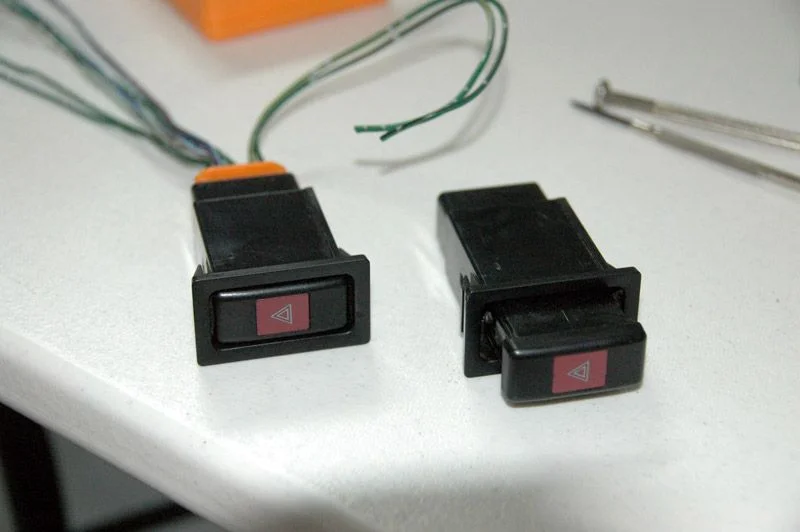

The first step is to remove the socket from the switch (HOPEFULLY YOU HAVE A SOCKET). Then remove the actual switch from the housing. This is easily done by using a very small screwdriver to press in the tabs on the side. Then using that same screwdriver press the pins that are inside the socket. By pushing them into the socket it will push the whole switch out.

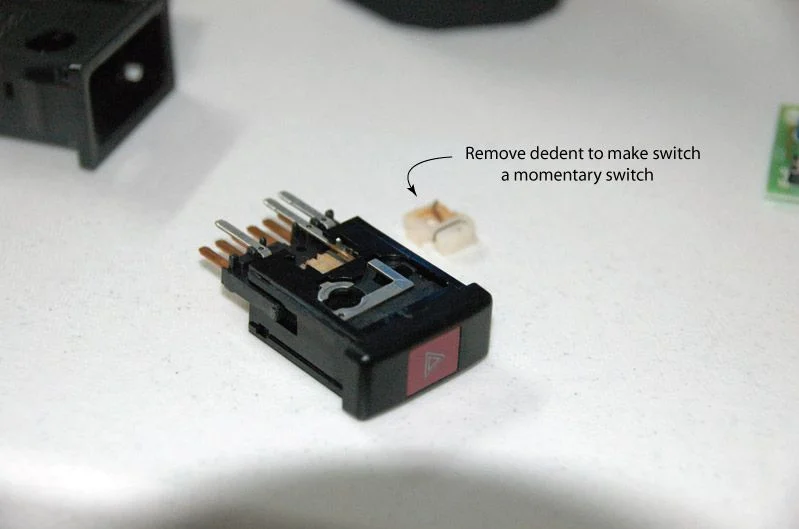

Once the switch is out, you need to remove the small, white, plastic detent. This magically transforms the on-off switch to a momentary switch which is what you want for garage door operation. __________________ 70 FJ40-sold, worst day of my life 79 TOY 4WD pup-stolen, 2nd worst day of my life 91 4Runner 4WD-burned to ground, 3rd worst day of my life 83 FJ60- suckiest day of my life 97 LX450, 216k, non-locked. Expedition vehicle in progress Last edited by NLXTACY; 08-05-08 at 02:53 AM. |
|
|
|
|
|
#3 |
|
IH8MUD Addict
Join Date: Dec 2007
Location: Woodland Hills, CA
Posts: 941
|
HOW TO: installing a garage door opener into your 80

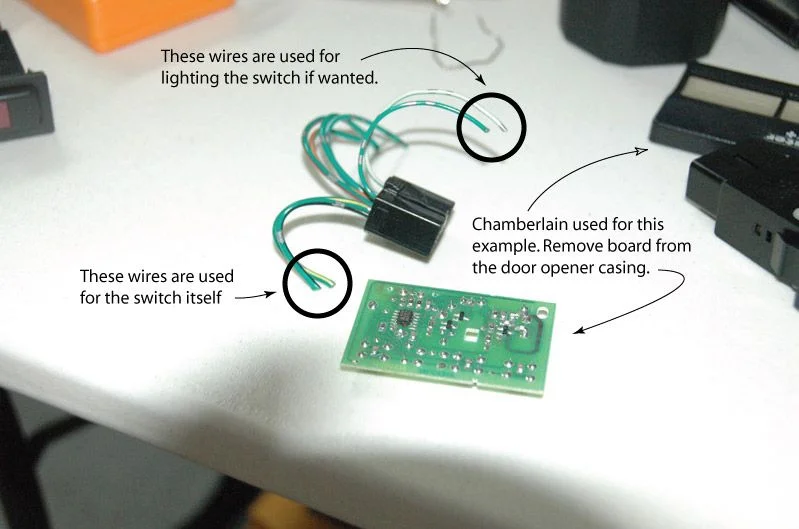

Now take your garage door opener apart. All you need is the board and the battery. Everything else can be tossed. You will notice three micro switches. Two next to each other and the third spaced out further. That's the switch you want to use. Start by de-soldering the pins that hold it in. I only removed the two pins closest to the edge of the board but you can remove the whole thing with no issues.

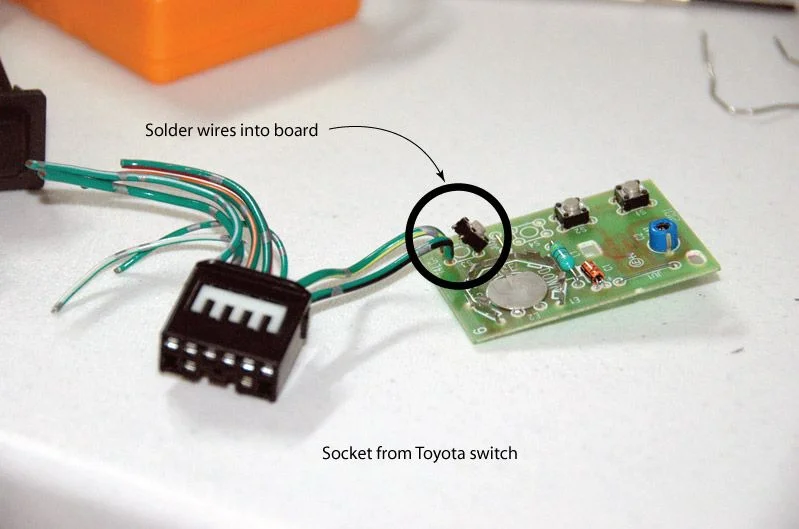

You will then need to expose about .25" of wiring on the socket. Look at the photo to determine which wires you need. Now you will notice that the wires are actually too big to fit into the de-soldered holes. I removed about half the thickness of the wires to make sure it fit. Once it does, you can then solder in the wires to the board. __________________ 70 FJ40-sold, worst day of my life 79 TOY 4WD pup-stolen, 2nd worst day of my life 91 4Runner 4WD-burned to ground, 3rd worst day of my life 83 FJ60- suckiest day of my life 97 LX450, 216k, non-locked. Expedition vehicle in progress Last edited by NLXTACY; 07-01-08 at 01:02 AM. |
|
|
|
|
|
#4 |
|
IH8MUD Addict
Join Date: Dec 2007
Location: Woodland Hills, CA
Posts: 941
|
HOW TO: installing a garage door opener into your 80

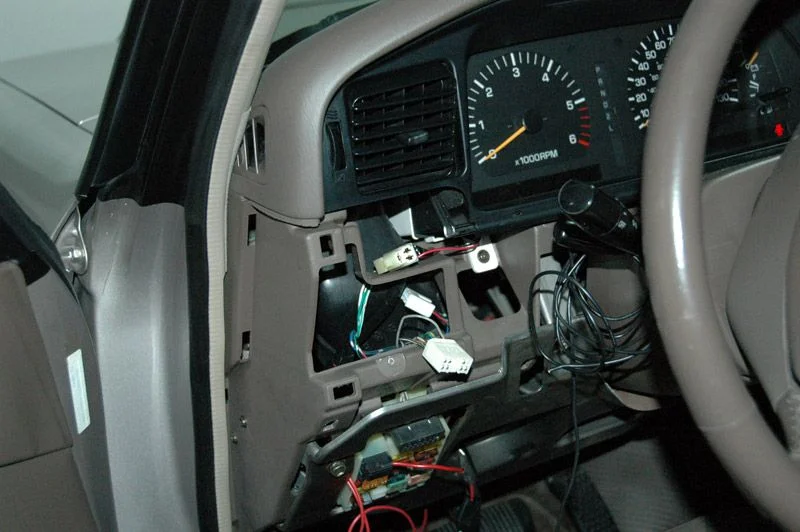

Now remove the bottom trim shroud found under the steering wheel. Then also remove the trim that goes over the steering wheel. This is the piece that you will need to install the switch. ASSuming of course you are installing it there and not the front console.

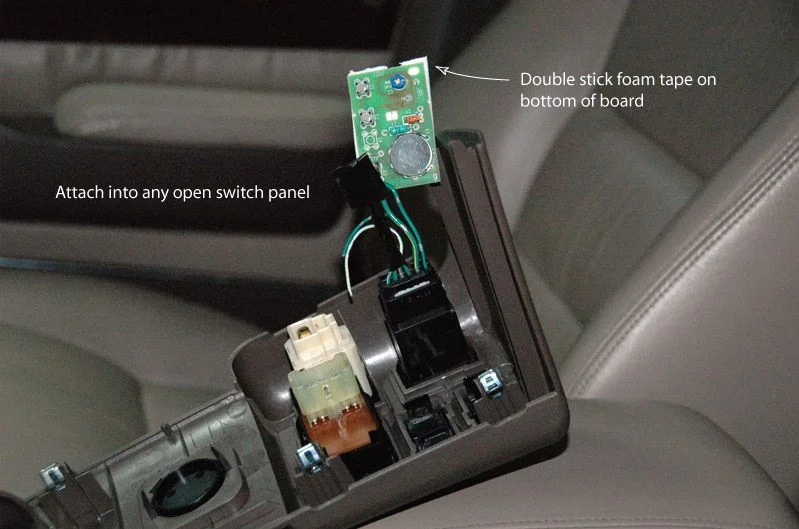

![]() Go ahead and remove one of the blanks and insert the board and switch. __________________ 70 FJ40-sold, worst day of my life 79 TOY 4WD pup-stolen, 2nd worst day of my life 91 4Runner 4WD-burned to ground, 3rd worst day of my life 83 FJ60- suckiest day of my life 97 LX450, 216k, non-locked. Expedition vehicle in progress Last edited by NLXTACY; 07-01-08 at 01:03 AM. |
|
|
|
|
|
#5 |
|
IH8MUD Addict
Join Date: Dec 2007
Location: Woodland Hills, CA
Posts: 941
|
HOW TO: installing a garage door opener into your 80After

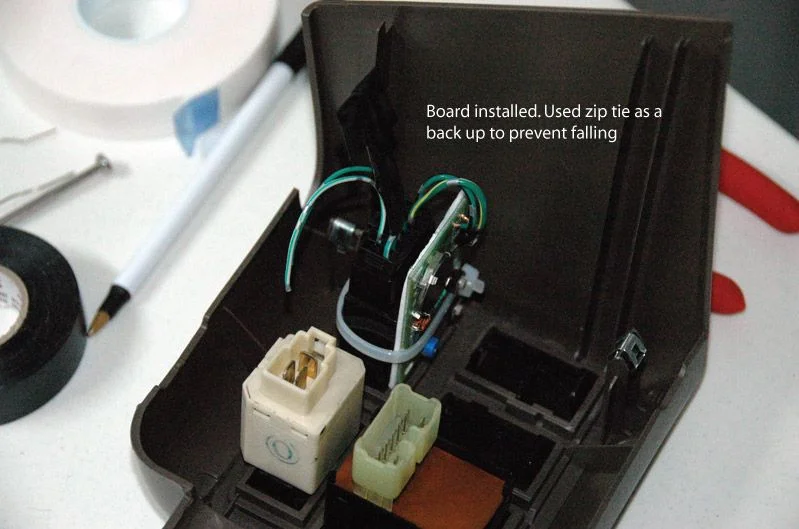

After the socket is in put in you will need to secure the board onto the switch now that its inside the trim. Obviously you cannot do this before or else you wont be able to get the switch in the hole.

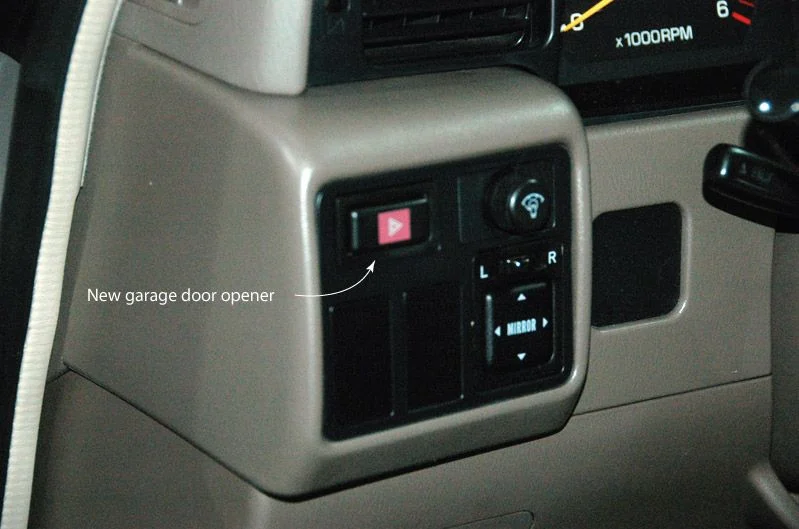

I used both tape and zip tie. Yeah I am lame and couldn't decide which one I wanted so I used both. Slide in the trim and button everything back. You now have a new garage door opener that some punk wont be able to steal out of your truck to gain access into you garage. Ask me how I know. ![]() Now you have the two wires that are there for the light. I really want to get the light to work with the dash lights. So I am assuming that just one wire to ground and the other tied into the dash light switch should suffice. Anyone else have a better idea? Also, this would be a fantastic time to ask: DOES ANYONE KNOW HOW TO RELABEL A SWITCH!?!?!? I don't mean stick a label over it, I mean actually take off the old and design and label a new. Enjoy!!! ![]() ![]()
