Front axle evaulation for FAQ

landtank · 02-13-07, 06:17 PM

With so many questions on caster and front end alignments and issues I thought I'd put together a post on how I evaluate an axle for problems.

I'd do this if I had problems or before I brought the truck in for an alignment.

I like to start at the passenger side of the vehicle first. This is mainly do to the fact that it's the first wheel right off of the steering box.

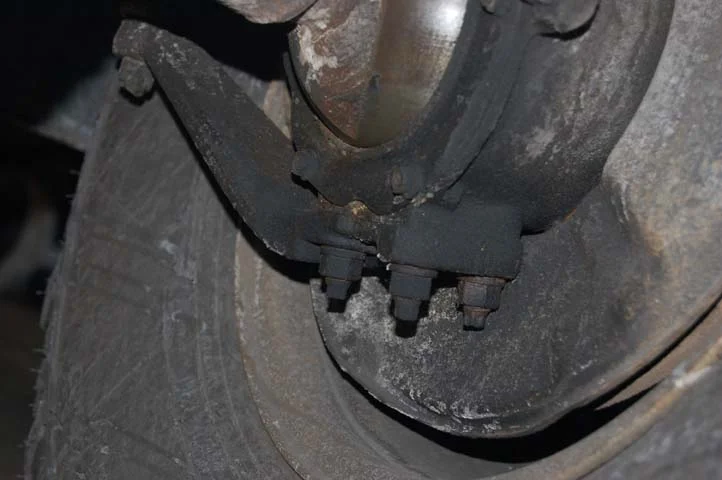

Once I've jacked up the passenger side wheel off the ground I do a cursory check of the lower knuckle arms. There have been issues with these nuts loosening up and the arms coming loose and giving driving issues.

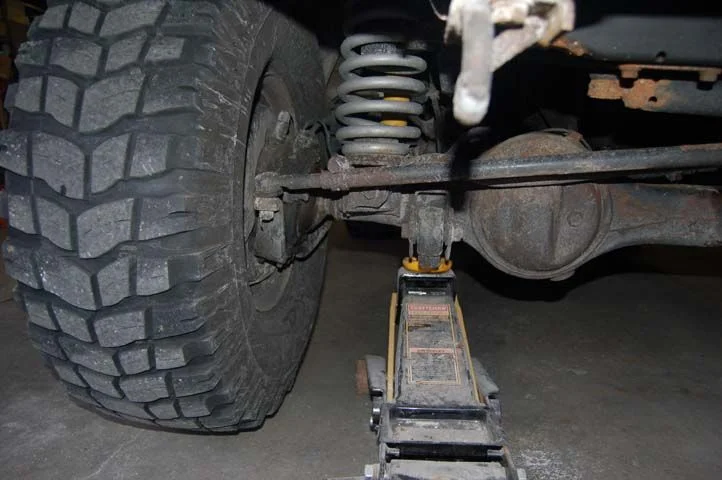

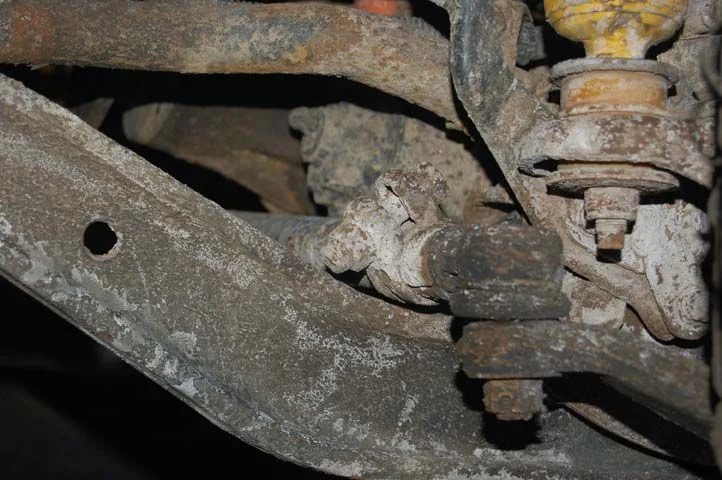

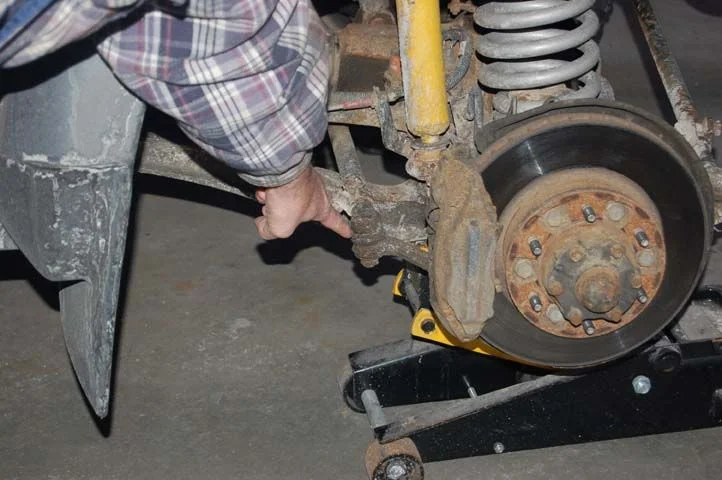

Attached is the jack in place and a shot of the lower knuckle arm.

landtank · 02-13-07, 06:19 PM

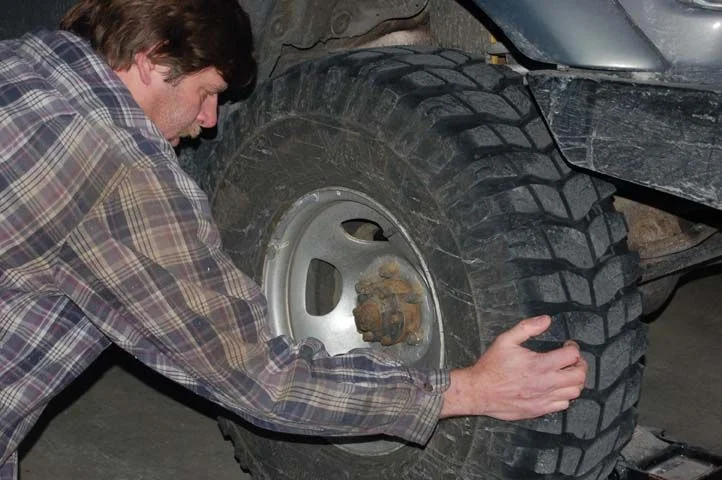

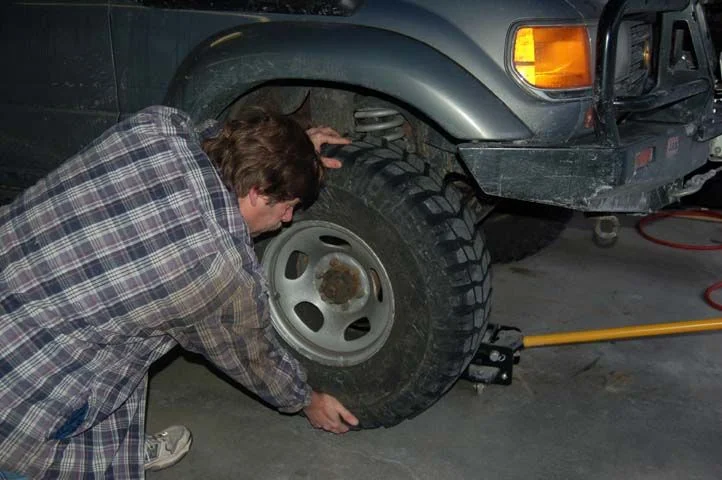

The next thing I do is check for bearing play in the tire. This is done by grabbing the tire at 12:00 and 6:00 o'clock positions and lifting the bottom of the tire as you push the top of the tire. Any play here would mean that the bearing is loose and needs your attention.

landtank · 02-13-07, 06:25 PM

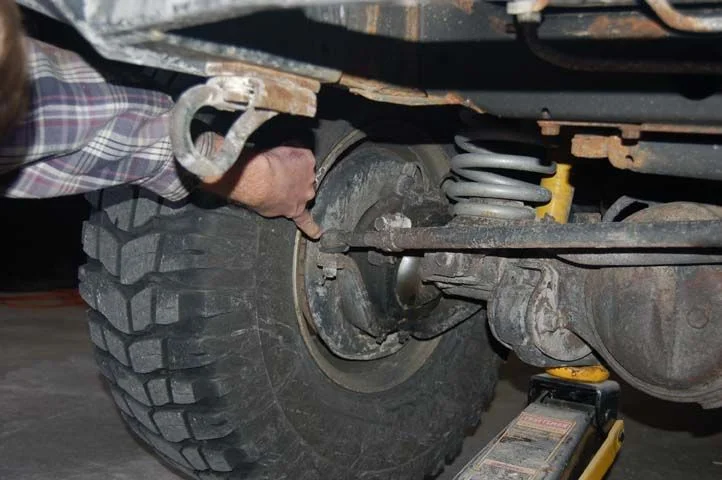

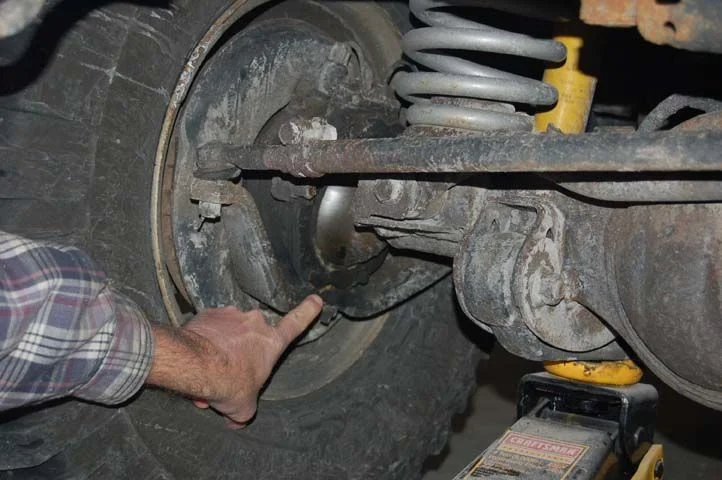

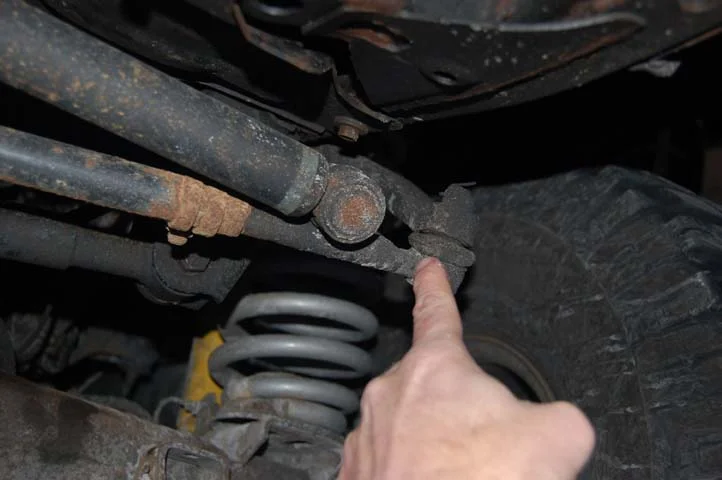

Next up is to look for play in the tire rod ends. This time you grap the tire at 9:00 and 3:00 o'clock positions and push left and right. Any free movement would mean that a Tie rod end is likely worn. Since we've started on the passenger side and free movement would be in the drag link which goes from the steering box to the knuckle arm on the passenger side. Attached are pictures of both ends of the drag link and the hand position for checking for play.

landtank · 02-13-07, 06:27 PM

Next up is to check for play in the trunion bearings. This requires the use of a bar as you alone might not be able to get the needed force on the tire to feel the play. You'll need to lift the tire with the bar. I usually have my left hand on the rim to feel the place

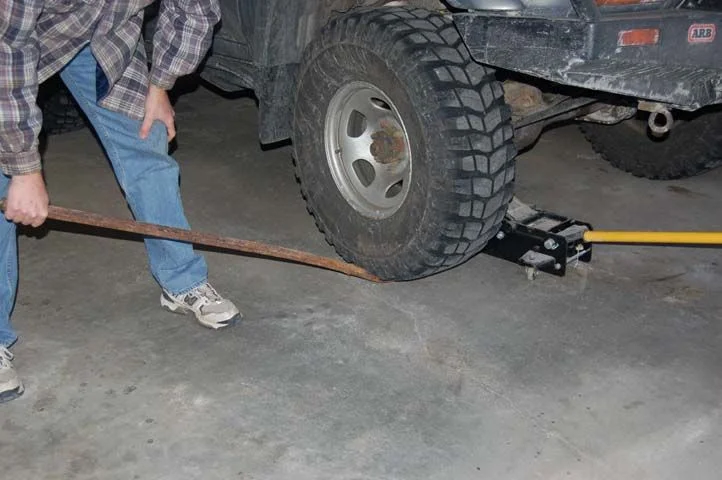

Attached is a pic of how to set up the bar and where the trunion bearings are located.

landtank · 02-13-07, 06:31 PM

At this point I put the passenger side tire back on the ground and perform the same set of checks on the driver side.

The only difference is that and play in the tie rod check would be a result of a warn tie rod end on the tie rod. This is the rod that travels behind the axle and links the two tires together.

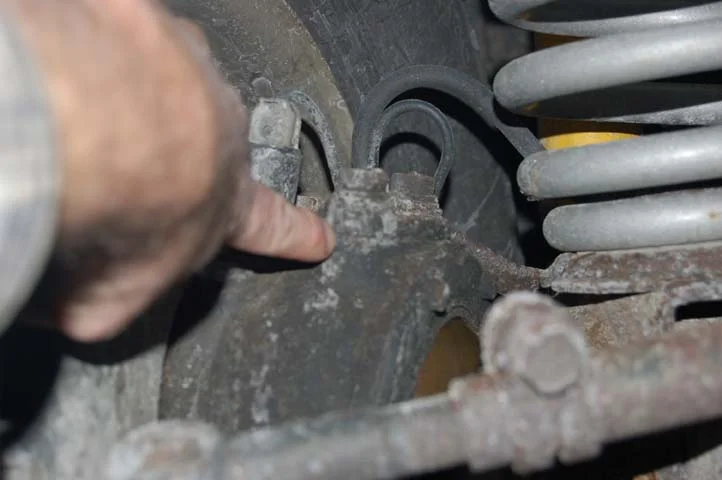

Attached is a picture of a tie rod end

landtank · 02-13-07, 06:33 PM

The last check would to be sure that the clamp that holds the Tie rod in place is positioned properly so as not to contact the leading arm and give a false reading on the rack.
