[denis]

On the hotrod pipe, if you didn't know already the LHD trucks have a RHS mounted PS pump and the RHD trucks are vice-versa. I'm not sure you could find a P/N for your specific application. BTW I thought the rad with the elbowed outlet only came on the 2nd gens, maybe its turbo specific I will need to have a look I guess. could you measure the core height to see if its 2WD compatible ?

thanks,
denis

[WristPin]

This is an excellent write up.

Thanks.
And you even answeed some trans bolt pattern questions I had

This thread belongs in the FAQ!

[WristPin]

Originally Posted by WristPin

This is an excellent write up.

Thanks.
And you even answeed some trans bolt pattern questions I had

This thread belongs in the FAQ!

Of course, Jerod has already submitted it in the FAQ

[DanS HJ-45]

could you measure the core height to see if its 2WD compatible ?

I sure could. But I'm on the road for nearly another month, so I won't be able to get to it until at least then.

HOWEVER, I can tell you that the radiator is a standard Toyota core. When I took it to the radiator shop to have the outlet moved (it was originally on the far RH side) hoping to avoid the most hated hotrod part they noted that it was a perfect match for (I *think*) the V6 radiator, other than the pipe locations. It sure seemed to me like it was just as tall as the 22R-E radiator was, although it is MUCH heavier. The elbow is original though, it originally exited parallel to the core, facing the LH side of the truck.

So, I'll see if I can remember to measure it when I get home next (feel free to remind me if I've forgotten). I *should* get to go home around June 23 or so. You just need the height of the core?

The RH PS pump would be on an LHD 2LT-E truck only right? I wasn't quite willing to risk taking the chance that it would be compatible with a PS pump from a 2L, so I made due with what I had. I do know that I'm about the only guy on toyotadieselmadness that seems to have run into this exact problem. I'll have to put the correct pump on the "to-do" list, because it would also allow me to put the factory mechanical fan back on. But it's definitely at the bottom of that "to-do" list now.

Dan

[denis]

Originally Posted by DanS HJ-45

So, I'll see if I can remember to measure it when I get home next (feel free to remind me if I've forgotten). I *should* get to go home around June 23 or so. You just need the height of the core?

Thanks ! I need just the core height everything else is the same. I want to see if a stockish turbo rad exists that fits in a 2WD 3rd gen. I would like to use the turbo specific water outlet/thermostat housing, but then again I could just have my current rad. cap... capped. I just don't want to butcher it at this point because I will need it as-is in the LN130 that will remain NA either in a 2L2 or a 3L fashion

The RH PS pump would be on an LHD 2LT-E truck only right? I wasn't quite willing to risk taking the chance that it would be compatible with a PS pump from a 2L, so I made due with what I had.

Unfortunately the PS pump support is integral with the engine mount and the alt. mount. I have a RHD alt in the shop and *IIRC* it doesn't fit the LHD lower support at all.

[DanS HJ-45]

Unfortunately the PS pump support is integral with the engine mount and the alt. mount.

Ahhh, THAT's why I kept the setup I have. I knew there was a good reason.

Dan

[knixen]

I am going to replace my 2LT-II with the 1KZT later this summer, and will be posting some info...

[jlsubthumper]

How much did you spend on this swap? My 22re is dead! and I was thinking about doing the 3.4 5vz-fe swap, but if this swap is as easy as you say besides the wiring I might do it instead. Do you have any #'s on the new motor as in hp and torque? My rig will be strictly off road so fuel milage will not be an issue. It just means I will be able to go farther on the trail. Let me know what you think.

[2ndGenToyotaFan]

Well I told my wife that I think I want to go diesel when it's engine time, and the first thing out of her mouth was "What about the noise???" So Dan, how's it sound? What kind of muffler/exhaust are you running?

[DanS HJ-45]

I have a 2.5" exhaust with a single muffler (Magnaflow IIRC--the one with the better warranty ). It is quieter than the 22R-E was. In fact, right after I got it done I drove it about 500 miles without any muffler (just the OEM dump from the turbo and exiting right where the muffler should be). The turbo whine was SOOOO cool there. The only reason I put on a muffler was that at a certain speed, going up hill, I got a wierd resonance that was pretty loud. It is smooth too (I was worried about that because I used the solid mass flywheel). It's at least as smooth as it was with the gas engine, maybe smoother.

How much did you spend on this swap? My 22re is dead! and I was thinking about doing the 3.4 5vz-fe swap, but if this swap is as easy as you say besides the wiring I might do it instead. Do you have any #'s on the new motor as in hp and torque? My rig will be strictly off road so fuel milage will not be an issue. It just means I will be able to go farther on the trail. Let me know what you think.

I spent around 9 grand doing mine, but that includes a bunch of other stuff. I didn't leave a bearing unchanged, I put in new seats, etc... I think the actual cost to get the diesel in and running was around $5,500.

I *think* the 2LT-E is rated around 105HP, but I can't find that number anywhere. Either way, it's FAR peppier and torque-ier than the gas engine. In fact, it feels better than my Dad's 2001 Taco. The torque actually worries me a bit, I feel like I could snap a driveshaft pretty easily if I wasn't careful. In low range, my Toyota is comparable to the old Dodge's we've got (flat fender power wagons).

The downside of a turbo diesel for off roading is that there are some flat spots in the torque band that the engine may not be able to accelerate out of. There are hills that I can climb at 35mph, or 28mph, but 31 just doesn't work. You can downshift, or you can carry more speed, but it's more complicated than a normally aspirated engine. Of course, once the turbo spools up, I'm usually taking my foot off the gas because it just winds up really fast.

If I were looking to build a rock crawler, I'd look at either a 3L engine (same mechanical issues as this, but no hard electricals), or a 1KZ-TE. Both are pretty much immune to the head cracking issues associated with the 2LT-E (and I'd worry about hammering it too hard), and the 3L, being normally aspirated, would have a more conventional torque curve. I understand that they are very similar in driveability to the 2LT-E (aside from the turbo's ability to handle high altitudes better). But that said, I have been nothing but amazed at mine off the roads. In fact, if I did a lot of that, I'd either install a hand throttle or much stronger throttle return springs. When you hit any bump of consequence, your foot bouces off and the drop in power makes you virtually stop, which bounces your foot onto the throttle, which makes you leap forward like a jackrabbit... I'm sure you know the drill, but the diesel has been the most noticeable vehicle I've ever driven like that.

Dan

PS-last I checked, a 3L engine was around 3 grand, and it's a one wire hookup to make it run....

[84pickup]

http://vpizza.org/~jmeehan/toyotadiesel/

this is also a pretty good write up on a 91. not quite as long and detailed but good none the less.

[DanS HJ-45]

Originally Posted by 84pickup

http://vpizza.org/~jmeehan/toyotadiesel/

this is also a pretty good write up on a 91. not quite as long and detailed but good none the less.

James is a wealth of information. And his truck looks great. He even bot a blurb in "Diesel Power" magazine. Not with a picture of a diesel Toyota or anything, just a mention of his site. He's famous!

His project was what convinced me to put the diesel in mine, except at the time I was hoping to find a 2LII-T like he has.

Dan

[DanS HJ-45]

Quick update:

I have now had my second part failure since the conversion over a year ago. There are only three non-Toyota parts used in the conversion. The coolant tube (which loosened), the electric fan, and the relay for that fan. Well, the other day I noticed that the radio shack relay (used because it was available) looked like it had gotten pretty hot at some point. Well, today on the drive home I parked in the driveway and the fan just kept making noise. Turns out the RS relay failed closed so the fan wouldn't shut off when I shut the truck off.

I just turned the thermostat up until it shut off via the control from that relay.

So, to date: that's two little problems with it. Both of them non-Toyota parts.

Let that be a lesson kids.

A whole 20 minutes to replace the relay (with another RS relay, because I don't have time to look into it more today), but next time I get some time off, it's time to redo that. In fact, I think I'll simply use that relay to power another relay which will actually turn on the fan (from a hot battery bus), because that way I can also add a completely separate power supply for the fan control, just in case the thermostat ever fails or something.

Dan

[DuManchu]

Any more updates?

I am looking to ditch my FZJ80 for a 22RE 4Runner and this swap has piqued my interest something fierce. The cost alone is a huge plus for me since I was looking at AT LEAST $10K for a Cummins 4BTA swap in the 80.

The only thing that seems like something I can't handle would be the wiring, everything else looks decently straight forward.

[DanS HJ-45]

Updates????

Well, I put a new stereo in it. And it's getting new tires this week (but the same tires it had on it, just not bald now ).

I still love the thing to death, even with the 2LT-E.

If you are looking into it, go 1KZ-TE. It's no more complicated of a swap, but the 2LT-E is just not a robust enough engine for long term peace of mind. The wiring really isn't all that hard, but it is time consuming (and if you aren't at least decent with electrical work, then it would be a challenge).

If I was just going to wheel, I'd build the 80 with a diesel. For daily driving as well, the mini/runner with a diesel is really hard to beat. For the best of both, it'd be a SAS 3rd generation 4-runner (ok, 2nd generation 4-runner really) with a 1KZ-TE. (at least, in my opinion)

Dan

[DuManchu]

By "update" I meant, how's it workin out for ya? Any problems rear their head? etc...

Also, about the 1KZ, wouldn't parts be pretty hard to source in the US compared to the 2L-T?

[DanS HJ-45]

Originally Posted by DuManchu

By "update" I meant, how's it workin out for ya? Any problems rear their head? etc...

Not yet It continues to run like a top, and it really is as awesome as the day I first finished it. Every time I drive it it impresses me, and I don't know why.

Also, about the 1KZ, wouldn't parts be pretty hard to source in the US compared to the 2L-T?

Since I have a 2LT-E, parts are already hard enough to find, certainly no harder than the 1KZ would be. Really it's not that they are hard to find, but that it takes a couple days to get them if you need them. The "hard" part of finding parts is getting the part number. CDan has been great at finding part numbers, and having an EPC of your own helps an awful lot too (although TDM is tremendously useful for finding part numbers too).

Dan

[DuManchu]

Cool thanks for the info.

For some reason I was thinking you put in a 2LT and not a 2LT-E. I would think a 2LT would be an even easier swap than the E.

Anyway, thanks for this post, I'm sure I'll be going over it several times in the next few weeks/months.

[DanS HJ-45]

Here's an update for ya!

I've been pining over my bald tires for a while. At 100K+ miles, they were getting kind of threadbare. But, as picky as I am, you know I couldn't just buy new tires (also, that would be easy, and I don't do easy). Nope, I had to take the original wheels (and I actually bought a fifth matching wheel for the spare), get them powdercoated as close to the original silver/gray as possible, and THEN buy new tires.

It's a good thing I have been out of town for the past couple weeks in training, as I knew it would take a while, but my powdercoaters (these wheels don't fit in my oven) had some delays, so the faux-lux ended up sitting on blocks in the shop (in the way of Dad's Power Wagon ) for nearly three weeks waiting to get the wheels back. Well, yesterday on my way back to the airport I finally got my wheels picked up, and got some new BFG A/T 31x10.50R15s put on. If BFG made a 32x10.00 I would have rather used that, but oh well, these have done great for me for the previous 100+ thousand miles, so I'm pretty happy.

Anyway, even though I'm stuck in St. Louis, my Dad must have wanted to get his Red Power Wagon out, so he put the wheels/tires back on the faux-lux for me.

It looks good enough I should probably wash the truck now, just so the rest of it looks as clean and stock as the tires. (no, I won't shine the tires, because that is lame to the m4x0RBz!)

Dan

[2ndGenToyotaFan]

Sweet Dan! I'll inspect them personally in late Aug. Hehehe

[DanS HJ-45]

Now that I'm home: better pictures. Also, I'm busy washing it right now just so it matches the new (old) wheels and their as-close-as-possible original color.


And an overall picture.... they look fantastic IMHO.


On a related note, I'm posting a second set of wheels for sale in the classified's section. Already powdercoated a gunmetal gray sort of color.

Dan

[2ndGenToyotaFan]

Oh yeah! Gimme some of that!

[DanS HJ-45]

Update: still love it! The starter has started acting up, and I rebuilt it, and I can get it to start every time now, but if it's 30 degrees or so out, the starter clutch won't engage the first try, but the second usually does it. CDan *should* have a refurbished starter on the way....

But, I needed to replace the bumper. Mostly my sister wanted a trailer hitch on her '95 pickup, and instead of her buying one, I gave her mine, and took the opportunity to build a bumper that I like instead.

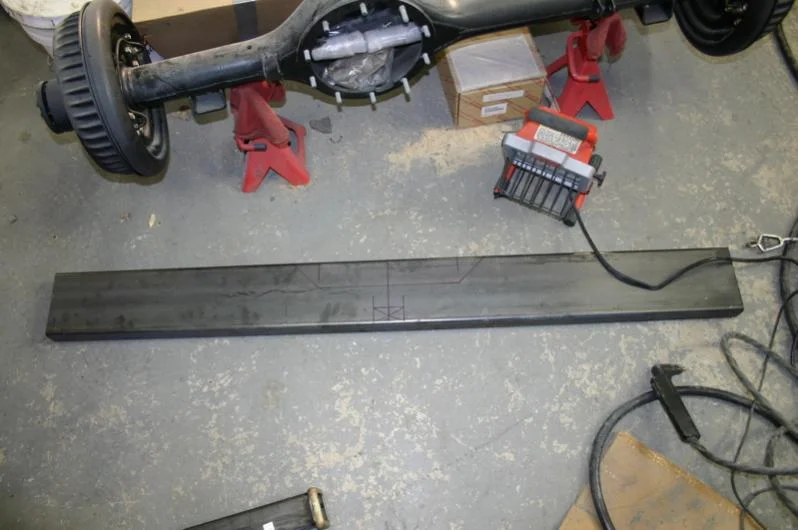

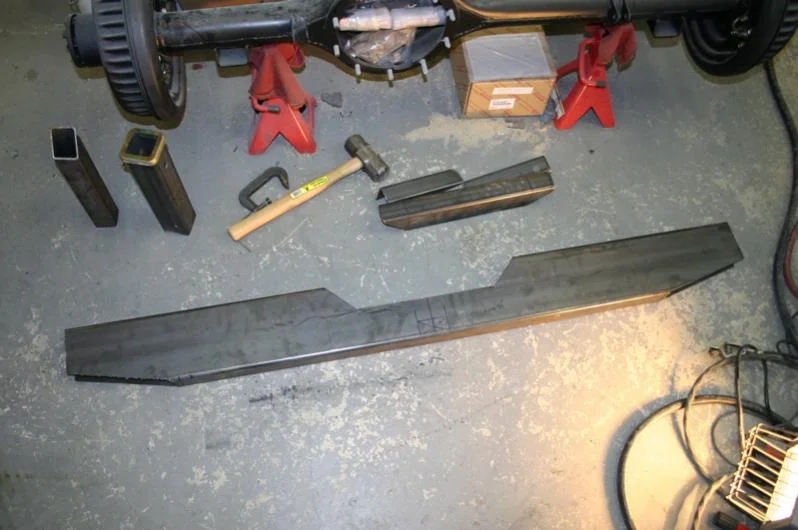

Just setting it up... The main bumper is 2x6" 1/8 wall rectangular tubing.

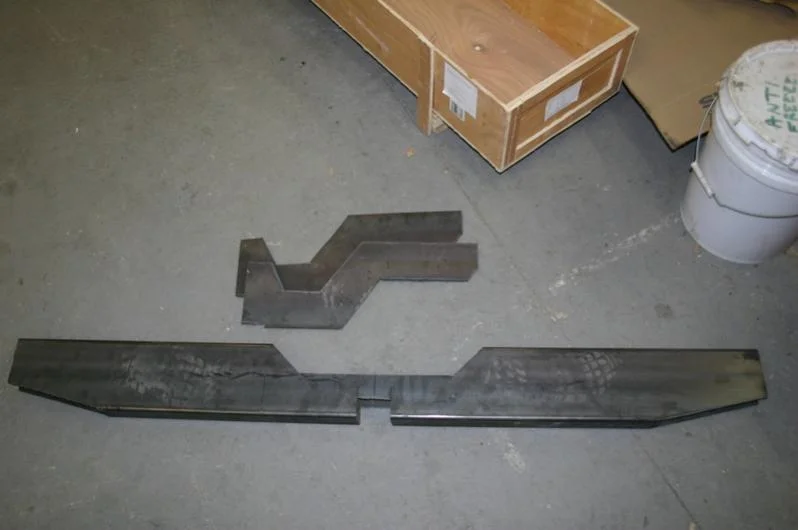

I also cut a recess in for a receiver hitch. I don't pull trailers with the 2LT-E (got to protect that dainty head, you know), but there's no time like the present for putting one in...

[DanS HJ-45]

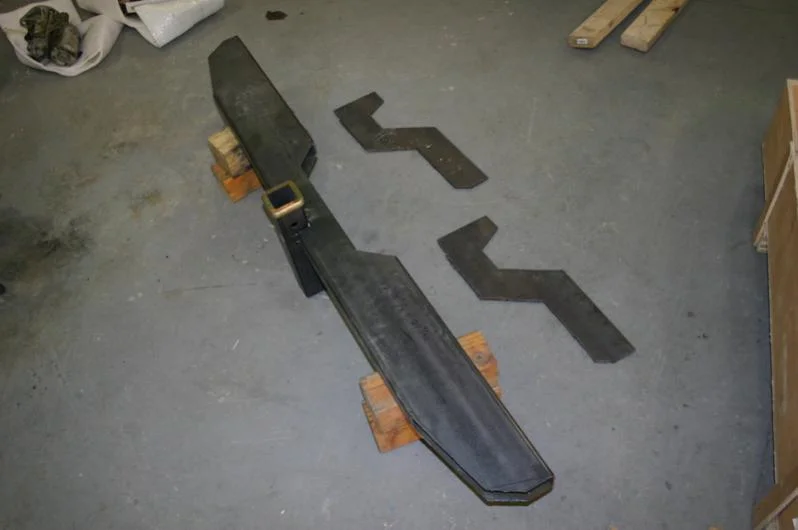

The receiver tacked into place.

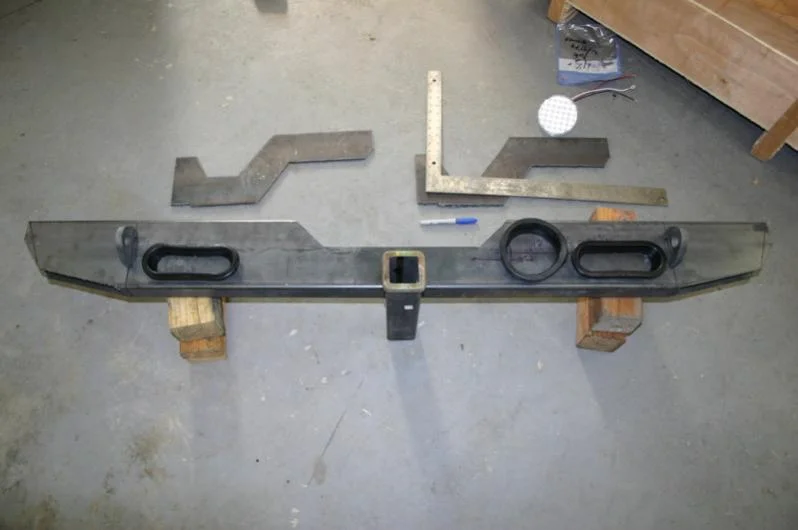

Here's some layout work. The rubber grommets are for lights, and obviously the tabs are for the D-ring shackle mounts.

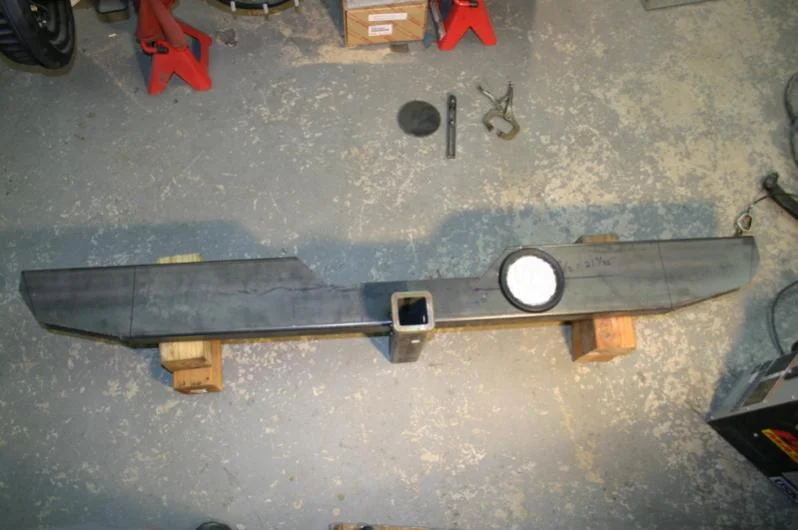

And the hole for the backup light cut, with the light set inside it.

[DanS HJ-45]

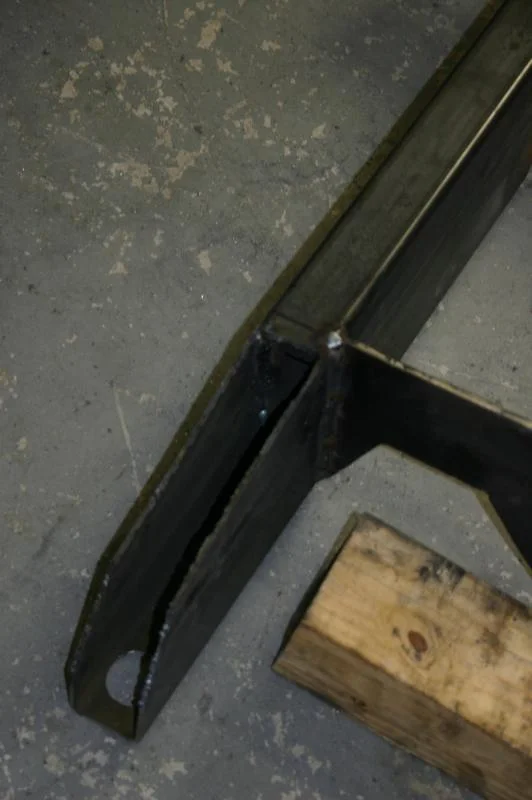

I cut the brackets that attach to the frame out of 1/4" plate. I cut a slot in the "back" (towards the front of the truck) of the bumper, inserted the frame attachment brackets, and welded what I could to the "front" of the bumper. This is so that the shackles will be able to pull almost directly on the frame brackets. The load is transmitted from the frame through the brackets, to the "front" of the bumper, and to the shackle tabs. I did run some numbers (hey, my degree has to be good for something) and the 2x6" tube should be strong enough to handle any load I could put through the frame attach bolts, but I like the idea of running the brackets through the tube, and at least tacking it to the "front" of the bumper, and thence to the shackle tabs.

Anyway, here's some pics...

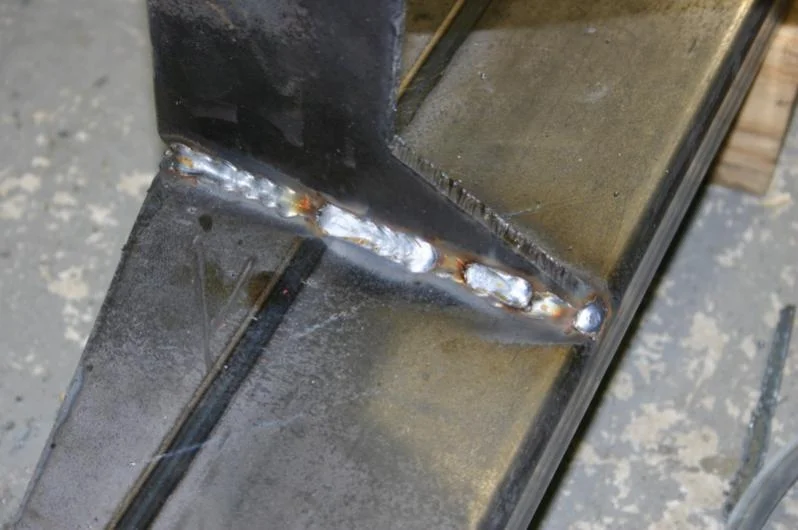

The full weld on the "back" of the bumper.

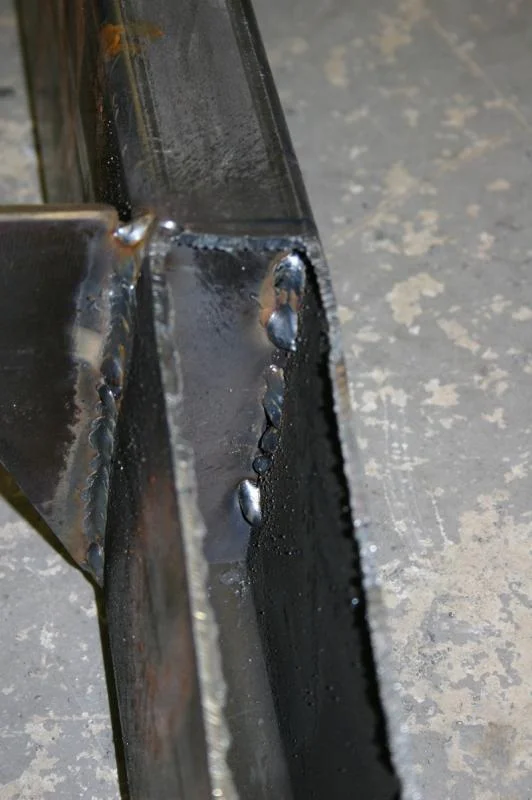

You can sort of see the welds I was able to get on the inside of the "front" of the bumper. It's hard to aim the welding gun in there! If I would have used 2.5" tube even it would have been easy!


And what's that hole in the top of the bumper for I wonder....

[DanS HJ-45]

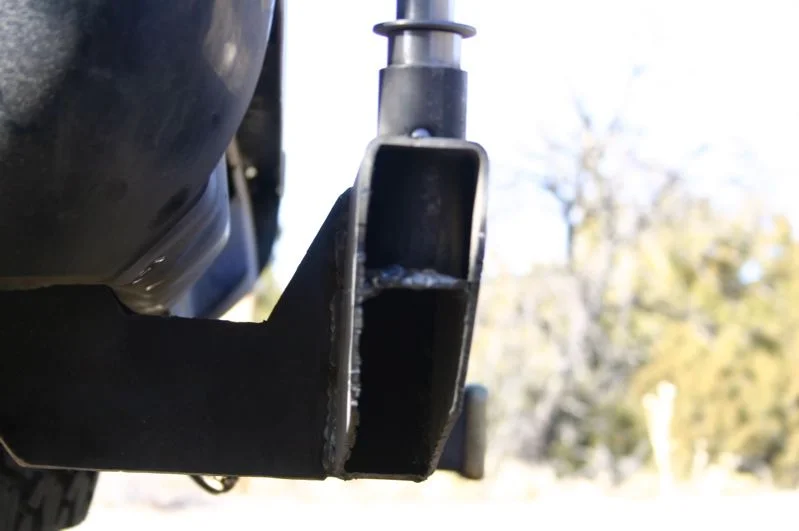

Why it's a spindle for a tire carrier or something!


I'm not sure if I will want one, or use one, but now is the time to install a spindle IMHO. I welded a small plate inside the bumper for the spindle to rest on, and then welded the spindle to it, in addition to the outside of the bumper.

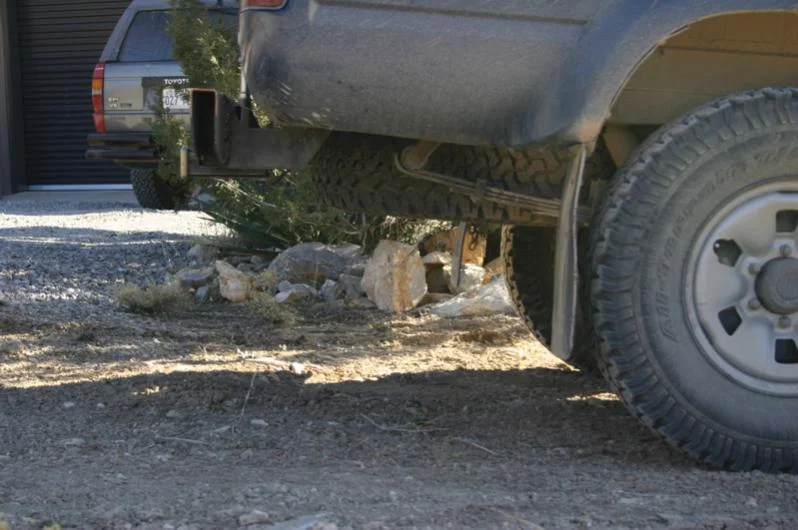

Here's the clearance it gives me. In retrospect, I should have just cut my own receiver tube. Turns out the only ones I could find were exactly 2" from the end of the mouth to the hole for the pin. Since my rectangular tube is 2" wide, I would have to mount it completely underneath the bumper to clear it, this wort of works. The length of the receiver tube kind of cuts down my departure angle more than I might like, but 1) I have 31" tires, and can't ever see me putting more than 33's on there, and 2) It's a reciever tube--doesn't exactly bother me to scrape it.


There's not much extra room there between the body and the frame brackets. I had to bend just a little of the body out of the way to give it some clearance even.

Also: yes that's an '85 4-runner in the background Jay-rod. Not mine. The Chica's.

Dan

[DanS HJ-45]

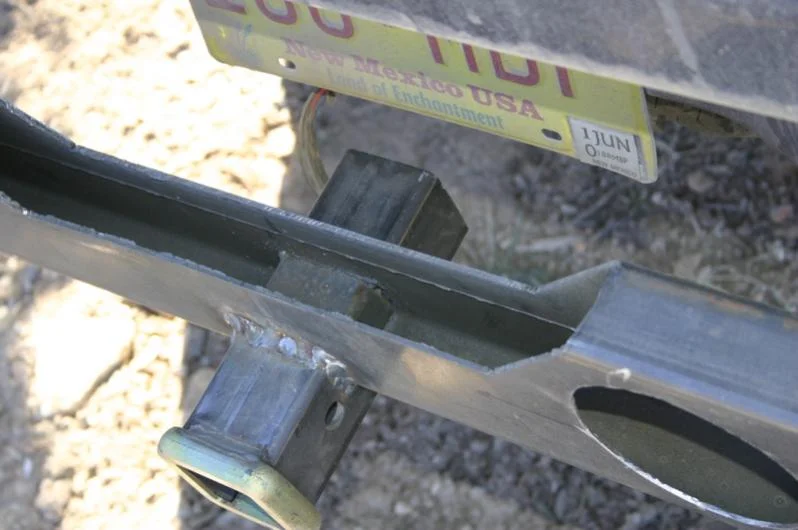

A look at the extra receiver tube behind the bumper which I will eventually brace back towards the frame brackets, along with some gusseting vertically on the front and back of the bumper.

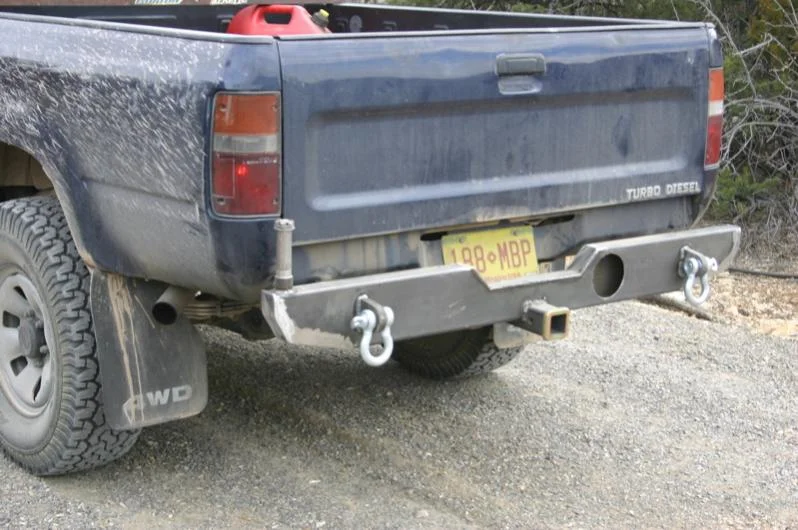

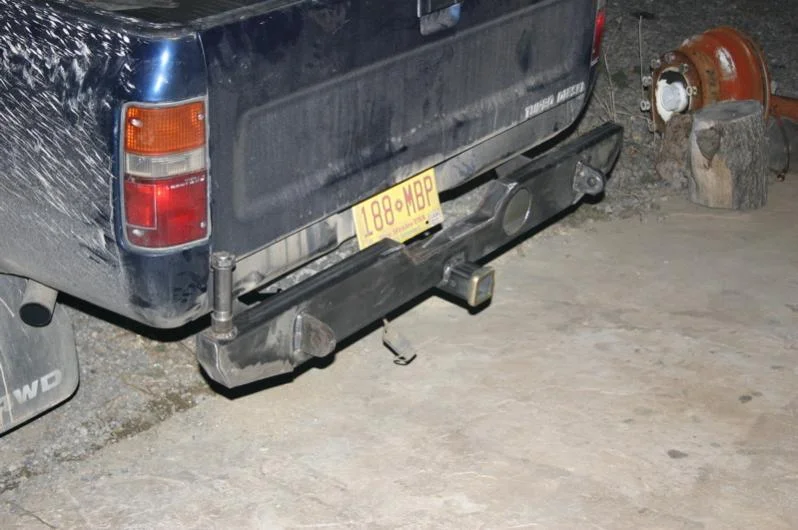

And here it is bolted onto the truck, with the shackle tabs welded on. I also boxed in the ends, and the step area/license plate cutout.

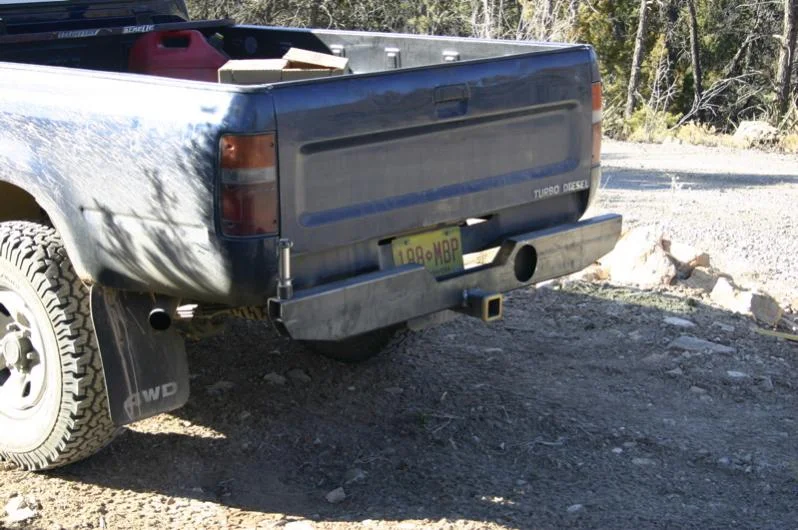

A better view during the day.

[DanS HJ-45]

What else did I add?

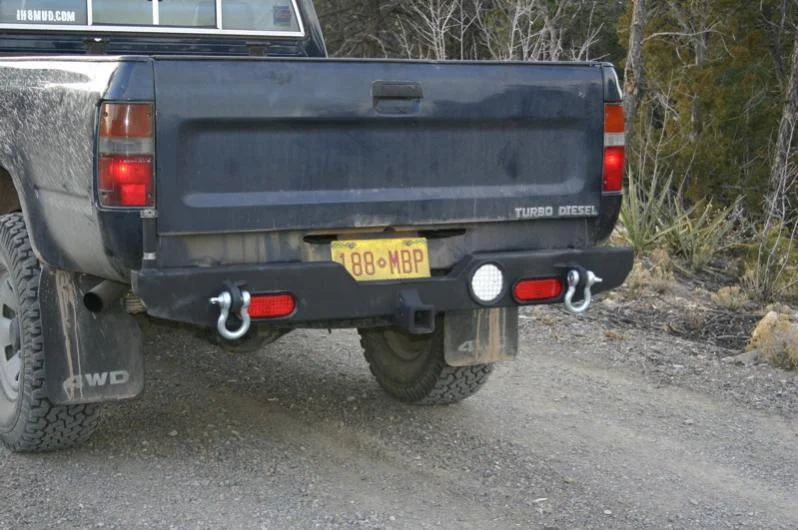

Yep. Brake lights. I'm not sure if I'll even wire them as turn signals, but I always like to have people behind me know I'm stopping. Especially being LEDs, they are pretty nice back there.

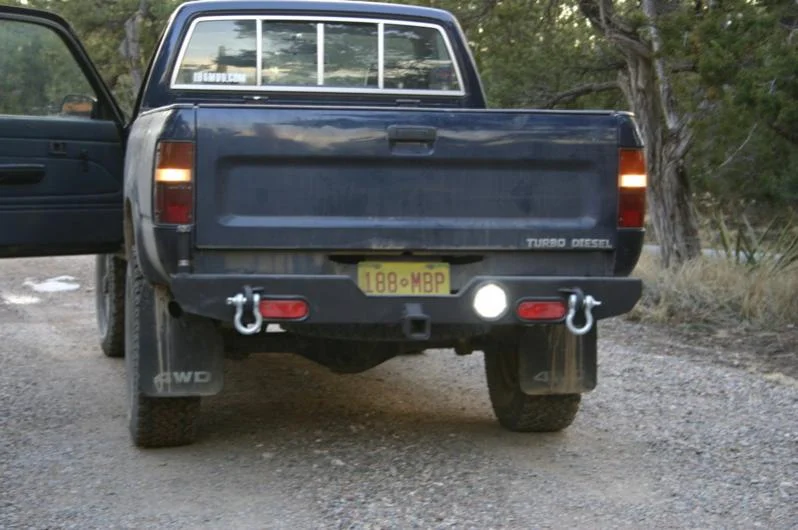

And here's one with the backup light on.

It's actually about as bright as a very full moon back there now. One neat thing is that the Grote LED backup light I bought (it's the half-DOT required version, there's another that's brighter--but WELL over $100) casts an almost entirely horizontal beam of light. VERY little light ends up high in the air, but is very wide angle behind me. Very pleased with that. But I *might* have to spring for the brighter version soon, or just add another one like this. But I kind of like the asymmetry that the single backup light provides. It looks good to me.

I'll leave it this way for a while I think. I still need to run protection forward to just behind the rear wheels, but I haven't decided how I want to do that exactly. I also will think about a tire carrier or something back there. I just slipped a section of 1.25" 11GA tubing (not DOM, but clean seam) over the spindle to protect it a bit. I would probably just use a section of the tube over the spindle, as 1.25"-11GA (x2) leaves only 0.01" of space, which is more than close enough for me I think. Either way, it's sometime in the future, if ever.

What's really impressive is that The whole thing you see here weighs maybe 10-15 pounds LESS than the SmittyBuilt tube bumper that was one there! Here's a pic of the old one for comparison.



Dan

[bcsteel]

Dan,

Great thread i really enjoyed it and will continue to use it as it is a wealth of info. I have been looking at the james' site regarding diesel conversions as well and am considering the 3L diesel when my 22re kicks which hopefully isn't for a while. Just curious where you sourced out your half cut surf? Cheers

Matt

[DanS HJ-45]

Originally Posted by bcsteel

Dan,

Great thread i really enjoyed it and will continue to use it as it is a wealth of info. I have been looking at the james' site regarding diesel conversions as well and am considering the 3L diesel when my 22re kicks which hopefully isn't for a while. Just curious where you sourced out your half cut surf? Cheers

Matt

I bought the half-cut from JARCO Inc. in Atlanta. Michael Hooper was the guy doing all the Toyota diesel stuff, but I think he's started his own company doing conversions. Not positive though.

A 3L would be easier than the 2LT-E or 1KZ-TE. Only things you'd really have to get would be an engine, bellhousing, clutch slave cylinder, fuel filter, and fab some radiator hoses. That's about the hardest bit of a 3L. It would probably be more work tidying up the wiring harness from the 22RE to mate with a 3L.

That said, if it was anything other than a trail truck, I'd really look into a 1KZ-TE. Just being a diesel makes it awesome on the trail (cannot overstate how awesome a diesel is to wheel), and the turbo makes it awesome on the highway. I love being able to accelerate from 50-60 mph without downshifting now. There have been a few 3L's that have had turbos added. I'd strongly consider it if I had a 3L.

Frankly, I am glad my 22RE started leaking so much, otherwise I wouldn't have done the swap. I drive my sister's '95 V6 pickup, and my Dad's Tacoma, and every time I do, I actually want to come home and take the faux-lux out for a spin. It's STILL that impressive to me. If you get a good deal on a 3L, I would jump on it. I loved my 22RE, I adore my 2LT-E (yes, cracking head and all).

Dan
