[86rocktoy]

I'm in!

86 4runner
SAS by FOXFAB in CT
front axle shaved 1" by BUDBUILT Products
Marlin Crawler X-over steering w/ FJ80 Ends
AOR Wheel spacers
x-drilled and vented rotors
AOR 2" leaf springs (Front axle moved 2.5" forward), with all around orbit eyes in rear (rear axle moved back 1/2")
Bilstein 5100's (14" travel model)
2" 4CRAWLER body lift w/ engine lift
DOA all done up 22RE motor
Flex-a lite elec. fan
Supra AFM
late model w/ bored out t-body intake
Front FJ80 Hi-Pinion diff w/ elocker and Yukon 5.29's
V6 rear diff w/ elocker from 2000 4runner
W56 Tranny
Marlin Crawler Dual cases w/ 4.7's for 224:1 crawl ratio
HD long travel fr. driveshaft from High Angle Drivelines
HD rear d-shaft w/ dual cv's
York engine driven on-board air w/ 7gal tank ( fact. a/c still works! (set up courtesy of Mark Waller design)
rear disk brake swap using caddy calipers w/ chevy p/u 1" rotors
Fabtech 'glass front fenders
3/16" wall rock sliders
1/4" wall 2x2 sq. tubing rear bumper w/ shackles from WAYOFFROAD
Uniden CB
Pioneer 300W amp w/cd
Wet okole custom set covers fr/ and rear
35x12.50 BFG MTkm's on 15x8 AR Baja rims
(sure I am foregtting something)

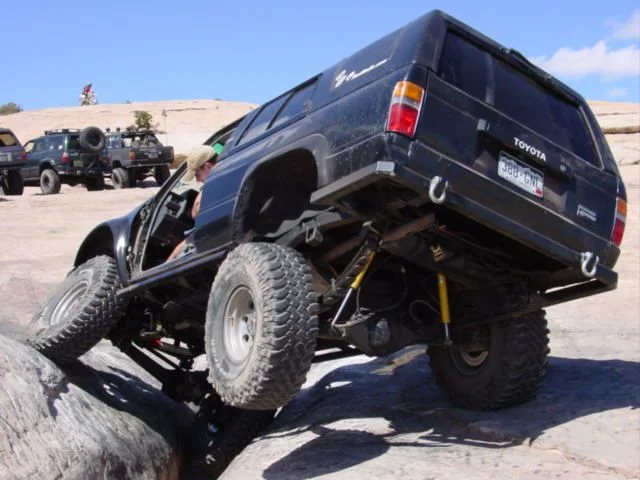

(pic is me going thru Golden Crack, MOAB)

[Doable]

This is my 86 I have to wheel with now, with more work to do to it.

[BC-Luc]

I'm Luc from Vancouver Canada, introduced to IH8MUD by brownbear, been crusing this forum for a couple years now.

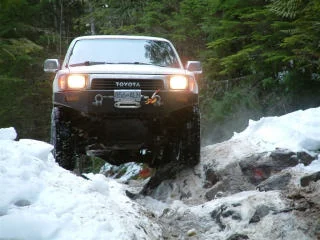

Here's my Toy !!!

91 4Runner, 22RE, improved intake, header with larger cat, Warn front bumper & 8000 winch w/ Masterpull Syn rope, locked front & rear, manual hubs, York OBA with 2.5 gallon tank, 2nd battery, CB & VHF, rear hot window switch and rear back up lights.

Yet to be done, rear bumper and carrier, sliders, 33's & 4.88's

[KY854RUN]

The '85 4Runner:
(my daughter named her, Marry Ann, after the steam shovel in the book
"Mike Mulligan and His Steam Shovel")
2.4L 22RE 4cyl. engine-has been rebuilt with Northwest Off-Road cam
Turbo 5speed trans (R151F)
4cyl. transfer case (RF1A) rebuilt with Marlin Crawler 4.70 gears installed
'88 rear axle rebuilt with 4.88 ring & pinion and a PowerTrax No-Slip locker
front axle rebuilt with 4.88 ring & pinion
Bud Built high clearance trans crossmember
front brakes upgraded to Land Cruiser vented rotors and mini-truck IFS calipers
3 1/2 inch Northwest Off-Road suspension
Doetsch Tech Pre-Runner shocks
1 inch Downey shackles front & rear
stainless steel extended brake hoses
ARB Bull Bar front winch bumpe
Warn XD9000 winch
160 amp Premier Power Welder alternator
Optima yellow top battery
Tom Woods long travel front drive shaft
crossover steering conversion using All Pro Off Road double arm and Marlink tie rod & drag link with FJ80 tie rod ends
'88 mini-truck power steering box with modified pitman arm
Uniden Pro-510 40 channel CB radio with magnetic mount antenna
new windshield
custom fabricated rear bumper (spare tire/gas can carrier is in the works)
the steering column has been replaced
both front seats have been replaced
the rear seat belts have been replaced
new 15x8 chrome steel wheels
11.50x32R15 Mickey Thompson MTX radial tires

[4RUNNY]

My 1989 4Runner (at FlatNasty with the FJ Cruiser TrailTeam)

[beafire]

I bought this rig two years ago it was almost completely built. I have made several major improvements like, Hydro assisted steering, Warn 8274 front winch exo cage and I figured out the electrical gremlins. Here is a list of things that had been done before I bought it, dual cases, square drive lines, 5.29's, spool rear, lock-right front, 32 bolt bead-locks, 37 mtr's, Chevy rear springs, solid axle conversion, header, k&n filter, grab bar for passenger, Celia seats, in cab roll cage. Over this winter I repainted it with Rustoleum Safety yellow and placed a tribute to the brave firemen that lost their lives on 9-11.

[ajfriz]

Here is my 86. Currently it is locked front and rear with 4.88s. It also has 33 12.5 15s on the stock wheels. I have the solid axle that is going in very soon I will also do hy steer along with all of the other goodies that come from SAS. I also have the 5.29s and the 37s to put in at the time of the SAS.

[bigluxs]

hi i'am from sydney australia

1985 dual cab 2L 2.4L deisel

mods are
4.88's difs
33x12.5 on 15x8 rims
custom snorkel
CIG rear diff
rears springs up front
front diff moved 2" forward
extended shackles
racing seats
drop drag link
adjustable torque rod

[Fort Knox]

Here's mine:

1995 4Runner UnLimited - 5 speed

Rear Suspension:
- OME 860 Coils
- All-Pro Upper and Lower Control Arm links
- Doetsch Tech 8336's
- Rockstomper sway bar disconnects
- Pro-Comp Panhard Rod drop-down bracket
- Skelleybilt Panhard Rod raise bracket

Front Suspension:
- Solid Axle Conversion w/ 3" Lift Alcan Springs and All-Pro SAS kit
- All-Pro Hy-Steer
- All-Pro U-bolt flip kit
- All-Pro 1.5" wheel spacer kit
- Doetsch Tech 8336's
- Rancho steering stabilizer

Drivetrain:
- Rear axle - 1995 Toyota V6 8" with Detroit Soft Locker and Precision Gear 4.88's
- Front axle - 1985 Toyota 8" with ARB Air Locker and Precision Gear 4.88's
- Marlin Crawler 4.70:1 T-case
- Aisin Hubs
- Extended differential breathers
- Mountain Driveline custom rear driveshaft
- High Angle Driveline "Rock Crawler" custom front driveshaft
- Downey Super Clutch 2 with heavier flywheel

Armor / Damage Control:
- ARB Bull Bar modified to fit with SAS
- Warn M8000 winch
- Iron Pig Off-Road custom rear bumper with tire carrier
- BudBuilt low-profile t-case crossmember
- SkelleyBuilt gas tank skidplate
- Rock-sliders
- Viper C-70 alarm

Tires:
- 35x12.5x15 Super Swamper TrXus M/T's on black steel wagon wheels.

Misc.:
- Safari Snorkel
- Downey V6 Headers with custom 2.5" exhaust
- ARB Air Compressor
- 1" Body Lift from Rusty's Off-Road
- K&N Filter
- Cobra 18-Ultra CB with Firestik antenna
- Optima Red Top
- 55W Tractor light back-up light.

[jakindle]

small update getting a free arb compressor set up compressor solenoids wiring etc free from my buddy said he could get enough air out of it to make it worth him time for on board air he had no tank just compressor
:saw: yeah for me
here are some new pics of my rig





added the air fitting to see if she would hold ...... no problems put in 200 psi to see if the endcaps would blow off :hillbill: while standing back bout 25 feet
let the air out now will wait and see what other fittings / plumbing ill need
when i get the arb setup
cant wait been looking at train air horn to really get em to scatter the bumper and the flat black rattle can does a good job of that now:rockin:
also lincoln lock the rear the same way that they did here
http://www.ih8mud.com/tech/woody/welded.html
and added 2 pieces of round stock on the spider gears sorry no pics not touching my $ 1500 digital camera while covered in gear oil

[MUD EMPIRE]

Cheers from downunder.........just thought that I'd join up to see how yoos Yanks go "wheelin".
I've got a '97 LN106 single cab Lux...It's got all the regular stuf like air lockers, XP9500, turbo diesel, rock sliders,
upgraded springs and such. We have mostly slippery, rutted and extremely closed in skinny tracks.
Some stuff is nasty steep rocky tracks...other stuff is deep muddy and twisty inbetween big trees and thick scrub.
Here's my Lil Lux...........

[toyminator]

1989 P/U
All Pro SAS 5.5" Springs
5.29 V6 Rear Diff w/Detrioit, 5.29 High Pinion ARB
95 4Runner Front Grill, lights, core support and bumper.

Still in Primer here but I had to get it out wheelin' after doing all the bodywork.

[Blaze]

I have owned a Toyota 4Runner for over twenty years now. I have built it many times.
I'll start with the pics of how it sits now. I love to wheel.

Chevy HP 4.3 Vortec 4L60E
Marlin dual cases FROR cross member
AOR Orbiteye 5" springs
Blue Torch Fab Highsteer arms u-bolts and plates
Bilstien 7100's on all four
Dana 60's front and rear 5.38's ARB front Detroit rear
42" Iroks on 17x9 Allied rockathons








This is what it looked like before the last build

[solli]

1985 HiLux

6 point cage, cutted fenders, 35 Boggers on homemade beadlock steelies. Welded rear and limited slip in front.

Low cost beater.

Need: Servo steering and 4.88

[Texx]

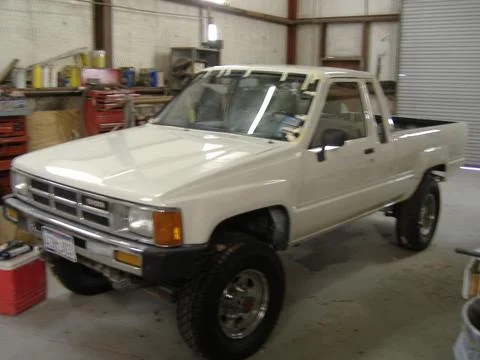

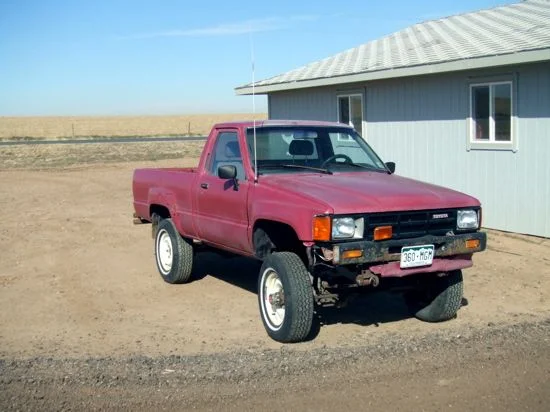

Stockin her out for my daughter's first car...driveable resto, mainly paint, body, and restoring back to stock as possible...

[jkimmel]

Here is mine. I have a 1985 pickup, its a regular cab. I have added:

dual ultimate Marlin Crawler
dana 60 front, 5.86 gears, ARB, 35 spline outers
dana 61 rear, 5.86 gears, welded, FF 35 spline
4 link rear suspension with 16 SAW air shocks
3" Marlin buggy springs up front, mixed with 6" all pro's
stock G52 5 speed
stock 22R with a slighty modified carb
42" Irocs
17 Trailready beadlocks(waiting on PSC wheels )

I think thats about it, some tubework also.

[EarlKann]

Hello all,

I registered here quite a while ago, but I always forget to come here. So here is my into post finally.

I'm in SoCal in the San Bernardino Mtns near lots of good wheeling in the Big Bear area. Got an 85 4runner with most of the usual stuff.

22re, 5-speed, Marlin Dual Ultimate Crawler, FROR crossmember, AllPro driveline ebrake. Axles are filled with 5.29 Yukons, V6 Detroit rear, Aussie locker front with Longfield 30-splines. AllPro dropped front hanger and 4" springs, Marlin 5" rear springs.

[mickey_rubicon]

1992 toy pickup built by Ryan Coelho(RIP) at wicked fab in santa clara - it ~ needs a dash of tlc
dana 60 rear with detroit bui9lt by moser eng.
dana 44 chro molly front end with lock-rite
geared for 38.5 icnh superswamper tsl's
marlin dual transfer case setup
removable steering wheel
nice stereo
just passed CA smog on the dino hwy legal (bearly and registered till 08
I need to add a parking brake
I need to do a full tune-up
I need to kill the rust (rust bullet?)
I will have action shots soon as a Rubicon run is peeking around the corner

cheers

[DanS HJ-45]

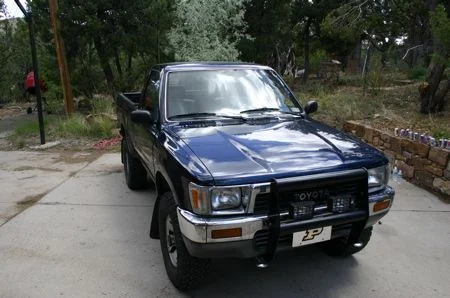

1991 4x4 DLX shortbed pickup.

Pretty much stock....

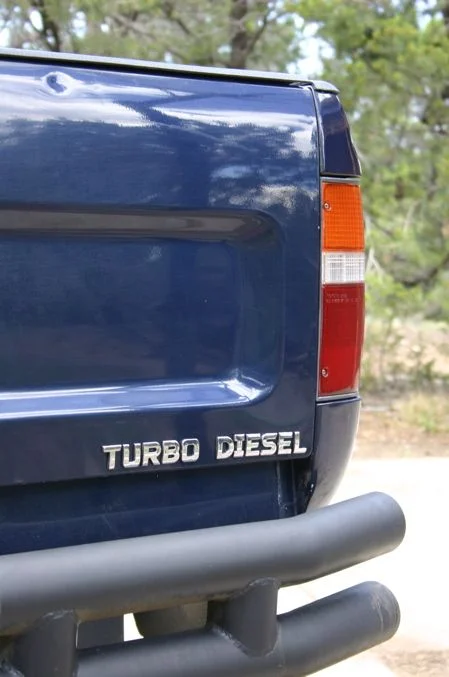

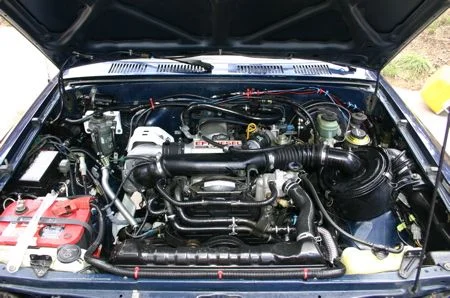

But I did remove the 22R-E and G tranny to install this 2LT-E/R series tranny. Only took a year (OK, 5 weeks of actual work, but a year on the calendar). Pretty nice getting 30-35 mpg on biodiesel, plus it has more power and torque than I could ever want. Lots of people have had problems with the 2LT-E heads, but so far I've been lucky (knock on wood). I'm sure someday I'll have to replace the head with a 3L part, but so far...

Other than that it's got Aisin hubs (yeah, like that's hard work!), 4 runner bucket seats, and 10" subs (need big speakers when you don't have AC).

It's got about 220K on the odometer, 15K since the diesel swap. Drives like it's new.

Plans? For the immediate future: none. The body is still in WAY too good of shape to wheel it, but due to an unfortunate couple of months without a tailpipe, there is some rust on the rear left fender, in a couple years it might peek through. For that reason (and because I want one), in a while (probably after I've got the HJ-45 restored) I'm planning on doing a SAS up front, and finding a double cab body/bed to finish the job of making it a Hilux (yes, I know hilux trucks never had 2LT-Es). But like I said, that's a couple years away at least.

Right now, all I want to do is listen to my turbo whine, smell my exhaust, and go 100 miles before the fuel level even comes off the peg.

Dan

PS-I'm glad I took those pictures when I did, I doubt I wash it even twice a year! It sure cleans up nice, you just can't beat the Toyota paint!

[mudntz]

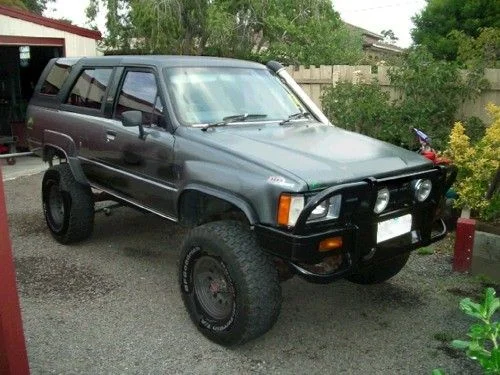

heres my 1984 aussie toyota 4runner
2lt 3y petrol motor
2" spring lift
33 x 12.5 x 15'' bfg all terrains
soon to have 33'' simex tyres
3.5" stainless steel snorkel

future mods custom front tube winch bar, rock sliders, custom rear tube bar, rollcage and airlockers

[ron86toy]

86 4R SAS
5.29 r spool,f hp detroit
hybrid toy d-60 front axle
Walker Evans remote res shocks
T-Max winch w/Master pull syn. line
DIY beadlocks
35" Rockers
LC Engineering from the head to exhaust tip
Calmini trans

[Lizard Lips]

85 Toy
350 w/ about 400hp and 385 ft/lbs torque-TH350-NP205
Fullwidth D44 & 14 bolt 4.56's detroits
Hysteer toy rears front 63's rear
38x15" boggers on 16x10 spokes
dovetailed frontend 26" radiator moved to the bed
ford 22 gallon tank in the bed between the frame
half doors, sliders, blah blah blah
here's an old pic

and after all the crap I've done to it

[Lizard Lips]

84 Runner
302-435-205
fullwidth D44 & 14 bolt 5.13's detroits
38" sx on 15x10 wagons
toy rears front 63's rears with johnny joint hangers.
22 gallon ford tank between the frame. sliders.


the drivetrain is being taken out and everything moved into this

[ToyotaNick]

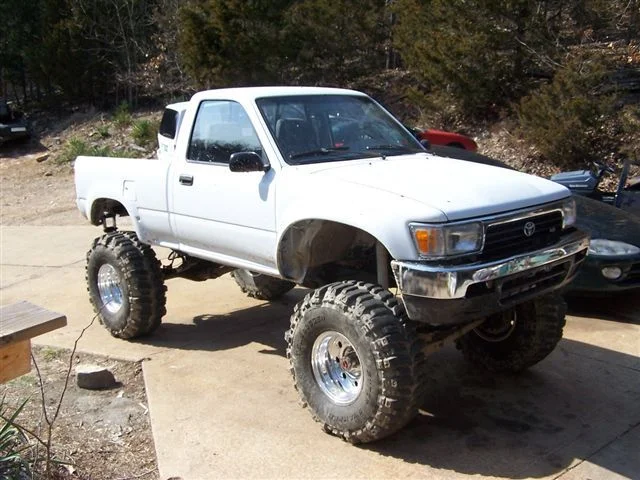

1990 toyota pickup
-3 inch body lift with 4 inch suspension clearing 37" interco super swamper IROKS
-bushwacker pocketstyle flares that were heated up and bent to allow me to cut as much out of the body to allow the most clearance.
-i put a warn front bumper on it but due to body lift i had to cut and add 3 inches to bracket along with making the bracket thicker.
-ive got a i think its a 6k puond winch on the front.
-other than the lift the suspension is stock.
-interior has beenmodified. i cut out the storage in the back and flattened the floor so i could put 2 10 inch diamond audio woofers, and still have the seats.
-it has been converted to sr5 and i have made custom door panels.


IT IS A STANDARD

[JSTMUD]

Hello everyone. My name is Tony and i live and offroad in Alaska. I came across your sweet yoda site and thought i would join. If your woundering what it's like to wheel in Alaska just visit ALASKA4X4NETWORK.COM

83 trk (4cyl.)
All-Pro Extreme lift (6inch)
All-Pro Winchbumper
All-Pro Flatbed kit
Warn M8000 (front)
Champion 8000 (rear)
ARB Air Lockers
Optima yellow top
5.29 gears
38-14.5 Thornbirds (i prefer boggers)
Wheel spacers
2 inch body lift

Thats pretty much it but theres a lot more on the wish list to do!!!!

Well i originally bought the truck for $350. It had 131,000 miles on it. I had to put a new motor in it because of the engine knock. It came with no lift and 31's on it. So i put a 4inch trail master lift on and some 33 bf muds. Then i took the bed off, put a 2inch body lift, threw some 35 boggers on, put in the air lockers and 5.29's. After that i put the All-pro extreme lift on. Now the last thing i finally did (with a bunch of help from friends through out this build) was put the All-pro bumper and flatbed kit on along with the 38's. This is how she sits today.

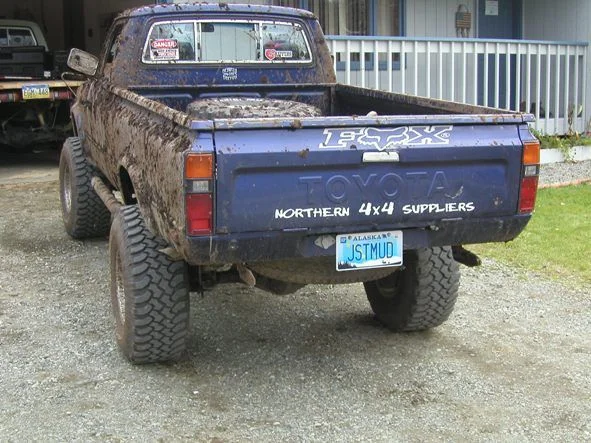

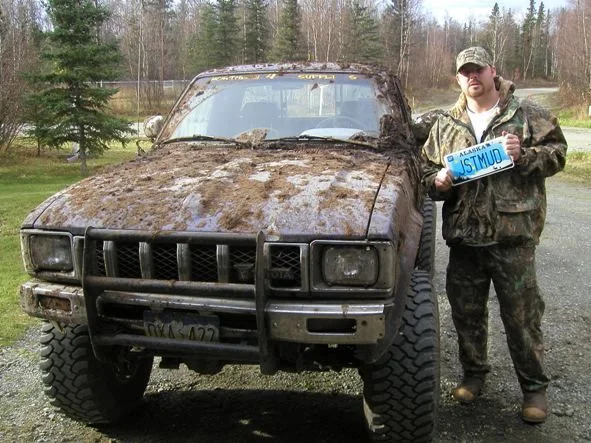

The first few pics are when i just put the 33's on and the 4inch lift. The rest of them are present pics.

[JSTMUD]

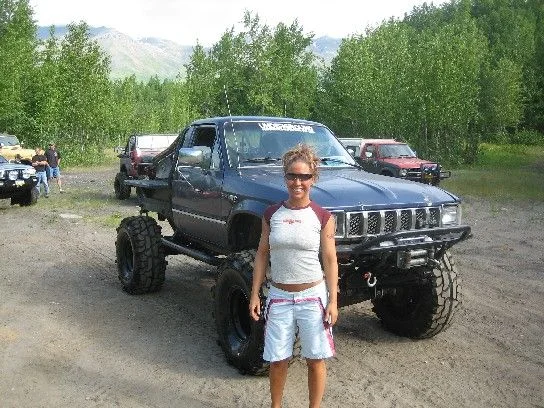

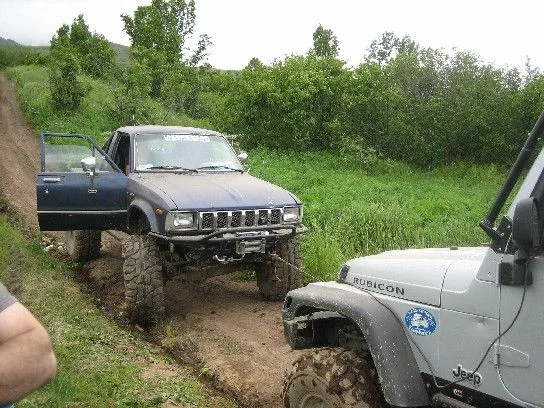

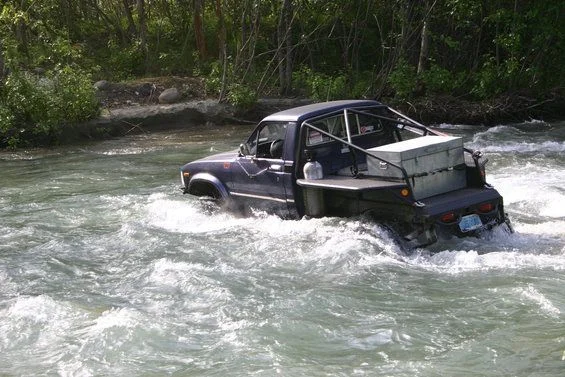

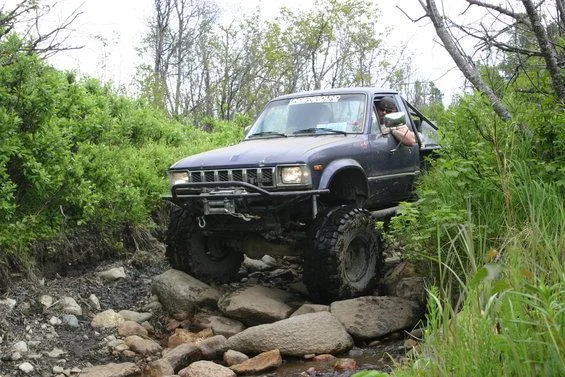

present pics

[JSTMUD]

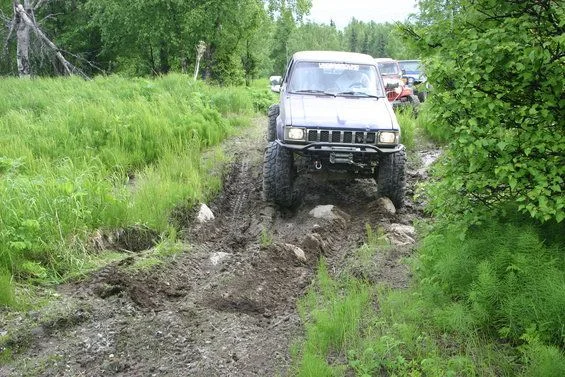

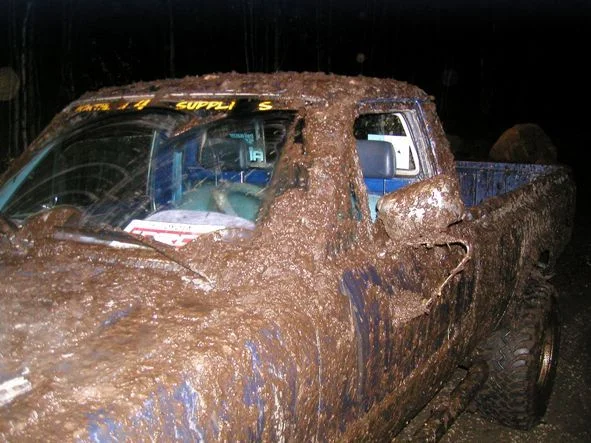

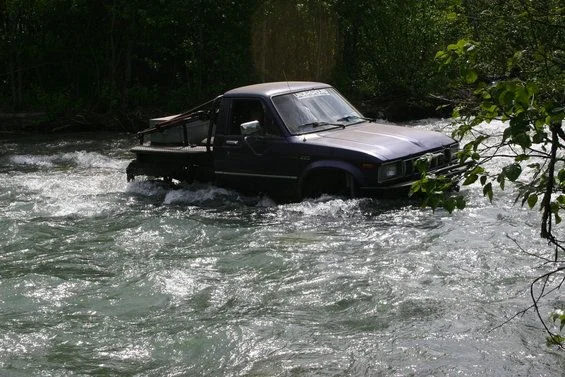

more

[fortysixandtwo]

Hey everyone. This is my 1985 4Runner SR5. I have owned it for 3 years now and it has evolved quite a bit in that time. (edit for the new year, got my duals in)


Engine:
DOA Racing rebuilt 22RE w/ approx 20,000 miles since rebuild
Downey Header
Flowmaster muffler (going to swap it with a Magnaflow)
Optima Red Top battery
22RTE 3 core radiator
V6 brake master cylinder

Transmission:
W56

Tcase:
Dual top shift cases with 4.0 Marlin Crawler T-case gears in the crawl box
BudBuilt dual case Xmember

Drivelines:
Shortened rear
Homemade square front

Front Axle:
1985 solid axle
5.29 R&P
Open (soon to be ARBed, Longfields)
V6 brake calipers
FJ60 Vented rotors
Stainless steel brake lines

Rear axle:
1989 V6 pickup rear axle
5.29 R&P (open, still need a locker)

Wheels/Tires:
15x10 all black rock crawlers
35x12.50 Discoverer Mud Terrains

Armor:
Custom front bumper w/ Warn winch
Marlin Crawler rock sliders
Marlin Crawler rear tube bumper

Front Suspension:
4x4 Labs 2" drop box, moved 1.5" foreward
44044 Jeep wagoneer springs
6" shackles
14" Bilstein 5125s
Full frame plates
Ford shock towers
88 IFS steering box
Marlin Crawler high steer

Rear Suspension:
63" Chevy springs w/ add a leaf
Dual shackle: stock chevy/6" shackle with extended shackle bumpstops
14" Bilstein 5125s

And lots of other goodies...

[dyogim]

Specs: 00 Tundra SR5 V8 auto. SASed in 2004. Was in accident where an uninsured motorist went over the center divide and took out my front driver side (suspension, drivetrain and body were damaged). Truck was paid off and I took the money from the ins. co. and paid for the SAS.

Engine/drivetrain: stock. Only mod is a JBA exhaust.

Suspension: 5100's all around. 12" in the front, 14" in the rear. Front leafs are Rancho 4" Chevy lift springs, Rear leafs are 63" chevy (4x4) w/AAL.

Rear axle: toy tundra housing, stock shafts, 4.88's, lockright locker.

Front axle: D44 from wide track cherokee, 4.88's, lock right locker, X-over steering(switched from hi-steer), everything from steering knuckles to hubs are from a chevy. Currently in the process of swapping out the front axle for a HP44 from a 78 F250, mounting the ram for hydro assist and swapping out the steering box for a tapped box. Still debating on running X-over or hi-steer.

Hell Hole Reservoir


Hollister: at the bottom of Truck Hill


Hollister: at the bottom of Truck Hill

[tube yj]

Hello, i am new here. Here is my Toyota

91 toyota, sas, dual cases, 30 spline longs, locked, geared, bed bobbed, etc.

Next things planned are 37 inch IROKs, stauns, and a in cab cage
