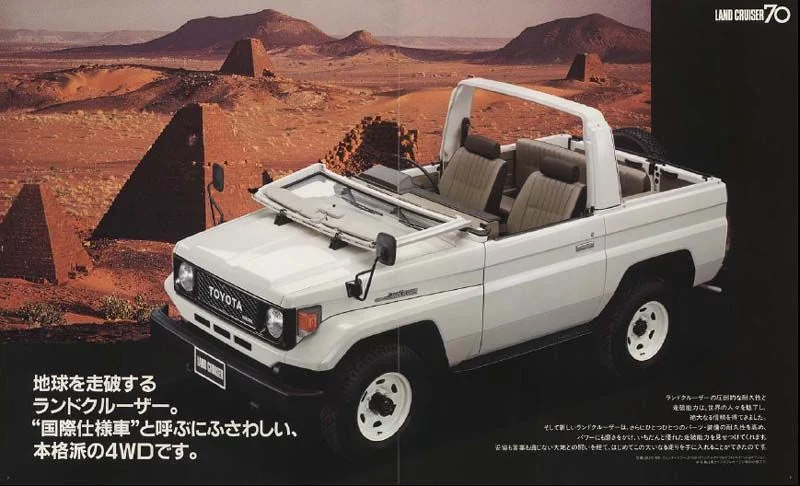

70 Series Brochure with 60 series

JohnnyC · 12-10-07, 08:31 PM

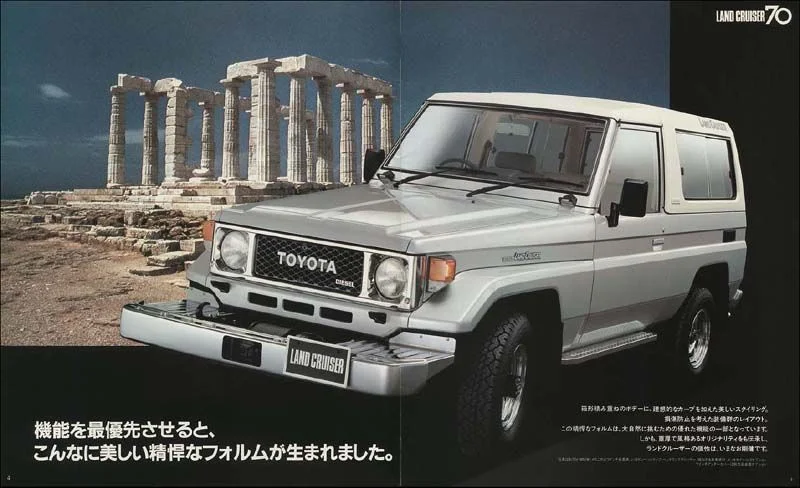

i didnt know if you guys had this...so i thought to post it up for ya ...enjoy

JohnnyC · 12-10-07, 08:32 PM

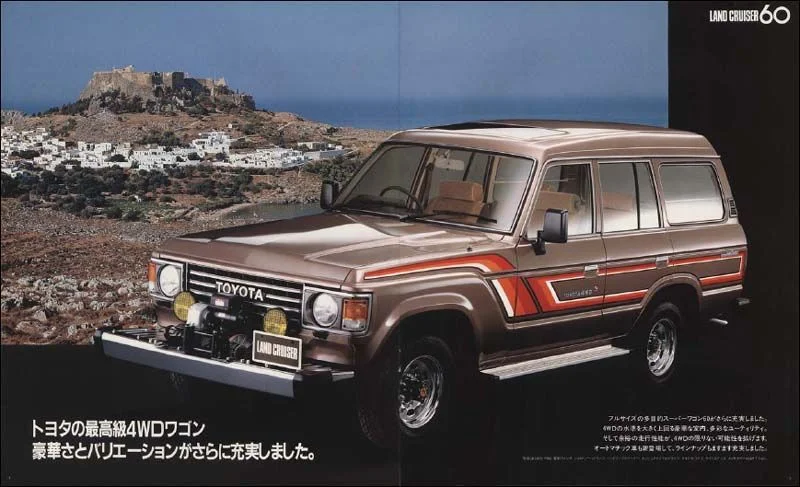

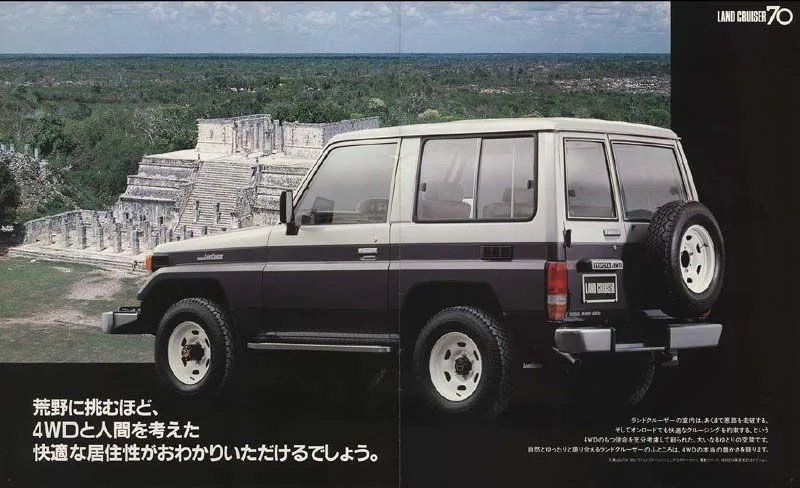

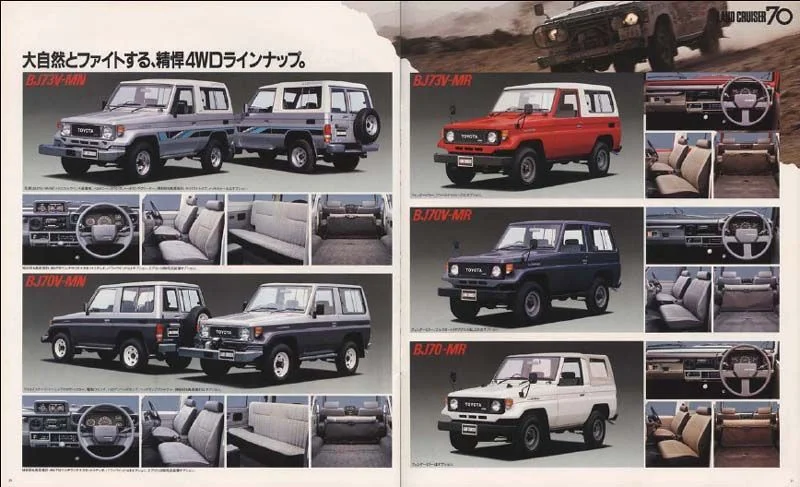

pg 4,5,6

JohnnyC · 12-10-07, 08:32 PM

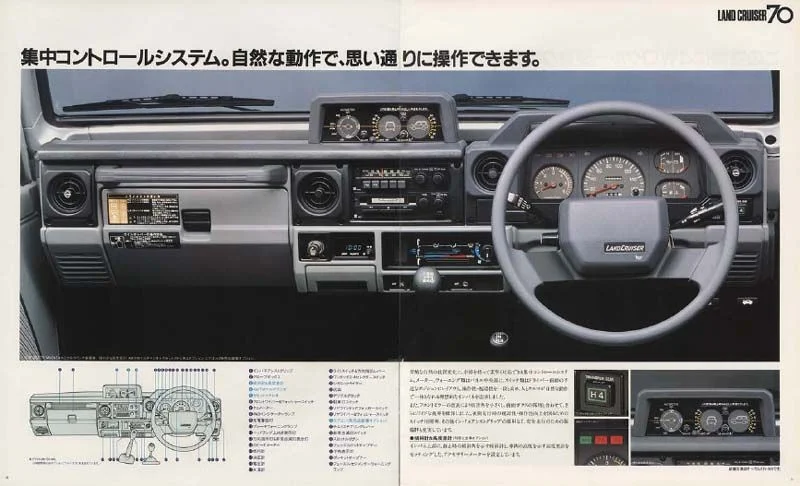

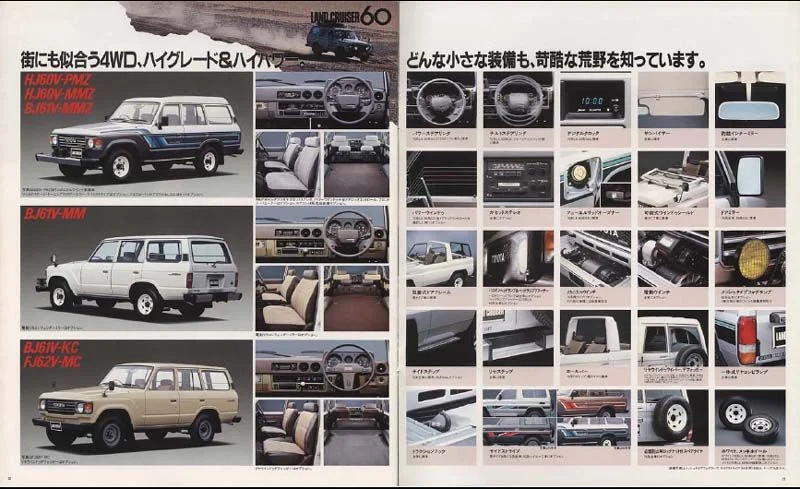

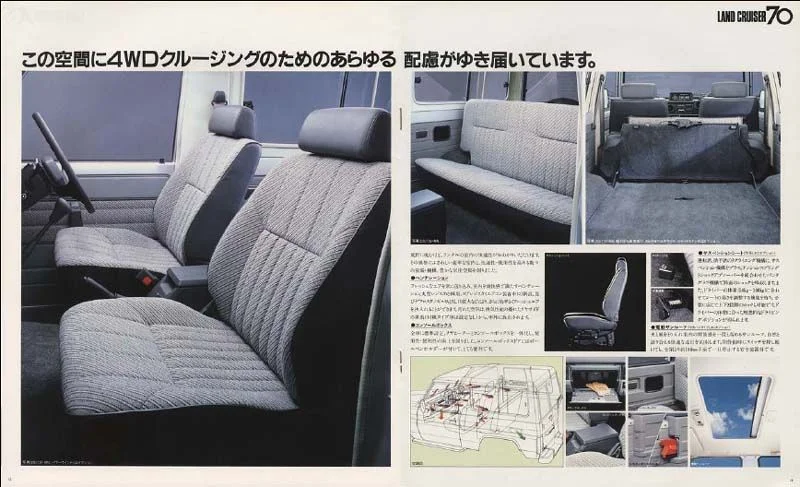

pg7,8,9

JohnnyC · 12-10-07, 08:33 PM

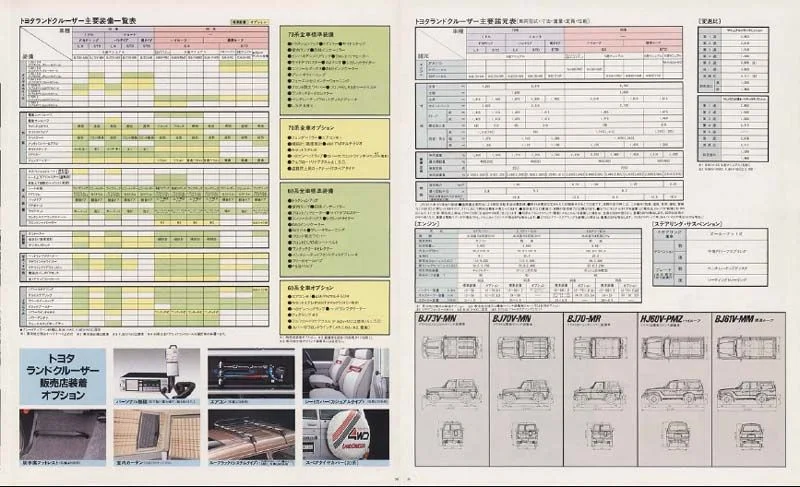

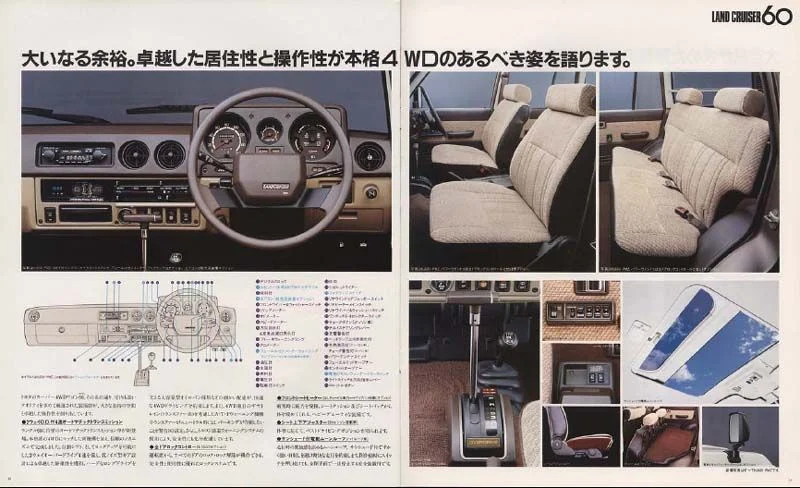

pg10,11,12

JohnnyC · 12-10-07, 08:34 PM

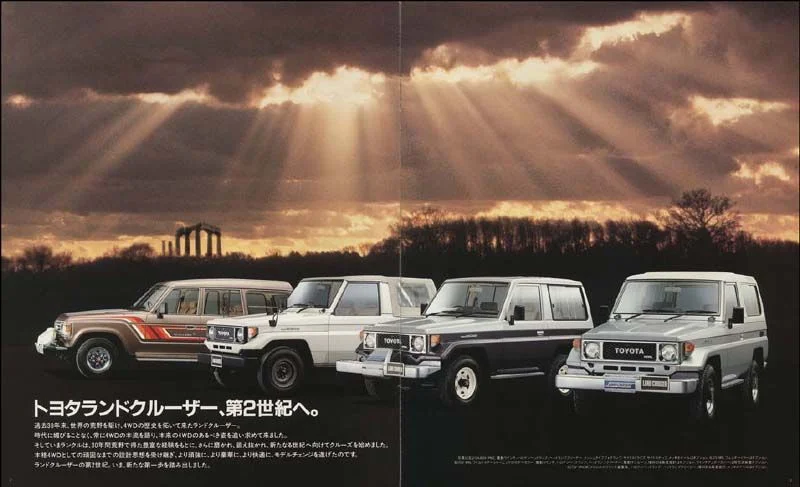

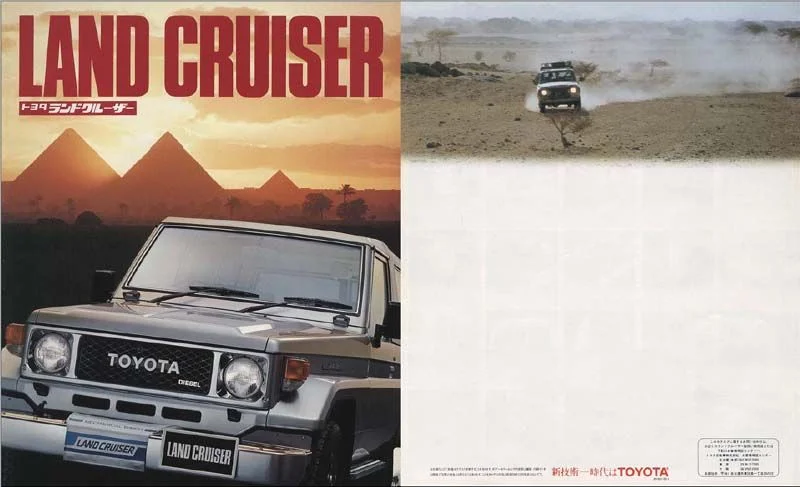

last page

beaufort-fj60 · 12-10-07, 08:58 PM

nice, do you have any larger versions of that?

MoCoNative · 12-11-07, 08:16 AM

That is cool, there was alot of options at one point in time. Too bad our 60's were so bland here in the US.

Wish we got 70's too. How did the upper door work on the factory soft top, there is no frame when the windshield is down. Was it just windows that sealed against weatherstrip like a Subaru?

JohnnyC · 12-11-07, 08:26 AM

Quote:

Originally Posted by MoCoNative

That is cool, there was alot of options at one point in time. Too bad our 60's were so bland here in the US.

Wish we got 70's too. How did the upper door work on the factory soft top, there is no frame when the windshield is down. Was it just windows that sealed against weatherstrip like a Subaru?

the pieces (bow-work)are just taken off...removable

prado t · 12-11-07, 11:48 AM

thanks for the posters AWESOME!

MoCoNative · 12-11-07, 12:58 PM

Quote:

Originally Posted by JohnnyC

the pieces (bow-work)are just taken off...removable

Even the top portion of the door?

JohnnyC · 12-11-07, 02:08 PM

Quote:

Originally Posted by MoCoNative

Even the top portion of the door?

yes ...i'll post a pic

roscoFJ73 · 12-12-07, 03:10 AM

Quote:

Originally Posted by MoCoNative

Even the top portion of the door?

Quote:

Originally Posted by JohnnyC

yes ...i'll post a pic

Beat you to it

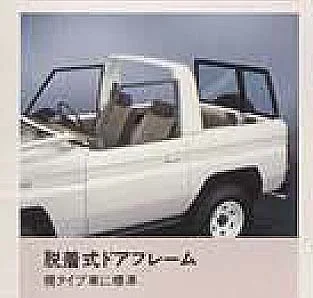

The detachable type is the one on the right. This is the same for the rear barn doors.

JohnnyC · 12-12-07, 04:30 AM

mine's a color pic

(as seen on page 12)

JohnnyC · 12-12-07, 12:55 PM

wow over 200 downloads in 2 days

...you guys must have liked that 70 series

MoCoNative · 12-12-07, 02:13 PM

Interesting

Thanks

SurfPonto · 12-17-07, 10:54 AM

Awesome!!

Thanks for taking the time to scan those.
Bob

lulo · 12-18-07, 12:45 PM

Quote:

Originally Posted by JohnnyC

mine's a color pic

(as seen on page 12)

Hi Johnny, you this pic more big, because i have a LC LJ-70 Rag-Top, very good images of Toyota,

JohnnyC · 12-18-07, 01:03 PM

Quote:

Originally Posted by lulo

Hi Johnny, you this pic more big, because i have a LC LJ-70 Rag-Top, very good images of Toyota,

nada sorry...only pic i have AFAIK
