Toyota Snorkle

BlackSmoker · 11-15-07, 10:41 PM

Does anyone know the Toyota part# for there snorkle with the pre air filter on it. It says Landcruiser on it.Snorkle.JPG

Japan4X4 · 11-16-07, 12:47 AM

Yes.

email me.

lulo · 11-18-07, 03:01 PM

Quote:

Originally Posted by BlackSmoker

Does anyone know the Toyota part# for there snorkle with the pre air filter on it. It says Landcruiser on it.Snorkle.JPG

Yes, i need the same information, i have a LJ-70´88 (Soft Top), thank you

pat-run · 11-20-07, 10:19 AM

Hello

You can see this for parts toyota
http://www.toyotahzj707375.fr.fm

BlackSmoker · 11-20-07, 07:40 PM

Thank a million!

Japan4X4 · 11-21-07, 02:21 AM

I can dig up the numbers but you have to tell me your model and chassis number. There are some slight variations even in the 70 line.

BlackSmoker · 11-21-07, 10:06 PM

Quote:

Originally Posted by Japan4X4

I can dig up the numbers but you have to tell me your model and chassis number. There are some slight variations even in the 70 line.

Japan 4X4 I am looking for the snorkle that fits my 1990 HZJ 73 ZX.

Canuck · 11-22-07, 07:51 PM

Doesn't the Toyota snorkel require a new airbox as well? West Coast Cruisers carries the set-up.

http://www.westcoastcruisers.com/7xbody.html

theferg · 11-27-07, 01:27 PM

Japan4x4, Can you get the 80 series snorkel part numbers as well?

-Ferg-

tlcruiserman · 11-29-07, 06:18 PM

Quote:

Originally Posted by theferg

Japan4x4, Can you get the 80 series snorkel part numbers as well?

-Ferg-

As far as I know, Toyot never made a factory 80 series snorkel.

Thanks,

Michael

tlcruiserman · 11-29-07, 06:20 PM

Quote:

Originally Posted by Canuck

Doesn't the Toyota snorkel require a new airbox as well? West Coast Cruisers carries the set-up.

http://www.westcoastcruisers.com/7xbody.html

Yes, technically you need a new airbox because the air intake comes from fender not front anymore. I sell them with and without because some folks want to do their own air box modifications. I have not had many requests for the airbox alone, that is why I do not list it as a seperate item. Price would be the difference from one without and one with.

Cheers,

Michael

mot · 11-30-07, 06:08 AM

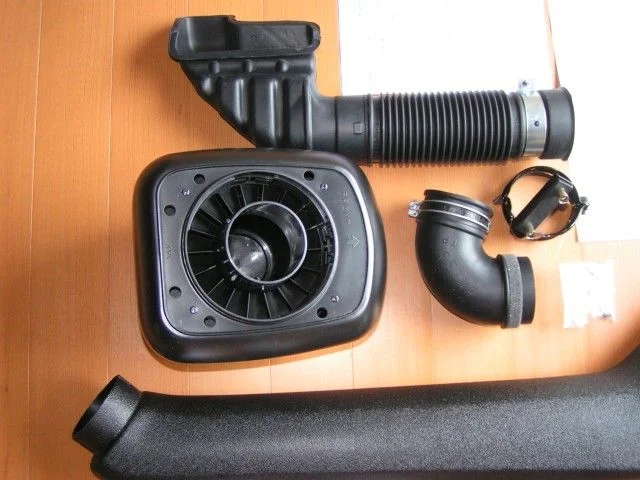

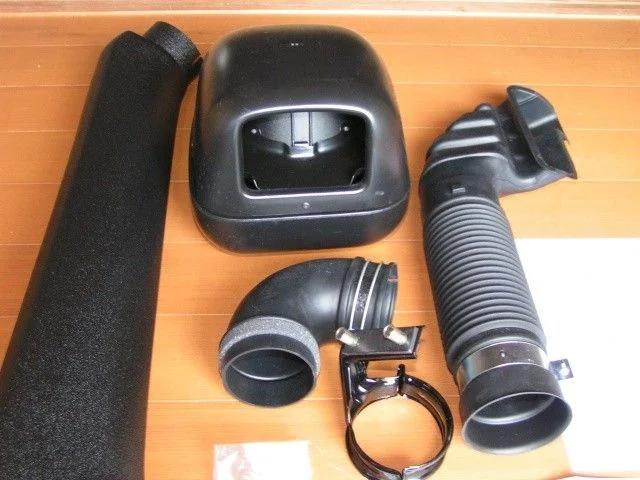

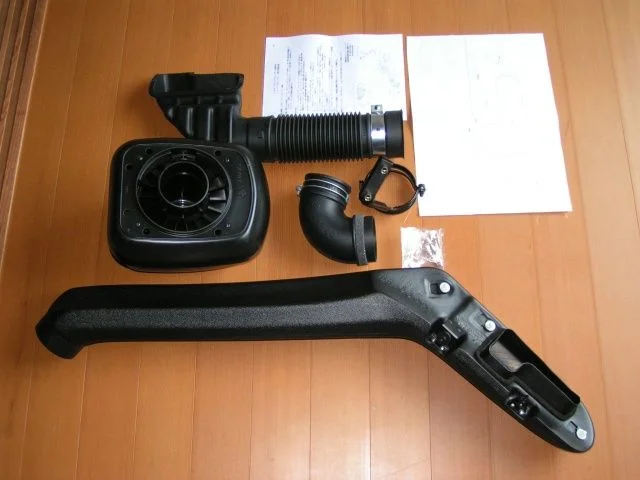

Here are some pics of the OEM snorkel for the 80 that I had in possession for one of the Mudders a while ago.

Apparently for the LHD vehicles this set-up requires the power antenna to be removed/relocated.

.

.

.

mot · 11-30-07, 06:10 AM

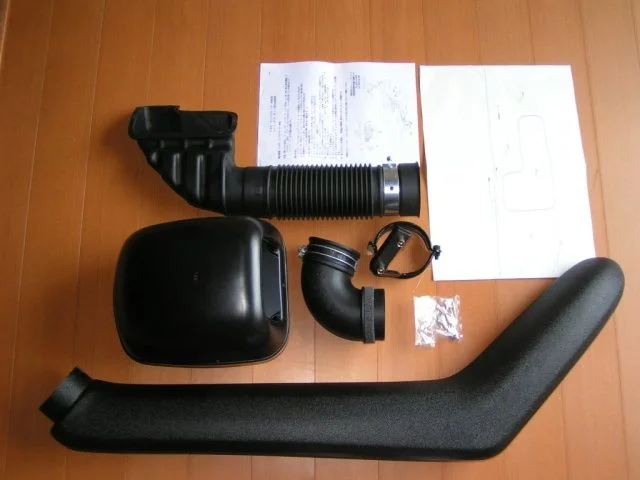

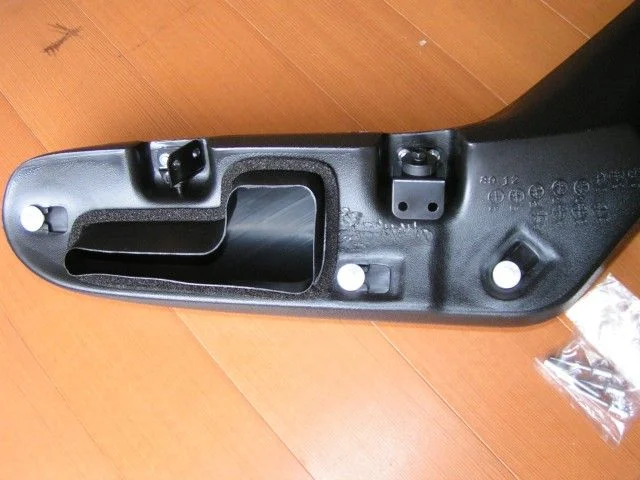

Some additional pics:

.

.

.

hks3sgte · 11-30-07, 09:18 AM

Do you know how much the 100 series snorkel would be, MOT?

tlcruiserman · 11-30-07, 12:22 PM

Quote:

Originally Posted by mot

Here are some pics of the OEM snorkel for the 80 that I had in possession for one of the Mudders a while ago.

Apparently for the LHD vehicles this set-up requires the power antenna to be removed/relocated.

.

.

.

Well I stand corrected, very cool I will have to pickup one of these and swap out my Safari on my HDJ80L.

Thanks,

MIchael

hks3sgte · 11-30-07, 12:29 PM

Quote:

Originally Posted by tlcruiserman

Well I stand corrected, very cool I will have to pickup one of these and swap out my Safari on my HDJ80L.

Thanks,

MIchael

what are you going to do about the big hole left by the Safari?

mot · 11-30-07, 04:10 PM

Quote:

Originally Posted by tlcruiserman

Well I stand corrected, very cool I will have to pickup one of these and swap out my Safari on my HDJ80L.

Thanks,

MIchael

We all are wrong from time to time!

Glad that I could surprise someone for once.

BTW, I'll try to work on getting the PN's for the 100's if they exist.

Mot

theferg · 12-01-07, 02:11 AM

Quote:

Originally Posted by mot

Here are some pics of the OEM snorkel for the 80 that I had in possession for one of the Mudders a while ago.

Apparently for the LHD vehicles this set-up requires the power antenna to be removed/relocated.

.

.

.

Now what would i need to keep that lousy old power antenna for....

MOT, do those papers in the pictures have part numbers and/or prices...?

I'd love to hear about them if so...

And which mudder would that have been? Somebody here needs to fess up with some installation notes and pics...

-Ferg-

roscoFJ73 · 12-01-07, 05:14 AM

Quote:

Originally Posted by tlcruiserman

Well I stand corrected, very cool I will have to pickup one of these and swap out my Safari on my HDJ80L.

Thanks,

MIchael

Do you have a 60 series? Because they had a factory snorkle too

brownbear · 12-01-07, 09:54 AM

Quote:

Originally Posted by roscoFJ73

Do you have a 60 series? Because they had a factory snorkle too

does anyone have the OEM part numbers for the 60 snorkle?

Cruiser_guy wanted to try in Central America for one... I said I would look in the EPC. I looked all over in the EPC and could not find the snorkle.

Anyone know where in the EPC I could find snorkles? Is it under "body"?

roscoFJ73 · 12-02-07, 12:13 AM

Quote:

Originally Posted by brownbear

does anyone have the OEM part numbers for the 60 snorkle?

Cruiser_guy wanted to try in Central America for one... I said I would look in the EPC. I looked all over in the EPC and could not find the snorkle.

Anyone know where in the EPC I could find snorkles? Is it under "body"?

There is a diagram here under 2H 12HT even though the diagram says 2F 3B ???
In you epc ,it should be in the same section as the air filter canister

http://pagesperso-orange.fr/adherenc...eur2H_12HT.htm

brownbear · 12-02-07, 01:39 AM

OK I see that in those french pages.... But my europe and Japan EPC shows absolutely no snorkles in air cleaner or any other page. I search for at least half an hour with no results.

Must have been another market that got them.

Cruiser_guy, can you check in the epc at your local toyota dealer to see under air cleaner if they list snorkles?

hks3sgte · 12-02-07, 05:02 PM

I've only seen the 60 series snorkel on the Latin American Spec Cruisers

tlcruiserman · 12-02-07, 10:38 PM

Quote:

Originally Posted by hks3sgte

what are you going to do about the big hole left by the Safari?

I will have to see how well the OEM one covers it first, if not maybe patch it or worst case, replace fender

tlcruiserman · 12-02-07, 10:39 PM

Quote:

Originally Posted by roscoFJ73

Do you have a 60 series? Because they had a factory snorkle too

No 60 series for me, been there done that. I have to draw the line somewhere
