08-27-05, 04:07 PM
|
#1 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
Turbo

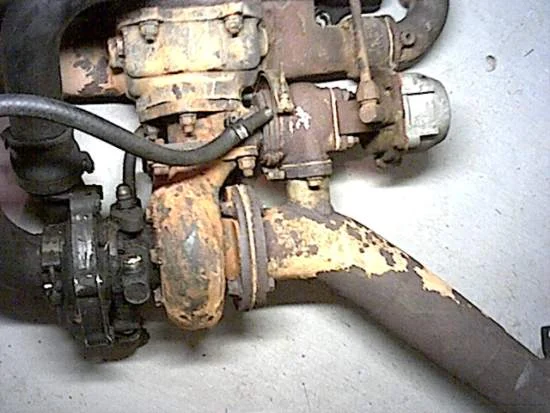

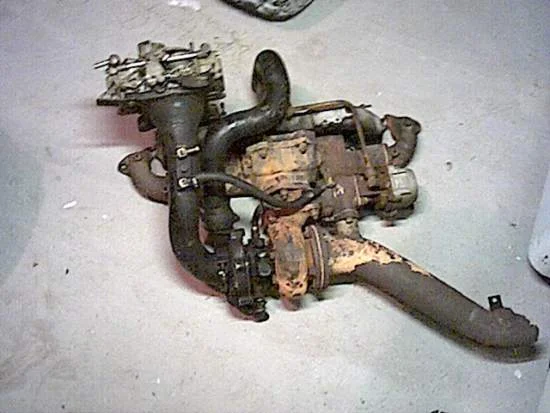

Okay, I finally found a reasonable pic of the turbo setup.
Specs,
Stock Exhaust manifold
stock intake manifold
To4 turbo.
Wastegate is on the right.
|
|
|
|
08-27-05, 04:23 PM
|
#2 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,936
|
Have you run this?? Take a look at the book called "Maximum Boost". It gives lots of turbo advice for gasoline engines mostly (like your F/2F). I used it when I turbo'd my BJ60 and my daughters FJ55/3B.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
08-27-05, 04:40 PM
|
#3 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
I am currently running this setup in my FJ40.
I am going to build one similar to this for my FJ60.
They work great..
|
|
|
|
|
08-27-05, 06:41 PM
|
#4 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
please build me one also
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-27-05, 07:35 PM
|
#5 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,936
|
Any warm or cold weather issues?
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
08-28-05, 07:09 AM
|
#6 (permalink)
|
|
Utarded
Join Date: Apr 2004
Location: Utah
Posts: 5,211
|
Quote:
|
Originally Posted by sportbiker929
please build me one also
|
Bingo- me too!
Mace- How do you compensate for the added fuel needed at upper RPM's? It doesn't look like you're going to be running an intercooler, why not?
Did your MPG increase with this set up?
__________________
Eric, Utah operations commander- Tall Corn Cruisers.
1993 Landcruiser, 197K miles. Lifted, Locked, Slidered, Slee'd, Snork'd, Winched, bobbed. Daily driver. ROTW
|
|
|
|
|
08-28-05, 07:30 AM
|
#7 (permalink)
|
|
Rum Runnin'
Join Date: Apr 2005
Location: Usually Upstate NY
Posts: 5,256
|
Mace,
Do you think that you could draw up a price for making some of those turbo pipes for 2F's? I would do it myself, but I do not have a welder. How much would it cost?
__________________
Johnny C
1987 FJ60 - MoonShine - SROR Front Bumper, H55f, 2-low, SOA, 62+AAL fronts w/ Ironman rears, 36's, FF w/ 4.11's, Round Eyes, KMR's Tailgate Hatch, desmog + headers, Storage / Sleeping system, etc. -- DD w/242k
Waiting to be installed:
York 210 OBA, shocks, lots of little things....
1967 Stevens Mfg. Co M416 - almost RUST FREE!!!
Previous Rig:
1987 FJ60 - Big Red
ΦΚΤ - Fall 06
|
|
|
|
|
08-28-05, 08:41 AM
|
#8 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
Well, I have run it at 108* plus temps without issue. And I have run it down to about 30* I have noticed no ill effects of temp on the turbo.
since the 40 that this setup is on runs on propane with 40's 1 ton axles and deals with pretty tough trails I can say this. I can typically wheel most of a good day on 7 galls of propane.
If you look at the setup the carb is basically "upstream" of the turbo. Meaning the carb never sees boost. only higher Vac numbers. because of that I do not need to adjust the mixture for increased boost. The more air it wants the more fuel it gets. The carb does not know if it is on top of a 4 cylinder or a 454..
|
|
|
|
|
08-28-05, 11:48 AM
|
#9 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
seriously, would you make me one?
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-28-05, 01:48 PM
|
#10 (permalink)
|
|
Rum Runnin'
Join Date: Apr 2005
Location: Usually Upstate NY
Posts: 5,256
|
Yeah, I'm not kidding either. I would love that pick-me-up for my rig, it could really use it!!
__________________
Johnny C
1987 FJ60 - MoonShine - SROR Front Bumper, H55f, 2-low, SOA, 62+AAL fronts w/ Ironman rears, 36's, FF w/ 4.11's, Round Eyes, KMR's Tailgate Hatch, desmog + headers, Storage / Sleeping system, etc. -- DD w/242k
Waiting to be installed:
York 210 OBA, shocks, lots of little things....
1967 Stevens Mfg. Co M416 - almost RUST FREE!!!
Previous Rig:
1987 FJ60 - Big Red
ΦΚΤ - Fall 06
|
|
|
|
|
08-28-05, 03:32 PM
|
#11 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
what part do you need made?
|
|
|
|
|
08-28-05, 04:53 PM
|
#12 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
from below the carb to where it hooks to the stock manifolds. You let me know what it costs, and I will pay.
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-28-05, 08:15 PM
|
#13 (permalink)
|
|
Utarded
Join Date: Apr 2004
Location: Utah
Posts: 5,211
|
Where did you source the blower?
Basically- we need a list. What is fabbed, and what stock parts we can use.
Do you know how much boost you are running?
__________________
Eric, Utah operations commander- Tall Corn Cruisers.
1993 Landcruiser, 197K miles. Lifted, Locked, Slidered, Slee'd, Snork'd, Winched, bobbed. Daily driver. ROTW
|
|
|
|
|
08-29-05, 09:22 AM
|
#14 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
ok found the turbos for 400. Which T04 do I need. Then I will just need a waste gate and piping to attach it to the manifolds.
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-29-05, 09:42 AM
|
#15 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
which waste gate is better? internal or external?
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-29-05, 09:51 AM
|
#16 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
Personaly I would go with a T3 or T3/T4 hybrid. The T4 takes a bit long to spool up.
external will probbaly fit better. Mine is external.
You can get reasonable T3's for ~ $100 used (what I am going to do) or $300 new.
Adjustable wastegates (in cab) will be a cool thing too.
|
|
|
|
|
08-29-05, 09:54 AM
|
#17 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
where do you get a used turbo?
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-29-05, 10:04 AM
|
#18 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
|
|
|
|
|
08-29-05, 01:21 PM
|
#19 (permalink)
|
|
Rum Runnin'
Join Date: Apr 2005
Location: Usually Upstate NY
Posts: 5,256
|
But what about the manifold (?) that bolts the turbo to the exhaust manifold, and the carb to the turbo? That seems like the most important part.
__________________
Johnny C
1987 FJ60 - MoonShine - SROR Front Bumper, H55f, 2-low, SOA, 62+AAL fronts w/ Ironman rears, 36's, FF w/ 4.11's, Round Eyes, KMR's Tailgate Hatch, desmog + headers, Storage / Sleeping system, etc. -- DD w/242k
Waiting to be installed:
York 210 OBA, shocks, lots of little things....
1967 Stevens Mfg. Co M416 - almost RUST FREE!!!
Previous Rig:
1987 FJ60 - Big Red
ΦΚΤ - Fall 06
|
|
|
|
|
08-29-05, 01:30 PM
|
#20 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
The best thing to do is for me to remove the one I have and have another made (cast preferably)
I am going to make one out of a T3 flange and a stock downpipe.. I'll take pics tonight and show you..
|
|
|
|
|
08-29-05, 01:31 PM
|
#21 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
Yeah, I've been talking to some friends of who have extensive engine knowledge. Not sure, with out hav with out having a spare manifold set to fab it up. It looks like he is using a holley 4bbl. So basicly we need a piece of tubing from the bottom of the carb to the commpressor inlet and another piece from compressor outlet to manifold inlet. Of course with proper adapters. Then an adapter from stock exhaust manifold to turbine wastegate inlet and then from turbine outlet to exhaust system. Airfilter will be easy.
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-29-05, 01:46 PM
|
#22 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
Intake from the compressor to the carb takes some bending or cutting and welding, WHich carb plate you need is dependant on which carb you intend to use. Mine is set up for a holley baseplate (then converted to propane) But the next one will be running a TBI unit.
THe adapter to the intake manifold is a simple square plate (copy the pheonolic spacer)
Exhaust is a common flange to whatever exhaust size you want. My 40 has a 3" system. But the 60 will have a 2.5" exhaust.
I have a spare motor that I am specificaly building to be turbocharged (new cam and a bit stronger oiling system)
If you have a friend with a bender it would be pretty easy..
|
|
|
|
|
08-29-05, 01:48 PM
|
#23 (permalink)
|
|
IH8MUD Lifer - No Appeal
Join Date: Aug 2003
Posts: 2,515
|
Mace
What are the performance characteristics? Would like to know what a little boost does for a healthy 2F.
M
__________________
'96 FZJ80, locked, Hanna sliders, ARB bumper, Kaymar rear with spare carrier, 45 gallon Longranger aux fuel tank, OBA, Hella 4000's, OME lift, 285/75/R16 Revos & AutoHome Maggiolina rooftop tent, etc.
Custom Cruiser trailer with OverLand tent
www.AutoHomeUS.com
TLCA Member #14874
|
|
|
|
|
08-29-05, 01:58 PM
|
#24 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
Don't really know what it would do to a healthy 2F. THe current one I have is tired and bone stock.
Over 200hp at the flywheel for the tired stock beastie..
|
|
|
|
|
08-29-05, 01:59 PM
|
#25 (permalink)
|
|
250+ Club
Join Date: Jun 2005
Location: San Diego, CA
TLCA# have one but don't know the number
Posts: 391
|
what about the exhaust manifold to turbine inlet?
__________________
94 FZJ-80, 5 285 BFG MT's, freshened up shaved head, valve job, ARB bull bar, fresh OEM tune up, K&N, SCION head unit, fresh cooling system, BA Outfitters full Roof Rack, 2.5 OME MED/MED, Cobra CB w/fiberglass antenna, Hella lights, in process of upgrading the sound system, more to come
I have finally found a rig that fits me.
|
|
|
|
|
08-29-05, 02:14 PM
|
#26 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
I am going to make one out of a T3 flange and a stock downpipe.. I'll take pics tonight and show you..
|
|
|
|
|
08-29-05, 03:40 PM
|
#27 (permalink)
|
|
Veni, Vidi, Dormivi
Join Date: Jan 2004
Location: Emerald City
Posts: 1,641
|
ok - total noob. I understand how the turbo itself works (i think), by increasing airflow - but what's the waste gate for? and how do you adjust the amt of boost?
__________________
Rob
1984 FJ60 *still TBD* 33x9.5's, 3" BDS, H55f
Dual Batt's, LED's, SROR Bumper, Rear Sliding Windows, Audio Dampener, More to come!
1987 FJ60 "TeeK"
Bozone (n.): The substance surrounding stupid people that stops bright ideas from penetrating. The bozone layer, unfortunately, shows little sign of breaking down in the near future.
|
|
|
|
|
08-29-05, 03:43 PM
|
#28 (permalink)
|
|
Veni, Vidi, Dormivi
Join Date: Jan 2004
Location: Emerald City
Posts: 1,641
|
Quote:
|
Originally Posted by Mace
Intake from the compressor to the carb takes some bending or cutting and welding, WHich carb plate you need is dependant on which carb you intend to use. Mine is set up for a holley baseplate (then converted to propane) But the next one will be running a TBI unit.
THe adapter to the intake manifold is a simple square plate (copy the pheonolic spacer)
I have a spare motor that I am specificaly building to be turbocharged (new cam and a bit stronger oiling system)
If you have a friend with a bender it would be pretty easy..
|
2 more q's
will a stock carb work decent for this? does it require higher cfm?
and how do you build a "stronger oiling system"?
thanks!
rob
__________________
Rob
1984 FJ60 *still TBD* 33x9.5's, 3" BDS, H55f
Dual Batt's, LED's, SROR Bumper, Rear Sliding Windows, Audio Dampener, More to come!
1987 FJ60 "TeeK"
Bozone (n.): The substance surrounding stupid people that stops bright ideas from penetrating. The bozone layer, unfortunately, shows little sign of breaking down in the near future.
Last edited by sl33py; 08-29-05 at 03:44 PM.
Reason: can't type
|
|
|
|
|
08-29-05, 04:20 PM
|
#29 (permalink)
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 13,100
|
theoretically a stock carb would work for this application. However, I have never tried it.
The system I have was designed to run a holley 460 4 barrell.
THe wastegate is designed to limit boost. Basically what it does is bypass the exhaust gasses around the turbo when you have achieved the desired amount of boost.
There are a couple of ways to improve the oiling system. One is to actually drill and tap the block so that the oil pump feeds to both sides of the motor at any given time.
|
|
|
|
|
08-29-05, 11:32 PM
|
#30 (permalink)
|
|
Ramblin Wreck
Join Date: Mar 2003
Location: Georgia Tech
Posts: 5,802
|
Is this a full t04 turbo, or the t04/t3 (intake/exhaust) that you've mentioned as a potential setup?
You know I am interested in any parts you have made- most interested in the adaptor to bolt the turbo to the stock exhaust manifold.
__________________
Bailey Quintrell
'74 FJ40--37 Irocks-32 Bolt 'Locks-SM420-ARB-XD9000i-FJ60 PS-MetalTech Cage
'93 FZJ80-DD-P.T. 4wd-locked-5" lifted-snorkel-bullbar-315 AT's
'53 Willys Wagon
ΣΧ
|
|
|
|
|
|
| Thread Tools |
|
|
| Display Modes |
 Linear Mode
|
Posting Rules
|
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
HTML code is Off
|
|
|
|
|
|
Mace
cruiser_guy
The big white one
Moonshine
