Wagongear's Newest Product: Firestick Antenna Mount

As we all do, I broke off my stock manual adjust antenna on a tree at some point. For a long time I was looking for a way to set up my radio and CB, which, at the time, I thought was only possible with 2 antennas. Well Kevin Rowland told me different. He has a slick firestick setup, mounted in the stock location and grommet, using a CB antenna coupled with the Matchmaker FM / CB splitter to use the same antenna for both CB and FM. I bugged him and bugged him to make me a mount to do the same. Well he designed it and here is the kit!

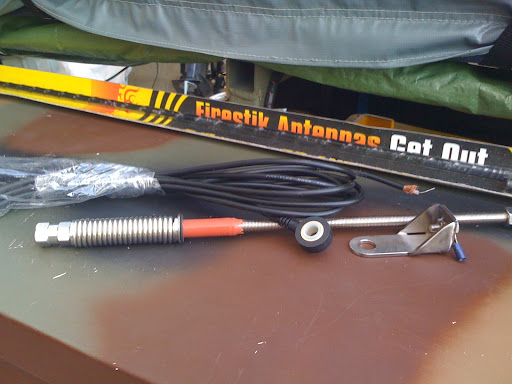

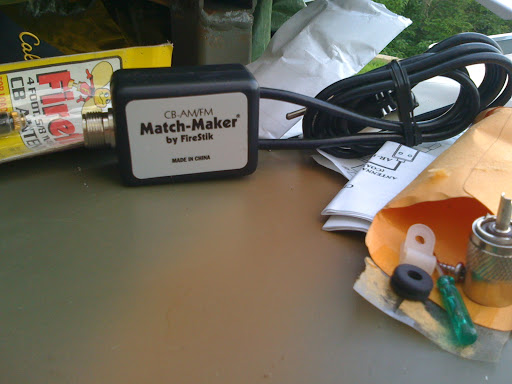

The first pics are pics of what Kevin included in my kit, which came with the antenna, mount and Matchmaker splitter. Everything is Stainless steel, so I never have to worry about it rusting.

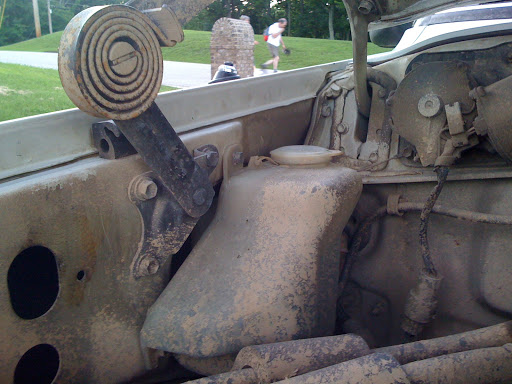

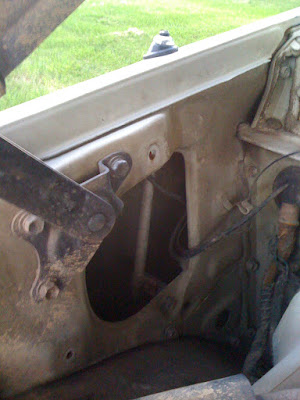

So to install it, you first have to remove the top bolt from the windshield washer resovior, and loosen the bottom two ( 10 mm bolts ). After setting that to the side next to the AC lines, you can see the stock antenna mount. It is attached at the bottom with one bolt, and then on top of the fender with a steel washer that needs to be unscrewed.

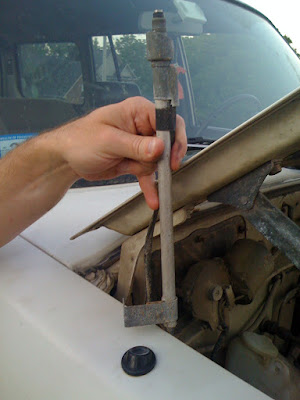

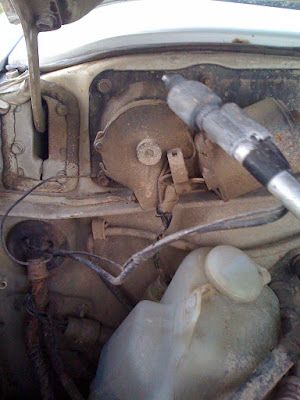

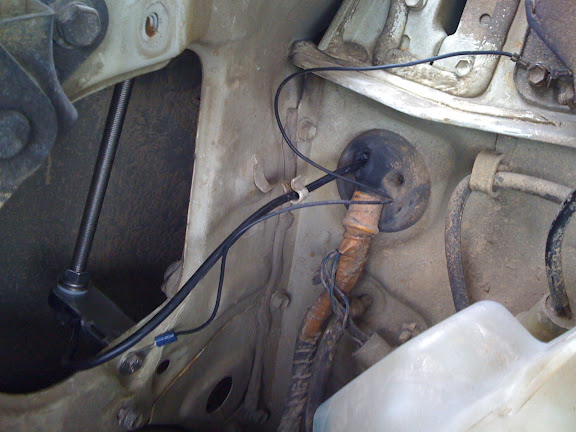

After removal of the antenna, you must unbolt the ground wire, which is connected to one of the windshield wiper motor bolts. You also need to remove the FM cable from the back of the radio and pull it through the grommet in the firewall. At this point, you are dissasembled.

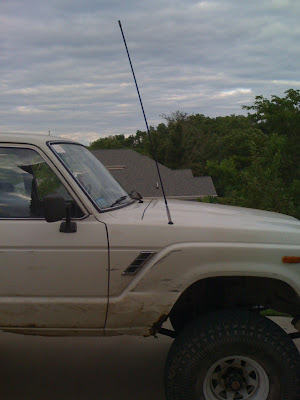

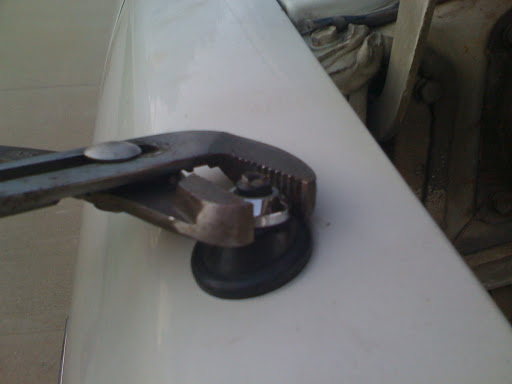

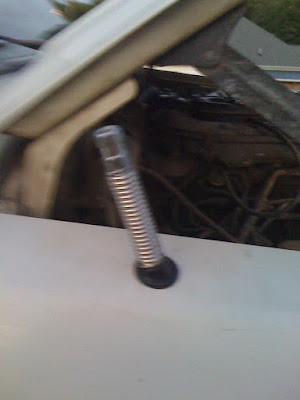

To install the antenna, first bolt the mount you got from Kevin into the stock bolt hole using the supplied bolt, so that the flat portion of the mount is facing the top of the fender as pictured. Next, put the threaded rod down through the stock grommet and mount. Assemble the washers and Fire Ring as pictured.

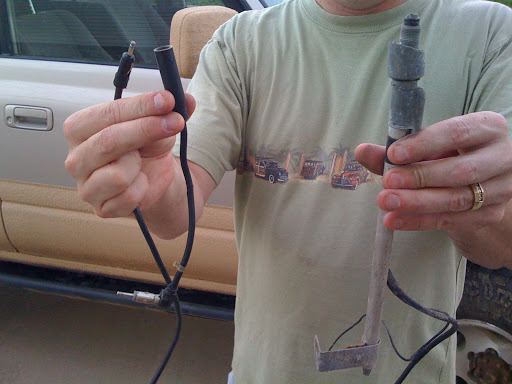

Finally, clip the ground cable off of the stock antenna ( if not being sold or reused ) and run this cable from the mount's bolt to the original ground wire location. Screw the antenna onto the spring on top of the mount, and the antenna installation is done!

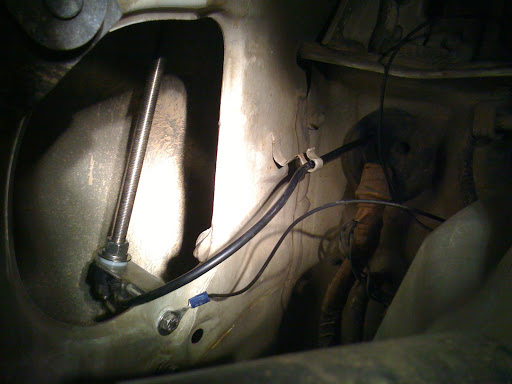

For the CB radio, I installed mine underneath the dash. I like it out of the way, so all my controls are in the microphone, and the in-dash unit is just for wire connections. I will not thoroughly document my install because there are so many ways to do it. Enjoy!

__________________
Johnny C - KK4HAN
Olde North State Cruisers
1987 FJMashup - MoonShine - SOA'd, 37" PBR'd, FF - 4.11'd, Poly'd + E-Locked, FJ62 Frame, Rust Free '87 60 body, etc.

1989 VW Jetta Diesel 5 speed - Running on WVO - DD

Wheeling adventures, documented through YouTube

ΦΚΤ - Fall 06
GLTHFJ60 is offline   Reply With Quote
Old 07-03-09, 10:42 PM   #2
Site Addict



JLH911's Avatar

Join Date: Sep 2007
Location: So. Cal
Posts: 2,197
Thanks for this...I've been wanting to do something like this also.

Let's see pics of your CB installed!

__________________
87 FJ60 Stock...for now
JLH911 is offline   Reply With Quote
Sponsor 07-03-09, 11:21 PM
Sponsored Link
advertisement
Old 07-03-09, 11:21 PM   #3
Forum Lifer



NLXTACY's Avatar

Join Date: Dec 2007
Location: West Hills, CA
Posts: 6,548
Dammit, yet ANOTHER thing I need to get from Kevin. I didn't see it on the site but I'm sure he is going to offer this soon. I have EVERYTHING else already including the Match-Maker. Guess I should have kept my old pile of crap antenna

__________________
84 FJ60, 261k (Rumpleshank)- suckiest day of my life, WagonGear'd, cleaned, fixed, carb'd, OME lift'd, U-bolts flip'd, Remflex'd and now has a rebuilt 2F, trans and transfer!!

86 FJ60, 210k (Rizzabella)- My daily driver currently

97 LX450, 291k, non-locked. Expedition vehicle in progress. New motor going in after complete rebuild and SuperCharger next, Auto-up mod, Coolant mod, Garage door mod, Jumper Cables, Dual batteries, Power Distribution 1, 2, 3, 4, Switch mod, Slee harness, Coolant/windshield sensor mod, CDL & 7-pin mod, Dog mod, Drillbit mod, IPOR'd, Yellowbox'd, Scion'd, Trans gauge mod, MAF'd, JDM fan'd, kid seat mod, Factory rack removed

ふざけんなよ!
NLXTACY is online now   Reply With Quote
Old 07-04-09, 05:56 AM   #4
Forum Lifer



VTCruiser's Avatar

Join Date: Sep 2003
Location: Vermont/Kabul
Posts: 3,374
Garage
very cool.
VTCruiser is offline   Reply With Quote
Old 07-04-09, 07:13 AM   #5
Forum Lifer



kevinmrowland's Avatar

Join Date: Sep 2005
Location: Eugene, OR
Posts: 1,925
Think you could shout about it a little louder there Johnny?

My freakin inbox is stuffed this lovely holiday morning, had to come over here to see what was up. I think the bold text and huge thread title might have tipped folks off.....

Anyway, not sure if I would call it the "newest product" yet, more like the newest prototype. Johnny was heading to CMCC antenna-less (once again) and since I would not be there this year to lend him mine, I took pity and got my act together for the mount.

Everyone else, you are gona have to wait a bit longer.
I promise I will make a web page for it today.

or tomorrow....



Oh, and Johnny got ALL the parts from me since I used them to prototype, I will just be selling the mount and supplying the parts list for a Wallcott order. I am not a fire-stick dealer.

Install looks great though Johnny, nice job.
One thing I recommend is NOT pulling the radio antenna out if you can help it, but disconnecting it at the antenna then taping the new cable to it and pulling the whole thing through the grommet and up to the radio. That saves having to snake the cable around.

The mount is really very simple, I'll get the pictures posted and the parts list, I'm sure that most of us here could make their own version very easily if you want to copy.

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
Note: with the number of PMs that I get some slip through the cracks, consider sending an email to be sure I get back to you.
kevinmrowland is offline   Reply With Quote
Old 07-04-09, 08:30 AM   #6
Rum Runnin'



GLTHFJ60's Avatar

Join Date: Apr 2005
Location: Morrisville, NC
Posts: 9,023
Garage
Quote:
Originally Posted by kevinmrowland View Post
Think you could shout about it a little louder there Johnny?

My freakin inbox is stuffed this lovely holiday morning, had to come over here to see what was up. I think the bold text and huge thread title might have tipped folks off.....

Anyway, not sure if I would call it the "newest product" yet, more like the newest prototype. Johnny was heading to CMCC antenna-less (once again) and since I would not be there this year to lend him mine, I took pity and got my act together for the mount.

Install looks great though Johnny, nice job.
One thing I recommend is NOT pulling the radio antenna out if you can help it, but disconnecting it at the antenna then taping the new cable to it and pulling the whole thing through the grommet and up to the radio. That saves having to snake the cable around.
I figured your newest prototype ( product ) needed some well deserved attention, kinda like how new gadgets or movies are announced months in advance to drum up enthusiasm. I think it worked

Good point on the radio cable. I had my dash apart so it was easy to get to. Had no problems.

I mounted my CB to the dash support just behind the spedometer, and the matchmaker is mounted right behind the inclometer / ashtray / HVAC controls. I did it that way so if I needed to adjust anything, I didn't have to take out the whole dash to do it. I love it!

Happy 4th everyone!!

__________________
Johnny C - KK4HAN
Olde North State Cruisers
1987 FJMashup - MoonShine - SOA'd, 37" PBR'd, FF - 4.11'd, Poly'd + E-Locked, FJ62 Frame, Rust Free '87 60 body, etc.

1989 VW Jetta Diesel 5 speed - Running on WVO - DD

Wheeling adventures, documented through YouTube

ΦΚΤ - Fall 06
GLTHFJ60 is offline   Reply With Quote
Old 07-04-09, 09:24 AM   #7
Site Addict



JLH911's Avatar

Join Date: Sep 2007
Location: So. Cal
Posts: 2,197
Quote:
Originally Posted by kevinmrowland View Post
Think you could shout about it a little louder there Johnny?

My freakin inbox is stuffed this lovely holiday morning, had to come over here to see what was up. I think the bold text and huge thread title might have tipped folks off.....

Anyway, not sure if I would call it the "newest product" yet, more like the newest prototype. Johnny was heading to CMCC antenna-less (once again) and since I would not be there this year to lend him mine, I took pity and got my act together for the mount.

Everyone else, you are gona have to wait a bit longer.
I promise I will make a web page for it today.

or tomorrow....



Oh, and Johnny got ALL the parts from me since I used them to prototype, I will just be selling the mount and supplying the parts list for a Wallcott order. I am not a fire-stick dealer.

Install looks great though Johnny, nice job.
One thing I recommend is NOT pulling the radio antenna out if you can help it, but disconnecting it at the antenna then taping the new cable to it and pulling the whole thing through the grommet and up to the radio. That saves having to snake the cable around.

The mount is really very simple, I'll get the pictures posted and the parts list, I'm sure that most of us here could make their own version very easily if you want to copy.

First on the list! haha

__________________
87 FJ60 Stock...for now
JLH911 is offline   Reply With Quote
Old 07-04-09, 01:26 PM   #8
Forum Lifer



sirenmoses's Avatar

Join Date: Dec 2006
Location: 7400', central NM
Posts: 3,282
Garage
Quote:
Originally Posted by JLH911 View Post
First on the list! haha
Maybe not. I e'd Kevin about this a few months ago.

Arm-wrestle ya for it!

__________________
Reasons why a Garage is Next:
84 tan FJ60: 205k, BDS lift, tow hitch. Rowlands panels tbi, Yakima bars w/sliders as needed
98 Volvo V70XC w/Thule bars n box: lean green Dober tripping machine

91 Kawaski Concours: 48k, not ridden enuf
95 Kawaski EX500: [STRIKE]13k, ebay parts donor

85 Honda Accord: 120k, dd unless >6" snow
a 'refurbed'/' work in progress' trailer, to haul stuff
sirenmoses is offline   Reply With Quote
Old 07-04-09, 02:50 PM   #9
Site Addict



IrollwithTojo's Avatar

Join Date: Aug 2008
Location: Leawood,Kansas
Posts: 1,188
I wonder how well this would work with my 7ft firestik.

-Carl

__________________
1988 FJ62- SOLD (the starter of the disease)
1989 FJ62 "Tojo" 2.5", 33's,ARB bullbar with a 7ft hick-stick, Durabaked exterior, mostly blacked out.

"If Australians can't possess alcohol on planes, the terrorists win" IronYuppy
"He just has an odd way of wishing he could see your piss fenders that's all..." Joe_E
"lol - I don't read all of what you post, I just respond..." wob
IrollwithTojo is offline   Reply With Quote
Old 07-04-09, 05:20 PM   #10
Forum Regular



Join Date: Jun 2005
Location: Palo Alto, CA
Posts: 91
Kevin, you know what I want (in addition to all your other stuff?)

A high quality Wagongear t-shirt, in like forest green.

Cheers,
prat
praetorian is offline   Reply With Quote
Old 07-04-09, 05:23 PM   #11
Rum Runnin'



GLTHFJ60's Avatar

Join Date: Apr 2005
Location: Morrisville, NC
Posts: 9,023
Garage
Quote:
Originally Posted by praetorian View Post
A high quality Wagongear t-shirt, in like forest green.
YES!!!

__________________
Johnny C - KK4HAN
Olde North State Cruisers
1987 FJMashup - MoonShine - SOA'd, 37" PBR'd, FF - 4.11'd, Poly'd + E-Locked, FJ62 Frame, Rust Free '87 60 body, etc.

1989 VW Jetta Diesel 5 speed - Running on WVO - DD

Wheeling adventures, documented through YouTube

ΦΚΤ - Fall 06
GLTHFJ60 is offline   Reply With Quote
Old 07-04-09, 07:00 PM   #12
Forum Lifer



kevinmrowland's Avatar

Join Date: Sep 2005
Location: Eugene, OR
Posts: 1,925
Quote:
Originally Posted by JLH911 View Post
First on the list! haha
Uh huh, I don't think so, no more lists.

No list needed for these little guys, I'll just make a batch and let you know when they are ready.
And CJ is right, his email is probably one of the oldest in my "antenna" file.

I got a jump on the web page today, might get it up tonight for more info, but it wont have an active "buy it" link just yet.

And I have been wanting a t-shirt myself.......

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
Note: with the number of PMs that I get some slip through the cracks, consider sending an email to be sure I get back to you.
kevinmrowland is offline   Reply With Quote
Old 07-04-09, 07:59 PM   #13
Forum Lifer



sirenmoses's Avatar

Join Date: Dec 2006
Location: 7400', central NM
Posts: 3,282
Garage
Quote:
Originally Posted by kevinmrowland View Post
And I have been wanting a t-shirt myself.......
Swap ya 2 FD shirts for one-a yours... what size ya wear?

__________________
Reasons why a Garage is Next:
84 tan FJ60: 205k, BDS lift, tow hitch. Rowlands panels tbi, Yakima bars w/sliders as needed
98 Volvo V70XC w/Thule bars n box: lean green Dober tripping machine

91 Kawaski Concours: 48k, not ridden enuf
95 Kawaski EX500: [STRIKE]13k, ebay parts donor

85 Honda Accord: 120k, dd unless >6" snow
a 'refurbed'/' work in progress' trailer, to haul stuff
sirenmoses is offline   Reply With Quote
Old 07-04-09, 08:59 PM   #14
Forum Lifer



kevinmrowland's Avatar

Join Date: Sep 2005
Location: Eugene, OR
Posts: 1,925
Ok I got a page together for more info, apologize for any typo's.
Should make things a bit more clear for the time being though.

Antenna Mount


Quote:
Originally Posted by sirenmoses View Post
Swap ya 2 FD shirts for one-a yours... what size ya wear?
Sweet!!!! Maybe I wont have a t-shirt list I'll have a you-send-me-one-first list.

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
Note: with the number of PMs that I get some slip through the cracks, consider sending an email to be sure I get back to you.

Last edited by kevinmrowland; 07-05-09 at 08:35 PM.
kevinmrowland is offline   Reply With Quote
Old 07-04-09, 10:10 PM   #15
Rum Runnin'



GLTHFJ60's Avatar

Join Date: Apr 2005
Location: Morrisville, NC
Posts: 9,023
Garage
Sweet install page! Looks much better than this attempt :P

__________________
Johnny C - KK4HAN
Olde North State Cruisers
1987 FJMashup - MoonShine - SOA'd, 37" PBR'd, FF - 4.11'd, Poly'd + E-Locked, FJ62 Frame, Rust Free '87 60 body, etc.

1989 VW Jetta Diesel 5 speed - Running on WVO - DD

Wheeling adventures, documented through YouTube

ΦΚΤ - Fall 06
GLTHFJ60 is offline   Reply With Quote
Old 07-04-09, 10:15 PM   #16
Forum Lifer



sirenmoses's Avatar

Join Date: Dec 2006
Location: 7400', central NM
Posts: 3,282
Garage
Quote:
Originally Posted by kevinmrowland View Post
Maybe I wont have a t-shirt list I'll have a you-send-me-one-first list.
Only if that's all you & yr plan on wearing for the next few decades...

Actually, that is a neat idea. Then when you get tired of wearing 'em, recycle into a t-shirt quilt for your rig.

__________________
Reasons why a Garage is Next:
84 tan FJ60: 205k, BDS lift, tow hitch. Rowlands panels tbi, Yakima bars w/sliders as needed
98 Volvo V70XC w/Thule bars n box: lean green Dober tripping machine

91 Kawaski Concours: 48k, not ridden enuf
95 Kawaski EX500: [STRIKE]13k, ebay parts donor

85 Honda Accord: 120k, dd unless >6" snow
a 'refurbed'/' work in progress' trailer, to haul stuff
sirenmoses is offline   Reply With Quote
Old 07-05-09, 08:40 PM   #17
Forum Lifer



kevinmrowland's Avatar

Join Date: Sep 2005
Location: Eugene, OR
Posts: 1,925
Quote:
Originally Posted by GLTHFJ60 View Post
Sweet install page! Looks much better than this attempt :P
Thanks Johnny, you've got some info and photos here that I don't have though.
I linked this thread on the bottom of the page so we can get the best of both worlds.


Quote:
Originally Posted by sirenmoses
Only if that's all you & yr plan on wearing for the next few decades...

Actually, that is a neat idea. Then when you get tired of wearing 'em, recycle into a t-shirt quilt for your rig.
That might be a problem I guess....
But you might be over-estimating the demand for a WagonGear t-shirt

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
Note: with the number of PMs that I get some slip through the cracks, consider sending an email to be sure I get back to you.
kevinmrowland is offline   Reply With Quote
Old 07-06-09, 09:40 AM   #18
Forum Lifer



Randy88FJ62's Avatar

Join Date: Apr 2008
Location: North of LA California
Posts: 2,896
This looks like a great idea. While we’re on this topic; I’ve noticed that my old AM/FM antenna doesn’t perform anywhere near as good as newer cars. I can’t get radio stations from as far away and I get interference when using AM. Meaning that I can hear my engine revs through the AM radio interference. While installing this new setup with CB / radio splitter, is there anything else I can do to increase the range and clarity of my sound system? New speakers and head unit will follow in the future. Maybe I should take this to the electronics thread but I thought I would start here since some of the equipment is 60 related.

__________________
88 FJ62 SOA, 35's with 4.88's
Randy88FJ62 is offline   Reply With Quote
Old 07-06-09, 09:54 AM   #19
Rum Runnin'



GLTHFJ60's Avatar

Join Date: Apr 2005
Location: Morrisville, NC
Posts: 9,023
Garage
Quote:
Originally Posted by Randy88FJ62 View Post
This looks like a great idea. While we’re on this topic; I’ve noticed that my old AM/FM antenna doesn’t perform anywhere near as good as newer cars. I can’t get radio stations from as far away and I get interference when using AM. Meaning that I can hear my engine revs through the AM radio interference. While installing this new setup with CB / radio splitter, is there anything else I can do to increase the range and clarity of my sound system? New speakers and head unit will follow in the future. Maybe I should take this to the electronics thread but I thought I would start here since some of the equipment is 60 related.
Longer, higher quality fixed antenna with a good ground will always increase your range. I can't comment on how well the matchmaker works because mine appears to be defective. I tuned my CB setup to a SWR on all channels of 1.9, but when I hook up the matchmaker, my SWR meter reads a short. I will pick up another unit when I get back from CMCC.

__________________
Johnny C - KK4HAN
Olde North State Cruisers
1987 FJMashup - MoonShine - SOA'd, 37" PBR'd, FF - 4.11'd, Poly'd + E-Locked, FJ62 Frame, Rust Free '87 60 body, etc.

1989 VW Jetta Diesel 5 speed - Running on WVO - DD

Wheeling adventures, documented through YouTube

ΦΚΤ - Fall 06
GLTHFJ60 is offline   Reply With Quote
Old 07-06-09, 10:00 AM
Sponsored Link
advertisement
Old 07-06-09, 10:00 AM   #20
Forum Regular



OCHO4I's Avatar

Join Date: Aug 2007
Location: The City of Angels
Posts: 212
Johnny & Kevin:

Could you guys possibly post the model number and size of the Firestick that was used on Johnny’s 60? (By the way Kevin, I’m heading over to Wagongear shortly in order to secure my place in line!)


H.S.M.
OCHO4I is offline   Reply With Quote
Reply


Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are On


LinkBacks (?)
LinkBack to this Thread: http://forum.ih8mud.com/60-series-wagons/292268-wagongears-newest-product-firestick-antenna-mount.html
Posted By For Type Date
Re: 27mc antenne volle lengte This thread Refback 09-15-11 11:31 AM
CB Radios - does anyone still use them? This thread Refback 01-27-10 03:36 PM
CB Radios - does anyone still use them? - Page 6 - British Blades :: Custom Knife Making This thread Refback 11-01-09 02:00 PM
CB Radios - does anyone still use them? - Page 6 - British Blades :: Custom Knife Making This thread Refback 08-07-09 02:12 PM
Antenna Mount This thread Refback 07-04-09 08:55 PM



All times are GMT -7. The time now is 11:51 PM.


vBulletin® ©2000 - 2012, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.3.2
Clubs, Garage Plus, Vendor Tools vBulletin Plugins by Drive Thru Online, Inc.
©2000-2012 by IH8MUD.com - ALL RIGHTS RESERVED
