Elliott's buildup: semi-resto 60

ElliottB · 07-31-09, 10:44 AM

I've got some swatches from the tan color on my seats so I'm going to buy some material to stitch together. It won't be too fancy but will look a little more 21st century than the striped brown and tan look that came stock.

Emeeks · 08-01-09, 11:03 PM

Nice work! Looks a lot like mine! Hope you get it done before the snow flies.
Snowboarding duty is around the corner!

Eric

ElliottB · 08-09-09, 03:44 PM

Carb and distributor are here FINALLY. Now I'm trying to figure out how to plumb it without all of the smog junk. Startup time is so close I can taste it!

Scroll back to page 3 to see before pics of the carb. It was FURRY!

I've gotten some of the hoses run. Currently trying to make sense out of the Toyota schematics and isometric.

Distributor is looking nice too.

ElliottB · 08-09-09, 07:07 PM

I busted my thermostat housing so I upgraded to a new one. The new one doesn't have any BSVS plugs so I think it makes it a little cleaner.

Old and busted.

New and slimline.

fliphkd778 · 08-10-09, 12:43 AM

That's pretty sweet, where did you get the housing without the bvsv holes?

ElliottB · 08-10-09, 08:08 AM

I got it from SOR. Surprisingly it was only $20 while the standard one is $130!

sl33py · 08-10-09, 01:45 PM

Wow Elliott - looking great! Way to power through it. Good luck firing it up!

rob

ElliottB · 08-11-09, 10:56 PM

First of all a BIG THANKS to Mike (jettaglxdriver) who helped me bring this motor to life. He certainly knows his stuff!

I got all of the hoses run and everything connected but had an issue getting spark to the coil. Per JimC and the rest of the mud 2F gurus, I grounded the coil better and swapped 2 connectors that appeared to be backwards and...

http://www.mallcrawlin.com/videos/startup.3gp

I apologize for the Quicktime format. That's how cell phone video cams go. Anyway, it didn't take much and it vroooomed to life. I didn't even have the choke pulled. I set the timing to 7*, the idle is at 650 rpm and after all of the new adhesive, oil, paint, etc smoked off of the surface its running like a champ! I need to get things cleaned up a little bit in regards to hoses and wiring so I will do that and post pics tomorrow. It's now a functional vehicle again!

.....until I rip the suspension/axles out of it this weekend....

ElliottB · 08-11-09, 11:00 PM

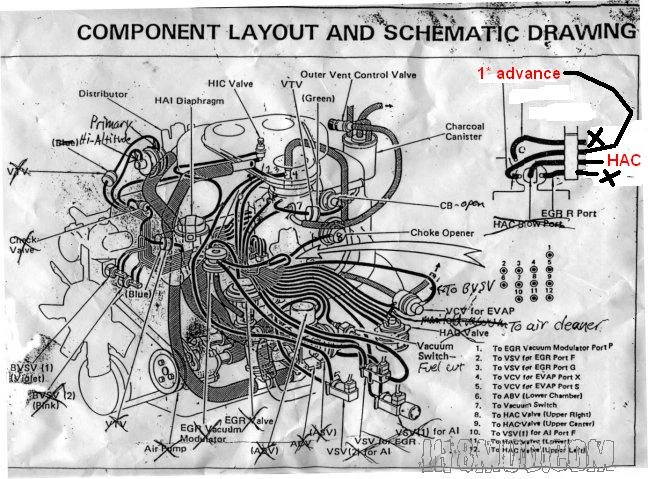

And for the record, here is an MS Paint schematic of my hoses. This is running an HAC, no BVSV's and no PVC/EGR valve.

FJ40Jim · 08-12-09, 08:41 AM

It lives!

Please post a closer pic of the hoses at the base of the carb by the VC.
There might be a hose out of place, but can't see exactly...

ElliottB · 08-12-09, 09:25 AM

Jim,

This is how my lower ports on my carb are routed. Lower left port routed to 1* advance on distributor diaphragm. Center angled port goes to the HAC. The top left and bottom right are both capped.

FJ40Jim · 08-12-09, 09:28 AM

OK, that's perfect hose routing.

The other 2 should be capped off separately, because one port (upper) is manifold vacuum, and the other port (lower) is ported, so at idle, the upper port is sucking free air from the ported port. It's a vacuum leak, but a small one.

Idea: Stick a BB in the loop of hose to separate the 2 fittings.

ElliottB · 08-12-09, 09:19 PM

I actually drove it around the neighborhood tonight! First time it's left the garage since January. Woot! Anyway, I fixed all of the leaks that made themselves obvious and cleaned up the vacuum hoses a little bit. Here are shots of the FINISHED motor.

And with the air cleaner on and everything capped.

Now I just have to figure out why the power steering isn't working!

Spike Strip · 08-12-09, 11:05 PM

Looks great!

But where's the fan shroud ? You need it or you'll overheat.

ElliottB · 08-20-09, 11:50 PM

Everything is all mounted up and working great. It actually drives decently down the road. However... my heater core is leaking like a sieve!

I guess I'll spend most of saturday tracking that down. It should be a bit easier this go around though.

ElliottB · 09-03-09, 10:22 AM

3-day weekend coming up. Plans:

-Swap out heater core (again)
-Wire in CD player
-Recover/mount new door panels
-Mount rear cargo panels

Then, the motor and interior phases will be COMPLETELY done. If I have time, I'll start tearing the axles, suspension, and steering out. I've been so busy with work, we'll see what actually happens though.

Spike Strip · 09-03-09, 10:27 AM

Say, Elliott, what did you use on your engine bay, particularly the wheel wheels, to get 'em so clean?

ElliottB · 09-03-09, 10:30 AM

Degreaser, scotch-brite, and new paint.

ElliottB · 09-05-09, 05:51 PM

I'm tearing into the suspension and axles this week. I picked up some springs and shocks from a guy that had been sitting on his 60 for awhile. Only have a couple thousand miles on everything but had been sitting for awhile. Good excuse for a rebuild.

Pulled the leaves apart, wire wheeled, painted, and jig-a-loo'd (graphite spray to keep springs from squeaking) them before reassembly.

Coupled with new bushings, this might as well be a brand new set.

Going to do the same to these bad boys tomorrow. For now, it's time to hit the books!

Oh yeah, and gave the shocks some love too.

Off to the library!

wengejor · 09-06-09, 04:13 PM

Cool build up. Looks real clean in that engine bay. Is your heater core still leaking?

ElliottB · 09-06-09, 07:38 PM

Quote:

Originally Posted by wengejor

Cool build up. Looks real clean in that engine bay. Is your heater core still leaking?

Thanks! Yeah, it's still leaking. I've got another one to replace it with. For now, the hoses that go into the core are bypassed so that it doesn't flood my fresh interior.

ProwlerDriver · 09-07-09, 09:09 PM

what paint did you use for the leafs? Im giving the fjs underside some attention here soon.

ElliottB · 09-07-09, 09:28 PM

Good ol' fashion rustoleum.

I would've gotten more done this weekend but got guilt tripped into doing a TJ clutch job on a friends jeep.

ElliottB · 09-13-09, 01:29 PM

So I'm starting on the axles, suspension, frame, etc... Whilst removing the front bumper I broke off 2 bolts and had to drill out 2 others with a 15/16" bit. Major PITA but I guess that's to be expected from a truck thats older than I am.

Here are all of the suspension goodies that got cleaned up and are ready for installation. They look a lot better now.

So I'm rebuilding the knuckles and replacing the wheel bearings. I also am upgrading to 4-runner calipers and rotors in the front. I may end up using a T-100 master cylinder depending on how the brakes feel with the new schwag.

I feel like this shock probably wasn't doing much in terms of dampening... anything.

Here's an idea of how disgusting the front half of the truck is from many years of leaking knuckles, power steering, oil, mud, dirt.... and whatever else a farm truck runs through.

And after wrenching for 30 mins, cleaning for an hour, wrenching for 30 mins, cleaning for an hour, etc.... here is where I am. I'm going to pull the birf tomorrow and repack/rebuild/clean everything.

Here are all of the gaskets and bearings needed for a knuckle rebuild.

ElliottB · 09-17-09, 05:21 PM

After complete teardown, the knuckle had a small burn mark area. Hope this is ok.

I've been getting the frame and axles cleaned up. There has been almost NO rust on any of these parts as the oil and PS fluid leaks have kept it in an oily cacoon for the last several years. I've gotten the drivers side axle cleaned up and ready for reassembly. If my brake parts come in I will probably tear into the passenger side axle this weekend.

ElliottB · 09-19-09, 04:11 PM

So I didn't get ANYTHING done today like I had planned. I have been running around, acquiring parts, at the gym, etc, etc and now I've been informed that there is an Oktoberfest festival happening downtown tonight. So, yeah, the truck can wait.

I did pick up a set of wheels and tires. (4) 17" Nissan Titan wheels wrapped with 285/70/17 BFG All Terrains. This is about a 33x11.50 so that is perfect for this truck. The wheels will be getting a little love from the machine shop as the hub does not pass through the center cap hole. I also have some 1.5" spacers to set them correctly under the wheel well.

And all of my brake parts are here. Calipers and rotors are from a 95 4Runner and should fit with a little trimming of the backing plate. I may or may not need to upgrade to a larger volume master cylinder. We'll see how it feels.

pint · 09-19-09, 07:55 PM

Can't wait to see how this turns out. Would love to take a ride once it's fully "done." May sell my 100 for a high mpg DD and follow a similar path to what you have for an expedition vehicle....

maat · 09-20-09, 06:23 AM

love your work mate, keep the pictures coming!

GLTHFJ60 · 09-20-09, 11:16 AM

My driver's side frame looks pretty much like that, but I don't have a pretty frame underneath

Dave Jenkins · 09-26-09, 07:34 AM

Impressive work E! Thanks for the tip on Quadratec.
Looks like they also have good pricing on lighting, winches and such. Got any more pics of your console installed...does it protrude much into the rear passenger floorboard?
Would like to see your rig and drink a beer the next time I am in Denver on biz. I'm a big fan of the chili beer down at Wynkoop's.
Keep up the good work bro
