[Mace]

What are the thread sizes and pitches for the FJ60 PS box?

Looks like it might be 16mm x 1.5 on the return and 17 (or 18mm)x 1.5 on the press side...

[Downey]

The pressure side should be 16mm-1.5 inverted flare. We have those fittings. The return side is the problem. I have heard of cases where it was the same 16mm, or a smaller 15mm where no aftermarket fitting is available????????

[Mace]

Nope, the return is 16mm (I got one of your fittings)
the inlet is larger..

It is possible that the one you sent me is a 14mm tho, I have not checked..
I'll be working on that tonight..

[Downey]

Gosh Mace, let me know, we have all of the above. I've never heard of the LC box having larger than 16mm. I always assumed the smaller was 14mm, but I now know that is not 100 percent correct. Evidently the smaller is 15mm or something really bastard??????

[Front Range 4x4]

Originally Posted by Mace

Nope, the return is 16mm (I got one of your fittings)
the inlet is larger..

It is possible that the one you sent me is a 14mm tho, I have not checked..
I'll be working on that tonight..

Please do post your findings, I'll be needing the right fittings soon.

[Mace]

Originally Posted by Downey

Gosh Mace, let me know, we have all of the above. I've never heard of the LC box having larger than 16mm. I always assumed the smaller was 14mm, but I now know that is not 100 percent correct. Evidently the smaller is 15mm or something really bastard??????

No worries, I thought we were right too

The adapter you sent me fit the smaller port.

The bigun just needs verification
And, the two 60 boses I have (early and later models) both have the same fittings..
So I think (key word) this will be the end of which sizes the fittings are.

[Mace]

okay,
The smaller fitting is indeed 16x1.5 (side note, 5/8 x 18 is close enough to actually thread into the box and seal)

I measured the larger fitting's ID and compared it to the smaller fitting's ID and they are different by almost exactly .04" ~ 1mm

Looks like the press line is 17mm..

Also, my 18x1.5mm tap will not fit in the box..

[Mace]

Low Pressure Port - 16 x 1.5 MM Inverted Flare to #6 JIC Male adapter, Toyota - 'PSC Motorsports' #PSC-SF06 or 'Summit Racing' #EAR-9919DFJERL
High Pressure Port - 17 x 1.5 MM Inverted Flare to #6 JIC Male adapter, Toyota - 'PSC Motorsports' #PSC-SF07


Or
LEE MFG. CO in Sun Valley CA
818-768-0371
has
16mm x 1.5 inverted flare to #6jic for the return side and
17mm x 1.5 inverted flare to #6jic for the press side for
$8 each

[Dave-T]

I wanted to get some screw in plugs for the steering box cause I'm going to run without power steering for a while. Have you heard of such a thing or know a better way to cap it off?

[Mace]

the listed ports above with -6jic/AN caps on them would suffice. But lord, why would you do that?

[Tinker]

He's training for the America's Cup.

Sorry, I couldn't help myself. I think it would be better to loop the in & out together so the pressure/vacuum doesn't cause a problem.

[Mace]

Just ordered 2 of the 17mm units from Lee Mfg.

I'll report back when I have them in my hand..

[Mace]

Alright, got the adapters in my hand.

Fit perfectly..

Glory days...

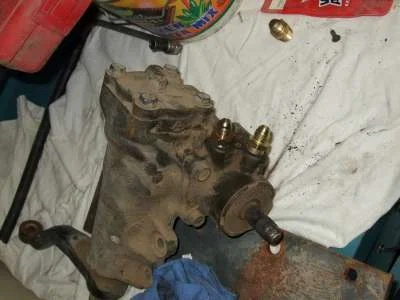

Btw, this worked on both older bolt pattern and newer pattern steering boxes. The pic is of the newer box but I checked my older pattern box as well.

[NocalFJ60]

Guess that is why I stripped the threads when using a 16mm tap on one of my boxes. These thread sizes for both early and later boxes? I guess the later ones were the same on the 62.

So what are the adapters for?

[kevinmrowland]

They look like they adapt to -AN fittings? Will those lines handle the PS pressure?
Very valuable bit of research there, nice work.

[Mace]

the adapters are to -6AN (JIC). It makes it VERY easy to run a russel (or similar) hose for your high press PS line. the pressures are fine. It is a much more common thing that any hose place can duplicate for you. Or, you keep a spare length of hose handy for trail repairs..

This is how I ran my 40 for years and now with it full hydro I still run it that way..

It also lets you run a Sag PS pump to a stock box easily..


The two bolt patterns go from FJ60's to FJ80's IIRC. I would like some verification on the 80 series box tho.

[kevinmrowland]

Yup, the 80 series fitting is exactly the same as the 60, gear box anyway, the pump takes a banjo style.
I have an 80 hose on my 60, wish I had thought of the adapters, that would have saved me a few headaches!

[cruiser88]

Found another source for fittings and lines for 60

http://www.car-stuff.com/store/index...259+2922&Nty=1

[NocalFJ60]

Yeah the earlier (81-84?) gearboxes on 60's have all four mounting holes in a rectangular pattern. The later boxes from around 84 on, the top and bottom mounting holes are offset side to side when looking at the box as mounted on the frame.

[PabloCruise]

Thanks for posting this Mace!

I am off to the hose shop to get some custom hose made for my 60 PS conversion in the 40

[Front Range 4x4]

Originally Posted by PabloCruise

Thanks for posting this Mace!

I am off to the hose shop to get some custom hose made for my 60 PS conversion in the 40

[hijack]TJ, 60 PS and pump?[/hijack]

[PabloCruise]

Originally Posted by red cruiser

[hijack]TJ, 60 PS and pump?[/hijack]

Yes sir - 60 series pump and box on the 40.

Even with the 16 x 1.5 mm knowledge, I was SOL at the hose place.

So I will head to Summit and order up adapters, then make new hose.

I am a little confused by Mace's post; I thought JIC was a metric-type standard and AN was a standard size?

[Mace]

JIC is steel AN = Aluminum..

They are the exact same thread pitch/style.

SAE is different.

-6an/jic is the same

Order the adapters from lee and order the hose from a local place. If your hose shop cannot make a -6jic hydraulic hose they are seriously worthless...

Or get the resuseable ends from summit

[PabloCruise]

Thanks Mace.

Yes, the hose place said no prob once I got the adapters to 6 JIC male

[Front Range 4x4]

This is still Greek to me

I'll be using the FJ62 PS box and GM pump, can someone educate me on exactly what fittings I'll be needing?

TIA!

[Mace]

pump side is 5/8 x 18 inverted flare to -6jic
Hose -6 jic to your length
hi press box side is 16mm x 1.5 inverted flare to -6 jic.

Return line should be easy with the stock lines..

[PabloCruise]

Originally Posted by Mace

pump side is 5/8 x 18 inverted flare to -6jic
Hose -6 jic to your length
hi press box side is 16mm x 1.5 inverted flare to -6 jic.

Return line should be easy with the stock lines..

I thought the high pressure hose had the same fittings at both ends - pump & box?

[Front Range 4x4]

Originally Posted by Mace

pump side is 5/8 x 18 inverted flare to -6jic
Hose -6 jic to your length
hi press box side is 16mm x 1.5 inverted flare to -6 jic.

Return line should be easy with the stock lines..

Thanks Mace!

[Mace]

Originally Posted by PabloCruise

I thought the high pressure hose had the same fittings at both ends - pump & box?

GM pump to 60 box

[PabloCruise]

Originally Posted by Mace

GM pump to 60 box

Sum bitch - I guess I could slow down and read a little bit, eh?

Mr. Mace, do you have any guidance for me on my PS pump rebuild issue here: http://forum.ih8mud.com/60-series-wagons/189758-ps-pump-rebuild-question-flow-control-valve.html
