Under Seat Storage

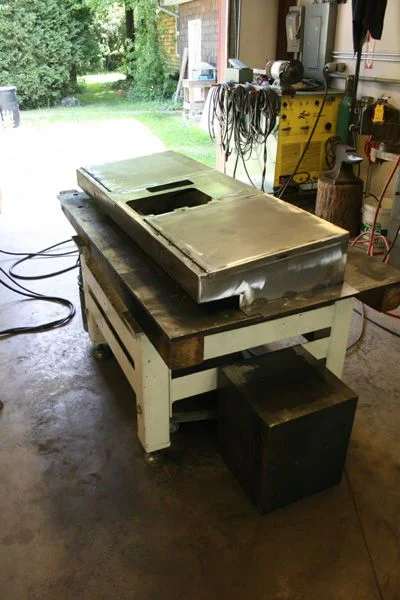

This is what happens when you have your evenings free, access to a welder and exhibit OCD tendencies in regards to rust and storage.

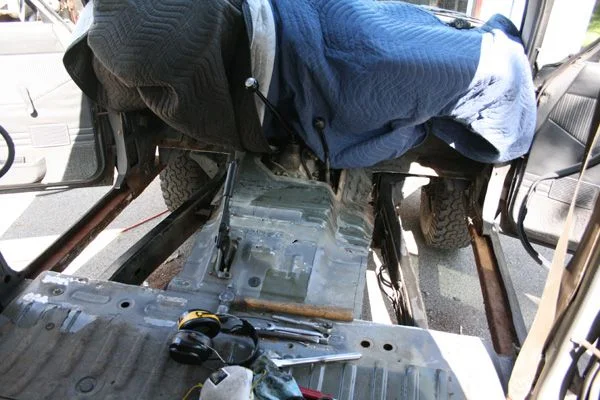

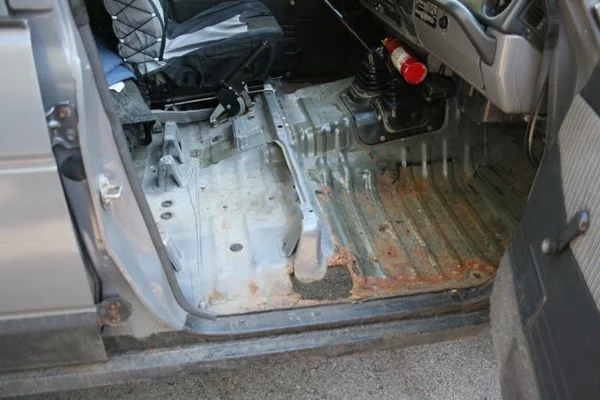

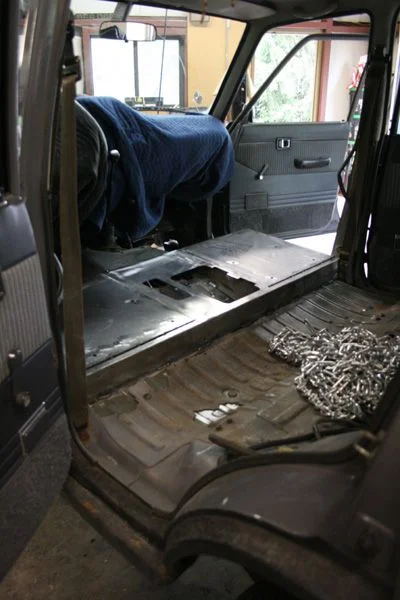

It all started with big rusty holes hiding under my carpet and a hatred of the dirt collecting-wasted space under my seats.
Attached Images



__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote



Old 08-17-07, 03:54 PM   #2 (permalink)
Forum Lifer


euclid's Avatar

Join Date: May 2002
Location: Jackson, MS
TLCA# 13014
Posts: 3,696
Fred Flintstone Power!

Keepem comin you cruiser savant!

FAQ'd cause I see what's coming.

__________________
Greg Thompson
89 FJ62, Unstock.
euclid is offline   Reply With Quote
Old 08-17-07, 03:54 PM   #3 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432

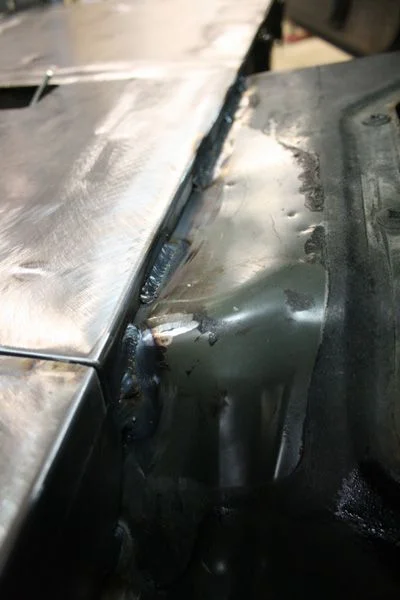

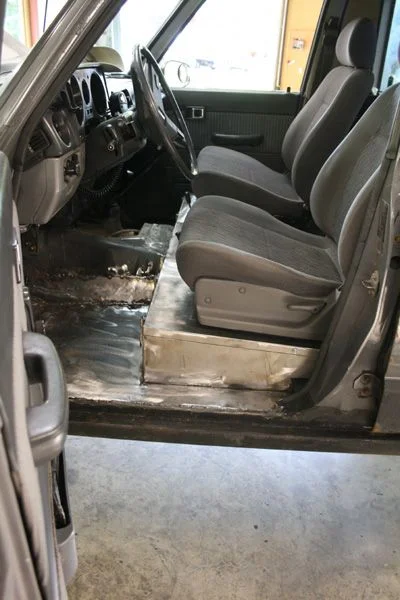

Instead of being practical and cutting out the rust, I cut the whole floor out.
Attached Images


__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-17-07, 03:57 PM   #4 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432

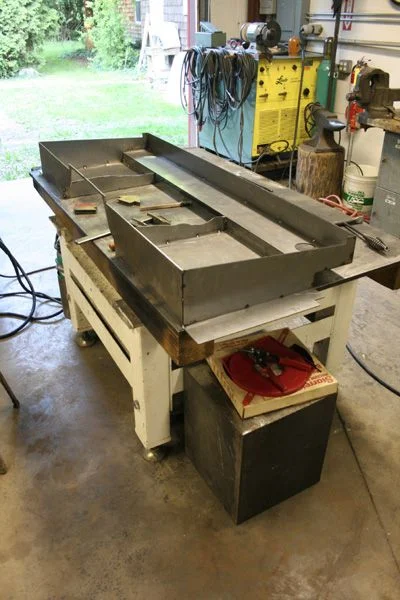

I welded a box together and stitch welded it into the big hole in my floor.
Attached Images


__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-17-07, 04:00 PM   #5 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432

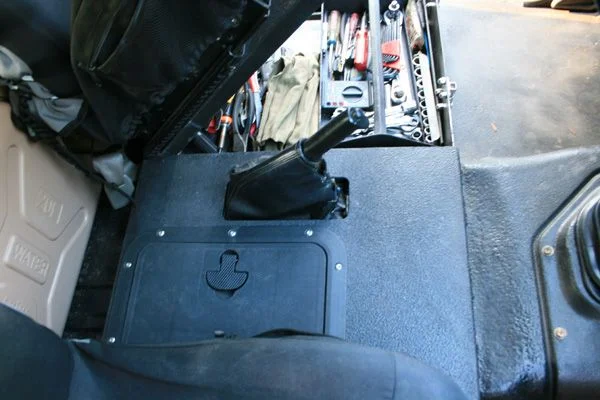

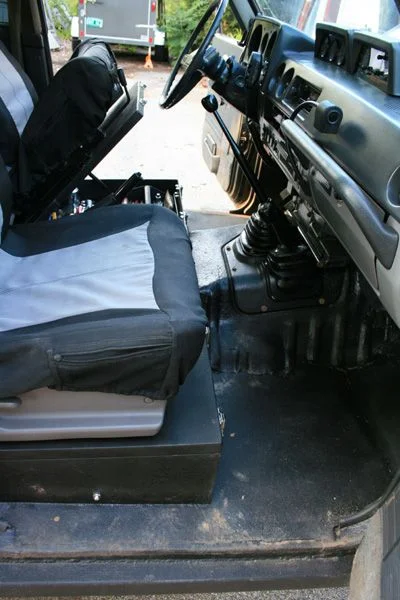

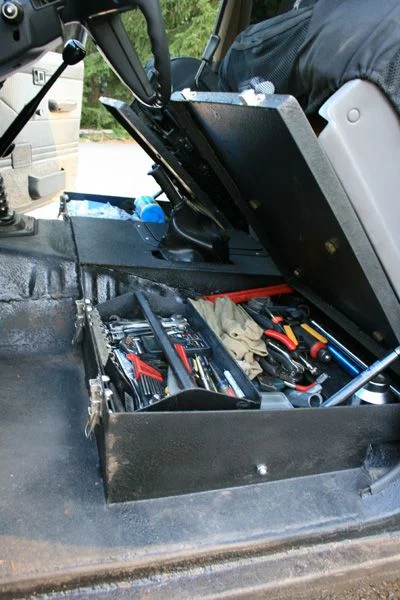

Here it is nice and dirty after 7000 test miles, worked great. Both the rear drawers can now be used solely for camping and cooking stuff and the best part is that when not on a long trip the cargo boxes can be removed and all the tools, supplies and emergency gear can stay in the truck.

I am quite happy with the amount of room in there, all my tools and recovery gear fit quite nicely and the wieght of those heavy items is about as low and forward as you can get. I used a marine hatch for access to the "center console" Without an actual console there it makes a great place for the dog to sit and provides a pass through to the back, very nice since we sleep back there.
Still need to make a new shift boot cover.

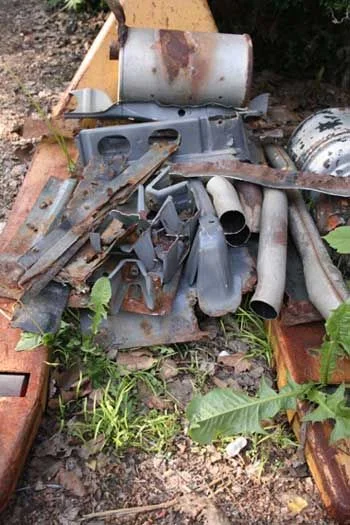

And lastly, the pile of rust that was my old floor.
Attached Images


__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.

Last edited by kevinmrowland; 08-17-07 at 04:09 PM.
kevinmrowland is offline   Reply With Quote
Old 08-17-07, 04:13 PM   #6 (permalink)
Forum Lifer


brokenparts's Avatar

Join Date: Apr 2006
Location: Hillsboro, OR
TLCA# 16127
Posts: 2,886
holy shat batman... that's a great idea! Looks friggin good too!

__________________
I am offended by reality all the time.

ROTW: http://forum.ih8mud.com/60-series-wagons/198064-rotw-brokenparts-fj-60-a.html
brokenparts is offline   Reply With Quote
Old 08-17-07, 04:29 PM   #7 (permalink)
Site Addict


Dirtgypsy's Avatar

Join Date: May 2006
Location: Newberg, Oregon
TLCA# 17541
Posts: 1,435
looks great. are you concerned with those little latches holding all your gear, seats and yourself in one spot if you ever roll it?

clint

__________________
It's a Jeep thing I didn't understand. So I bought an FJ60 and now I get it.

Just bump it.

SOA in progress!

ROTW: http://forum.ih8mud.com/60-series-wa...lver-60-a.html
Dirtgypsy is offline   Reply With Quote
Old 08-17-07, 04:32 PM   #8 (permalink)
Forum Lifer


brokenparts's Avatar

Join Date: Apr 2006
Location: Hillsboro, OR
TLCA# 16127
Posts: 2,886
Quote:
Originally Posted by Dirtgypsy View Post
looks great. are you concerned with those little latches holding all your gear, seats and yourself in one spot if you ever roll it?

clint
oh geez... mr. technical.

__________________
I am offended by reality all the time.

ROTW: http://forum.ih8mud.com/60-series-wagons/198064-rotw-brokenparts-fj-60-a.html
brokenparts is offline   Reply With Quote
Old 08-17-07, 04:41 PM   #9 (permalink)
250+ Club


OlympiaFJ60's Avatar

Join Date: Apr 2002
Location: Olympia, WA
TLCA# 12028/18228
Posts: 926
Very nice. Do you have plans/drawings for that or did you just measure cut and weld your way through.

That's freakn' awesome.
OlympiaFJ60 is offline   Reply With Quote
Old 08-17-07, 04:41 PM   #10 (permalink)
250+ Club


fowldarr's Avatar

Join Date: Feb 2006
Location: SE Idaho
Posts: 825
That's awesome, between those and the rear quarter/tailgate storage that we've seen the last couple of days, you could really load down your rig with everything you could possibly want.

__________________
Damn the man, save the Empire! 84 FJ-60, nothing special....yet.
fowldarr is offline   Reply With Quote
Old 08-17-07, 05:12 PM   #11 (permalink)
250+ Club


flybynight's Avatar

Join Date: Jul 2007
Location: Alameda, CA
Posts: 340
With no stiffening ridges in the floor, does it flex under your feat?
Or do the boxes provide enough stiffening?

BTW, a cam lock aka "coffin lock" would be a good solution for those who are worried about boxes opening at an inopportune time.

Very nice idea and build!

__________________
87 FJ60, rust free, 186K, 3rd owner, 31x10.5 BFGAT, Red Top, 4runner calipers
1964 Dodge D100 Sweptline CSS
88 FJ62.........SOLD
(\__/)
(='.'=)

(")_(")
flybynight is offline   Reply With Quote
Old 08-17-07, 05:14 PM   #12 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432
Quote:
Originally Posted by Dirtgypsy View Post
looks great. are you concerned with those little latches holding all your gear, seats and yourself in one spot if you ever roll it?

clint
Very valid concern, and yes I was, but those little latches are $40 a piece, stainless steel, race application, load-rated, dead bolt draw latches. When they are closed a spring loaded dead bolt is pushed between the two halves, locking them together in all directions. Not only that but there is a safety catch that must be pressed in from the side for the latch to open. I actually think the box as a whole, including the latches, is stronger that the little OE pedestals. But all that is irrelevant since it is certainly safer than the rusted out seat mounts that were flapping in the breeze.
I feel safe driving it.


Quote:
Originally Posted by OlympiaFJ60
Very nice. Do you have plans/drawings for that or did you just measure cut and weld your way through.
I have an exploded CAD drawing of all the parts that I had laser cut, not really a plan, but it seemed to work.

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-17-07, 05:17 PM   #13 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432
Quote:
Originally Posted by flybynight View Post
With no stiffening ridges in the floor, does it flex under your feat?
Or do the boxes provide enough stiffening?
Not a bit, I rolled the edges of the new floor pans and there is a slight bend about three inches in to provide a slope down to the sill, the front of the box acts as a rib and the whole thing is made from 11ga, I didn't want it to rust out again any time soon.

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-17-07, 06:01 PM   #14 (permalink)
Forum Lifer


NocalFJ60's Avatar

Join Date: Aug 2004
Location: San Francisco Bay Area
Posts: 3,421
No ejection seats?

You got some skills. Looks great. Thanks for sharing. Way to be creative with that rust.

__________________


1982 FJ60 SUA OME w/AAL's, 34's, H55F, 4.7 toybox
Northern California
TLCA/PMC Member

"He who throws mud only loses ground."
NocalFJ60 is offline   Reply With Quote
Old 08-17-07, 08:33 PM   #15 (permalink)
250+ Club


mtb_rider's Avatar

Join Date: Feb 2007
Location: Wilsonville, OR
Posts: 721
That's sweet. Definately a first. Expect followers!

__________________
"Where is it we're going again? And why are we in this handbasket?"


'88 FJ62. Little over 100k. 2nd owner. No rust. K&N, custom dual battery system, Optima Blue Tops, 3" Lift. 33x12.5 Firestone Destination MT's on Centerline two piece alloys. Pro Comp 9000's.

My myspace.
mtb_rider is offline   Reply With Quote
Old 08-17-07, 09:54 PM   #16 (permalink)
Doberdog chauffeur


sirenmoses's Avatar

Join Date: Dec 2006
Location: Under a Ponderosa Pine, NM
Posts: 2,058
Garage
Wow!! Even with rust I'd've been afeared to cut up that much of my truck. Bowing to your ingenuity.

Hadn't thought about that location for fire extinguisher: do you carry a larger one in another location? I've worked a couple car fires that started as smoke coming from under the dash: not sure if that happened when I was driving I'd think to reach TOWARD the problem for the solution. Just my 2c.

What lives in the marine hatch, a gub? I know my dog would love the perch!

IIRC you have the rear seat removed, yes, so no issue tilting the seats back into where the rear seat would be flipped forward?

Amazing skills, and love the flintstone photo. Maybe someone should make a shirt from that...

Can't wait to see what you come up with next.

__________________
My wheels are older than your highschooler:

Sept 84 tan fj60, 202k -- 2.5" BDS, 31's w/ al rims, Daylighters, Yakima w/sliders, hitch w/back-up lights.
to be installed: Rowlands panels, CB, grab handle, quick-stow dog barrier

home-built trailer (not by me) -- Kamp K9 (work in progress)

Oct 84 tan fj60, 265k -- saggin wagon (My lil sis's, once the BIL pays me )

85 Honda Accord, 120k -- DD

91 Kawasaki Concours, 50k -- 2 wheeld fun
sirenmoses is offline   Reply With Quote
Old 08-17-07, 10:18 PM   #17 (permalink)
250+ Club


overhanger's Avatar

Join Date: Jun 2004
TLCA# 10222
Posts: 759
Oh Yeah?

Quote:
Originally Posted by sirenmoses View Post
Wow!! Even with rust I'd've been afeared to cut up that much of my truck. Bowing to your ingenuity.
<snip>
Amazing skills, and love the flintstone photo. Maybe someone should make a shirt from that...

Can't wait to see what you come up with next.
You should see his Pappy's truck! Heard of the "Trickle Down" theory?
Both the Rowland boys got skills!

__________________
Steve Crase TLCA 10222
1988 FJ62 - Bart
1997 FZJ80 40th Anniversary #3727 - Sandy
overhanger is offline   Reply With Quote
Old 08-18-07, 07:23 AM   #18 (permalink)
Beagles Rule!


D'Animal's Avatar

Join Date: Mar 2006
Location: Central California
TLCA# 17104
Posts: 15,943
Garage
Looks really nice.

__________________
Cruiser Dan at American Toyota Phone is 1-800-432-6668 ext. 8 (I am not cruiser Dan)


Land Cruiser Garage Sale Items <- Link

Get Your Marlin ToyBoxes Now!

Beagle Chariot
1962 FJ40
1964 FJ 40
1968 FJ 40 <- For Sale
FJ 40.5 Build 4BT Cummins Conversion
1976 FJ 40
SPEN Trailer
D'Animal is online now   Reply With Quote
Old 08-18-07, 07:59 AM   #19 (permalink)
KOOL AAROW


kling-on's Avatar

Join Date: Apr 2003
Location: Pimpin part in SanAntonio TX
TLCA# 15374
Posts: 2,349
thats so COOL

__________________
82 FJ60 5.3, 4l60E, OME Heavy, 33 KM2's 410's, ARB bull & side bars ...SOA in the works

85 FJ60 Trail beater SM 420 crawler box lockers 456, 4D's bobed & choped with a Metal Tech cage



GIT-R-DONE!!!!

TLCA #15374

low riders want SWITCHES... 4 wheelers want SHIFTERS

www.jkcustoms.com
kling-on is offline   Reply With Quote
Old 08-18-07, 08:57 AM   #20 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432
Quote:
Originally Posted by sirenmoses View Post
Hadn't thought about that location for fire extinguisher: do you carry a larger one in another location? I've worked a couple car fires that started as smoke coming from under the dash: not sure if that happened when I was driving I'd think to reach TOWARD the problem for the solution. Just my 2c.

What lives in the marine hatch, a gub? I know my dog would love the perch!

IIRC you have the rear seat removed, yes, so no issue tilting the seats back into where the rear seat would be flipped forward?

I haven't settled on fire extinguisher locations yet, I have one up front and one in the back but I keep moving them around trying to find a place I like.

The hatch has all the usual center console stuff: paper, pens, little plastic tackle box of small stuff, bag of change............ There is about the same amount of space as the OE console, just flatter.

And the seat is removed, but the cargo boxes fill the same space. When the seat is in you just flip the latches and the gas shocks take over. With the seat flipped down or the cargo boxes in, you need to flip the seat back forward, flip the latches and push on the seat slide handle. Then the gas shocks take over, pushing the lid up and the seat forward at the same time.
Takes a minute to write but only a few seconds to do. I think it is a reasonable compromise for the amount of storage it afforded.

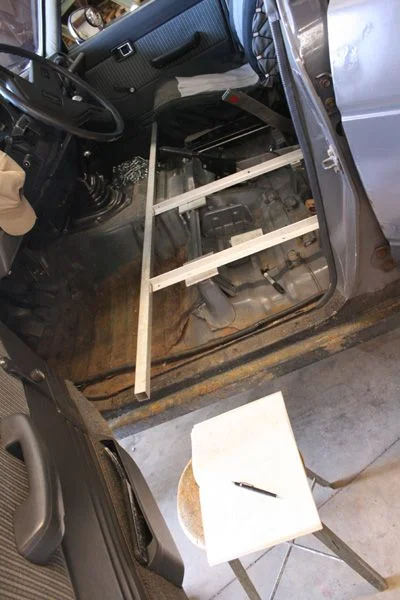

All my tools fit very easily under the drivers seat with room to spare and the passenger seat hides a pair of V-bar tire chains, snatch block, shackle, tree strap, full first aid kit, armorall wipes, window wipes, hand wipes, bag of survival essentials and probably a few other things I am forgetting. And on top of all that, the latches are padlockable so if I want to leave the computer or camera in the the car I can lock them in there and slow down thieves a bit more.
Attached Images


__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-19-07, 01:00 AM   #21 (permalink)
Forum Regular


FJota's Avatar

Join Date: Aug 2005
Posts: 188
Nice fab work. Very clean look and good use of space.

__________________
88 HJ61
Talk is cheap because supply exceeds demand.
FJota is offline   Reply With Quote
Old 08-19-07, 03:40 AM   #22 (permalink)
250+ Club


Join Date: Oct 2005
Location: land of oz
Posts: 308
wow that is awsome,great work top idea,ive gotta say though i couldnt stand being on a bad dirt road for a cuppla days with all them tools rattlin around,youve got a frigin workshop under them seats!
cheers goldchaser
goldchaser is offline   Reply With Quote
Old 08-19-07, 03:50 AM   #23 (permalink)
250+ Club


Butt Ugly Chuck's Avatar

Join Date: Jan 2007
Location: In a 60 DOWN BY THE RIVER!!
TLCA# use'ta
Posts: 987
Smart use of space. Makes me realy want a welder to try my hand at fabbing up something similar!

__________________
Arcata, CA
7/85 FJ60 277K

For sale - 2f carb
Butt Ugly Chuck is online now   Reply With Quote
Old 08-19-07, 07:33 AM   #24 (permalink)
Forum Lifer


Tinker's Avatar

Join Date: Apr 2004
Location: Larkspur, CO
Posts: 2,566
So do you have a shear & a brake @ your house?

Damn fine fab work & a great idea. Too bad my floors are solid.

__________________
"His mudder was a mudder".
Tinker is offline   Reply With Quote
Old 08-19-07, 11:40 AM   #25 (permalink)
Site Addict


chitown40's Avatar

Join Date: Feb 2004
Location: Windy City
TLCA# 14424
Posts: 1,519
Very nice Kevin. Way to think out of the box on this one.

__________________
2002 4Runner Sport Edition - Stock
1997 FZJ80 -- SOLD
1986 FJ60 -- SOLD
1977 FJ40 -- SOLD
TLCA #14424
chitown40 is offline   Reply With Quote
Old 08-19-07, 07:08 PM   #26 (permalink)
Supporting Vendor


kevinmrowland's Avatar

Join Date: Sep 2005
Location: Scottsville, NY
TLCA# 14896
Posts: 1,432
I originally thought I would need to line the inside of the boxes with foam to hide the rattle of tools, to my surprise, I don't hear a thing. I could always hear the sockets jingling when they lived in the rear cargo drawer, but not under the seat, even on washboard or gravel roads.

I don't have a shear or a break big enough to bend 11ga, that would be one hell of a break. I just welded all those pieces together.

__________________
1985HZJ60 ROTW Questions? Check out my Vendor Forum.
kevinmrowland is offline   Reply With Quote
Old 08-20-07, 10:04 AM   #27 (permalink)
Former Lifer


beaufort-fj60's Avatar

Join Date: Feb 2005
TLCA# 14545
Posts: 3,668
is that your welder in post #3!?... looks like you could weld a skyscraper with that thing.

__________________
Limit all US politicians to two terms; One in office, One in prison
beaufort-fj60 is offline   Reply With Quote
Old 08-20-07, 10:17 AM   #28 (permalink)
250+ Club


Join Date: Apr 2003
Location: So Cal
Posts: 484
Nice use of space..creative!

__________________
FJ60 @ 145k, Conferr roof rack, brush guard, PIAA driving lights, rear sway bar, hella horn, Beedon sliders, OME Dakar suspension, U bolt flip kit, Mean Green Alternator, red top Optima, KMR's Tailgate Hatch, inclinometer, 50 series Flowmaster,
87CRUSR is offline   Reply With Quote
Old 08-20-07, 10:48 AM   #29 (permalink)
Forum Regular


Join Date: Sep 2006
Location: Hillsboro, Or
Posts: 156
Wow, great idea and good balls for jumping in like that for something so major. Kickass!

__________________
DCI - PNW
My Truck 83' FJ60, OME Shocks, MAF Safari Springs, 33" BFG Mud Terrains, American Racing Mojave wheels, SOR roof rack, SolidRockOffroad swing out bumper and some thangs...

My Alaska Trip Aug 31st-Oct1st 07': http://forum.ih8mud.com/expedition-builds/171727-my-prep-cruise-30-days-alaskan-bush.html
gen2600 is offline   Reply With Quote
Old 11-08-07, 03:38 AM   #30 (permalink)
250+ Club


boerboel313's Avatar

Join Date: Sep 2004
Location: San Clemente, CA
TLCA# 14563
Posts: 600
That is BAD AZZ. Nice job. How Much?

__________________
84' tan, fj60, "TOMBI"
CURRENLY: Close Protection/PSD Helmand Afghanistan,
NORMALY: SOCAL
Chris/Andrea Manella TLCA# 14563
84,000 miles,Desmoged,OME HD 2.5,Dual Arm 4x4 Labs Rear with 3 can carrier,SROR Sliders, HD MAF Rear Sway Bar, Snorkle,H55H,32x11.5x15,Mean Green,Tuffy Box
boerboel313 is offline   Reply With Quote
Reply

Bookmarks


Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


LinkBacks (?)
LinkBack to this Thread: http://forum.ih8mud.com/60-series-wagons/172397-under-seat-storage.html
Posted By For Type Date
FJ60 and FJ62 FAQ ********* start here and come back often ********* - IH8MUD Forums This thread Refback 03-25-09 12:46 AM
Floor This thread Refback 08-26-08 10:34 AM
Project Galleries This thread Refback 07-31-08 10:56 PM
Project Galleries This thread Refback 07-07-08 03:29 AM
Floor This thread Refback 06-24-08 12:30 PM







All times are GMT -7. The time now is 07:22 AM.


vBulletin® v3.8.4 ©2000 - 2009, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.3.1
Clubs, Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
©2000-2009 by IH8MUD Inc. - ALL RIGHTS RESERVED


Thanks to all those who have contributed!
One of the largest message boards on the web !
