2F serial number info...

Poser · 03-03-06, 10:25 PM

If you have an original 2F in your 40 or 55, please post up your engine serial number, and the month/year of your truck build and the vin if you would. I am trying to complie 2F year data.

I will be posting this up in the 60 section as well.

Thank you for your help!

-Steve

Mace · 03-03-06, 10:27 PM

12-78 2F 333422
early 85 2F 860452

Degnol · 03-03-06, 10:29 PM

Here's min, Steve. According to Jim C it was cast on 12-18 of '76. If'n you want the serial # you can have that, too. Here it is: 2F 138687

Ed

Uh Oh, I fawked up....not an orginal motor. Well, original, but not to my truck.
Sorry

Poser · 03-03-06, 10:34 PM

The engine serial number is stamped into the block on a little flat area right by the starter motor....

AATLAS1X · 03-03-06, 11:24 PM

2F 341621

1/79

Blue60 · 03-04-06, 07:33 AM

2/79 FJ40 USA

Engine #2F347599

Frame #FJ40307805

Pin_Head · 03-04-06, 10:48 AM

My 2F is a '79 and up, but it has no serial number on the block. It hasn't been ground off, like a midnight auto parts job. Never been stamped with a serial. What's up with that? Replacement engine?

Poser · 03-06-06, 05:49 PM

Anyone else?

Robert LaDuke · 03-06-06, 06:13 PM

12/78 FJ40

frame # FJ40- 297459

engine# 2F 337439

subzali · 03-06-06, 09:01 PM

October '76 FJ40
2F119577 Engine Serial Number
FJ40233589 VIN, matches frame number

I would be surprised if the engine's been switched, but I don't know for certain.

FJ40Jim · 03-06-06, 09:11 PM

Quote:

Originally Posted by Pin_Head

My 2F is a '79 and up, but it has no serial number on the block. It hasn't been ground off, like a midnight auto parts job. Never been stamped with a serial. What's up with that? Replacement engine?

Yes, a service replacement block.
Lucky dog, you got a brand new engine from Toyota somewhere along the line.

1phrogguy · 03-07-06, 08:44 AM

2f 217903

Nov 77

Fj40 262599

TEQ · 03-07-06, 04:44 PM

'78 built in November
Engine: 2F-323865
VIN: FJ40293607

Poser · 03-07-06, 04:47 PM

THANK YOU FOLKS!!!

Anyone else?

FJ40Jim · 03-07-06, 06:06 PM

Poser,

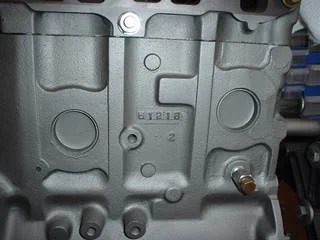

The engine date is cast on the driver's side of the block. See Degnol's post for a pic and de-coding. With Toyota's JIT production, the engine cast date (and carb date, t-case date, and R&P date...) never varies by more than a few days from vehicle build date.

The date is also cast on top of the cylinder head, easier to see on a fully dressed engine. But heads can be swapped from engine to engine, so...

Dusty 66 · 03-07-06, 08:09 PM

Engine 2f 323005

Prod. Date 10/78

Frame # Fj55~ 98156

casey · 03-09-06, 05:12 PM

I don't know the history of my 40 but here's what I've got.

Jan 78
267747

2F 236731

GetsUThere · 03-09-06, 08:48 PM

12/76 Date on the vin plate

Block# 2F 138579
Frame # 239609

I don't think the engine has been swapped, but can't be 100% sure.

Kenon698 · 03-12-06, 10:15 AM

Here's mine.

'79 FJ 40 2/79
Vin FJ40301199
Eng. 2F 350781

Spanky1 · 03-13-06, 03:31 PM

OK, somebody out there has to have something close to this. I'm told it's a 1981, 2F 528558. Does that look about right, I couldn't find anything close in the post or on the SOR site.

relaing · 03-14-06, 01:35 PM

Original owner-

'78 FJ40 Mfg'd 1/78
Frame 0267002
Engine 2F 0234293

Rick

yoda'stoy · 03-15-06, 05:38 PM

FJ40 Vin # 220802 March 1976

Engine Serial # 2F080401

xumFJ40 · 03-22-06, 01:51 AM

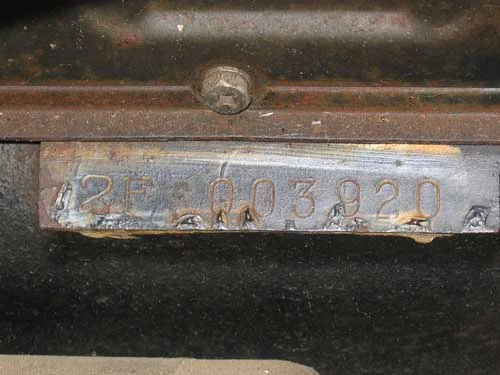

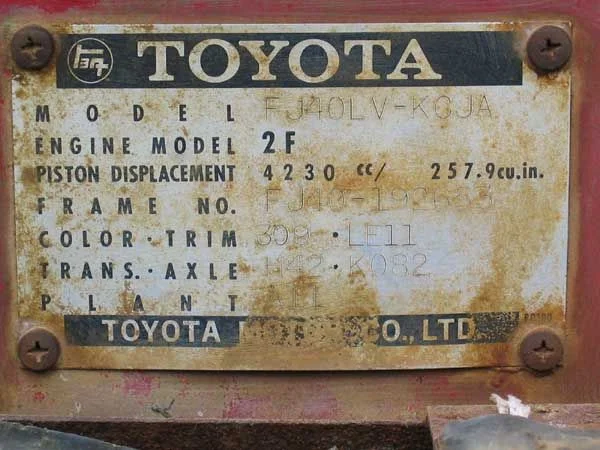

Man. Date: 2/75

Block #: 2F 003920

Frame #: FJ40-192653

wapitidon · 03-22-06, 12:29 PM

Quote:

Originally Posted by wapitidon

sounds about right for early '81 maybe?

my '81 40 shows 2F 538080, built 5/81. I bought the rig new so I know it's original, reading about 195k. Most of those motors went into 60's I'm sure as the u.s. only imported a few thousand 40's in '81

oops, that was for spanky

stupid virgin rookie mistake, sorry

meigsrock · 03-23-06, 09:25 PM

Specter Off Road has some of this data in their Support - FAQ section.
They have some info on engine number on F engines 1969-1974, and early 2F engines 1975-1978

http://www.sor.com/2fengine.html

Here are my 2 Trucks info:

FJ60-USA (door jam plate says April 1984)
Original engine block number = 2F 822650

FJ60-USA (door jam plate says November 1983) It is titled as a 1984 because of the vin #. I think this is because the production date is late in the year.
NOT original engine block number = 2F 529999

I think this is a great database you are putting together. If possible when you are done could you send me a copy and put it here somewhere permanent.

IF you have a lead I would like to know the year of my replacement engine.

Good luck.

webelk6 · 03-27-06, 01:38 PM

Engine-2F 018800
vin-FJ40198449
Prod. date-Apr/1975

Hoipe I'm not too late for this.
Scott

sewardsailor · 03-27-06, 02:56 PM

Engine 2F-047557

Vin # FJ40209729
Sept/75

jmaddox · 03-28-06, 06:19 PM

Engine: 2F 177888

VIN: 250583

Production: June 1977
