rear disc with arb locker
Hey guys, i was just starting my rear disc conversion when in the first step i ran into a problem. I don't know how to take my c clips off the axle for removal. I know how to do an open carrier, but not a arb locked one. Thanks.
__________________
79 fj40- 2F-TBI  , 4:88 R/P, ARB Front/Aussie rear, SOA, 38 TSLs, Full Cage, Bobby Longed SS, Saginaw Hi-Steer, SM465/3speed tcase, 4WDB, 97 wheelbase, fj55 springs, and some spares, it's MUSTARD YELLOW
|
|
|
|
07-22-08, 02:26 PM
|
#2 (permalink)
|
|
I can mangle anything...
Join Date: Jan 2005
Location: BTR, PHX, OMA
Posts: 2,294
|
ARB says to push the axle shaft in a bit and then you should see the C-Clip
__________________
Claudia
'72FJ40 with a no-number 2F, MAF headers, 4spd, 33x10.5 BFG MT, 4" lift, roll cage, prehistoric ARB lockers f/r, MAF disk brakes f/r, hand throttle, Painless wiring, CB, custom horn brush, dual advance dizzy, Bilsteins, 4+ front bumper/rear shackles/U-bolt flip, Kevin-improved frame/shackles/shackle hanger, several polished turds  , with ChaseTruck  yes, MANUAL steering
Copper State Cruisers #40
http://www.desertrider.net/
|
|
|
|
|
07-22-08, 02:41 PM
|
#3 (permalink)
|
|
Forum Regular
Join Date: Jun 2008
Location: Aledo Texas
Posts: 226
|
pretty much the same concepts. the idea is to get to the c-clips
unscew the cross shaft retaining pin
remove the cross shaft
remove the spider block and thrust block
then you should have access to the c-clips.
(sorry if i forgot some steps)
heres a breakdown assuming you are using rd124
http://www.arbusa.com/alac/alsp/2-RD124.pdf
|
|
|
|
|
07-22-08, 03:05 PM
|
#4 (permalink)
|
|
IH8MUD VOYEUR
Join Date: Sep 2006
Location: Wetside, Wa
Posts: 668
|
How old is the ARB carrier? I have a set of older ones and a set of newer ones and they vary... they both have a kinda hidden shaft/bolt that locks the cross shaft in place and it is inside/underneath one of the carrier housing bolts. Is this making any sense? On the newer it has its own bolt/hole. To get it (shaft/bolt) out you either need the ARB removal tool or a screw about 4" long and I think the thread is 11/32" now what you do in screw this screw into the carrier housing bolt hole in it will thread into the shaft/bolt, then spin the pinion shaft back and forth while you pull on the screw... should pull right out!
When I was doing mine I couldnt figure it out either, ARB's website wasnt very helpfull either? I searched and searched on here and finnally figured it out, kinda surprised there is nothing in FAQ
Anyway, hope this helps... I'll see if I got any pics
__________________
-'76 FJ55-ARB's/4x4labs/Longs/60ps/60axles/36's/SOA/H55/Custom Awesome Driver!
-Matching FJ55 Trailer-ARB RTT/ARB Fridge/Same 36's/ trailer-being setup for long range travel/Basecamp
-'89 FJ62-350/700R4/reversal/33's/18"Mojave's/blacked out
-'69 FJ40-Now on 40's/SOA/60 axles w-ARB's/60ps/ 60 springs/4x4Labs... installed soon
See my Land Cruisers Myspace @ http://www.myspace.com/hicruisefiftyfive
|
|
|
|
|
07-22-08, 03:08 PM
|
#5 (permalink)
|
|
Site Addict
Join Date: Sep 2005
Posts: 1,740
|
Like he said - you need that screw or the ARB tool. Both work - the screw just takes more luck  .
__________________
"The devil made me do it the first time. The second time I done it on my own."
|
|
|
|
|
07-22-08, 03:20 PM
|
#6 (permalink)
|
|
IH8MUD VOYEUR
Join Date: Sep 2006
Location: Wetside, Wa
Posts: 668
|

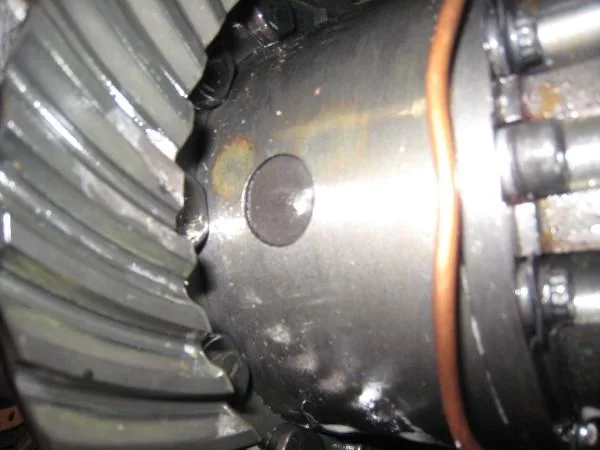

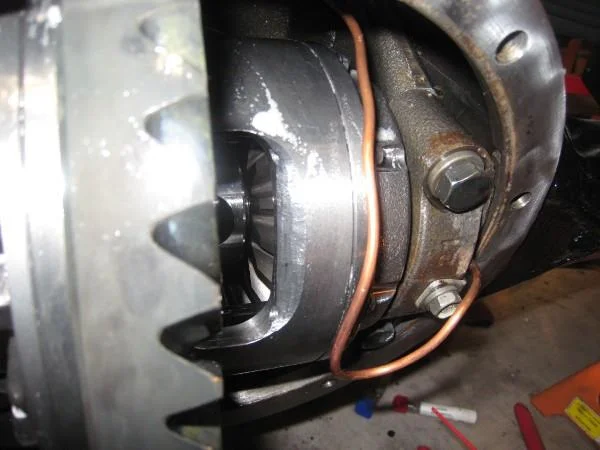

Found some, this pics are of the newer style and has a designated bolt/hole for the shaft/bolt. IIRC the older style the shaft/bolt is just under one of the carrier/housing bolts.
Hope this helps
__________________
-'76 FJ55-ARB's/4x4labs/Longs/60ps/60axles/36's/SOA/H55/Custom Awesome Driver!
-Matching FJ55 Trailer-ARB RTT/ARB Fridge/Same 36's/ trailer-being setup for long range travel/Basecamp
-'89 FJ62-350/700R4/reversal/33's/18"Mojave's/blacked out
-'69 FJ40-Now on 40's/SOA/60 axles w-ARB's/60ps/ 60 springs/4x4Labs... installed soon
See my Land Cruisers Myspace @ http://www.myspace.com/hicruisefiftyfive
|
|
|
|
|
07-22-08, 03:25 PM
|
#7 (permalink)
|
|
I can mangle anything...
Join Date: Jan 2005
Location: BTR, PHX, OMA
Posts: 2,294
|
Quote:
Originally Posted by hicruise55
IIRC the older style the shaft/bolt is just under one of the carrier/housing bolts.
|
correct, and the "tool" is a metric Allen wrench for very early models; they don't have threads in the retaining pin
however, with newer models, ARB told me you should be able to see the C-Clip
__________________
Claudia
'72FJ40 with a no-number 2F, MAF headers, 4spd, 33x10.5 BFG MT, 4" lift, roll cage, prehistoric ARB lockers f/r, MAF disk brakes f/r, hand throttle, Painless wiring, CB, custom horn brush, dual advance dizzy, Bilsteins, 4+ front bumper/rear shackles/U-bolt flip, Kevin-improved frame/shackles/shackle hanger, several polished turds , with ChaseTruck yes, MANUAL steering
Copper State Cruisers #40
http://www.desertrider.net/
|
|
|
|
|
07-22-08, 03:51 PM
|
#8 (permalink)
|
|
Site Addict
Join Date: Mar 2006
Location: Alabama
Posts: 2,022
|
thanks alot guys, i got the allen head screw off, now i'm off to lowes to get the screw, i'll let yall know how it goes. I hope the pin clears my 4:88 gears.
__________________
79 fj40- 2F-TBI , 4:88 R/P, ARB Front/Aussie rear, SOA, 38 TSLs, Full Cage, Bobby Longed SS, Saginaw Hi-Steer, SM465/3speed tcase, 4WDB, 97 wheelbase, fj55 springs, and some spares, it's MUSTARD YELLOW
|
|
|
|
|
07-22-08, 04:07 PM
|
#9 (permalink)
|
|
IH8MUD VOYEUR
Join Date: Sep 2006
Location: Wetside, Wa
Posts: 668
|
Is that a grinder I hear
__________________
-'76 FJ55-ARB's/4x4labs/Longs/60ps/60axles/36's/SOA/H55/Custom Awesome Driver!
-Matching FJ55 Trailer-ARB RTT/ARB Fridge/Same 36's/ trailer-being setup for long range travel/Basecamp
-'89 FJ62-350/700R4/reversal/33's/18"Mojave's/blacked out
-'69 FJ40-Now on 40's/SOA/60 axles w-ARB's/60ps/ 60 springs/4x4Labs... installed soon
See my Land Cruisers Myspace @ http://www.myspace.com/hicruisefiftyfive
|
|
|
|
|
07-22-08, 04:11 PM
|
#10 (permalink)
|
|
Oh...Durka Durka Durka.
Join Date: Oct 2003
Location: in the shop
Posts: 15,935
|
Quote:
Originally Posted by badass
thanks alot guys, i got the allen head screw off, now i'm off to lowes to get the screw, i'll let yall know how it goes. I hope the pin clears my 4:88 gears.
|
One of the teeth had to be ground in order for it to be installed and working currently...
|
|
|
|
|
07-22-08, 04:16 PM
|
#11 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Kansastitty
Posts: 7,309
|
I just sawzalled off the backing plates.......
Ed
__________________
My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders
|
|
|
|
|
07-22-08, 04:19 PM
|
#12 (permalink)
|
|
Forum Regular
Join Date: Jun 2008
Location: Aledo Texas
Posts: 226
|
i had to grind with my 488s
|
|
|
|
|
07-23-08, 09:52 AM
|
#13 (permalink)
|
|
250+ Club
Join Date: Jul 2005
Location: O-side, CA
Posts: 682
|
Quote:
Originally Posted by Degnol
I just sawzalled off the backing plates.......
Ed |
X2....this is what I did too ... is all that trouble worth the 5 bucks your going to sell them for on ebay for?
|
|
|
|
|
07-23-08, 10:30 AM
|
#14 (permalink)
|
|
In the garage
Join Date: Jun 2004
Location: Maryland
Posts: 2,416
|
Quote:
Originally Posted by fj40_73
X2....this is what I did too ... is all that trouble worth the 5 bucks your going to sell them for on ebay for?
|
x3, when I did mine I cut them off and saved the hassle also. I did not think anyone would even want them.
__________________
79 FJ40 & 78 FJ55
|
|
|
|
|
07-23-08, 11:10 AM
|
#15 (permalink)
|
|
Site Addict
Join Date: Mar 2006
Location: Alabama
Posts: 2,022
|
Quote:
Originally Posted by hicruise55
Found some, this pics are of the newer style and has a designated bolt/hole for the shaft/bolt. IIRC the older style the shaft/bolt is just under one of the carrier/housing bolts.
Hope this helps
|
where did you purchase that screw removal from? Lowes didn't have anything larger than a 10/32? Do i just stick it in the hole and spin or is there a trick to it.
__________________
79 fj40- 2F-TBI , 4:88 R/P, ARB Front/Aussie rear, SOA, 38 TSLs, Full Cage, Bobby Longed SS, Saginaw Hi-Steer, SM465/3speed tcase, 4WDB, 97 wheelbase, fj55 springs, and some spares, it's MUSTARD YELLOW
|
|
|
|
|
07-23-08, 11:24 AM
|
#16 (permalink)
|
|
Site Addict
Join Date: Feb 2004
Location: Monroe, WA
Posts: 1,431
|
Quote:
Originally Posted by badass
where did you purchase that screw removal from? Lowes didn't have anything larger than a 10/32? Do i just stick it in the hole and spin or is there a trick to it. |
10/32 isn't a screw size. 10-32 is (I'm assuming that's what he meant when he wrote 11/32 ? ). 10-32 is a screw of #10 diameter (0.190"), with 32 threads per inch. #10 screws also come in a coarse-thread variety: 10-24.
__________________
-Eric
64 FJ40, slightly modified.
96 LX450, locked.
|
|
|
|
|
07-23-08, 01:01 PM
|
#17 (permalink)
|
|
Site Addict
Join Date: Mar 2006
Location: Alabama
Posts: 2,022
|
i called arb, and they helped me, very good customer service, he even offered to send the tool to me for free, but i told him i couldn't wait, so he told me to use a narrow picking tool, and it worked! Thanks for everyones help.
__________________
79 fj40- 2F-TBI , 4:88 R/P, ARB Front/Aussie rear, SOA, 38 TSLs, Full Cage, Bobby Longed SS, Saginaw Hi-Steer, SM465/3speed tcase, 4WDB, 97 wheelbase, fj55 springs, and some spares, it's MUSTARD YELLOW
|
|
|
|
|
07-23-08, 01:04 PM
|
#18 (permalink)
|
|
Site Addict
Join Date: Mar 2006
Location: Alabama
Posts: 2,022
|
like these, worked perfectly
__________________
79 fj40- 2F-TBI , 4:88 R/P, ARB Front/Aussie rear, SOA, 38 TSLs, Full Cage, Bobby Longed SS, Saginaw Hi-Steer, SM465/3speed tcase, 4WDB, 97 wheelbase, fj55 springs, and some spares, it's MUSTARD YELLOW
|
|
|
|
|
07-23-08, 02:27 PM
|
#19 (permalink)
|
|
Forum Regular
Join Date: Jun 2008
Location: Aledo Texas
Posts: 226
|
you still got them to send the tool right? for future uses.
but it is nice to hear about good custmer service.
|
|
|
|
|
