Intro: Ugly Betty(so far)

tmarx · 10-10-08, 02:39 PM

Time for an update :P

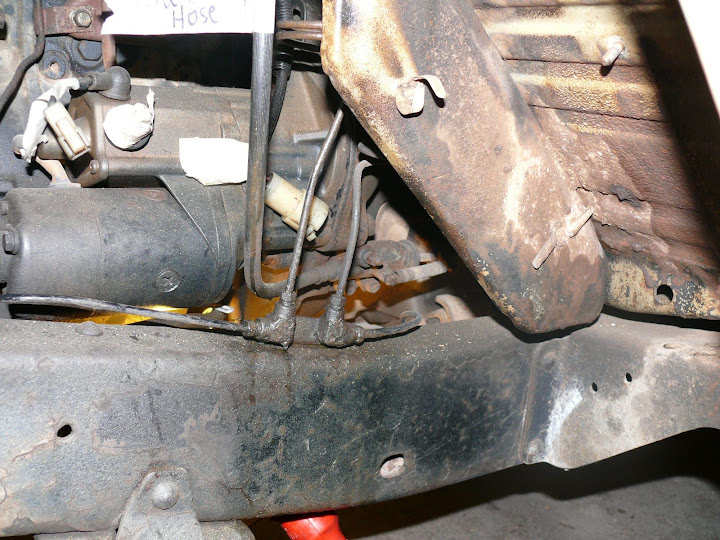

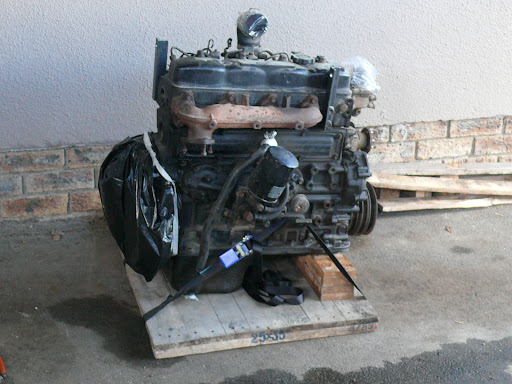

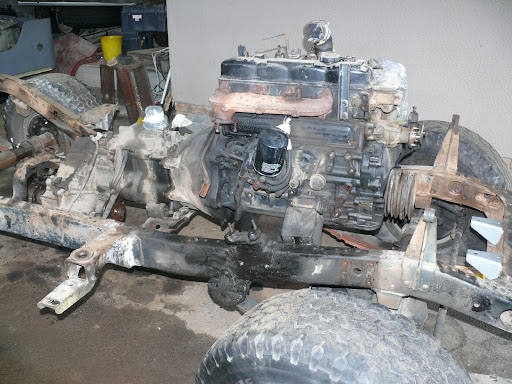

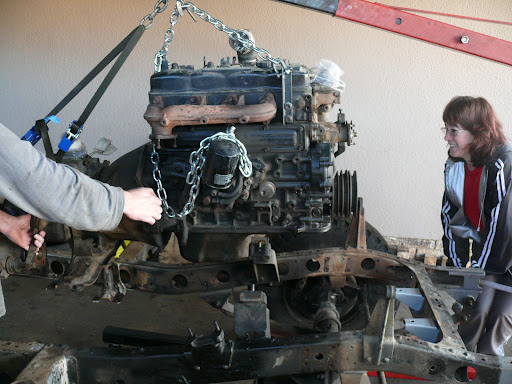

Due to the location of the P/S pump my engine only had 1 engine hoist bracket and therefore I had to fabricate 2 longer ones from some big angle iron

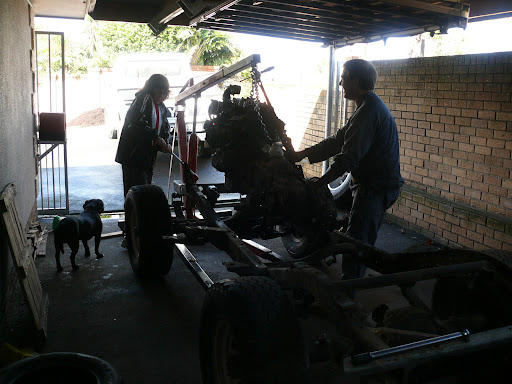

With them installed and a borrowed hoist from JB it was smooth sailing 8-)

inspite of the size and weight of the combo

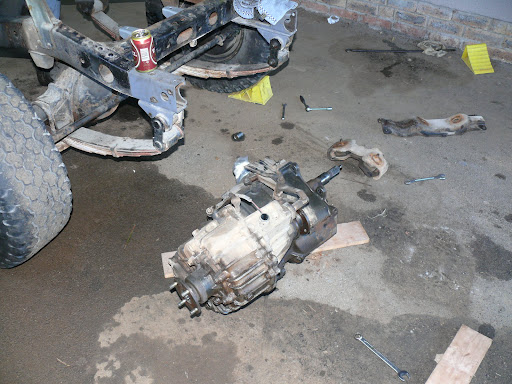

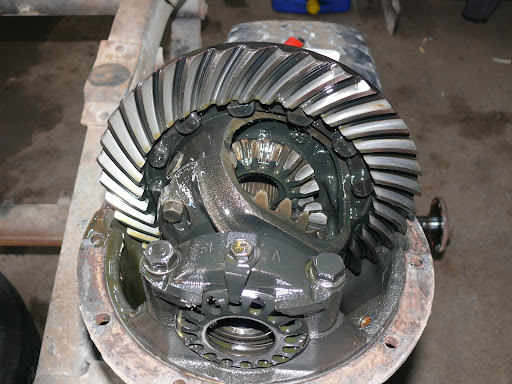

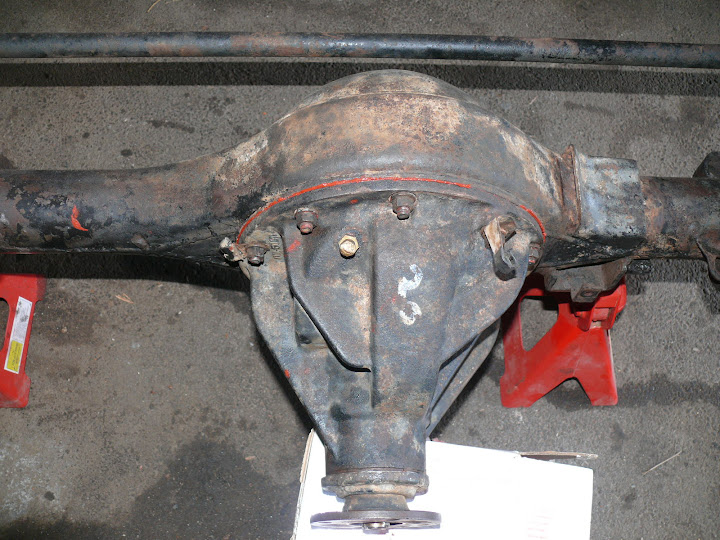

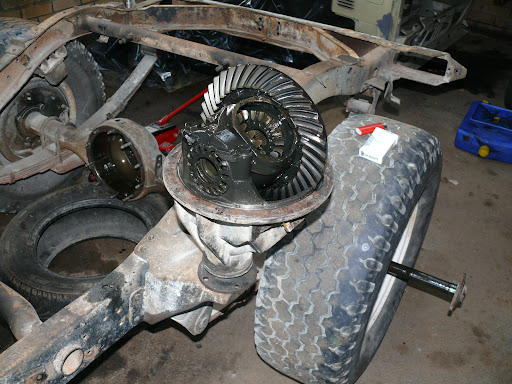

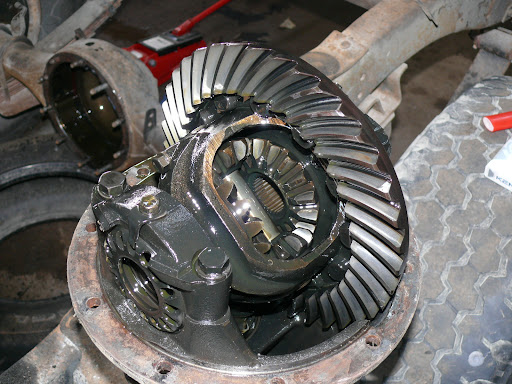

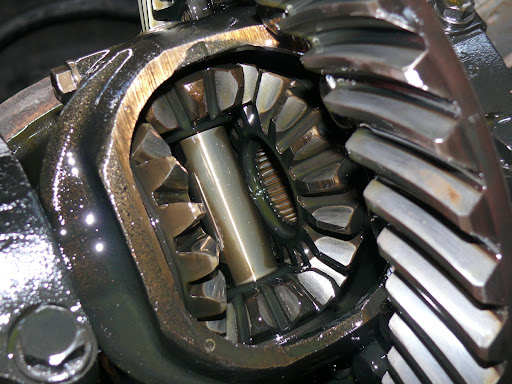

With our spirits up and our curiosity getting the better of us we decided to pull the rear shafts in order to see what the 3rd member's condition was like in our notso expert opinions.

There is some definate backlash that JB will have to set but the rest seems very good actually. Oh did I mention that when I dropped the G/box and T/Case at JB, he declared the clutch and pressure plate as brand new

tmarx · 10-10-08, 02:45 PM

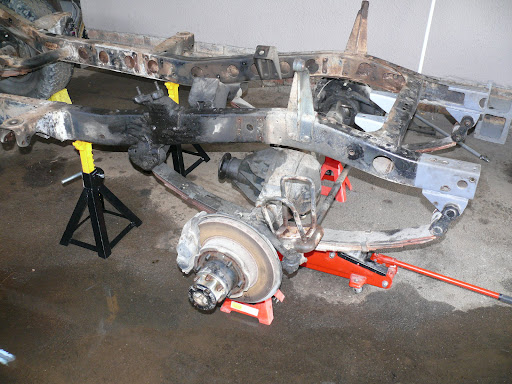

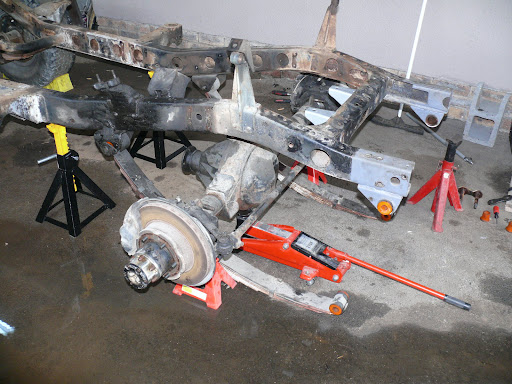

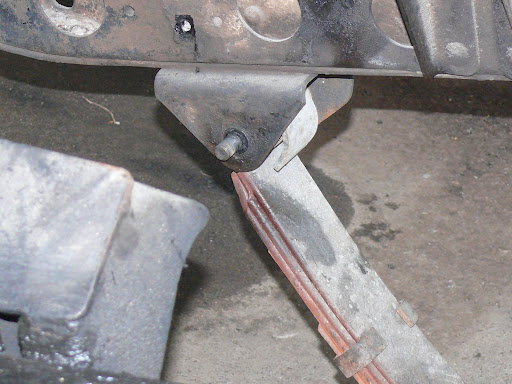

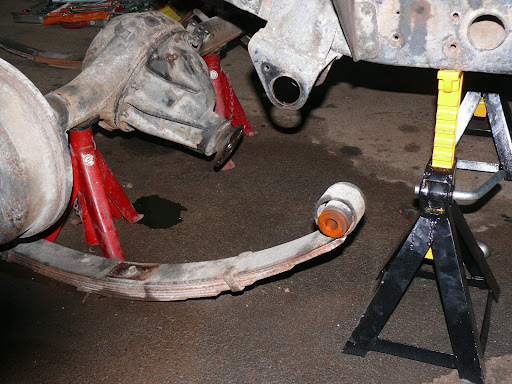

Inspite of the ice rain I got a little done today...

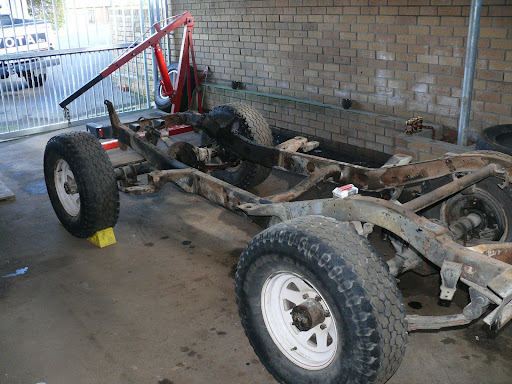

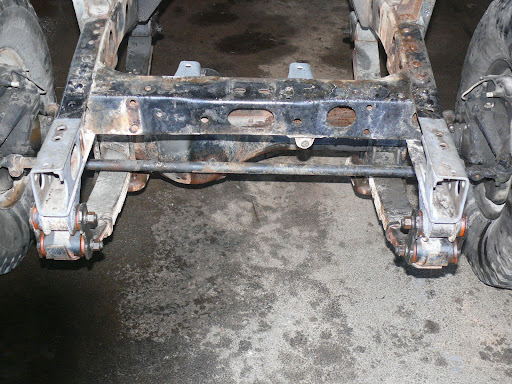

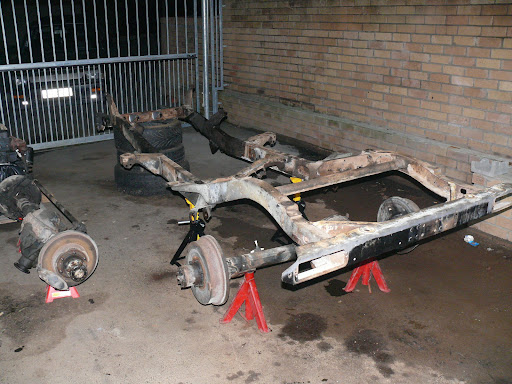

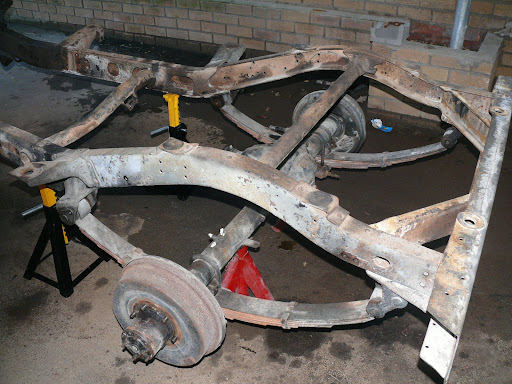

Now just the rear susp to go and then the chassis can go for galv

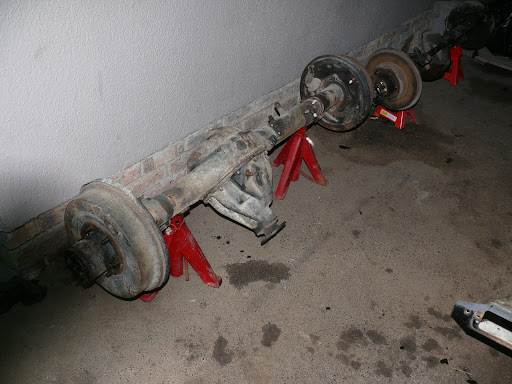

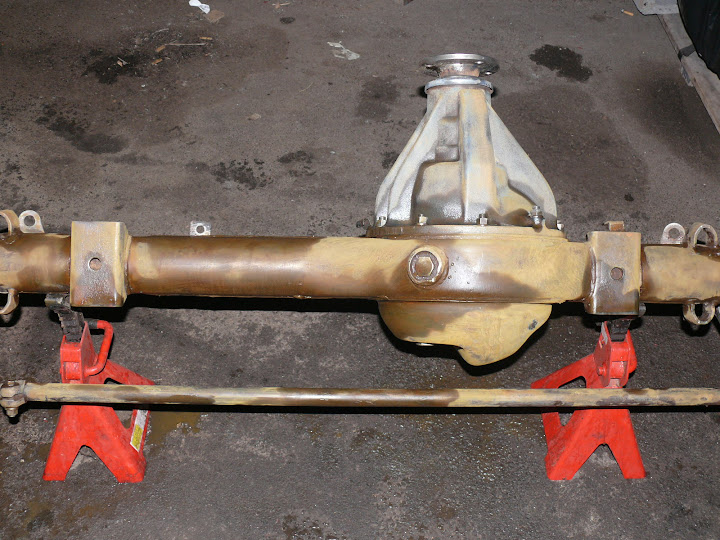

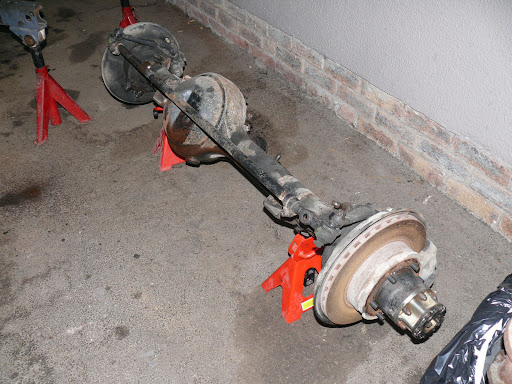

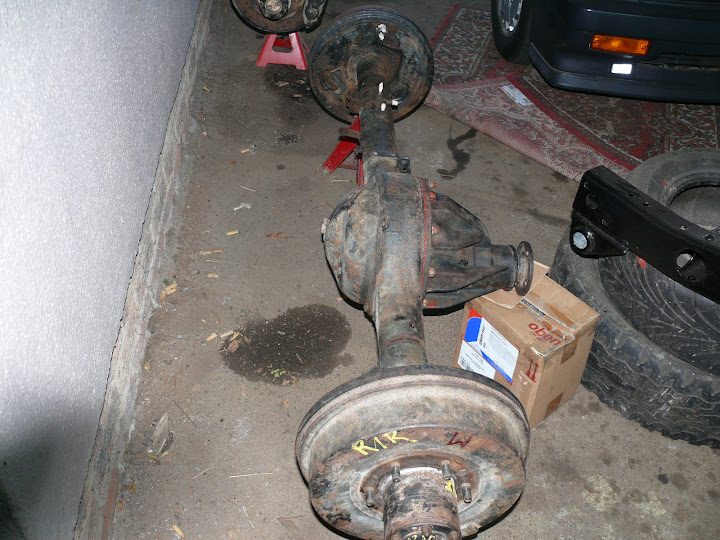

Both axles together awaiting a the rebuild

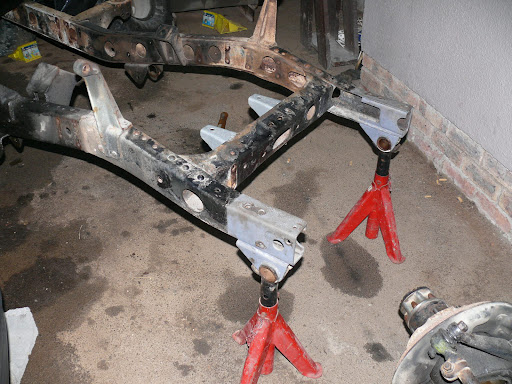

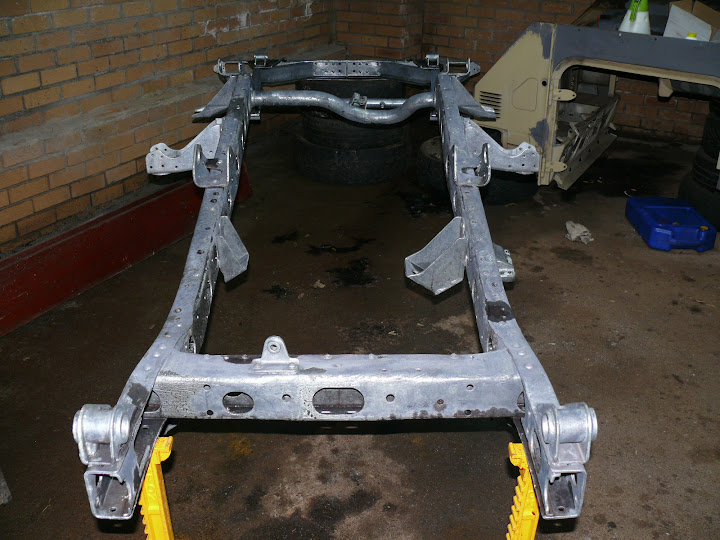

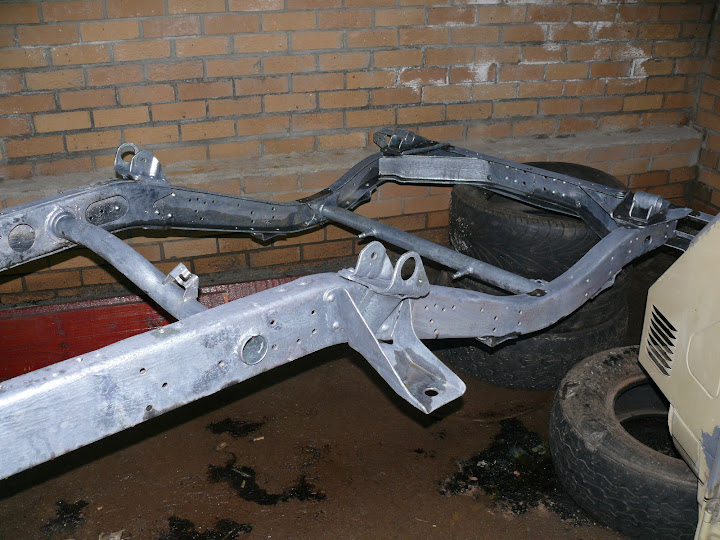

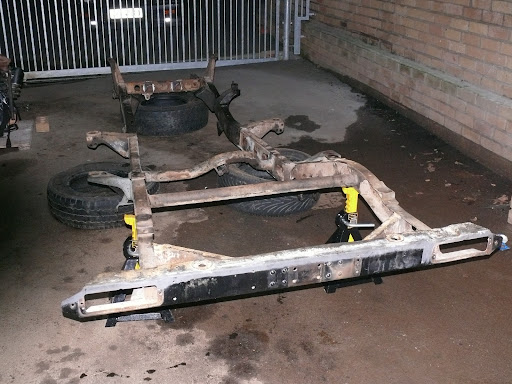

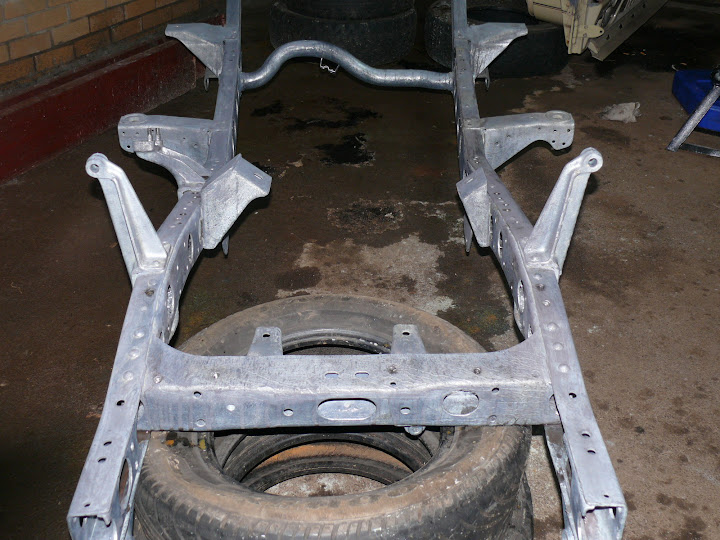

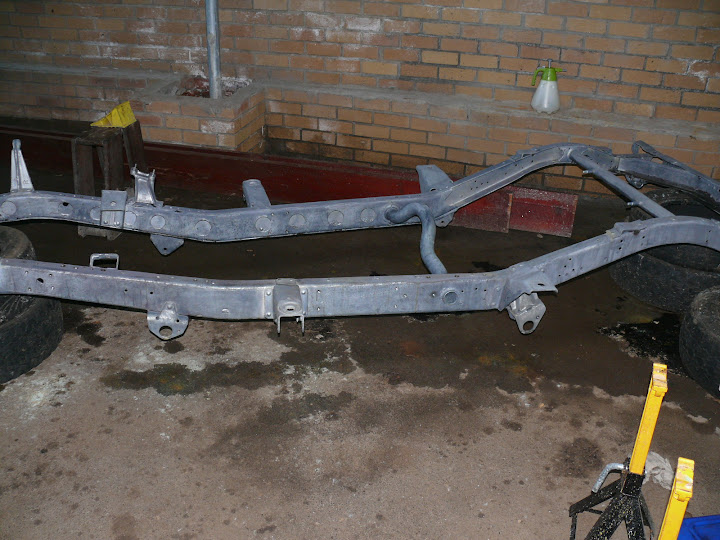

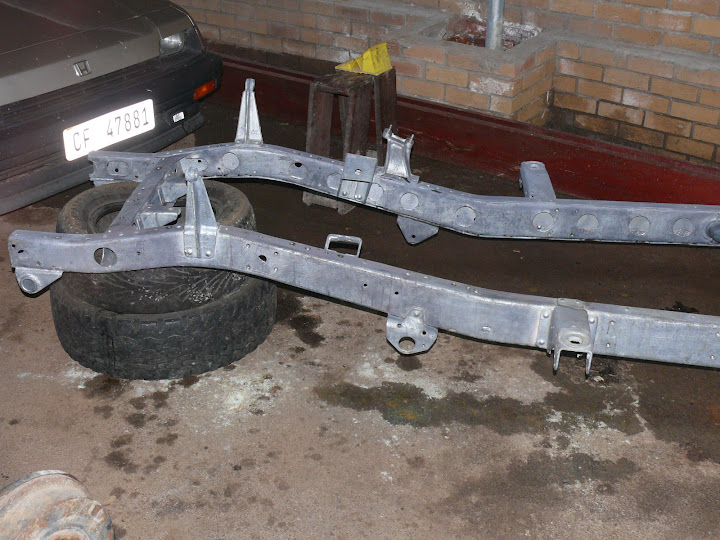

Leaving just the bare chassis ready to go for galv

And the result

Which means I have reached the turn around and from now on stuff will start going back on

bsmith123 · 10-10-08, 05:29 PM

Well its been a while since I've seen your build but I see you haven't been slacking. I have had the opposite prob here with waiting for summer to be over so I can get some serious work done--too hot in florida for me!

Looking Good!

tmarx · 10-11-08, 05:52 AM

Thanks bsmith

Another update

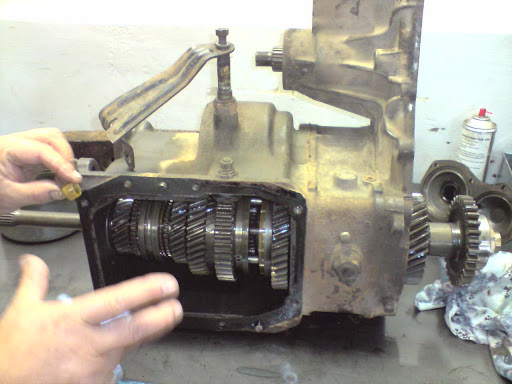

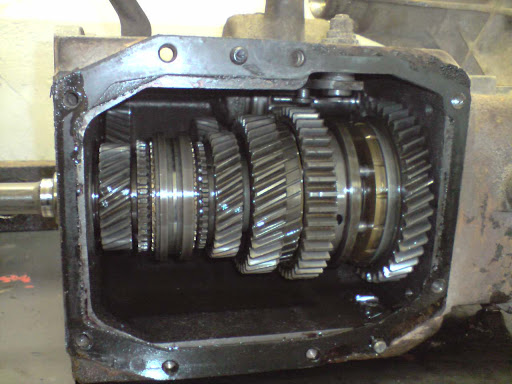

My gearbox and tc was pretty wet from the leak and so I dropped my boxes at JB. When I drained them I found some metal filings and therefore feared the worst.The news was better than I could ever have hoped for...

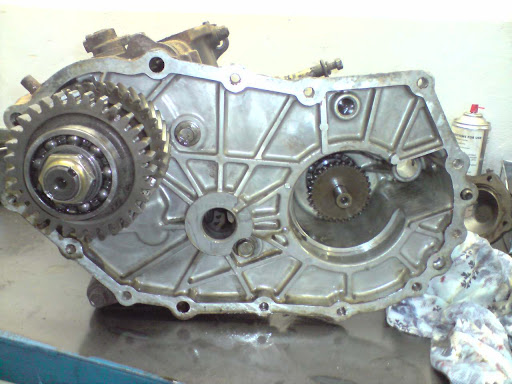

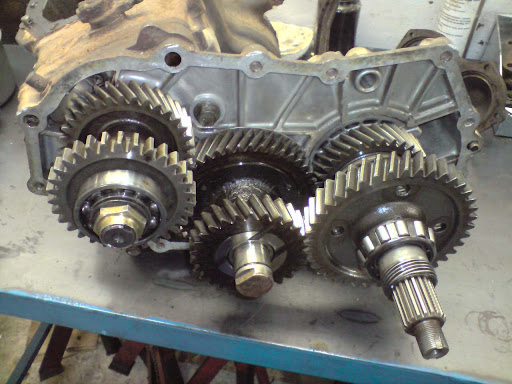

In order to replace the offending seal you have to remove the rear nut on the output shaft seen here.This nut had to be removed with the aid of some heat

- a possible sign that this box and tc has never worked hard before.

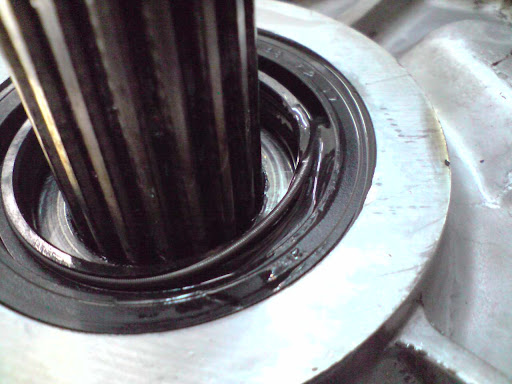

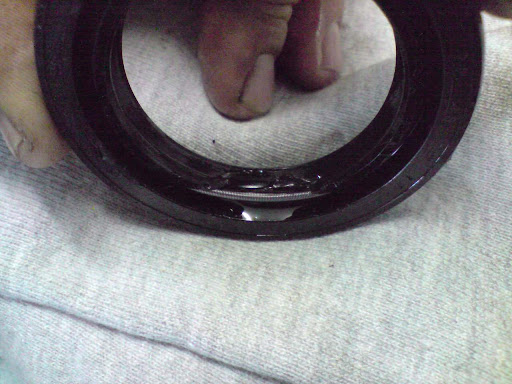

The offending seal: Clearly not well fitted if you look at the folded "lip" ....

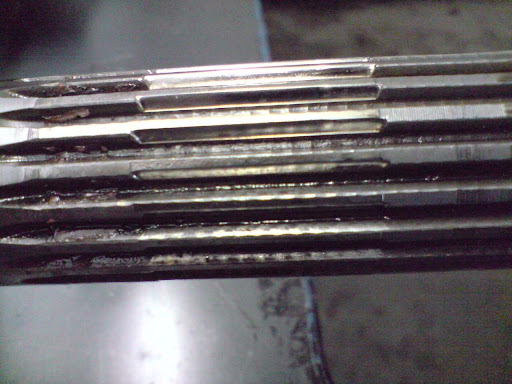

Usually the rear nut comes loose from hard work /wear and then the gear will damage the output shaft, leaving it looking like this

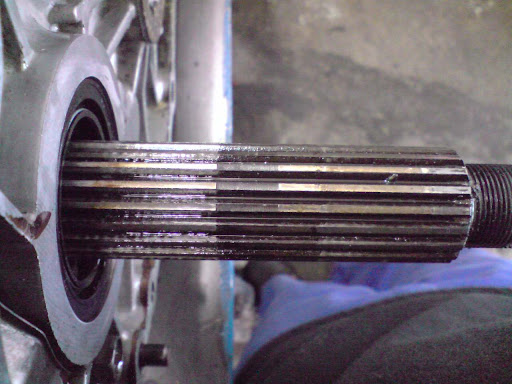

Fortunately mine still looks like this

M5driver · 10-12-08, 01:20 PM

Quote:

Originally Posted by tmarx

And the result

Which means I have reached the turn around and from now on stuff will start going back on

Theo - I'm jealous.

That chassis looks absolutely great. Time to start bolting back up now, yes? That gearbox and transfer case look practically new - good news!

Good to see the progress.

Dan

Adolf · 10-12-08, 02:21 PM

If you go on at this pace then you might make it for our Legends trip in August 2009!

tmarx · 10-14-08, 01:56 PM

If I don't make it Adolf, it will not be from lack of want

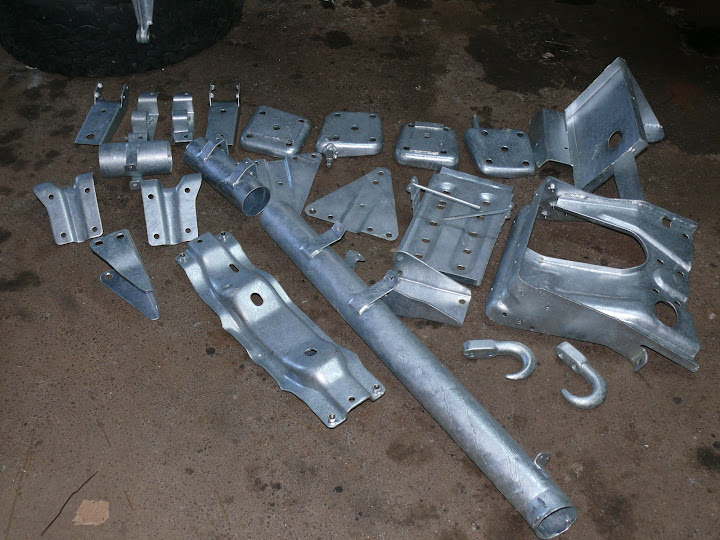

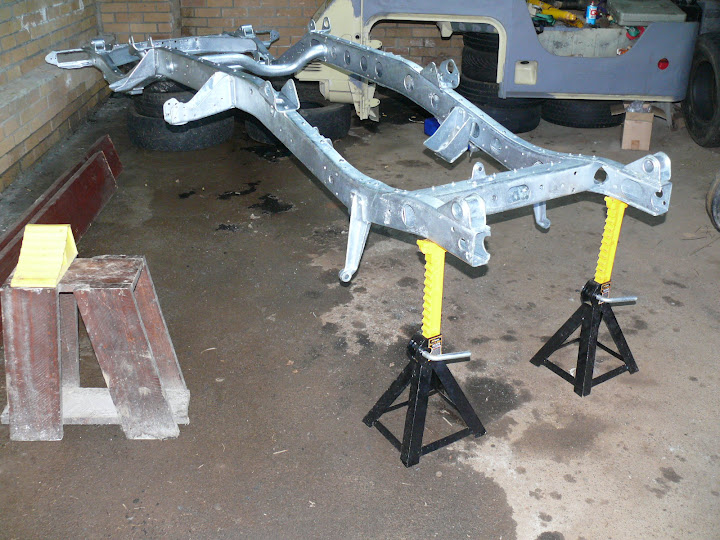

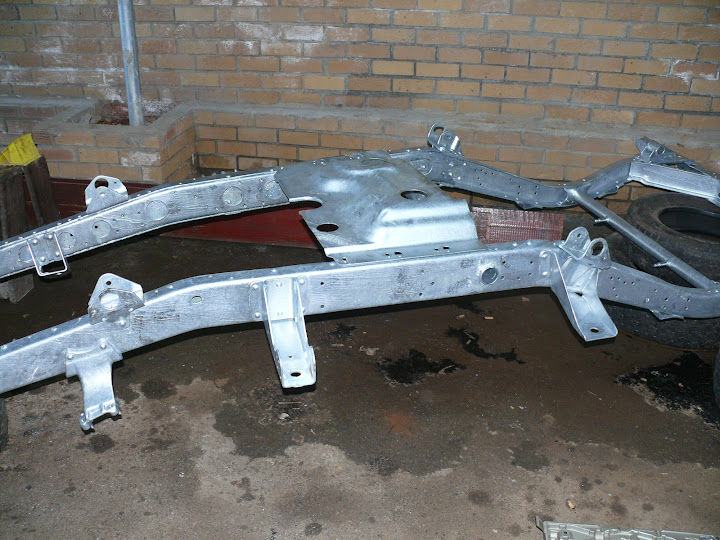

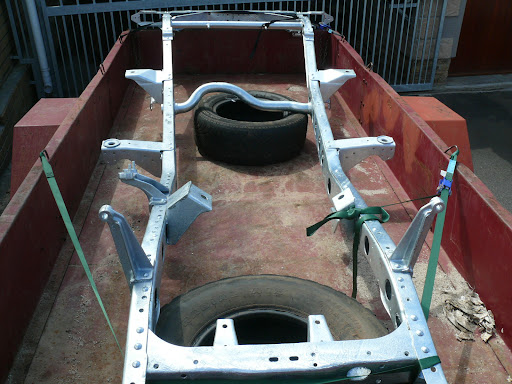

Finished tapping all the required threads that were filled with galv

Now it is on to prep and paint, as I don't like the Heep look

tmarx · 11-14-08, 05:25 PM

I started the prepwork on the bottom and sides of the frame tonight but I am not entirely happy with the results.I brushed the etch cleaner/primer on and sprayed it off with warm water after leaving it on for 1 hour. Tomorrow I will redo it but I will wash it on and off, using a sponge instead. In fairnes the directions did say that 2 or 3 applications may be needed for newly galved steel, so we will see...

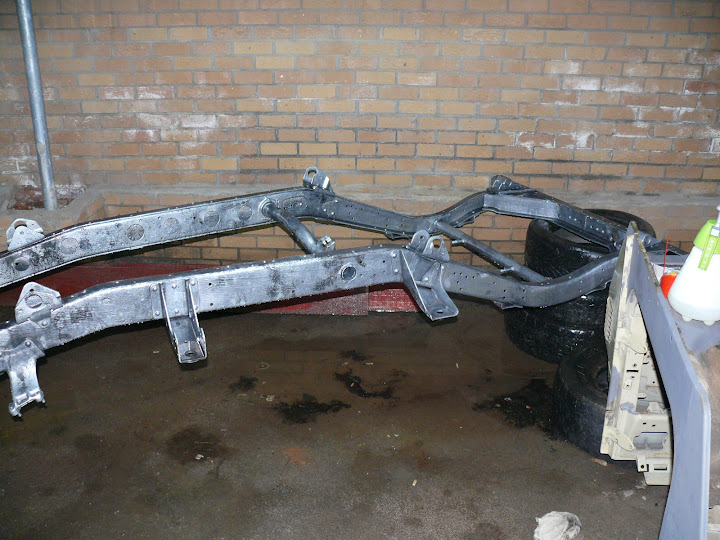

Etch Cleaner/primer on

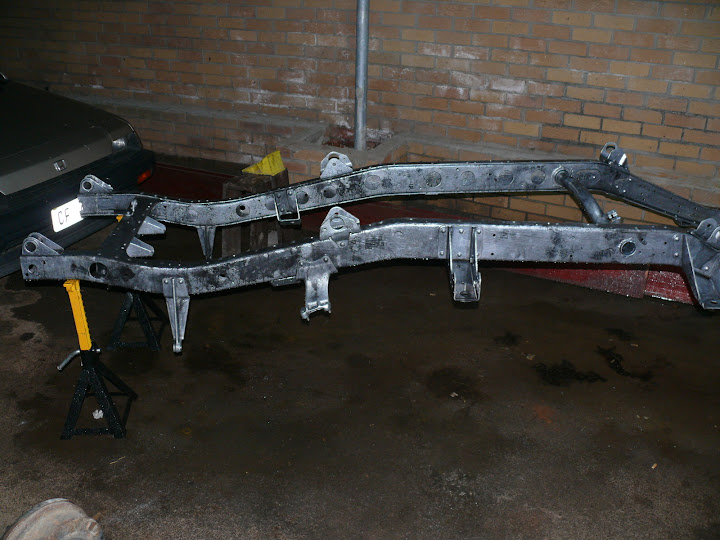

Etch Cleaner/primer "rinsed" off but some fatty areas clearly visible.(Could be all the cutting fluid I used when tapping ?)

tmarx · 11-14-08, 05:28 PM

Time for an update: I "washed" the frame for a second time with Galv Etch but this time using some coarse steelwool. The result was much more to my liking...

This meant I could paint with the Direct to Galv Hammerite immediately.However at the last minute I decided to go with a primer first, just for that bit of extra protection :wink: I used Hammerite's Special Metals Primer which I was very impressed with as it spreads nicely and dries without leaving any brushmarks and becomes very hard. The only drawback is the fact that brushing takes a huge amount of time and it is difficult if not impossible to get in everywhere

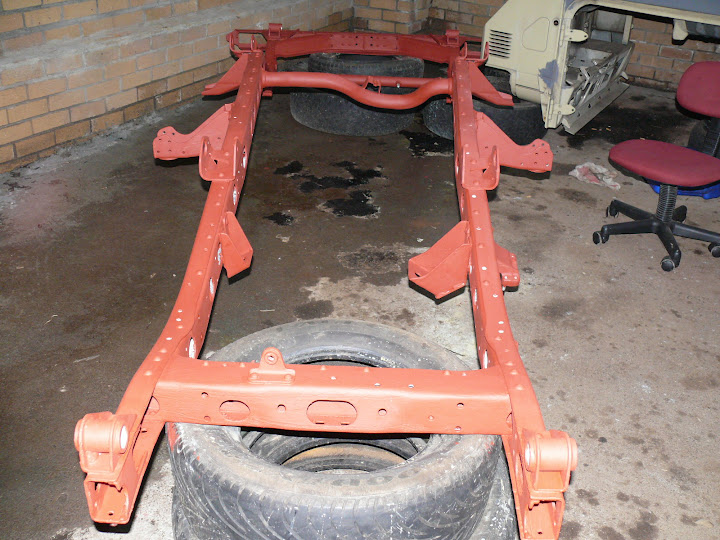

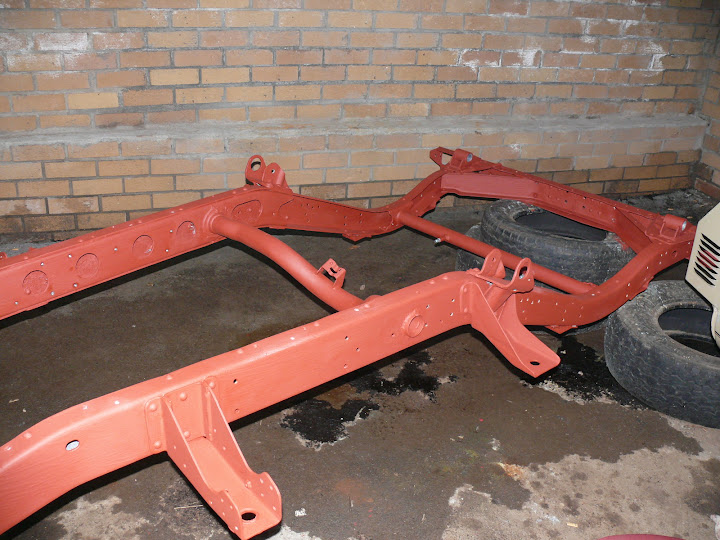

Ready for topcoat(s?)

tmarx · 11-14-08, 05:31 PM

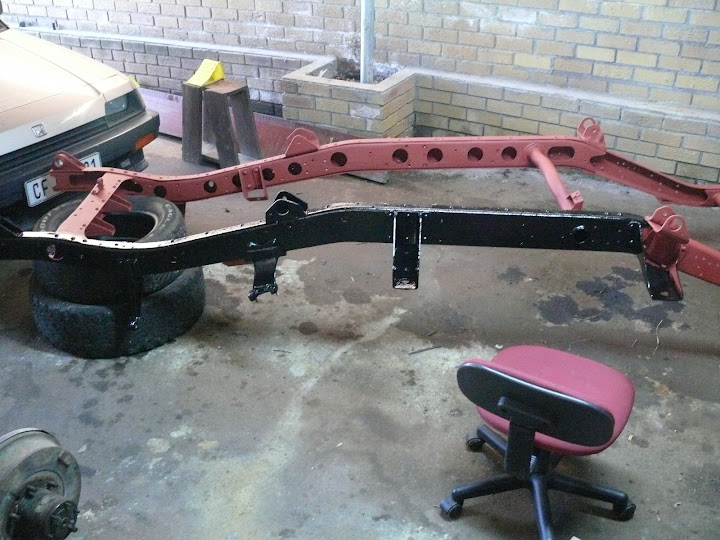

While the primer coat went on relatively easy and quickly, the top coat was a complete different story.....

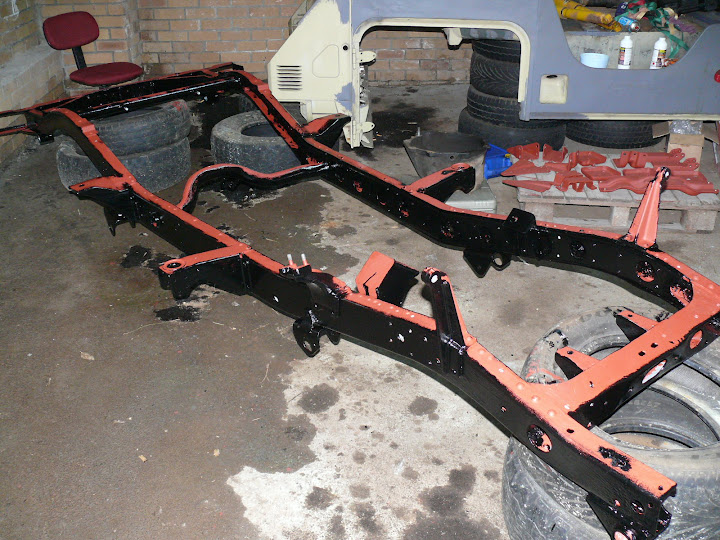

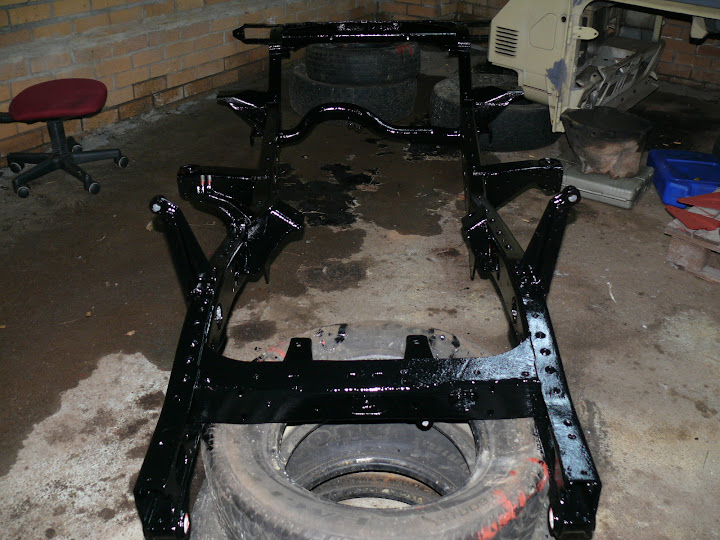

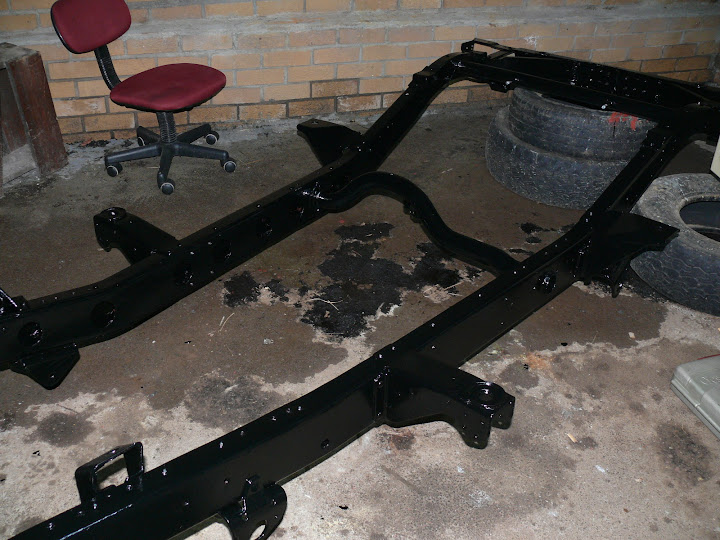

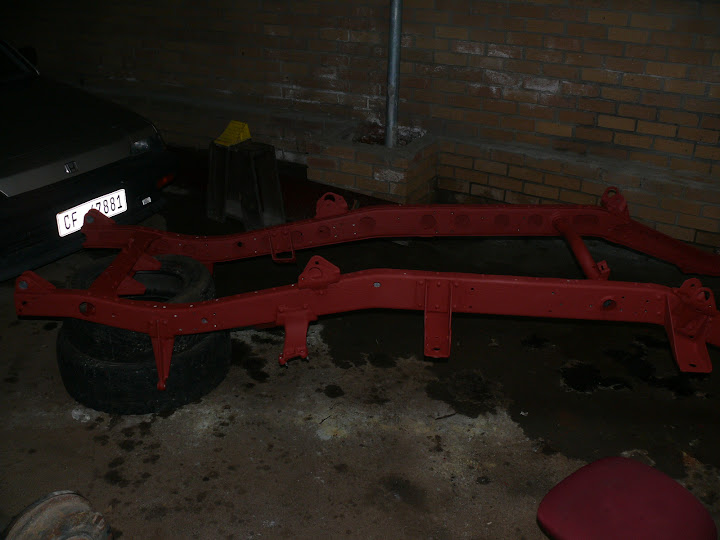

But eventually tonight she was done !

Now on to the small bits of the chassis etc ....

tmarx · 11-14-08, 05:33 PM

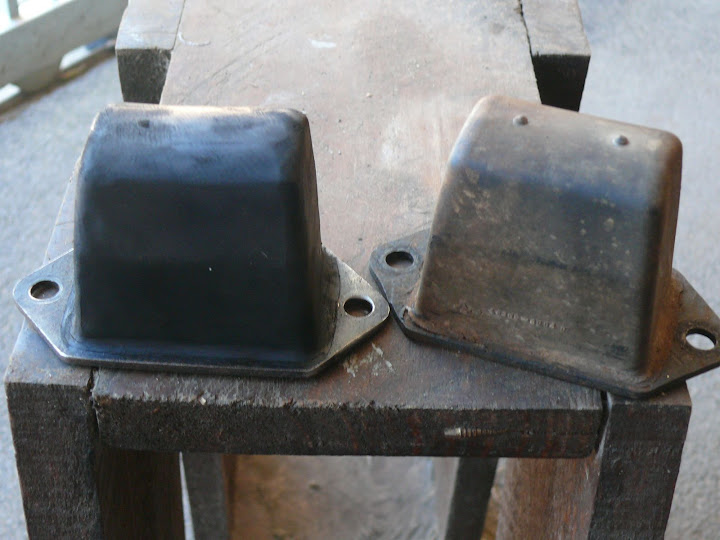

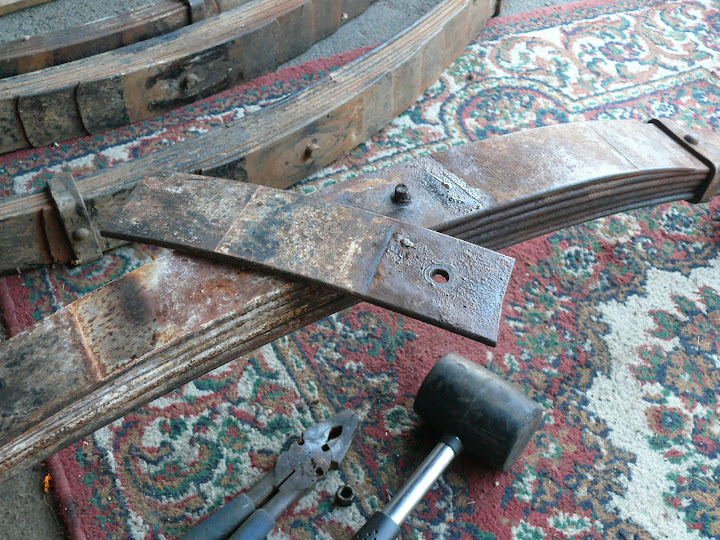

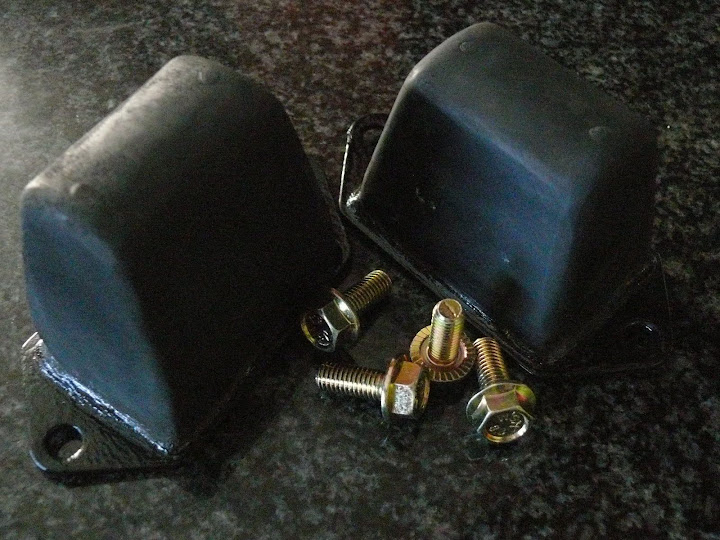

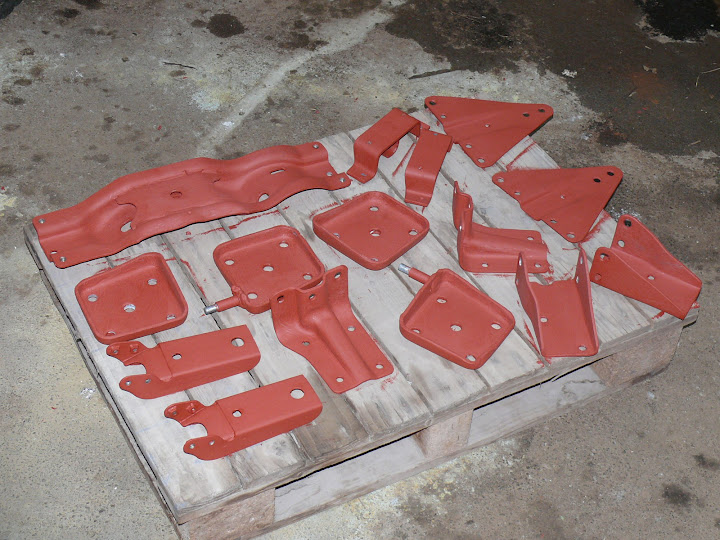

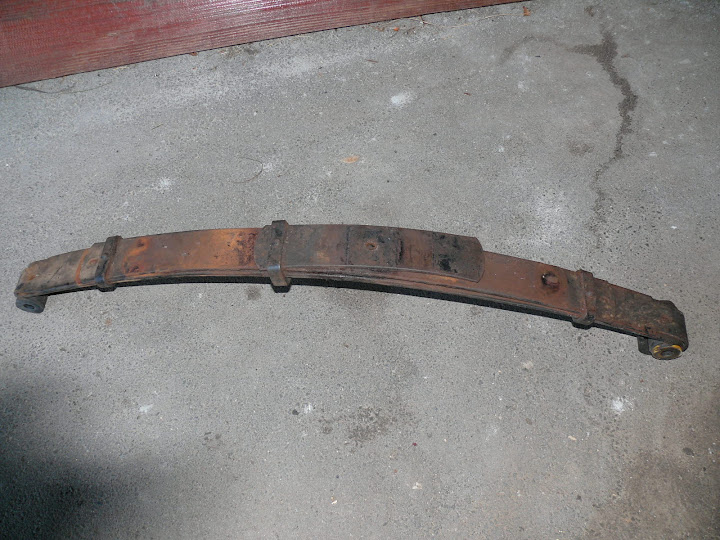

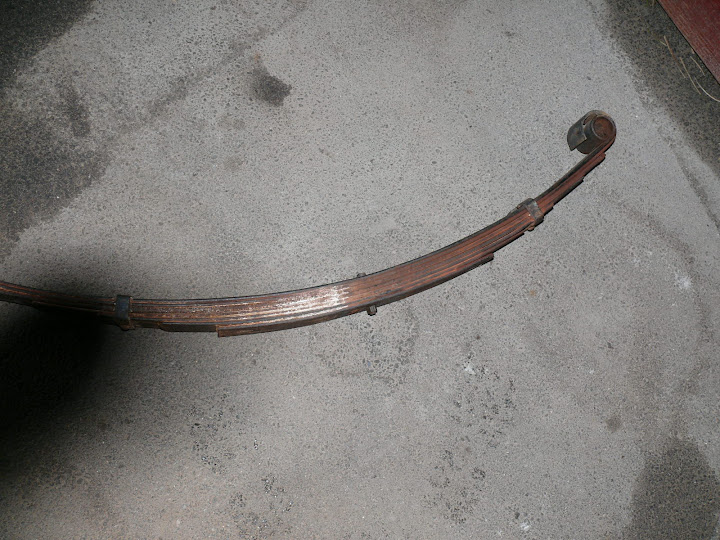

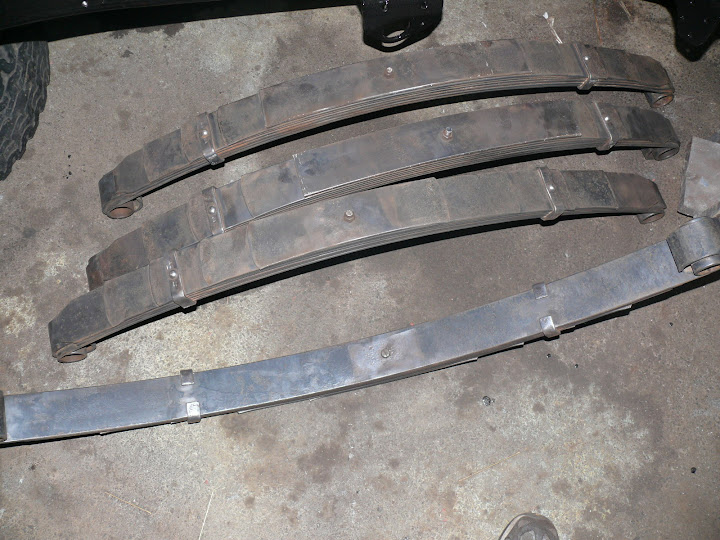

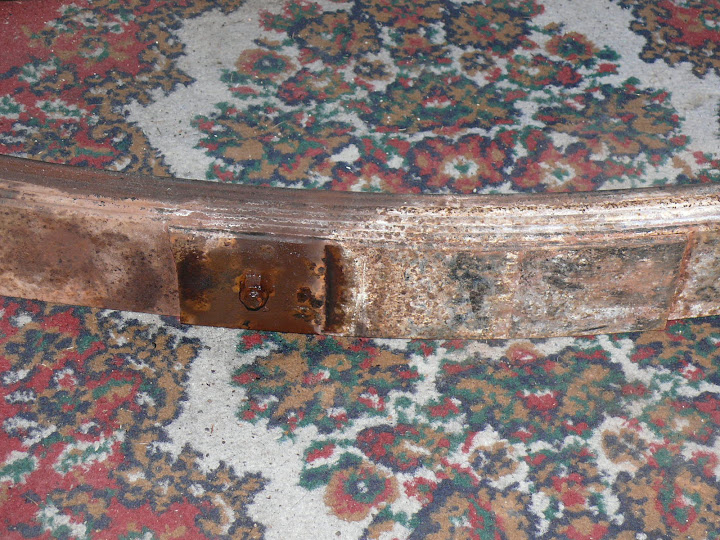

Time for an update: With the bad weather we have had for the last 2 days I have not been able to paint the topcoats on the bumpstops and Gbox mount, so I moved on to the leaf springs to keep myself busy. The only problem was that the bottom blade of the driverside pack was broken.

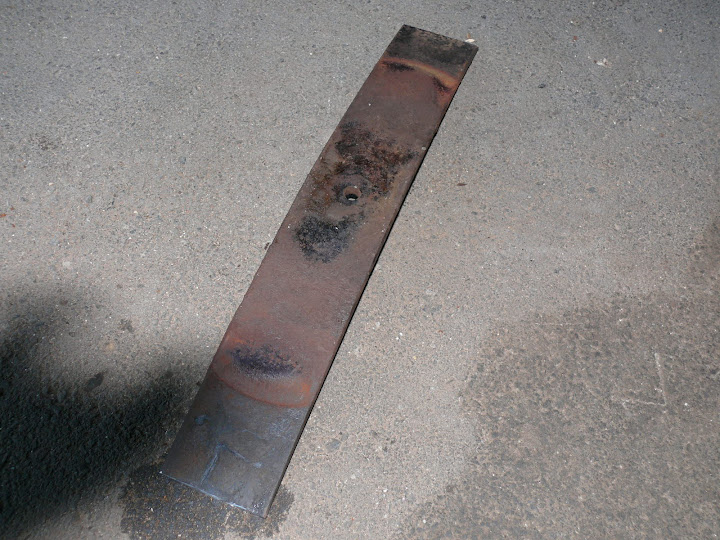

Fortunately I had come into posession of an old set of 60 ser springs recently(thanx Rob

), that I was able to raid for a blade that could be butchered.

Then it was just a simple matter of measuring and cutting it to the exact lenth as the camber et al was exactly the same. I could even use one of the centering pins as the OEM one's nut was shot. These springs are in any event just a temporary fit untill I get my new leafs 8-)
All cut and test-fitted

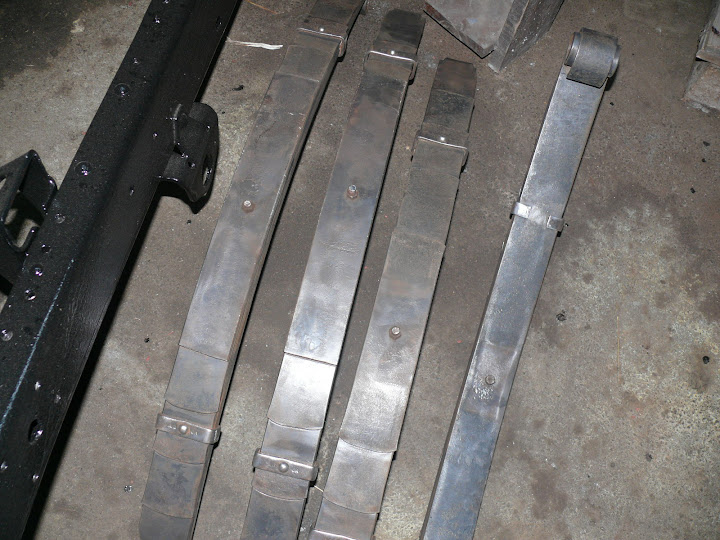

Then tonight I whirewheeled all 4 spring packs and reassembled them ready to be painted as soon as the weather clears
All done and shiny, ready for paint

:P

Roberto · 11-14-08, 05:46 PM

Holy cr** TMArx, Looks like we are both at same stage of ground up, actually you are ahead and it looks great, I really wanted to do the galvanizing thing and still can but its just a pain in the butt to transpo it 4 hours each way. I may have to call on you for some detailed enigine bay and engine pics for I lost all my teardown pics in my laptop crash and now I have nothing? but good thing we have identical vehicles. keep up the good work! keep in touch with me on anything you might think I need to know, for I am ignorant when it comes to anything about this vehicle.

Rob

tmarx · 11-15-08, 01:13 PM

Any time Rob, just shout and I will see if I have a pic for ya. As a noob to this myself, I took plenty ....

tmarx · 12-05-08, 05:33 AM

Another update ...

With totally rebuilt axles it was time to get some visual progress done

Lots of whirewheeling later ...

And then the same old routine of etch clean, prime and paint...

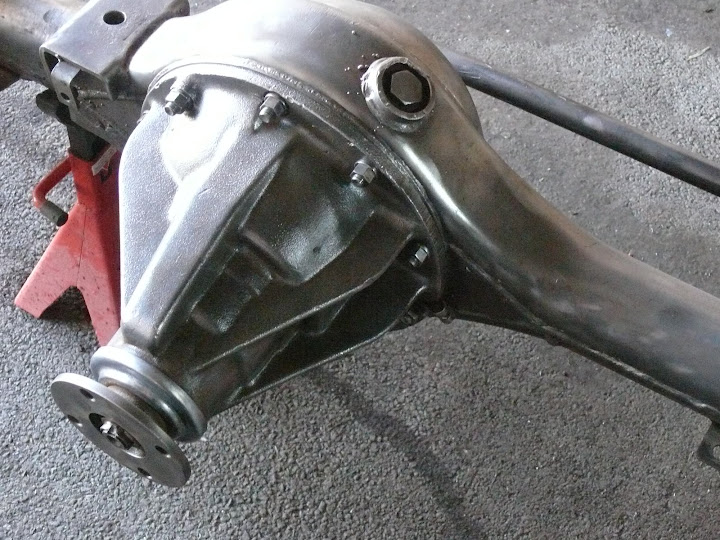

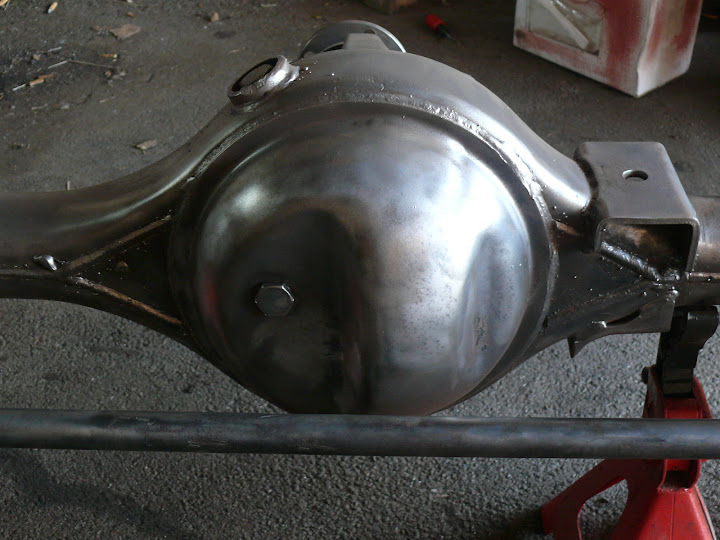

After the prime and topcoat the axles came out pretty good

Which meant it was eventually time to start assembly of the chassis..

(Note to self: Do not let Swambo order custom bushes from a guy who asks:"Madam, what colour would you like those bushes ?", ever again !)

New greasable Ironman springpins

At least the front ones are yellow

tmarx · 12-05-08, 05:40 AM

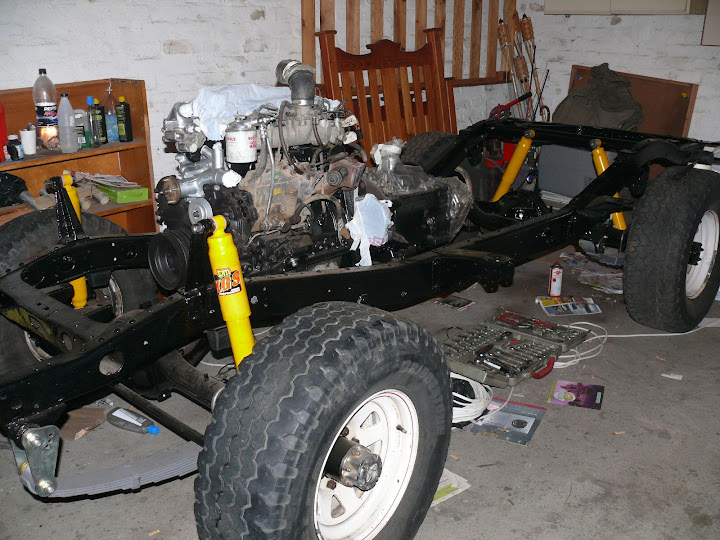

And suddenly we had a rolling chassis again

But then as preventative "maintenance" I had decided to replace my rear main oil seal and pilot bearing. JB borrowed me his fancy pilotbearing puller which actually made it feel like cheating- no mess no fuss, 10 seconds and it was out ! Thanks JB ! The old non leaking seal and bearing. Also note the brand new welch plug(just like all the others) - one more telltale sign that motor was in fact rebuilt 8000kms ago

New seal installed- the exact same one as found in the KZTe motor

Bearing in and flywheel torqued

Clutch and pressure plate installed. Do you recognise that old shaft serving as an alignment tool, Keith ?

I had previously restored the bellhousing

After hours of wirewheeling

Primed with Hammerrite's Special Metals primer and then topcoated

Then tonight after torquing the flywheel etc it was finally time to re-unite the motor and boxes with the help of a crane that I borrowed from JB. Thanks again JB

And then I found out that sometimes daughters' boyfriends can actually be usefull creatures if you intimidate them enough

And then it was done

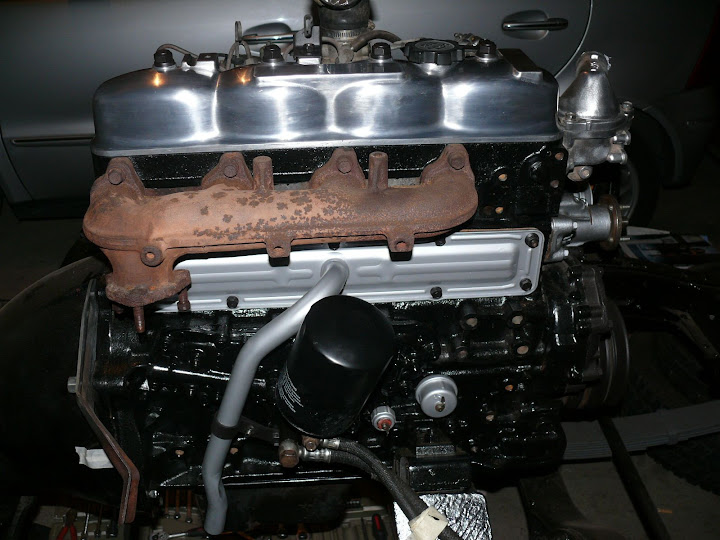

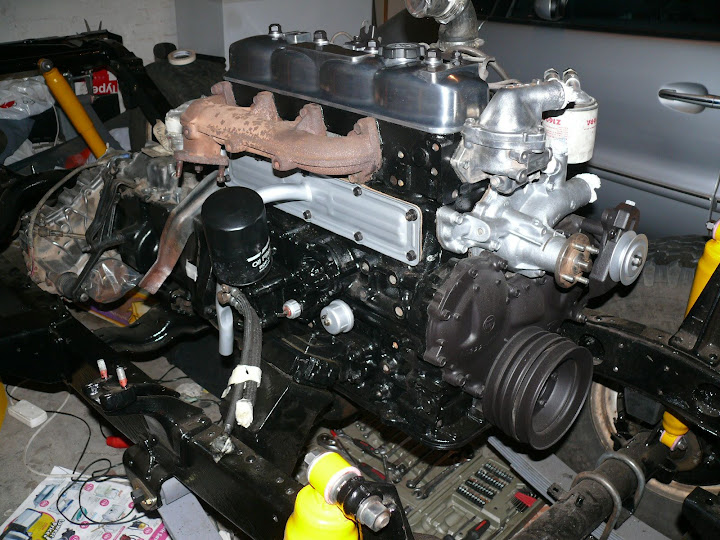

Next up, some detail/cosmetic work on the motor and boxes etc, but first a much needed Xmas break

tlc_4play · 12-09-08, 07:11 AM

Mr T

Did you check and repack the wheel bearings before bolting the axles back in, and what about the brake wheel cylinders, have they been cleaned and rebuilt ?

C'mon no slacking now ! !

tmarx · 01-04-09, 10:13 AM

Quote:

Originally Posted by tlc_4play

...
C'mon no slacking now ! !

Oom Keith, with you watching I would never take a chance !

Wheel bearings cleaned and repacked with Omega 57 high temp grease & Graphite for the birfs, rear drums skimmed and new linings & bell crank cable fitted , rear wheel cylinders rebuilt , new complete axle, knuckle & pinion oil seal kits fitted, new TRE's and Idler arm kit fitted

cruiserjunkie · 01-04-09, 11:19 AM

Ive been enjoying this build haven't see old school welding like that for along time turning out sweet cannt wait to see it finished

cruiserdoc · 01-04-09, 12:41 PM

awesome, you are doing a great job and a load of work in modest working conditions which makes this hard work even more commendable. keep it going

tmarx · 01-06-09, 03:32 PM

Thanks for the kind words guys, it helps plenty !

tmarx · 01-30-09, 12:24 PM

Since getting back from a long holiday, the progress has been very slow in spite of long hours. The pics tell the story

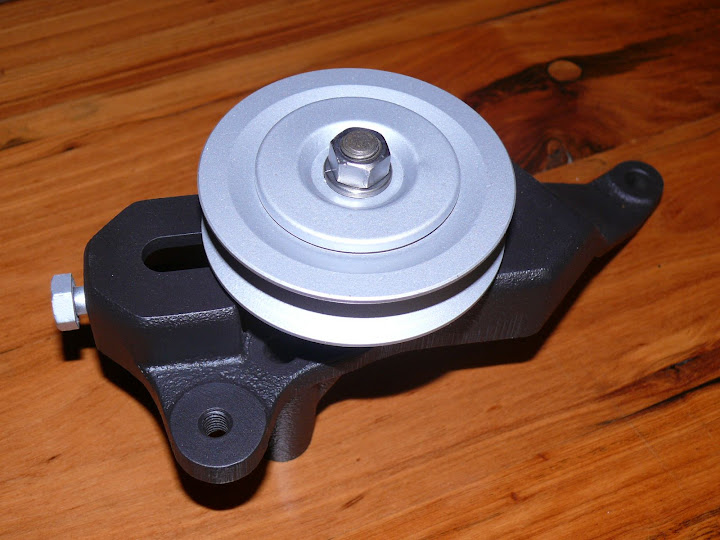

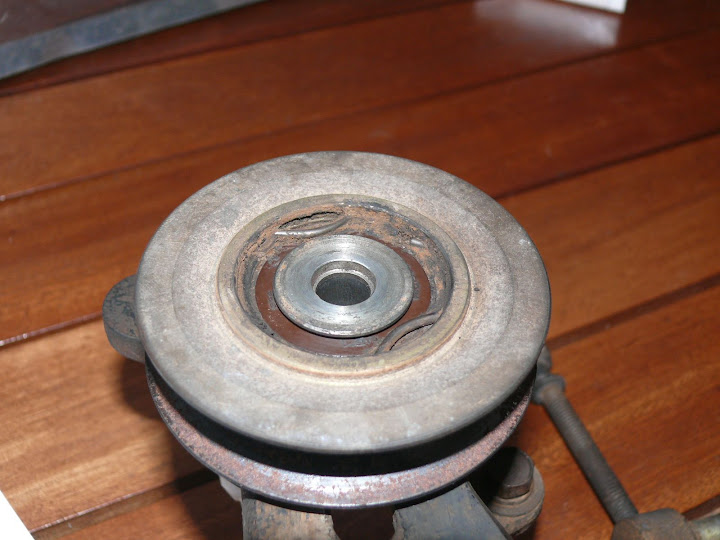

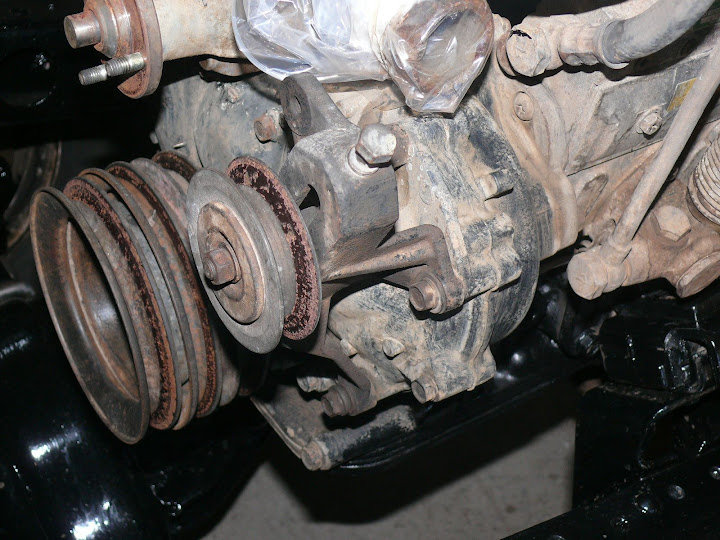

Tensioner pully needed a new bearing

All done and ready to be installed

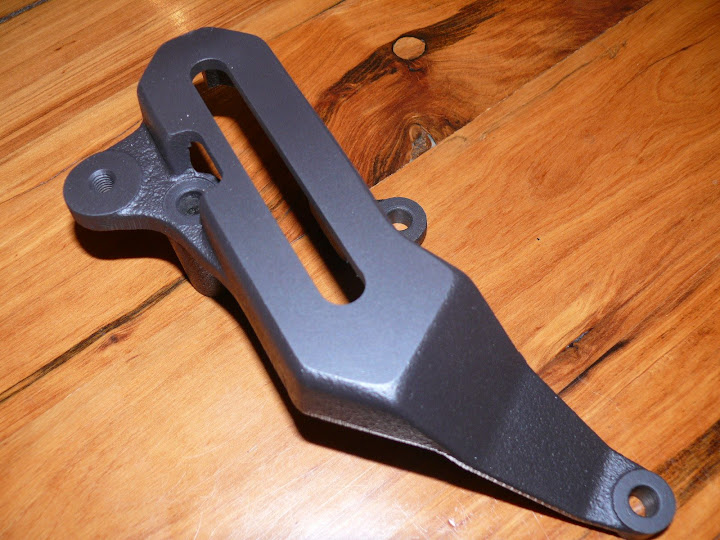

Both cleaned and prepped

Done

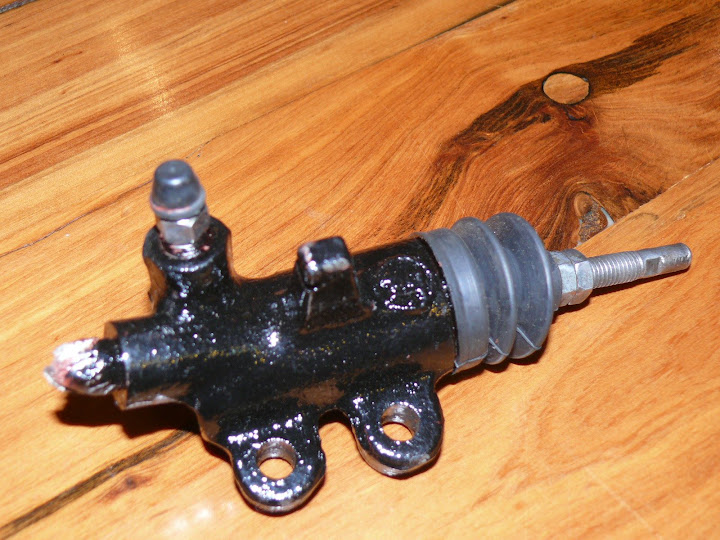

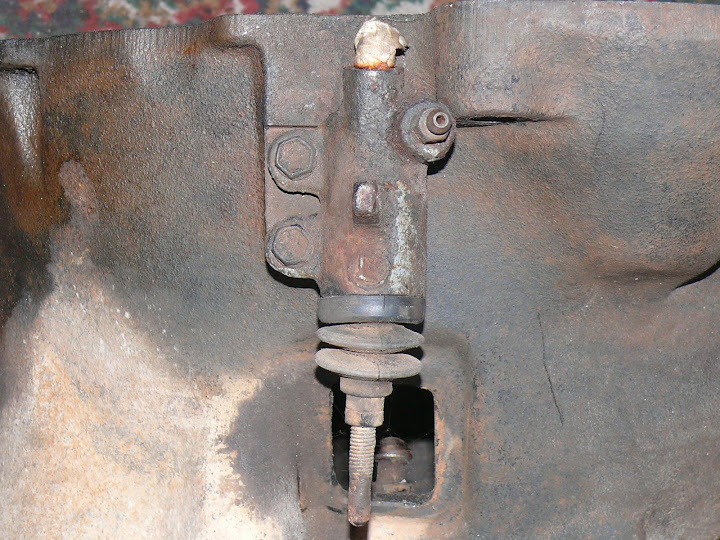

Clutch release cylinder needed a rebuild kit and some paint

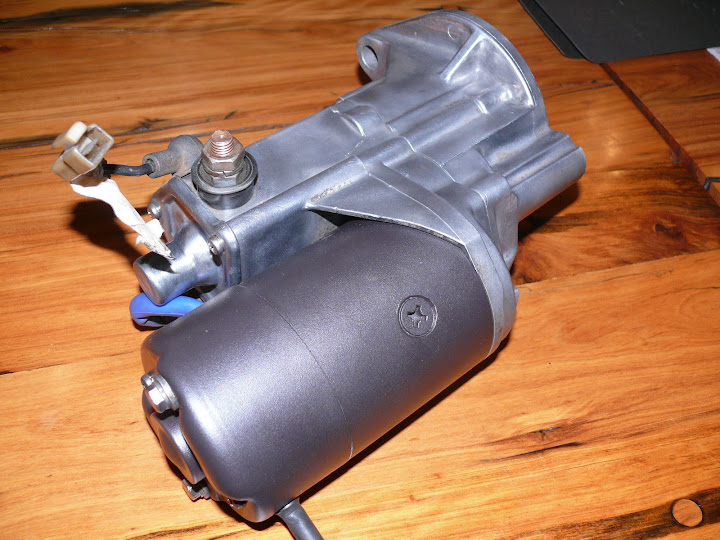

Fortunately the Starter only needed a good clean , some new grease and some paint ..

Before

After

tmarx · 01-30-09, 12:28 PM

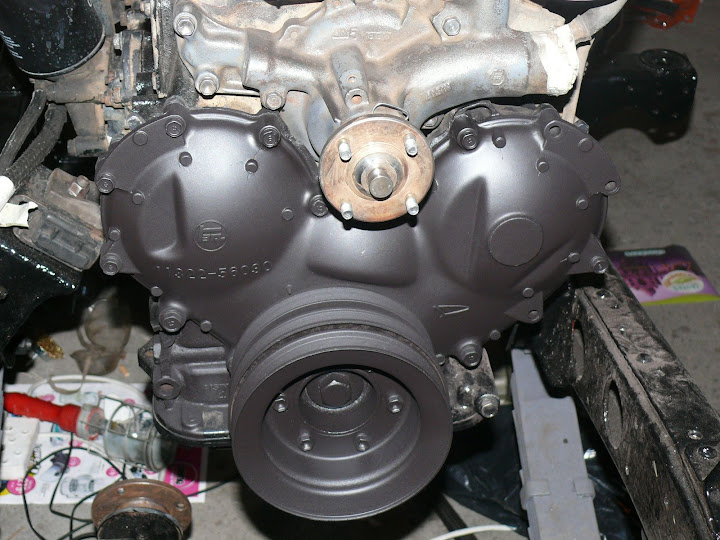

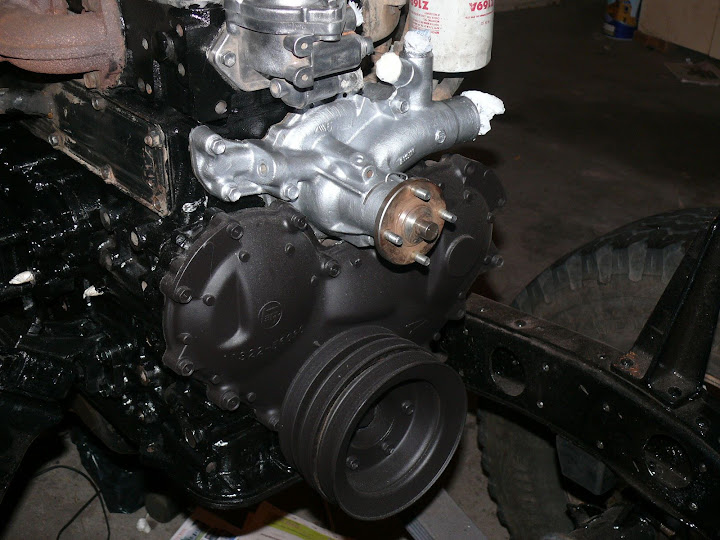

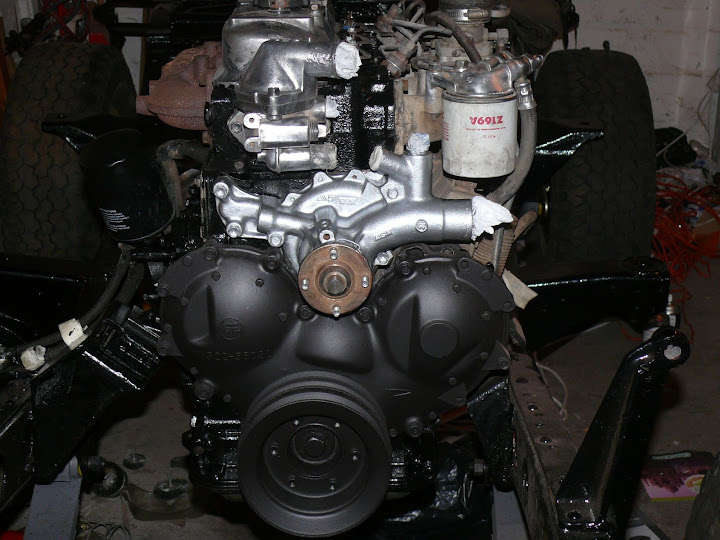

Timing gear cover and crank pully

Waterpump housing

Thermostat housing

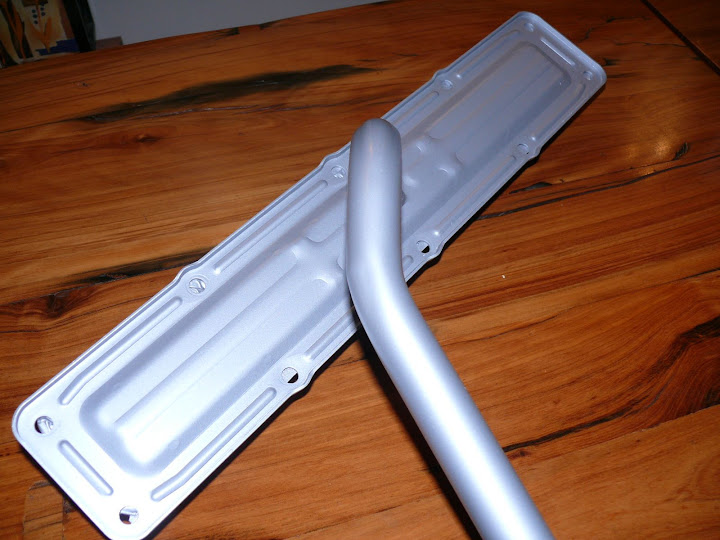

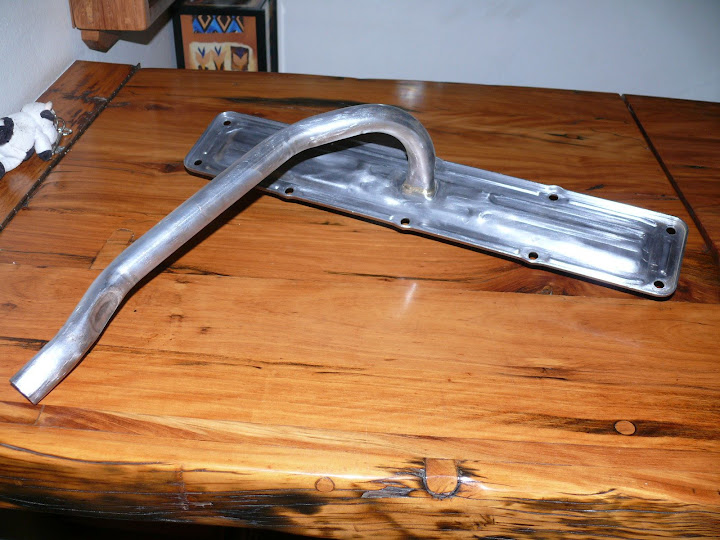

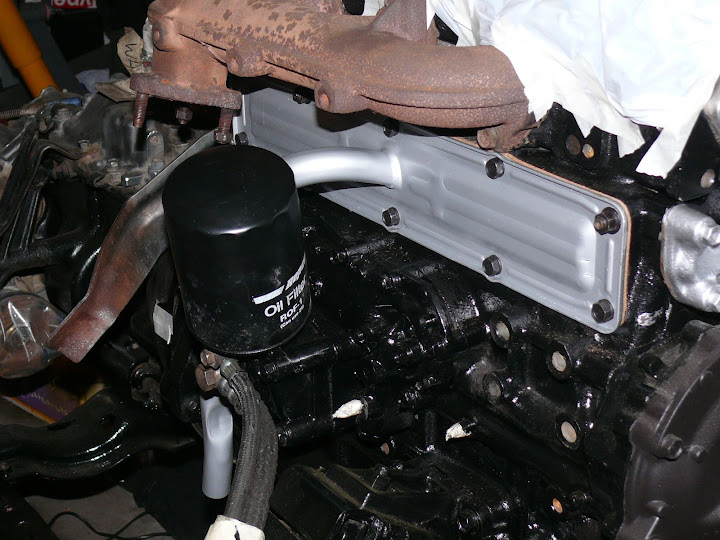

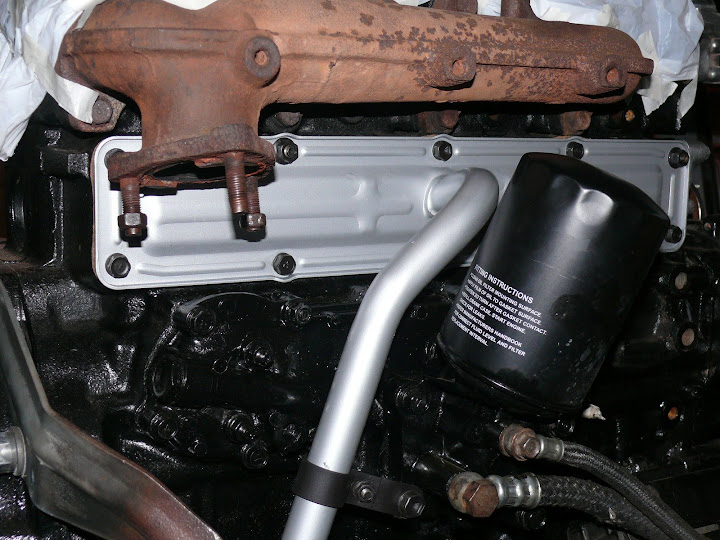

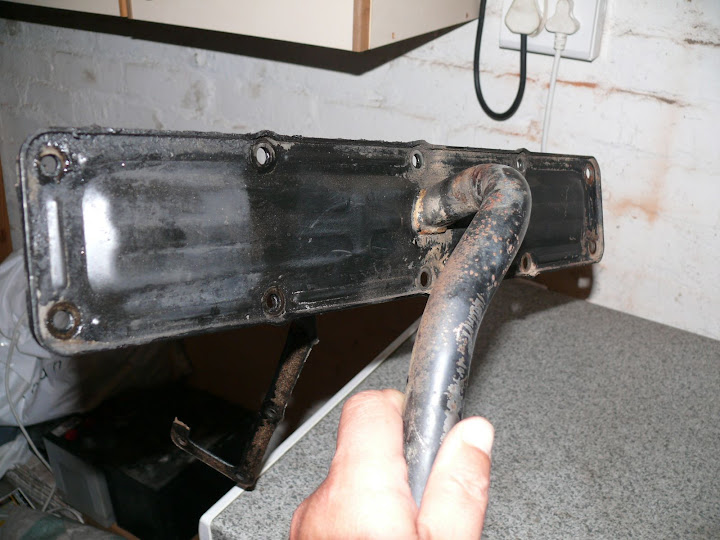

Next it was the turn of the crankcase ventcover

After hours of sanding

Finally done

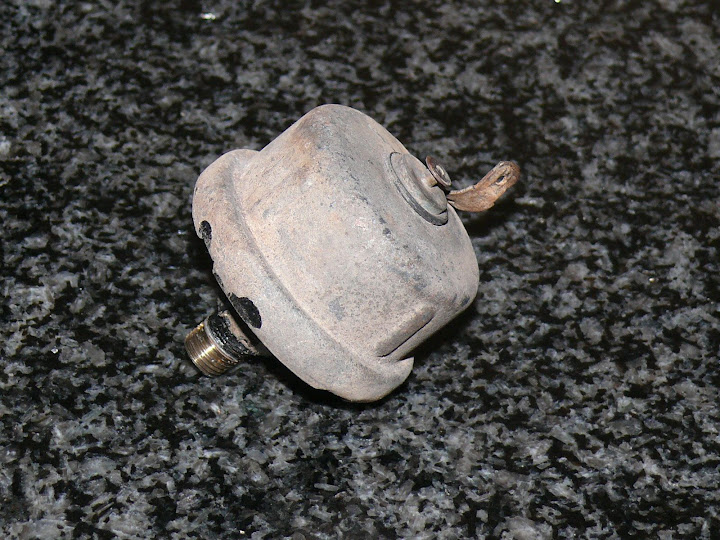

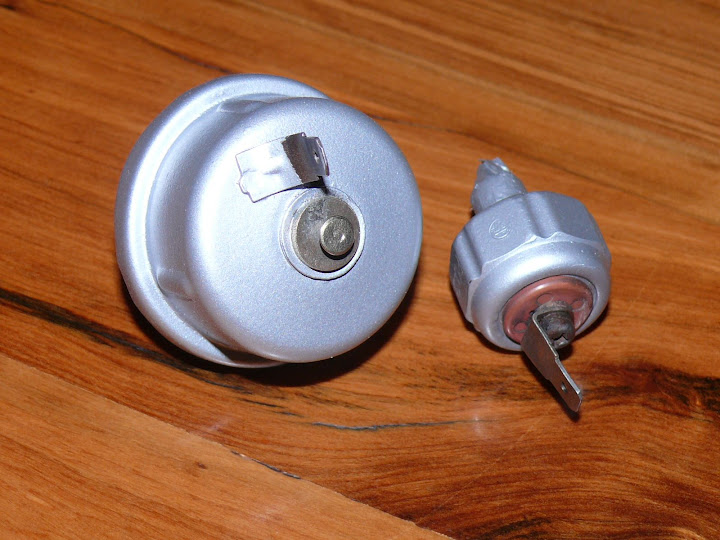

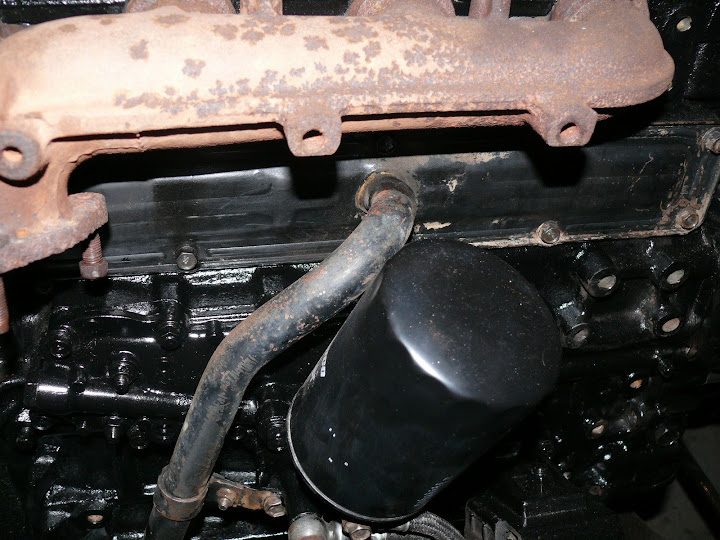

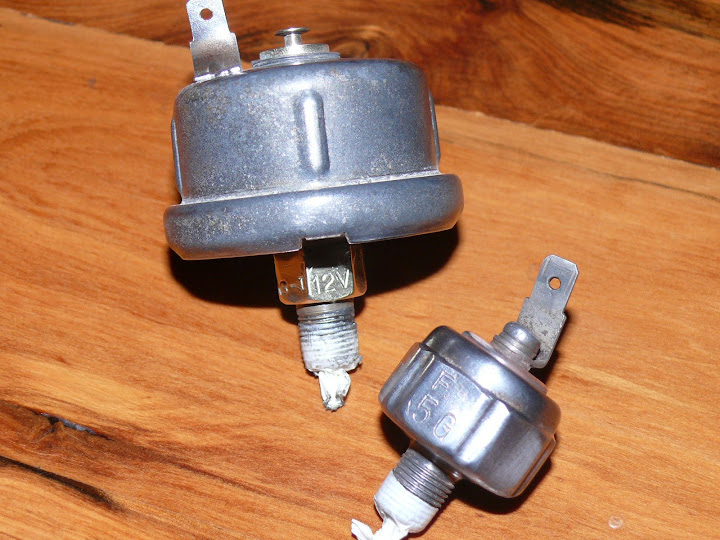

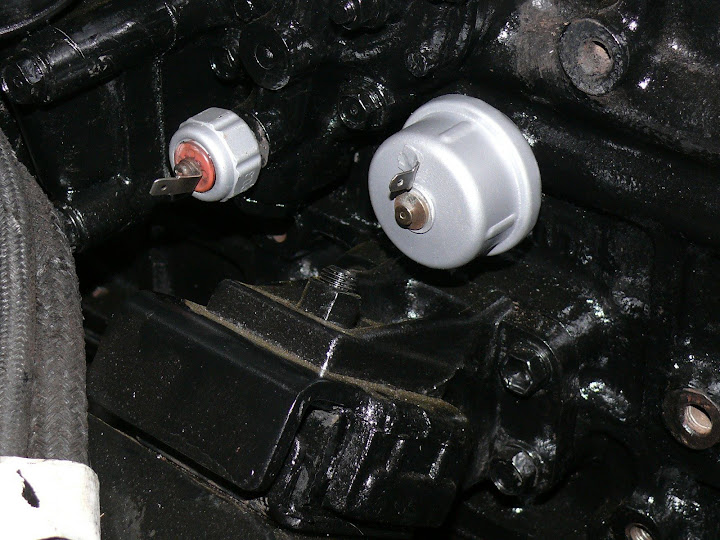

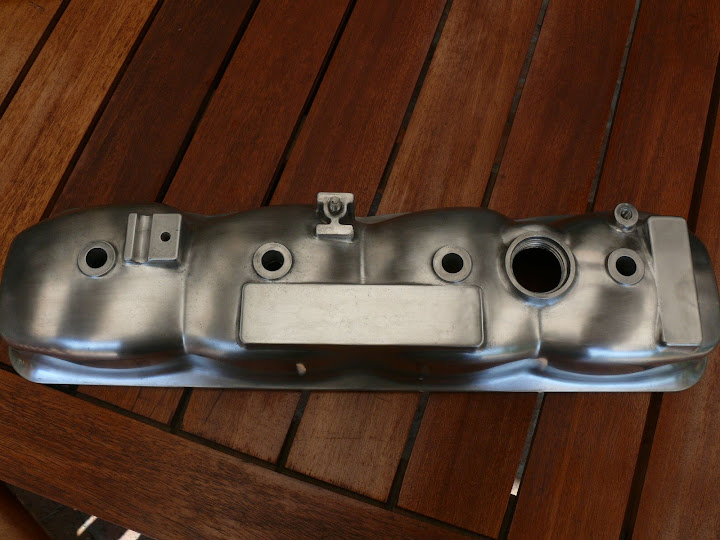

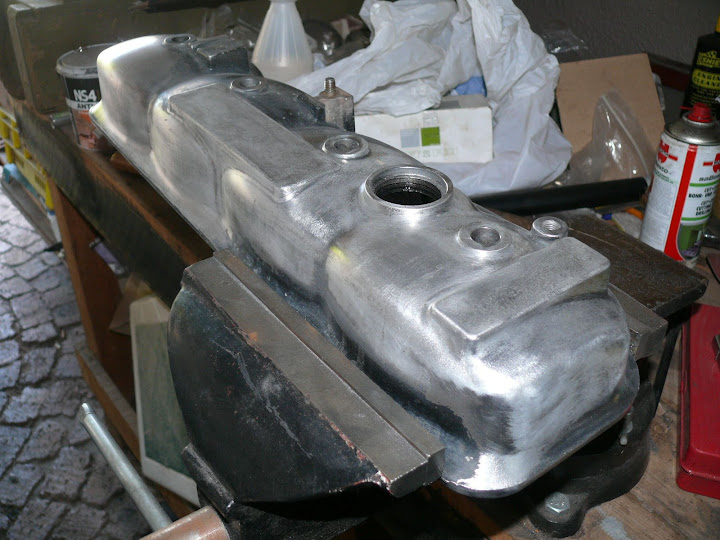

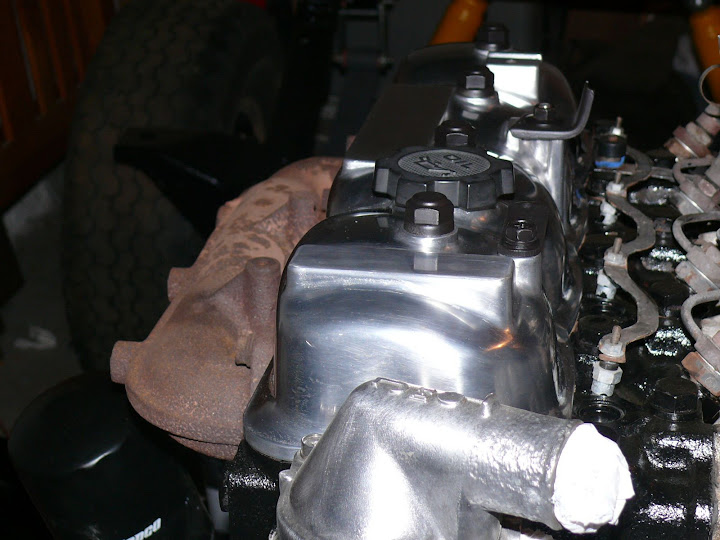

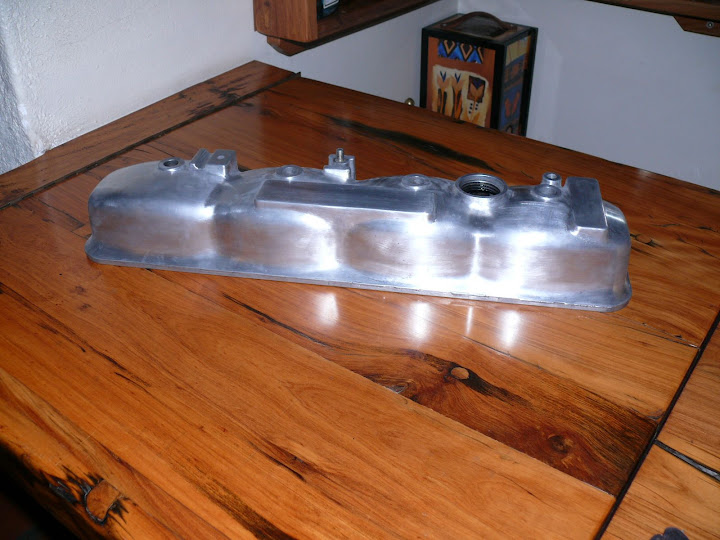

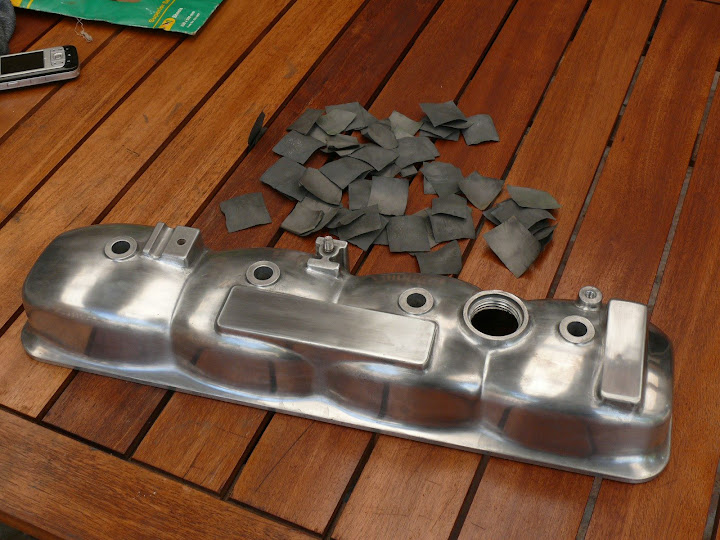

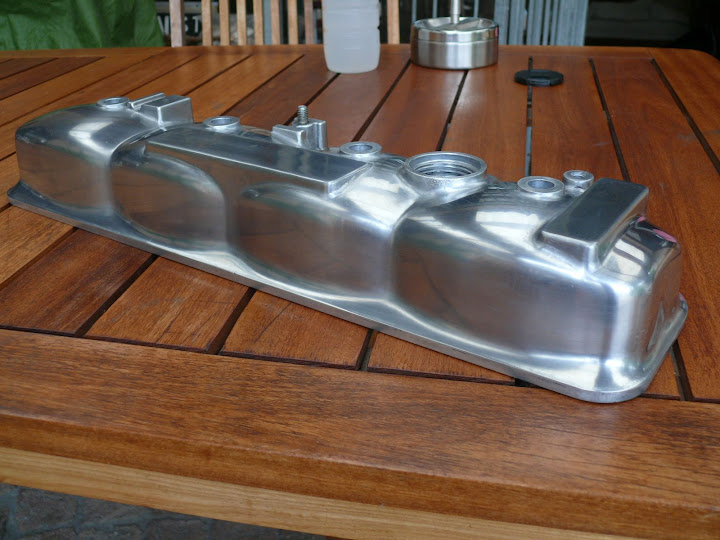

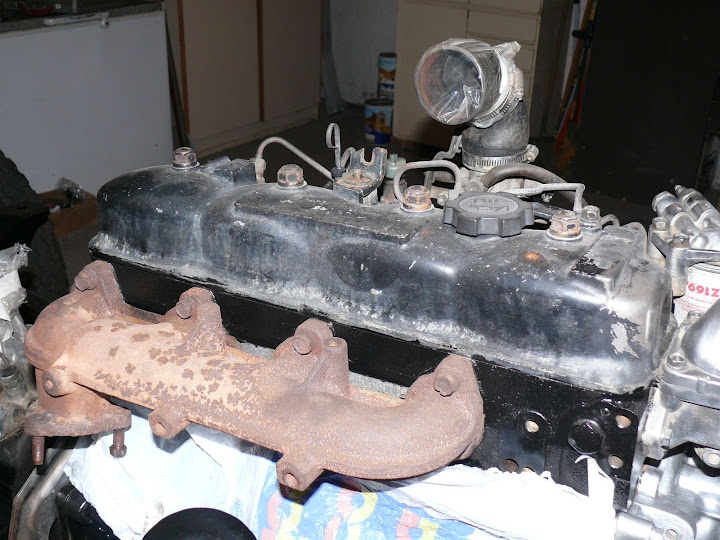

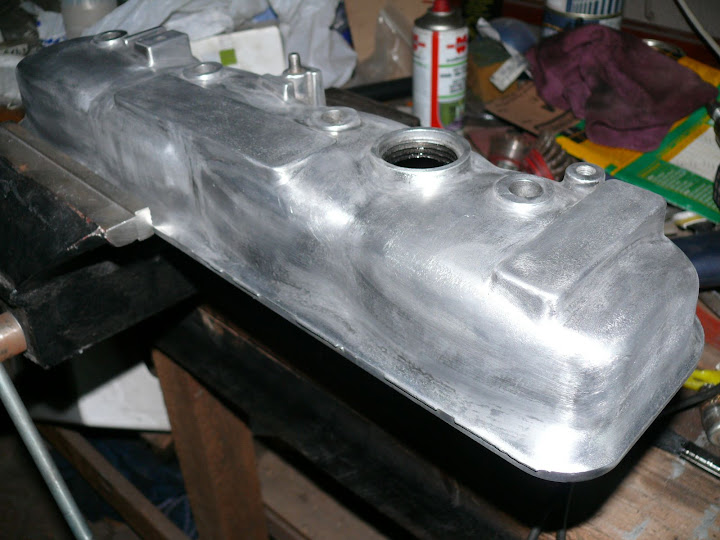

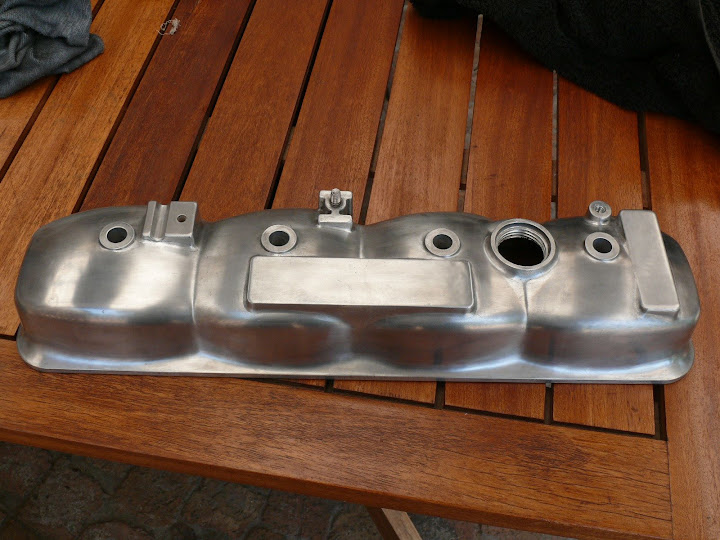

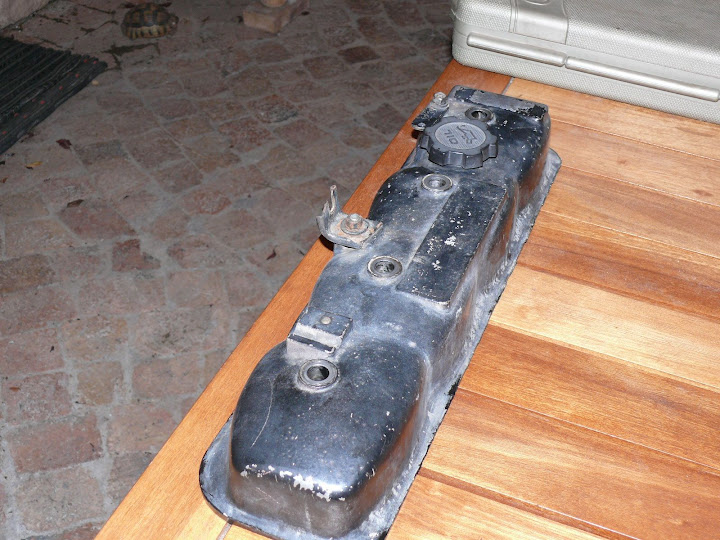

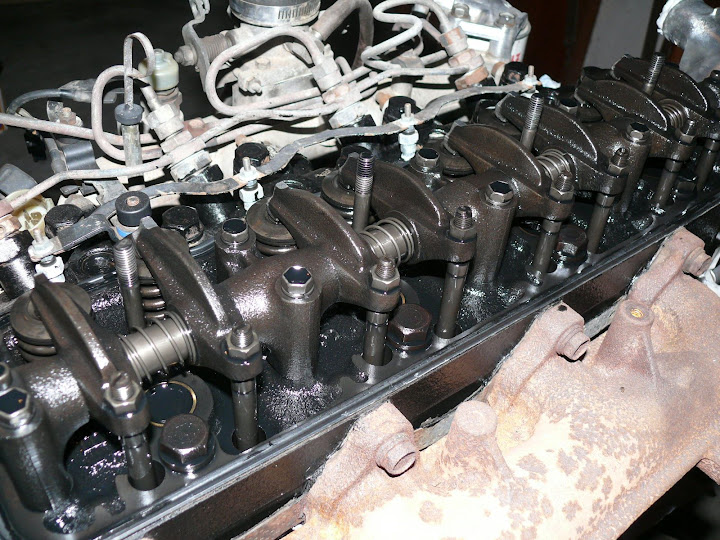

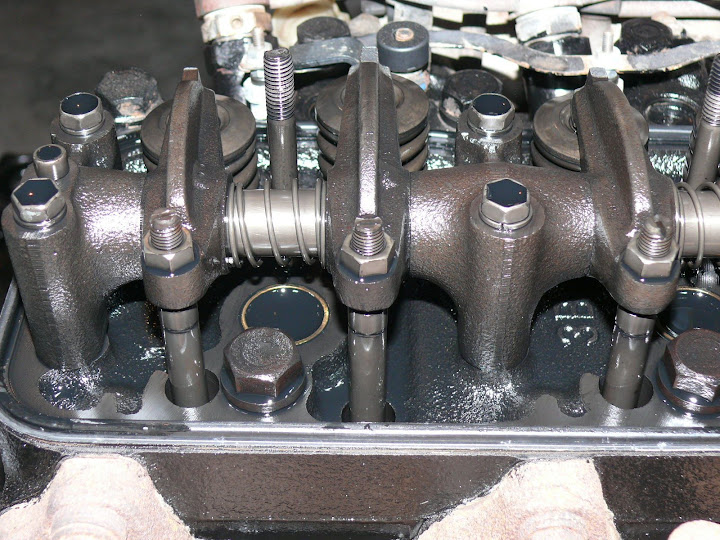

Next up the Rocker cover

After 2 hrs of sanding ..

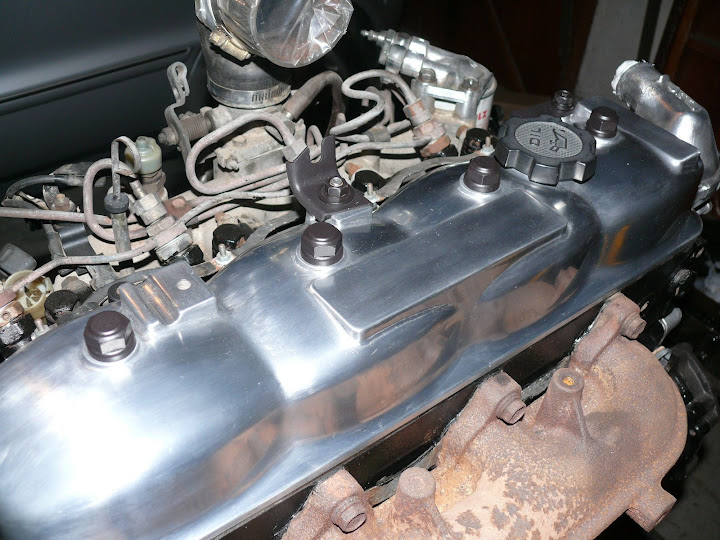

About 5 hrs ..

bsmith123 · 01-30-09, 05:45 PM

Wow

You've made some good progress there! Looks great!

tmarx · 02-02-09, 06:33 AM

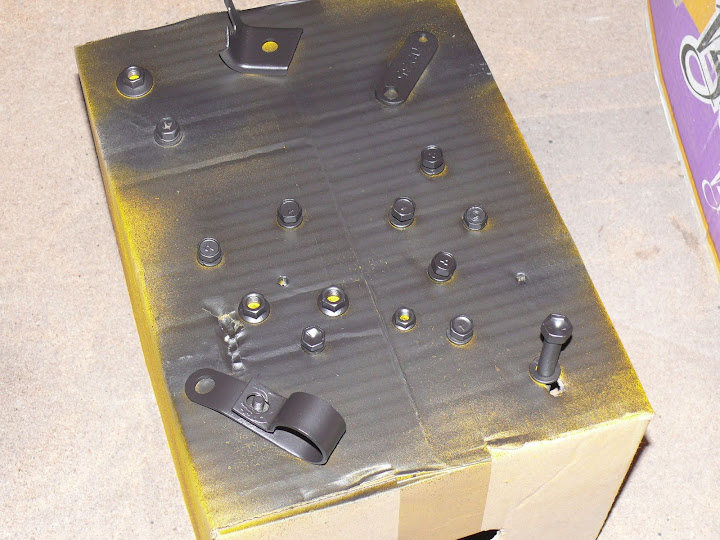

Inbetween the sanding and painting odd bits and pieces ..

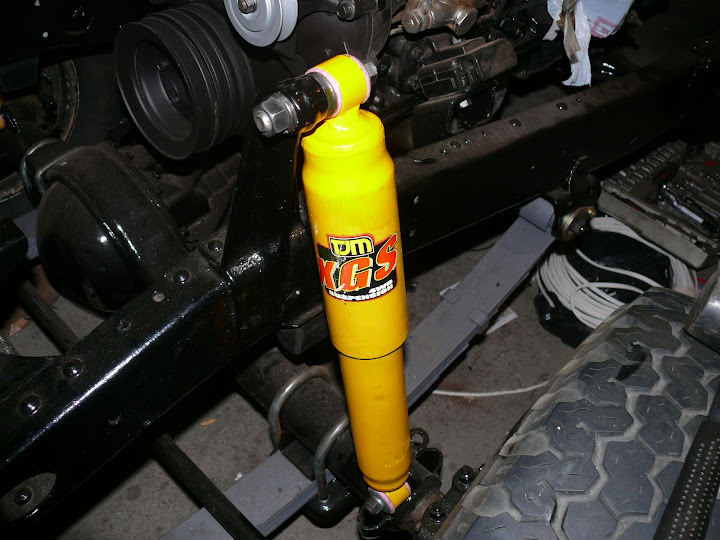

.. I got a few other issues resolved this weekend. My old shocks were totally shot but I couldn't go buy new untill I had decided on and physically received my new leafs.So I needed a temprory fix.Luckily help came in the form of a friend who gave me a good set of 2nd hand shockies off his 79 ser. Although the shockies could compress and extend further than my old ones, the front shockies needed some modification ...

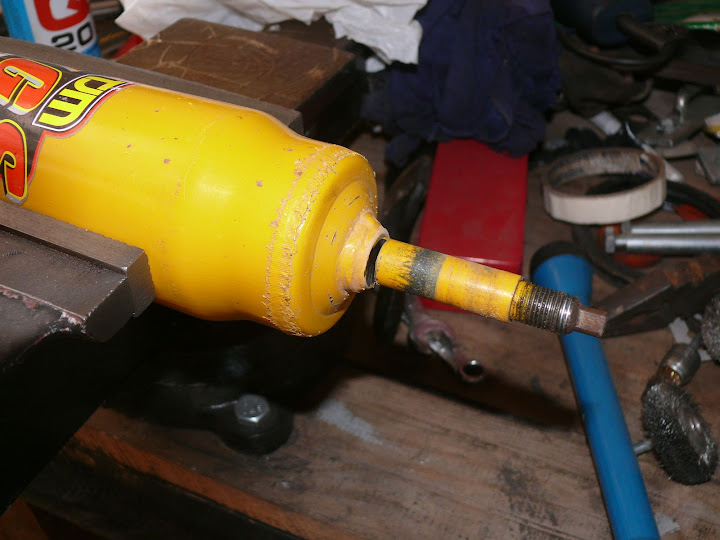

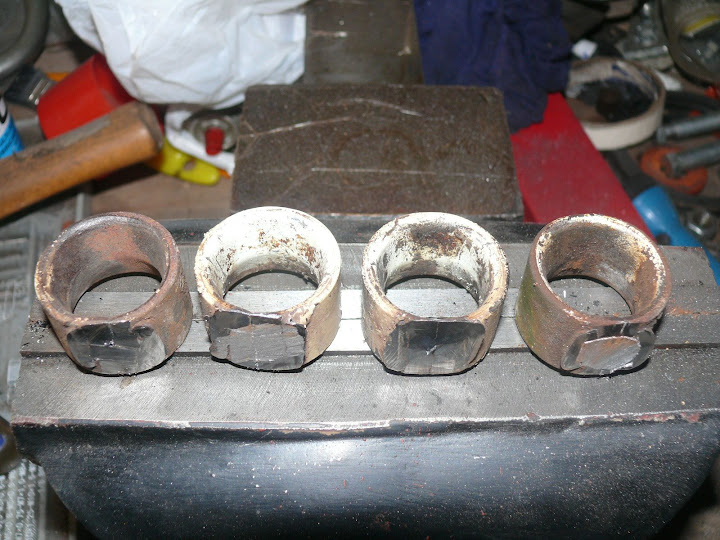

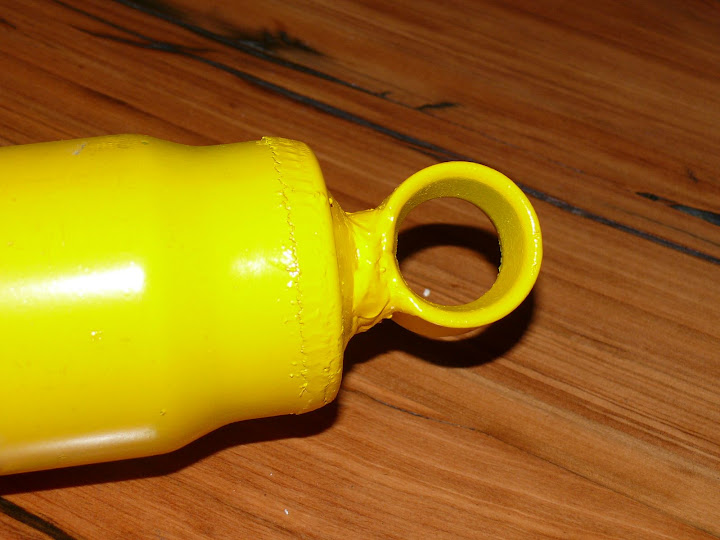

I cut the eyes from the old shocks

and welded them to the "new" ones. Welding to the shaft-side of the shockies was fine but on the tube-side we had to be very slow & carefull not to get the seals damaged from the heat.
All done and painted...

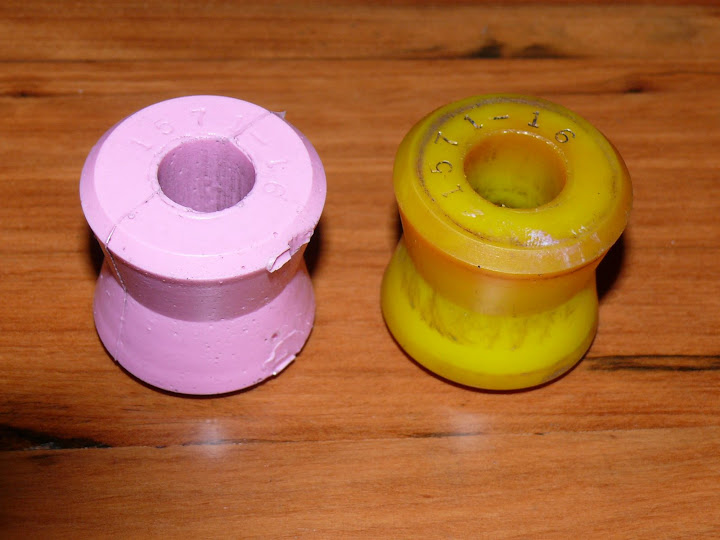

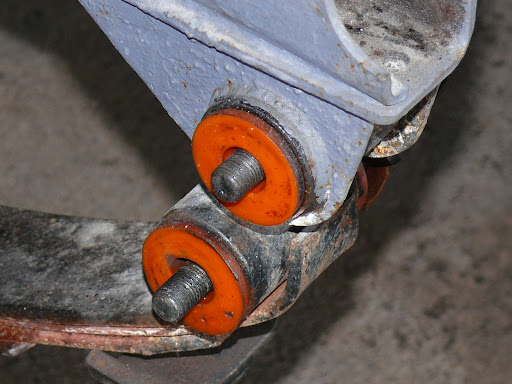

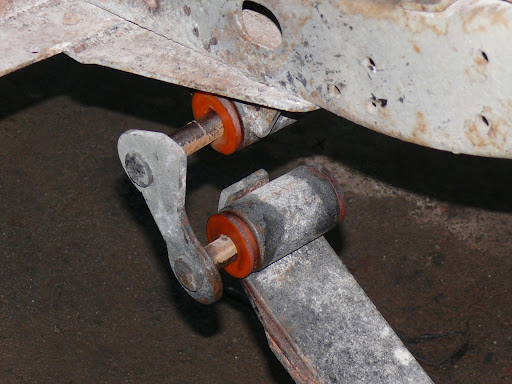

Obviously nothing is ever plain sailing and so I had to get some custom bushes made. Swambo's hand clearly visible in this regard ....

Note how accurately the mould is made that even the part no #'s are the same

All done

Not too bad for a temporary fix untill my new leafs arrive from the US ?

Roberto · 02-02-09, 05:54 PM

looking good brother, looks like we r tracking, I hope to have my engine cradled in the frame in a couple weeks. Keep it up!!!

Rob

M5driver · 02-06-09, 11:35 AM

The questions remains, Theo - do pink bushes give a softer ride?

cruiser enthuiser · 02-06-09, 11:48 AM

Looking good! You have an eye for detail - that's gonna be a sharp rig when you're done. I really like the paint on the engine; that flat black gives it a cool, stealth look. Might have to try that on mine.

Keep it up!

tmarx · 02-06-09, 01:03 PM

Thanks guys, much appreciated !

Dan, I doubt it will give a softer ride but you try telling that to Swambo. She sees it as her contribution to our project ..
