01-01-08, 06:28 PM
|
 #121 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
more
|
|
|
|
01-02-08, 11:11 AM
|
#122 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
Toyota Training Series
Electrical Automatic Transmission
Engine Performance OBD I Auto Trans Diagnosis
Engine Performance OBD II Brakes
Hybrid Electrical (New 623 Course)
Hybrid Diagnosis Web Series
see link: (click on "Technical Articles")
Automotive Training and Resource Site
|
|
|
|
|
01-05-08, 01:07 PM
|
#123 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
two toyotas ....thanks BIGREDFJ40
1972
|
|
|
|
|
01-05-08, 01:10 PM
|
#124 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

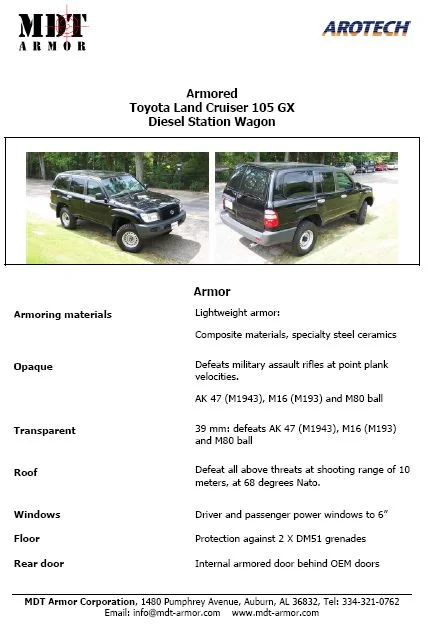

armored 80...nice rear doors in USA to boot and diesel
|
|
|
|
|
01-06-08, 08:40 PM
|
#125 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
got from toyota epc
Engines........years.............................. ......TLC's
F.............6903 - 7501.................Fj40, Fj42, Fj43, Fj45,Fj55
2f............7501 - 8604.................Fj40, Fj43, Fj45,Fj55,Fj60
3f............8411 - 9301..................Fj62
3fe..........8808 - 9208..................Fj62,Fj80
1fz-fe.......9208 - 9801.................Fzj80 (uj80)
22r...........8008 - 9305.................Rj70
22r-e........8812 - 9604.................Rj70, Rj73
3rz-f.........9309 - 9505+...............Rzj90, Rzj95
3rz-fe..........................................Rzj90, Rzj95
5vz-fe.......9604 - ........................Vzj90 (vj90), Vzj95 (vj95)
B..............7402 - 8808.................Bj40, Bj43
2b.............7708 - 8204................Bj55
3b.............8008 - .......................Bj42, Bj45, Bj46,Bj60,Bj70, Bj73, Bj75
13b-t.........8510 - 8608................Bj71
H..............7204 - 8104.................Hj45
2h.............8008 - 9001................Hj47,Hj60
12h-t.........8510 - 9001................Hj61
1hz............9001 - 9801...............Hzj70, Hzj73, Hzj75,Hzj80 (pj80)
1hd-t..........9001 - 9501...............Hdj80 (tj80)
1hd-ft..........9501 - 9801..............Hdj80 (tj82)
1pz..............9001 - 9208..............Pzj70, Pzj73, Pzj75
2l................8401 - 9712+.............Lj70
2l-t..............8510 - 9608+.............Lj70, Lj73, Lj77
2l-te.............................................Lj7 1, Lj78
3l.................8908 - 9707+.............Lj72, Lj79,Lj90, Lj95
1kz-t............9305 - 9604................Kzj70, Kzj73, Kzj77
1kz-te...........9604 -.......................Kzj90 (gj90), Kzj95 (gj95)
Last edited by JohnnyC; 01-06-08 at 09:15 PM.
|
|
|
|
|
01-13-08, 01:45 PM
|
#126 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

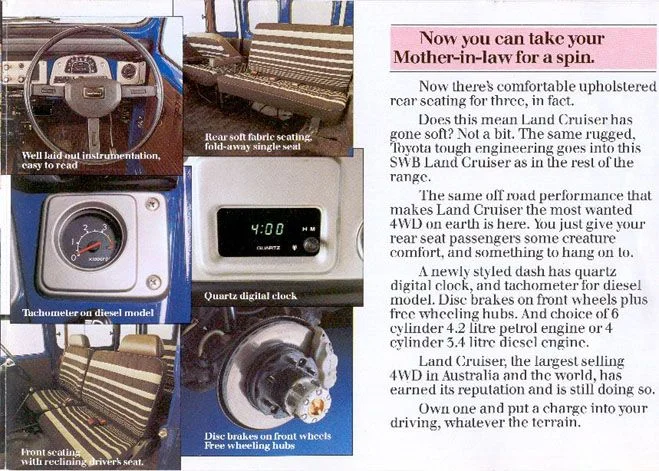

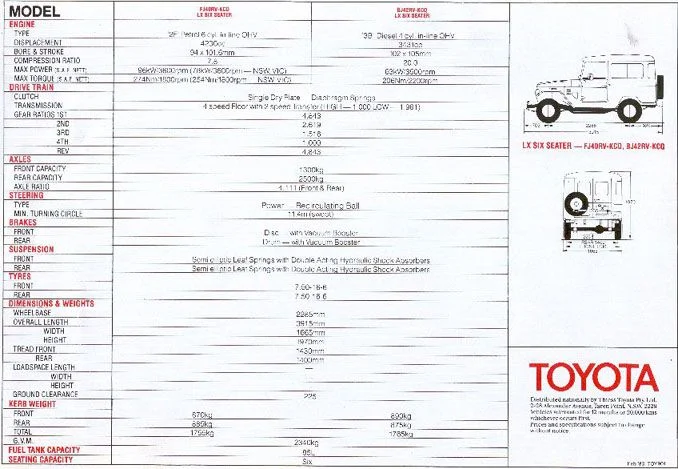

these lx factory literature is from our very own 'Otis' here on Mud ...what a great find....thanks Otis !
|
|
|
|
|
01-13-08, 01:47 PM
|
#127 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
and last page of the LX from Otis
|
|
|
|
|
01-13-08, 02:23 PM
|
#128 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

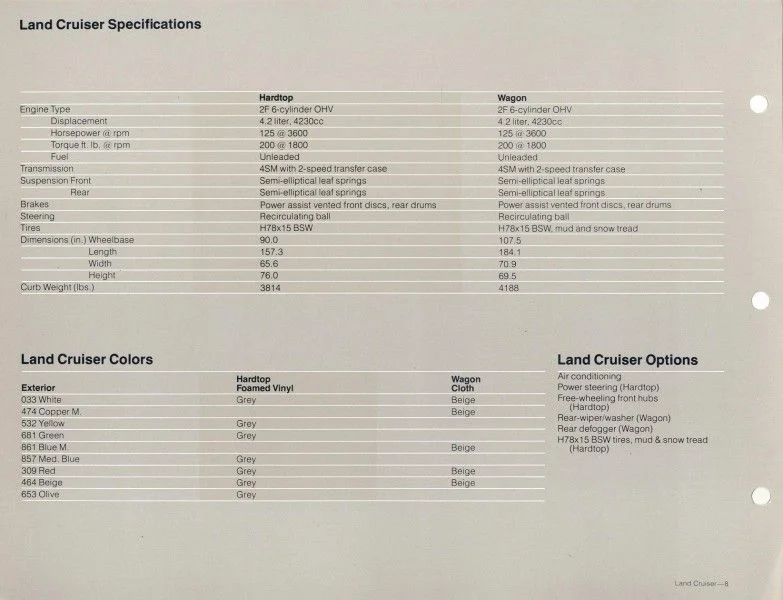

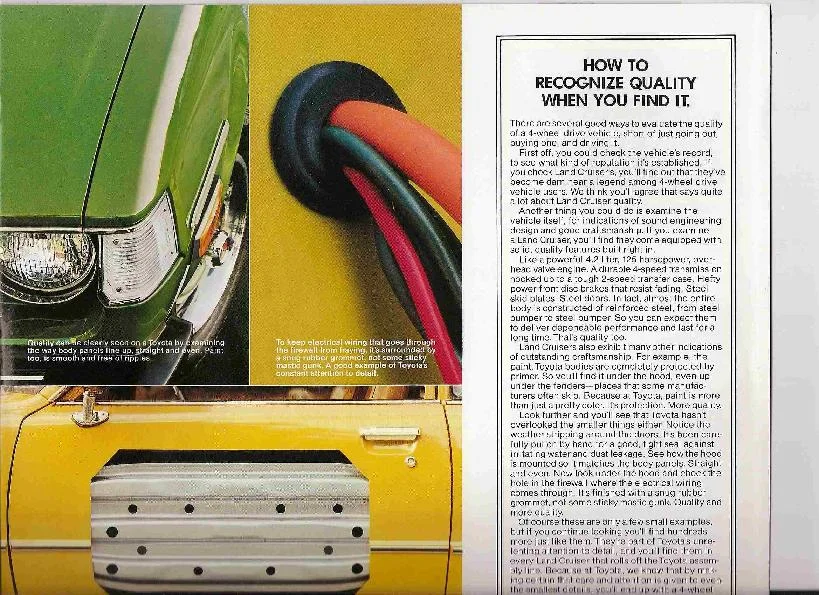

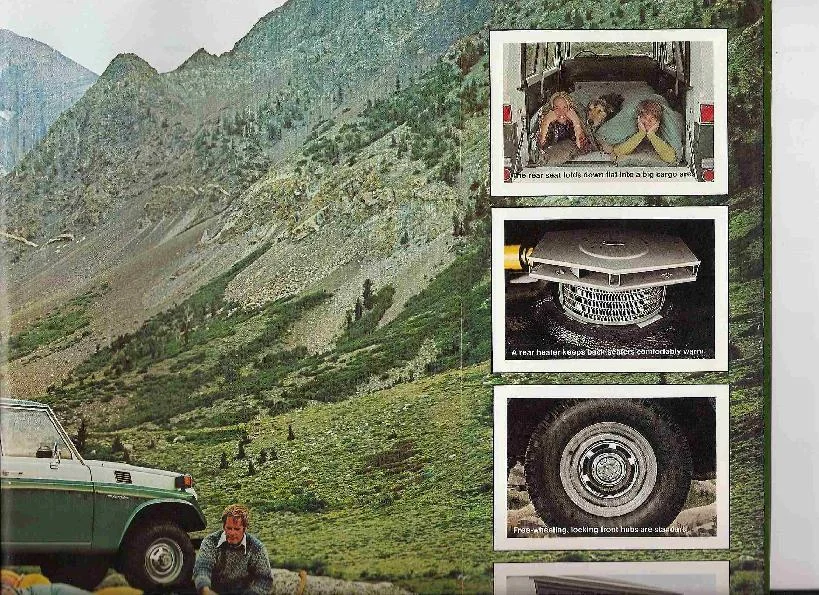

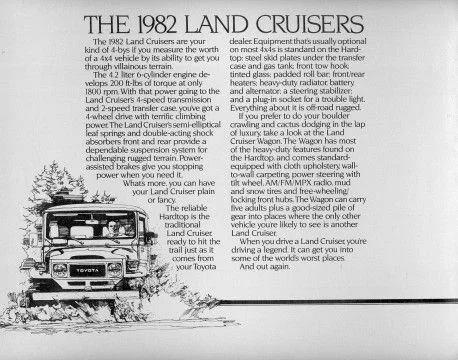

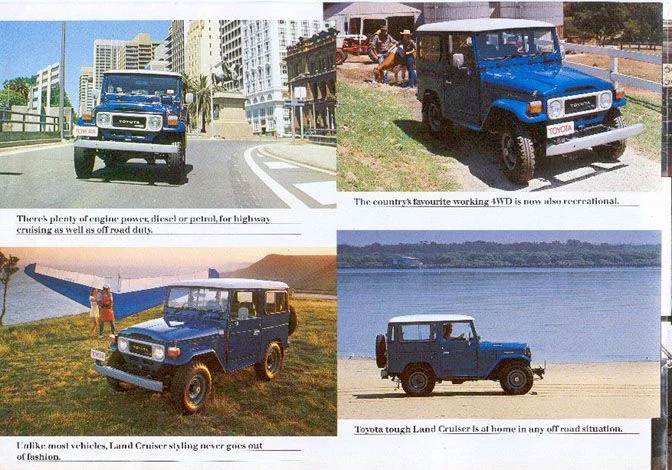

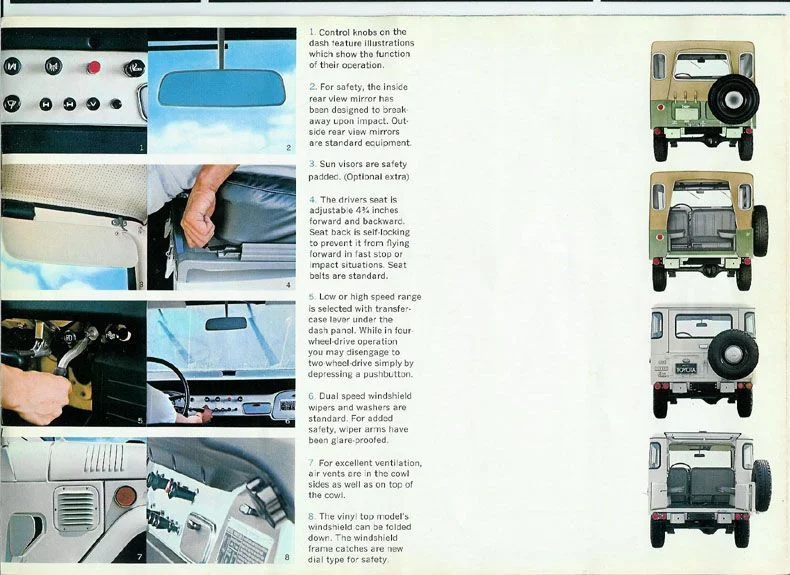

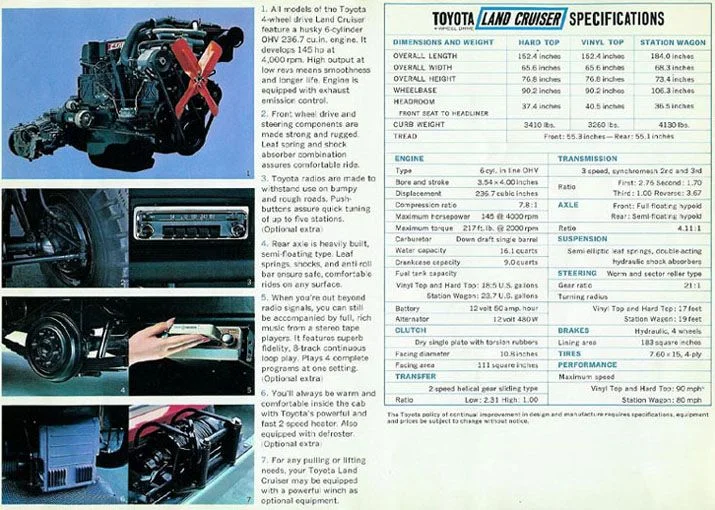

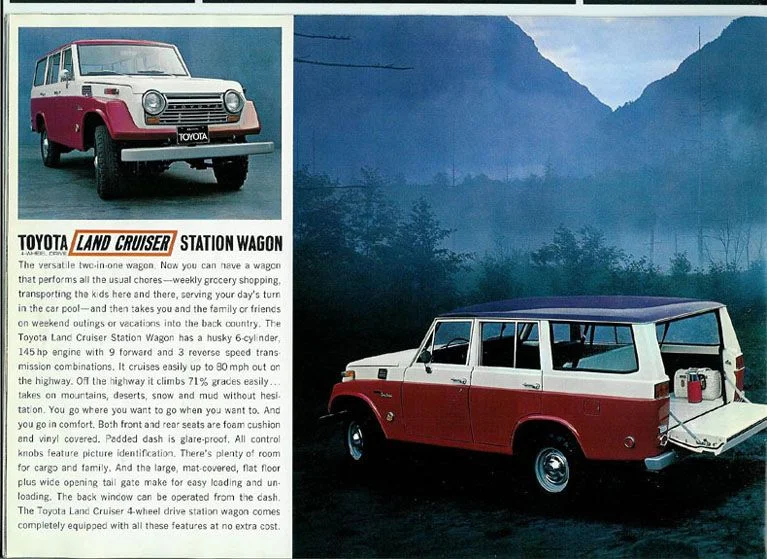

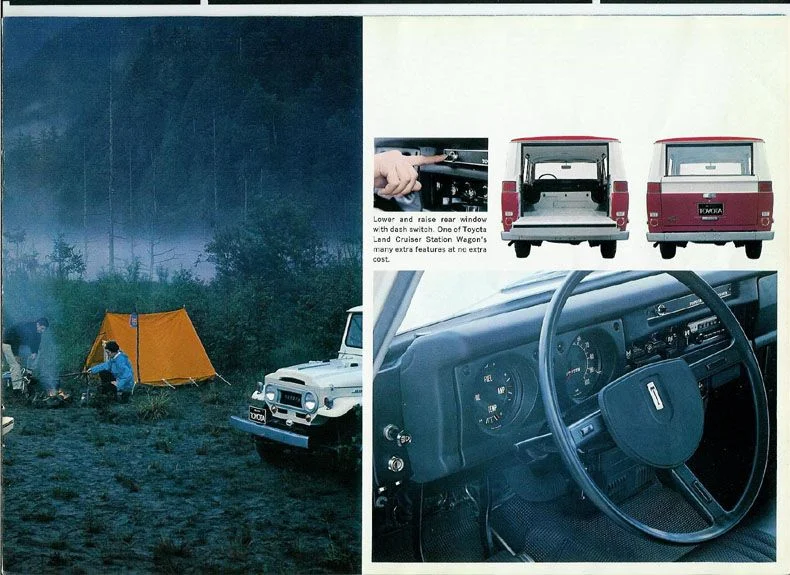

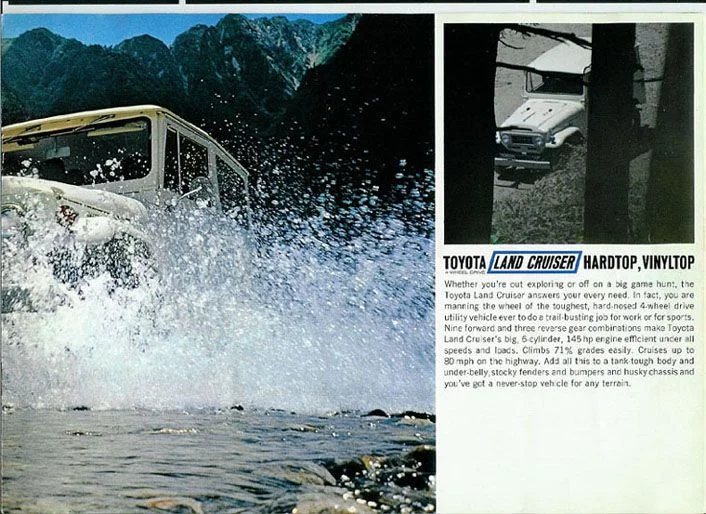

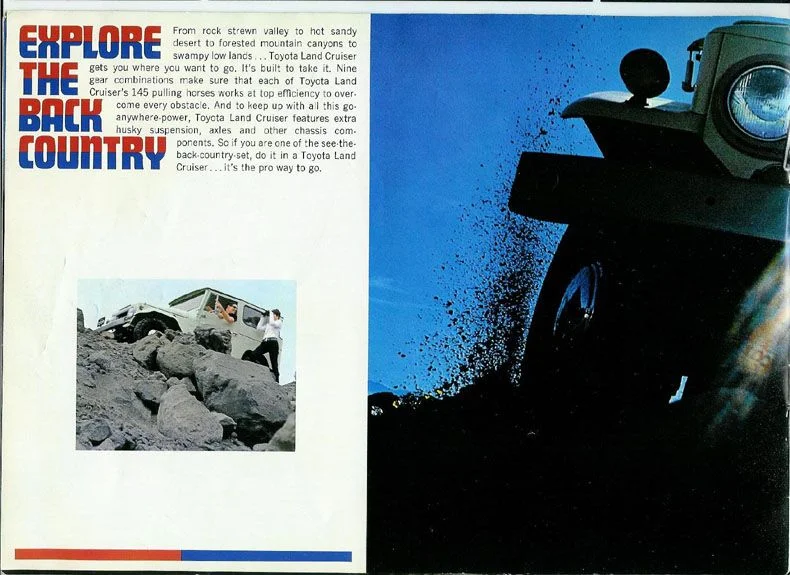

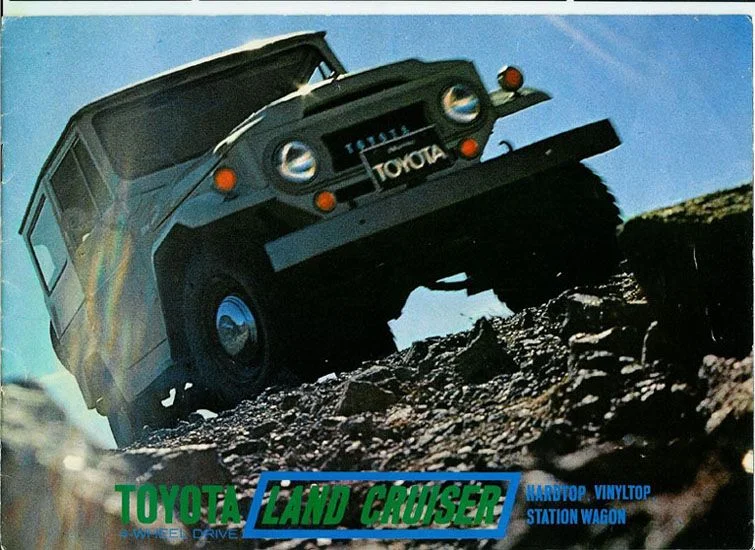

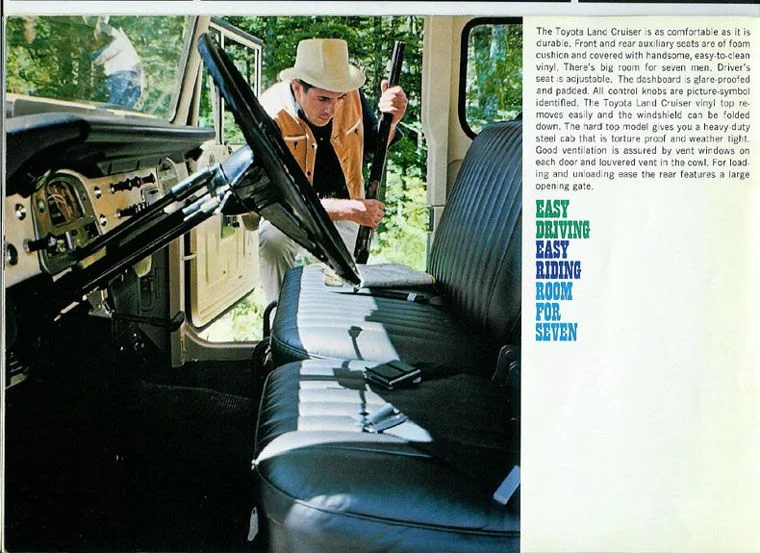

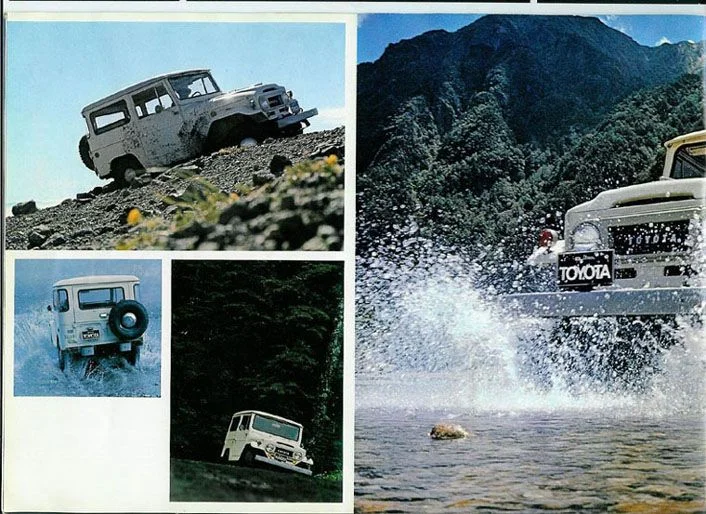

some from my original lit
|
|
|
|
|
01-13-08, 02:27 PM
|
#129 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
pg 4,5,6
|
|
|
|
|
01-13-08, 04:32 PM
|
#130 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
7,8,9
|
|
|
|
|
01-13-08, 04:35 PM
|
#131 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
10,11,12 (last pg)
|
|
|
|
|
02-03-08, 12:53 PM
|
#133 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
two more
|
|
|
|
|
02-04-08, 06:35 PM
|
#134 (permalink)
|
|
Forum Regular
Join Date: Apr 2007
Location: Wellington, New Zealand
Posts: 71
|
if anyone is wanting the toyota factory workshop manuals, i have one for the FJ40 - covers body and chassis, and also one for the 2F engine.
- Dave
|
|
|
|
02-08-08, 05:57 PM
|
#135 (permalink)
|
|
Site Addict
Join Date: Feb 2004
Location: Cloverdale B.C. Canada
Posts: 2,473
|
i have a few that need scanning and a parts catalogue
__________________
Jake S.
FJ40,350 small block ,sm465 ,spring over ,cut-N-turn,saginaw,shackle reversal, 38.5 superswampers, 4 wheel disc brakes, OBA=CO2 ,
Warn 8274 ,4x4 labs high steer,Marlin chromo birfs ,lunchbox lockers(front+rear) ,Metaltech Jackson cage
 ... ROTW:PBGBOTTLE
.... ... Cardomain Pics
.
|
|
|
|
|
02-08-08, 06:38 PM
|
#136 (permalink)
|
|
Forum Lifer
Join Date: Sep 2007
Location: New Zealand
Posts: 3,046
|
Quote:
Originally Posted by pbgbottle
i have a few that need scanning and a parts catalogue
|
I'm envious Jake
__________________
Name's really Tom & I have a 1979 Australian-market BJ40 that is RHD and mainly "original" with Toyota PTO winch, 16" split rims, drums all round, B engine, H41 transmission and 12V electrics that I've owned since 1981
A hood is really a bonnet. A fender is really a guard. A windshield is really a windscreen. A zerk is really a nipple. A tire is really a tyre...........
|
|
|
|
|
04-28-08, 09:31 PM
|
#137 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
been some time since i posted up...i was kinda waiting for you guys to get caught up
no body else has stuff to post?

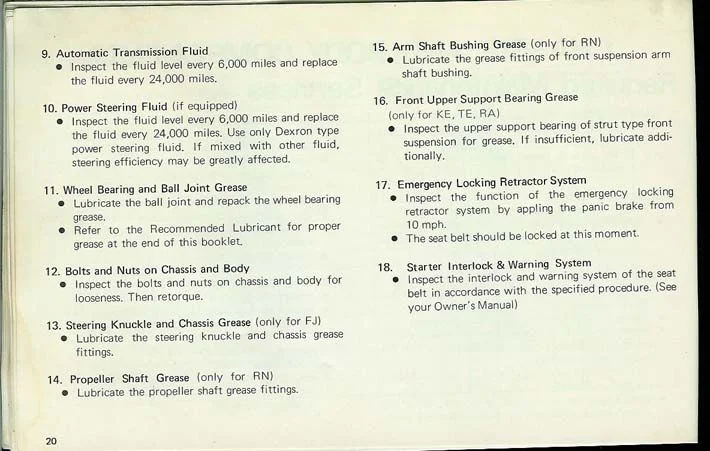

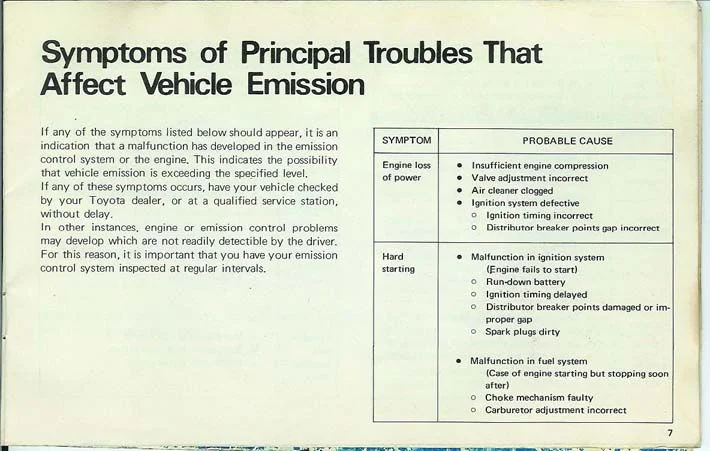

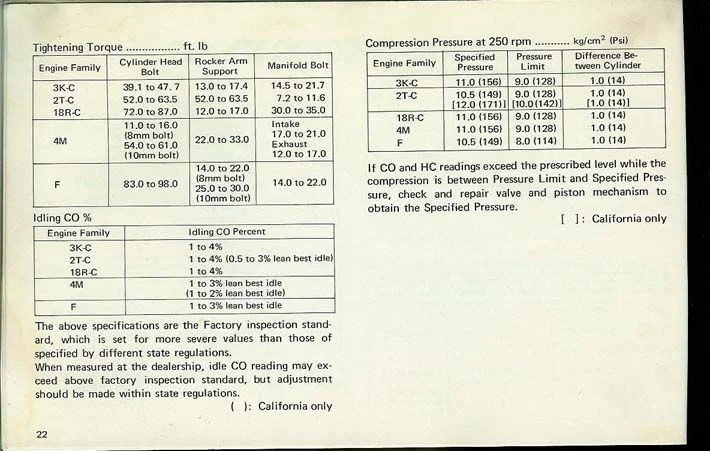

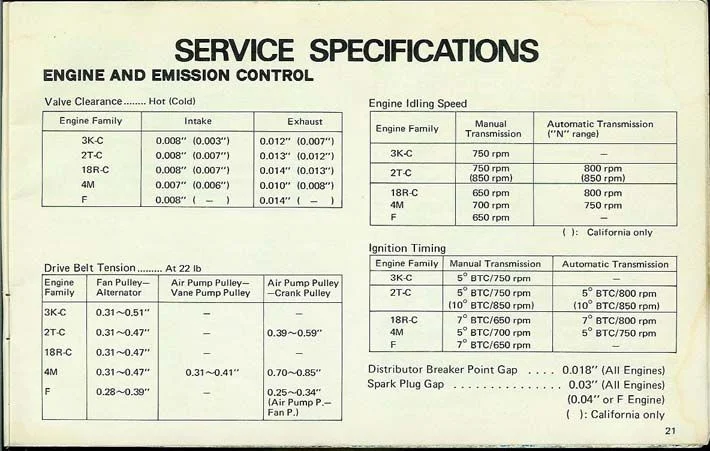

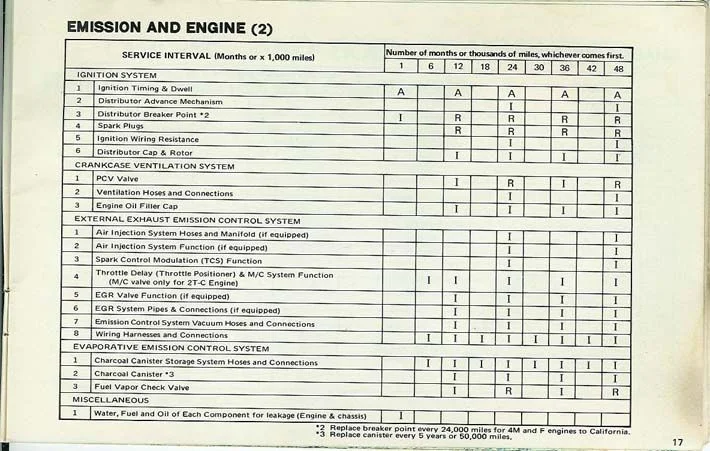

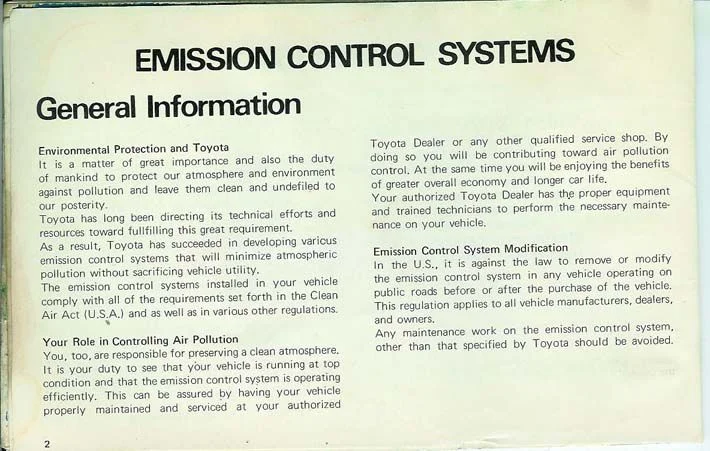

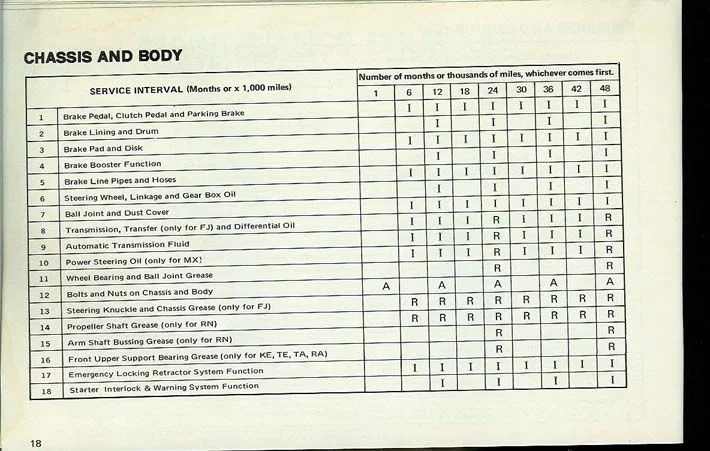

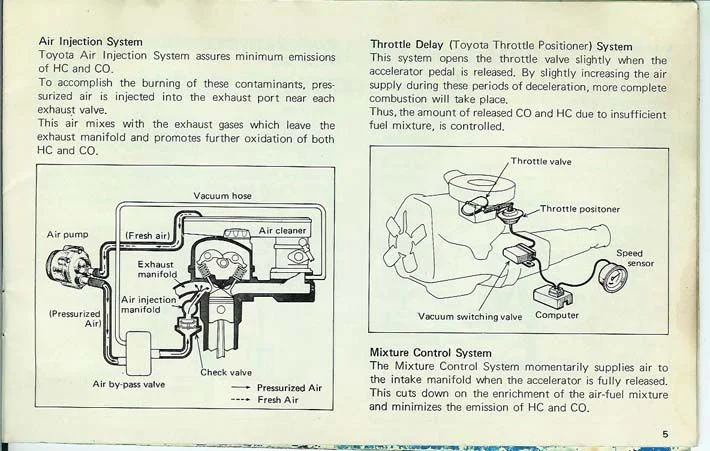

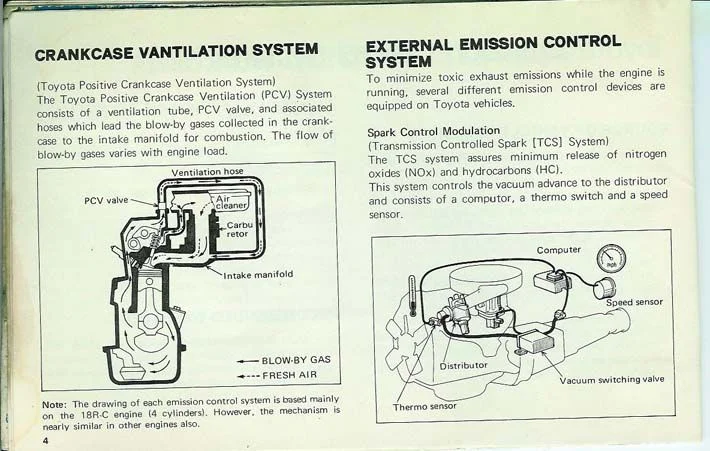

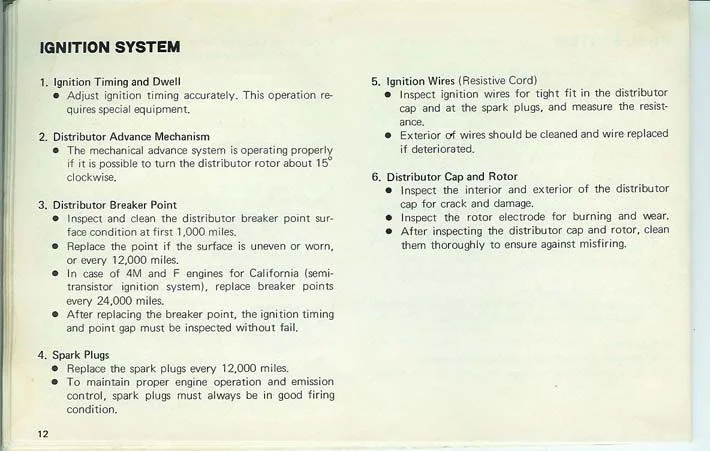

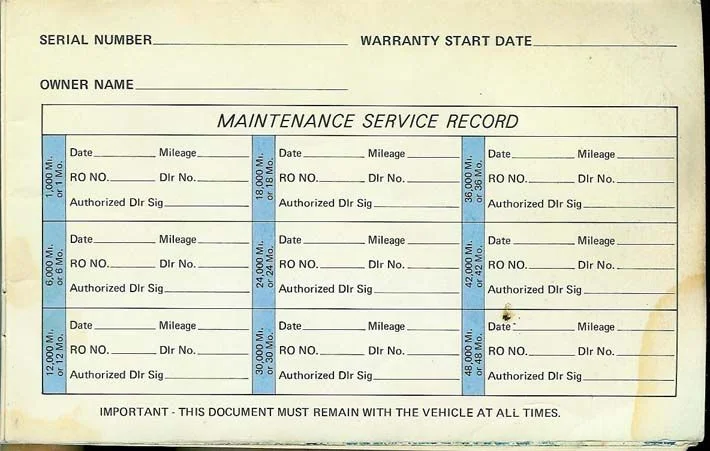

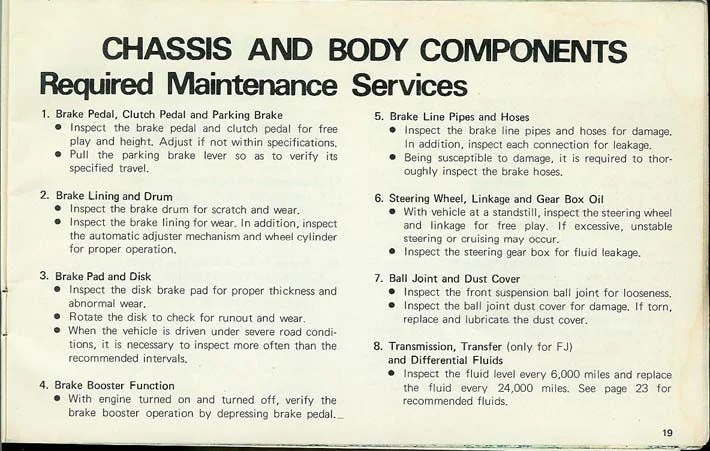

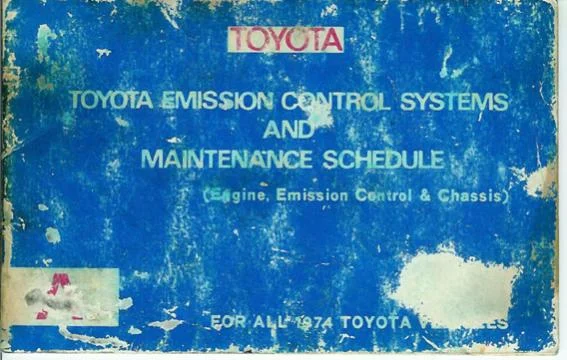

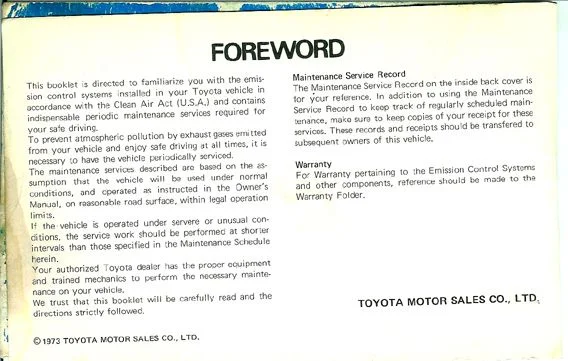

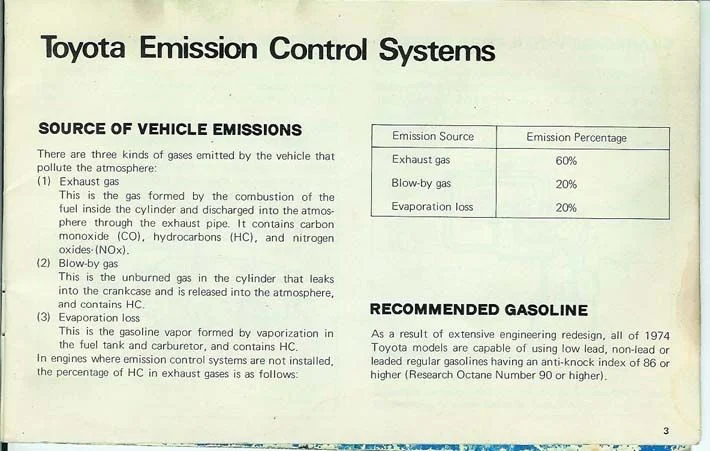

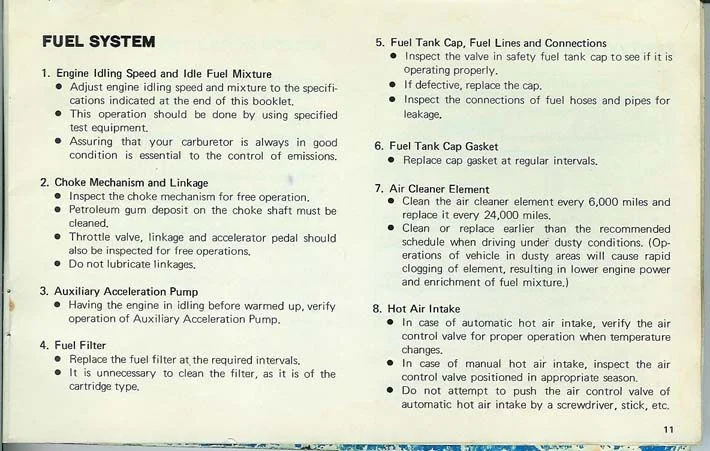

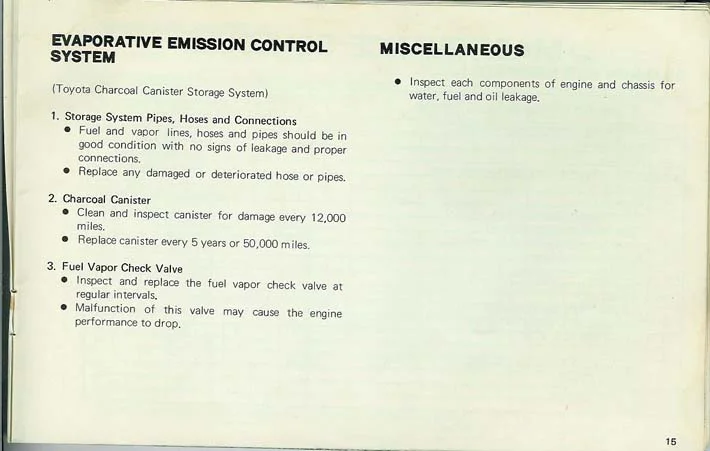

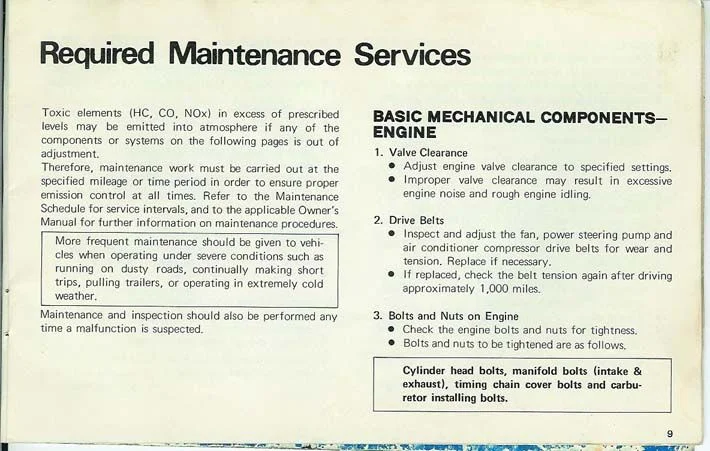

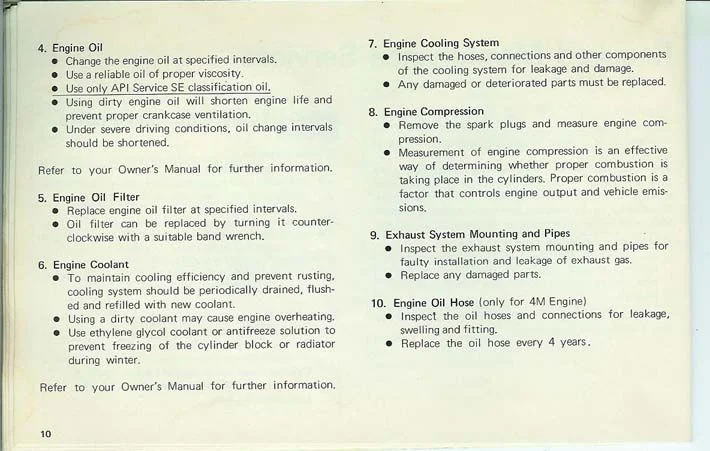

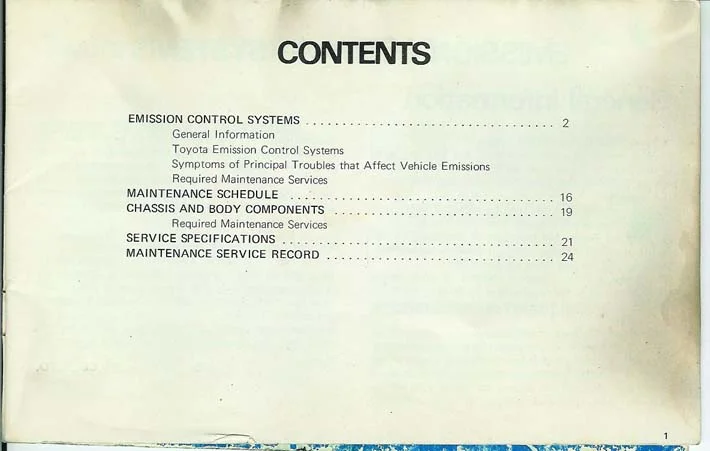

well ....here is a nice 74 emissions manual...enjoy...full of good info...quality is not the greatest...but hay...your getting it free
|
|
|
|
|
04-28-08, 09:31 PM
|
#138 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

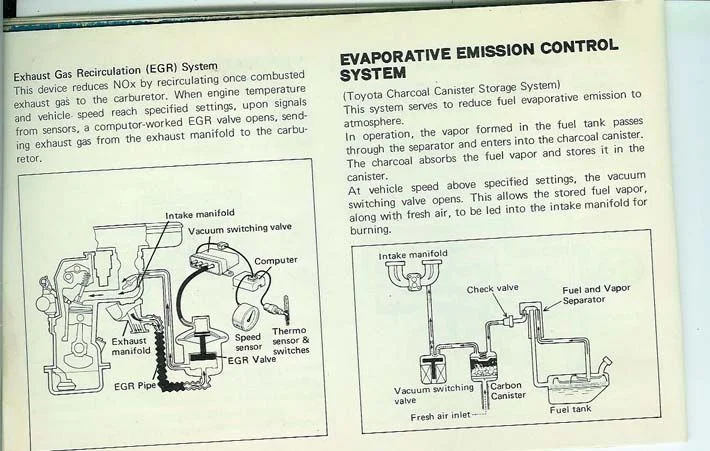

pg 4,5,6
|
|
|
|
|
04-28-08, 09:32 PM
|
#139 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

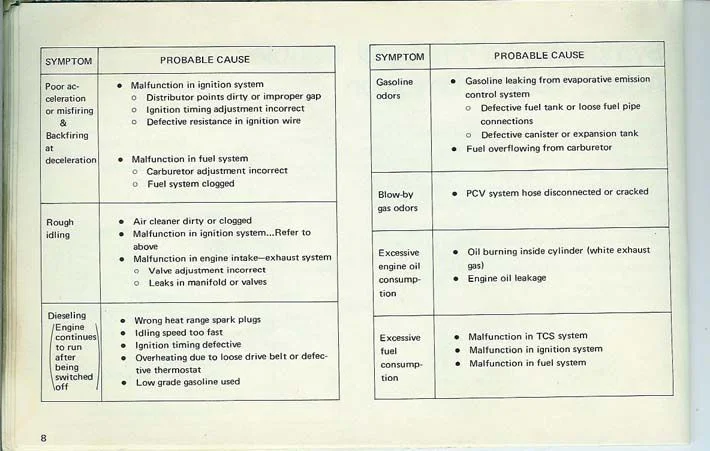

pg7,8,9
|
|
|
|
|
04-28-08, 09:33 PM
|
#140 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
pg10,11,12
|
|
|
|
|
04-28-08, 09:36 PM
|
#141 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

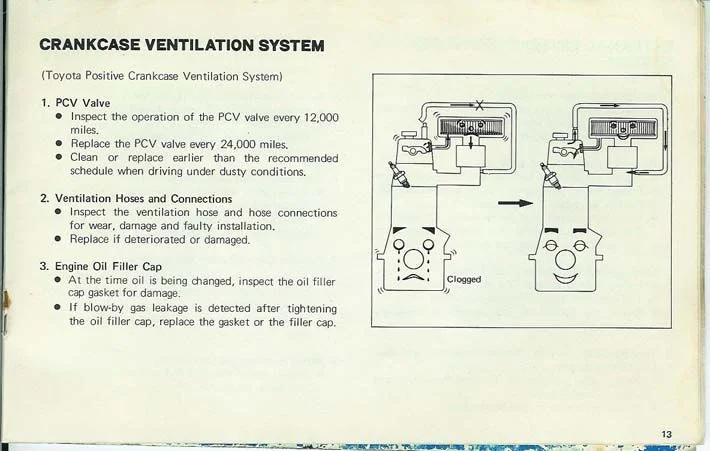

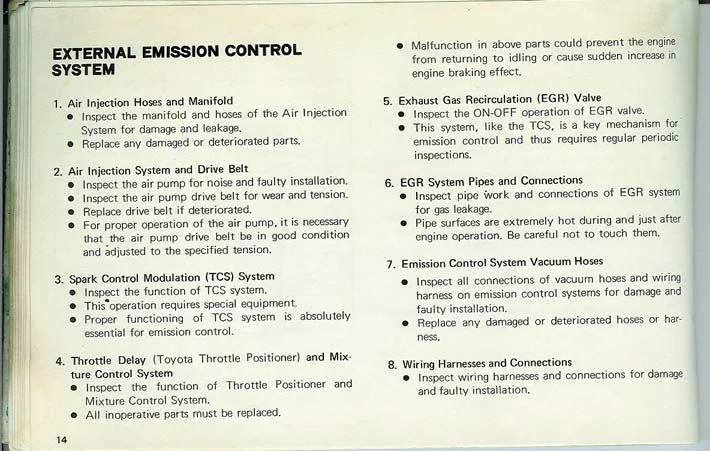

pg13,14,15....by the way the numbers are off from the actual pg numbers as when they were scaned they were numbered as the 1st pg 2nd pg and so on...but this is the order
|
|
|
|
|
04-28-08, 09:37 PM
|
#142 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

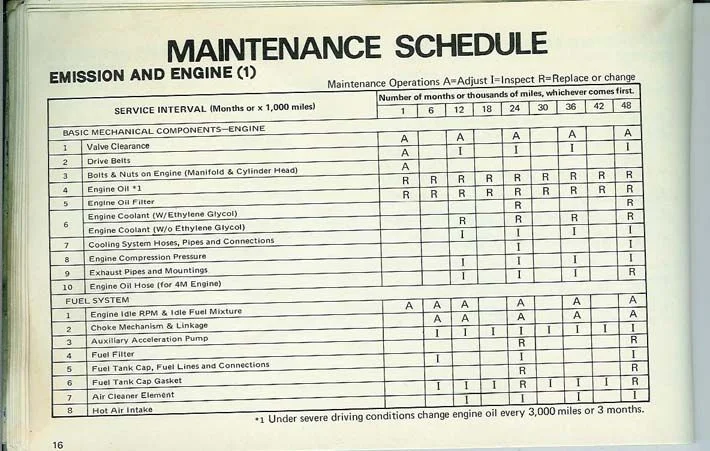

pg16,17,18
|
|
|
|
|
04-28-08, 09:39 PM
|
#143 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
pg19,20,21
|
|
|
|
|
04-28-08, 09:40 PM
|
#144 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
pg22,23,24
|
|
|
|
|
04-28-08, 09:40 PM
|
#145 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
pg25,26,27
|
|
|
|
|
04-28-08, 09:41 PM
|
#146 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|

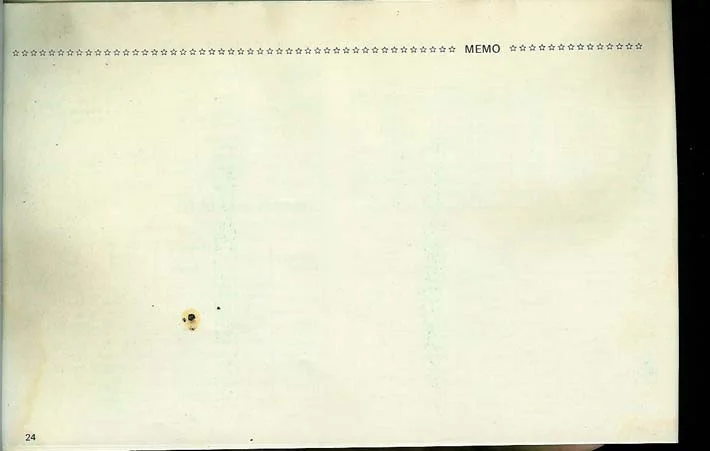

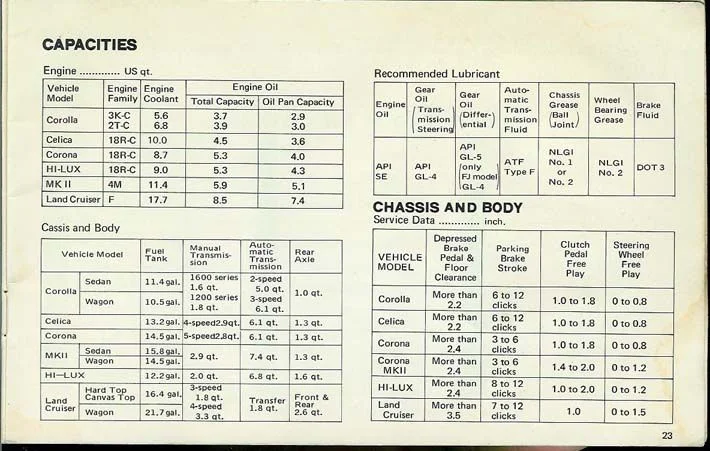

last pg28
|
|
|
|
|
06-12-08, 12:21 PM
|
#147 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,833
|
|
|
|
|
|
06-12-08, 03:15 PM
|
#148 (permalink)
|
|
250+ Club
Join Date: Dec 2004
Location: Eastern PA.
Posts: 804
|

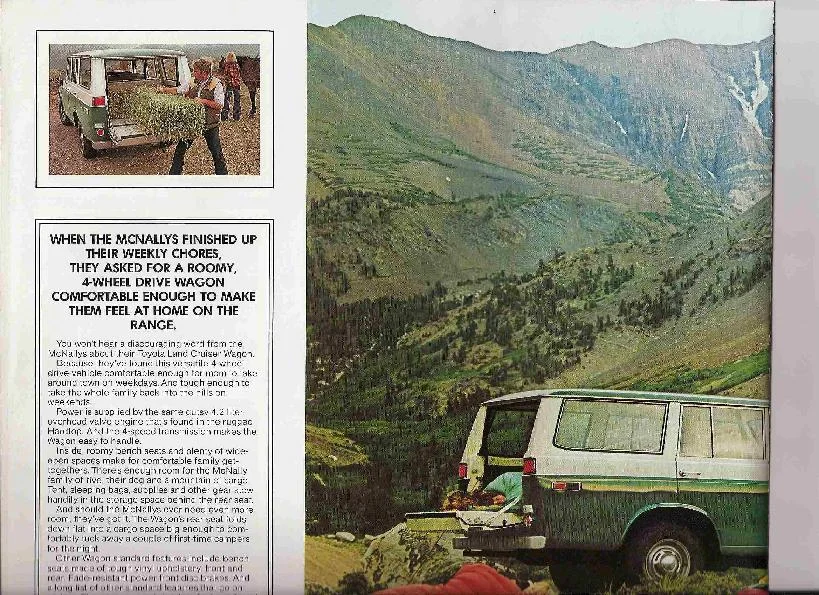

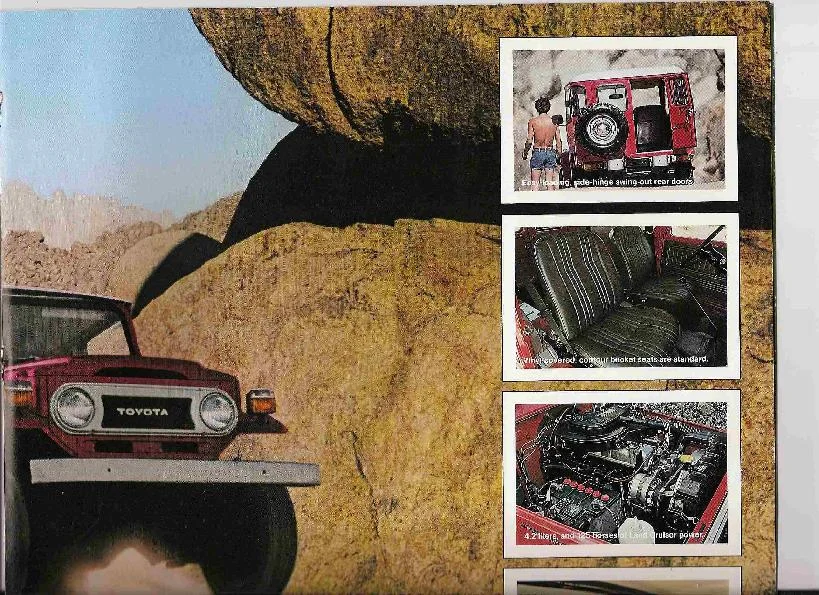

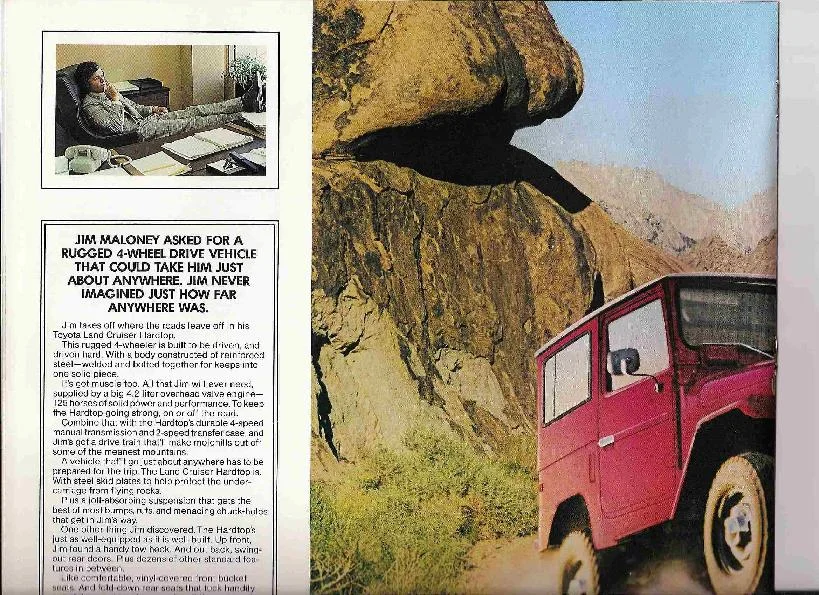

Here's one fom 1977. doesn't fit the scanner but here goes.
Kevin
__________________
72, 74 and 78 FJ40s
|
|
|
|
|
06-12-08, 03:18 PM
|
#149 (permalink)
|
|
250+ Club
Join Date: Dec 2004
Location: Eastern PA.
Posts: 804
|
More from 1977
Kevin
__________________
72, 74 and 78 FJ40s
|
|
|
|
|
06-12-08, 03:19 PM
|
#150 (permalink)
|
|
250+ Club
Join Date: Dec 2004
Location: Eastern PA.
Posts: 804
|
Last one
Kevin
__________________
72, 74 and 78 FJ40s
|
|
|
|
|
|
