DomSmith’s H55 build Thread… SBC Fj40
Well I’ve finally decided to post up the project I’ve been working on for the last month or so…
First a little history:
The rig is a ’73 FJ40 that I bought about 13 years ago just a few blocks from my house in Carlsbad. I was getting a little tired of my old F motor in my 71 and stumbled on this rig by chance. The PO had done a Chevy 350 conversion mated to the original 3 Speed and had put in Saginaw power steering. I replaced the inoperable 3 Speed with another one I got for $100 with plans to upgrade to a 4 or 5 speed as soon as it gave up the ghost. Since then I’ve added Front Disc Brakes, TBI Fuel Injection, Dual Batteries, On Board Air, Warn 8274, Long Ranger Aux Tank, and a 4” lift. Well… thirteen years later the bell housing cracked (3 Speed is still fine) so I opted to tackle a 5 Speed install.
I spoke with quite a few people about both the H55 and the NV4500 in deciding which way to go. It seems that the NV is much more common and better suited for rock crawling with the really low first gear. Although I have done some mild wheeling, my rig is more for Mex surf trips, and driving to the beach then it is for Rubicon. With that said, I did want a capable off road rig that would be able to perform in that regard if I choose to take the challenge. Special thanks to Bret for replying to all my requests for info and pics on his H55 install and to Noah (1973Guppie) for letting me drive his sweet NV4500 equipped Vortec cruiser. And the obvious guys with tons of advice… Poser, Kurt, George… etc.
|
|
|
05-21-07, 11:08 PM
|
#2 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
After a particularly harsh tantrum about getting stuck on the Toll Road near Rosarito and the heavy right foot that followed while making my own exit, I realized the violent shaking of the cruiser was not a good sign. I got it back to our Baja 1000 Home Base and took stock. I determined that 3 of the 4 threads on the Chevy aluminum bell housing stripped out (the bolts were missing) and would eventually come to find out that a crack developed on the driver’s side near the slave cylinder. Aside from the massive shaking while limping it home across the border, I needed to find out what collateral damage had been done. With a ton of other things on my plate and knowing full well this would take a ton of my time it sat in the garage waiting...
Until finally I had decided what to do. It would get an H55 5 Speed. So the project begins:
I disconnected the battery, drained the fuel tank and proceeded to remove the seats, fuel tank, etc...
The PO had done the 350 conversion on the cheap, so the motor is stuffed against the firewall with a few obvious hammer marks to clear the headers.

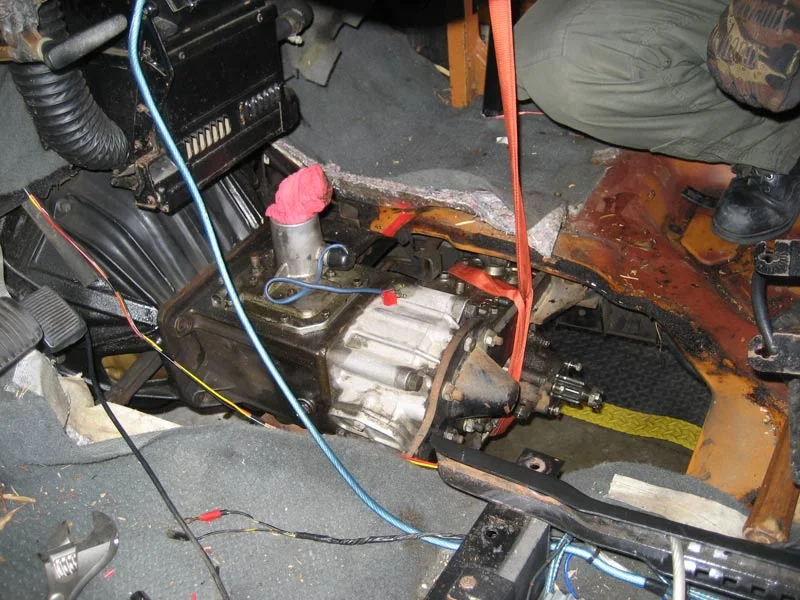

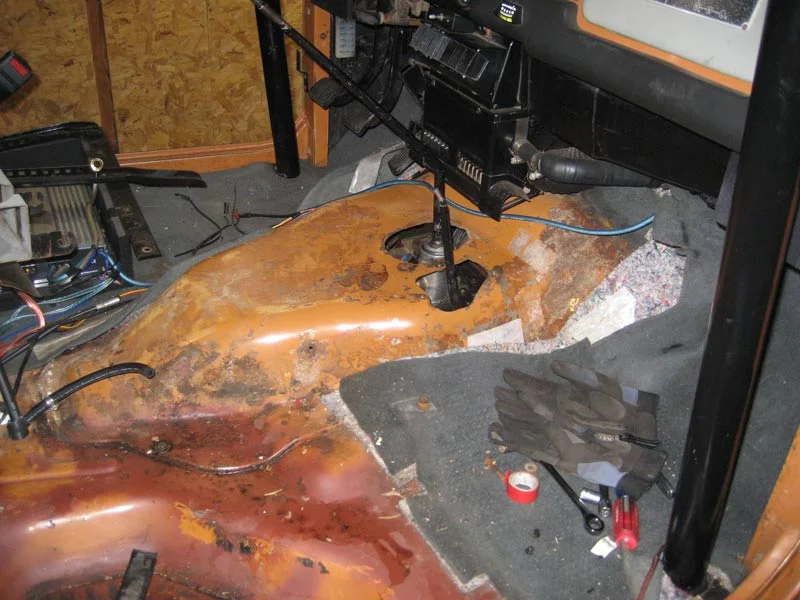

Here's the tranny hump with current tranny/transfer shift positions...
Last edited by DomSmith; 05-22-07 at 02:01 AM.
|
|
|
05-21-07, 11:17 PM
|
#3 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
I struggled with the shifter removal as I have every time I've removed it but finally got it out. Then removed the tranny hump, disconnected the driveshafts, removed the parking brake, tcase shift linkage and rear transfer crossmember mounts. Then lowered the tranny/tcase.
I had forgotten how much oil had accumulated on the case until it was on the floor.
|
|
|
05-21-07, 11:24 PM
|
#4 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

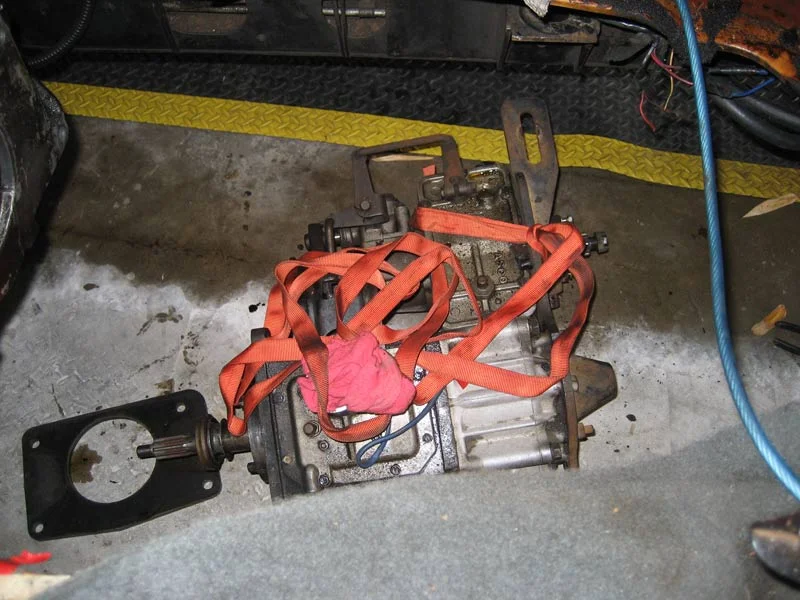

Once the tranny was out I could take a better look at the bell housing...

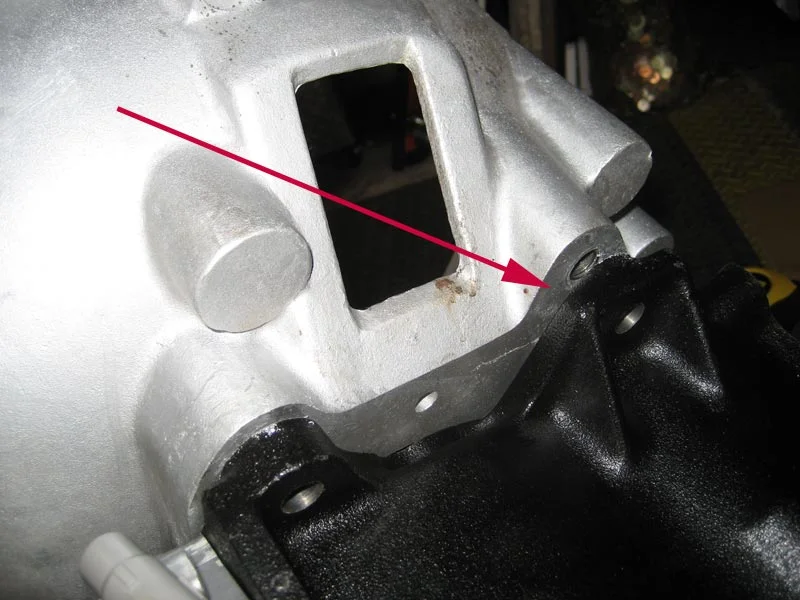

The crack is quite obvious while the three ruined threads are more difficult to see...
|
|
|
05-21-07, 11:43 PM
|
#5 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Once I determined how bad it was I decided to get started on collecting the parts I thought I would need. Here's the parts list I came up with and posted up for MUD input:
These are just a few of many options. I decided to use these... (Some part #'s are for reference only and may not be where I sourced my parts).
1. H55 Tranny- (Toyota Part#33030-60450).
2. Tranny Shifter- (Toyota part#33530-60160).
3. Shift knob- (haven't decided, probably just a generic Toyota 5 speed knob).
4. Tranny Mount- FJ60 tranny mount (SOR#106-150L-U) and FJ60 inner frame "L" brackets (SOR#106-141K-L-U) & (106-141K-R-U) ... and bushing (Toyota part# 12371-61031).
5. Split Transfer Case (from an '87 FJ60 w/ shift linkage) and Oiler pipe (Toyota part #33124-36010) .
6. Transfer case shift bolt- USED (SOR#074-08B-U) was not included with my case. and nut (SOR#074-30K).
7. Transfer Case Gasket kit (SOR#068-60E) Bearings and shaft are in excellent shape. Oh... and SOR says I need Trsfr seal (#068-03B) Didn't use it.
8. One 4 Speed driveshaft slip yoke (REAR) to slide into my 3 Speed driveshaft. And 8 later model driveshaft nuts).
9. One FJ60 driveshaft slip yoke (FRONT) to slide into my 3 speed driveshaft.
10. Front transfer case flange 19 spline (FJ60) from Kurt @ Cruiser Outfitters (the one that came with it was pitted).
11. Custom driveshafts (length adjustment).
12. Bellhousing-Downey (#331F4) 4 speed to V8 (includes slave braket) Had to fab up my own slave bracket as the Downey one was terrible.
13. Starter w/ nose cone that bolts to Bellhousing (To fit Downey adapter).
14. Clutch Components-
Disc: Centerforce #383735
Pressure Plate: Centerforce 11" low profile #CF165473S
TO Bearing: Stock 4 Speed Toyota TO bearing.
TO Bearing Collar: Stock 4 Speed Collar
Clutch Fork:4 speed Toyota clutch fork w/ ball, bolt and 2 clips.
Slave Cylinder and slave mount: Original Toyota clutch slave (shortened rod) from my 3 speed to V8 conversion. (Have)
Pilot Bearing: SBC Pilot
15. Longer speedo cable (I DID NOT NEED THIS!) Stock fit fine.
16. Parking Brake conversion kit (SOR# 068-100CB-Kit).
17. Longer parking brake cable. (I DID NOT NEED THIS!) Original is about maxed out but not stretched.

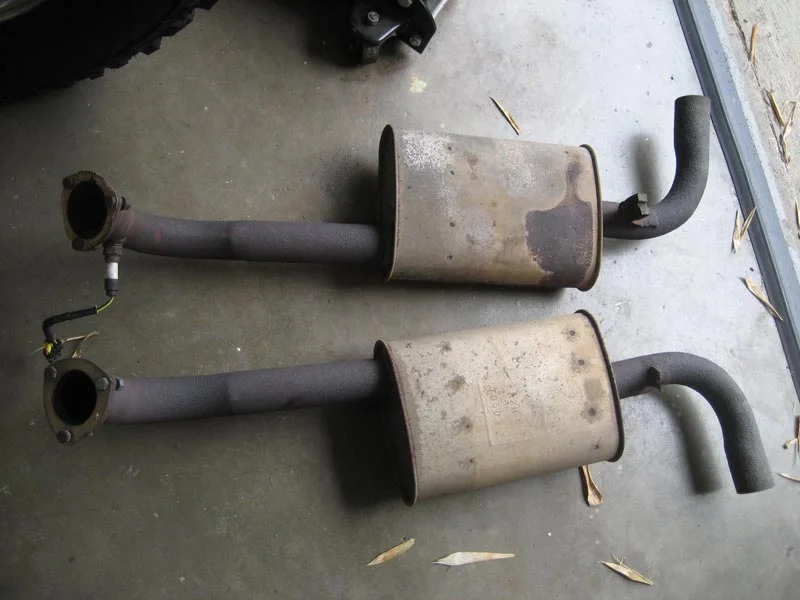

18. Exhaust: Custom exhaust with:
GM Rams horns w/ center down spout.
Crossover pipe(OEM application is 58-66 Chevy pickup with a 283 engine). The NAPA crossover pipe is Walker #42087
19. Motor Mounts: Re-used my AA brackets and ordered new rubber mounts. (SOR#330-901).
Last edited by DomSmith; 07-30-07 at 09:11 PM.
Reason: more info...
|
|
|
05-21-07, 11:50 PM
|
#6 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Started accumulating the parts...

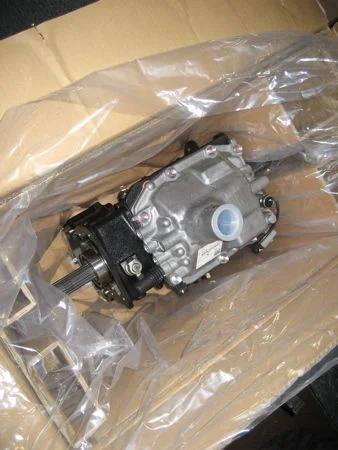

Got the H55 from Toyota of El Cajon.

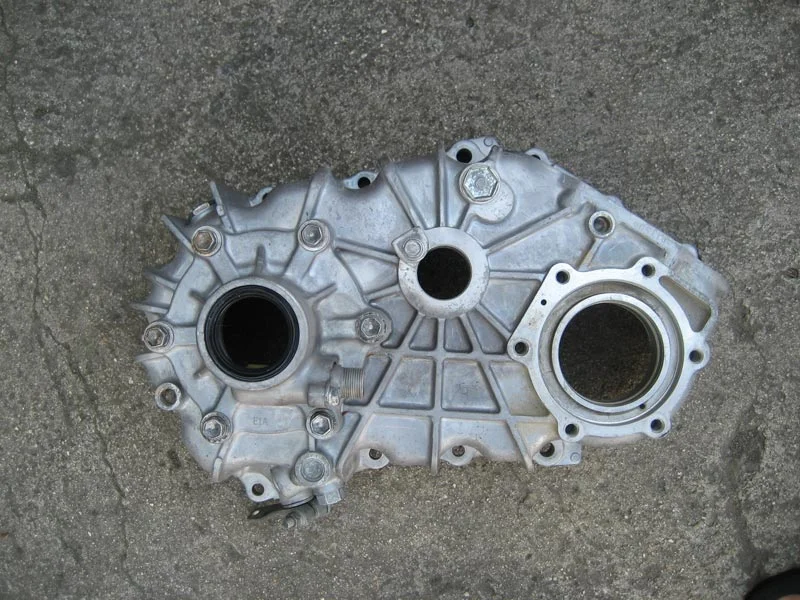

Split Case from an 87 FJ60 from a MUD Member.
|
|
|
05-22-07, 12:03 AM
|
#7 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: San Diego, CA
Posts: 2,982
|
Nice Dom! I gotta come over and check shit out......
Noah
|
|
|
05-22-07, 12:03 AM
|
#8 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

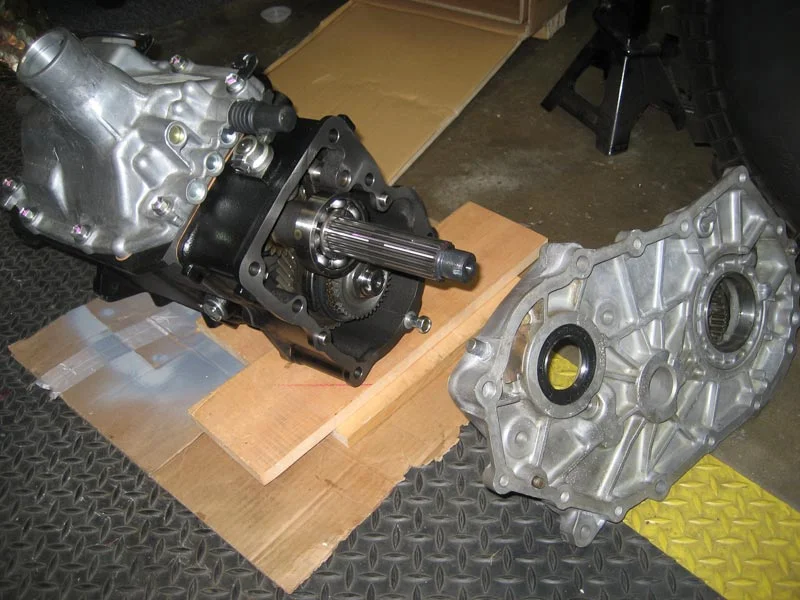

One of the first items I wanted to tackle was the Split Case. I have never rebuilt a TCase before so I leaned on a few cruiser buddies and of course... MUD.
I found exactly what I was looking for here after posting up in the Wanted section, and I couldn't have asked for anything better. The gears, bearings, etc were all inspected by our Truck mechanic at work and he gave them all the thumbs up. So instead of the full rebuild kit I had suspected I would have to order I only needed the seals kit.

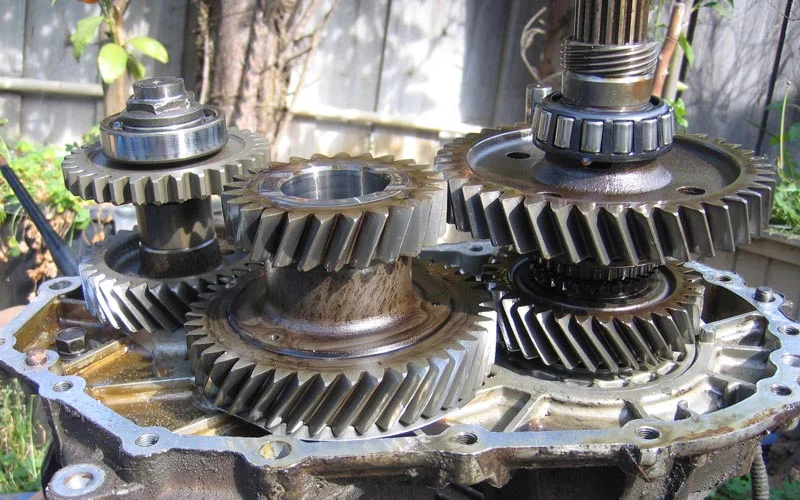

After cleaning up the gears in a parts washer I scrubbed and scrubbed on the case w/o much success so I decided to have the case dipped at a machine shop to clean off all the crud. I had them leave in all the seals so I could see which way they went in.
|
|
|
05-22-07, 12:14 AM
|
#9 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
After searching and reading and chatting it up about parking brake options I decided I wanted to keep the stock parking brake if possible. A lot of friends come by and borrow my cruiser when I'm at work or out of town and it was important for me to keep it simple. I didn't want to have to explain a line-lock or battle with the El Dorado calipers so I ponied up for the SOR kit...
Here's a pic of the kit...

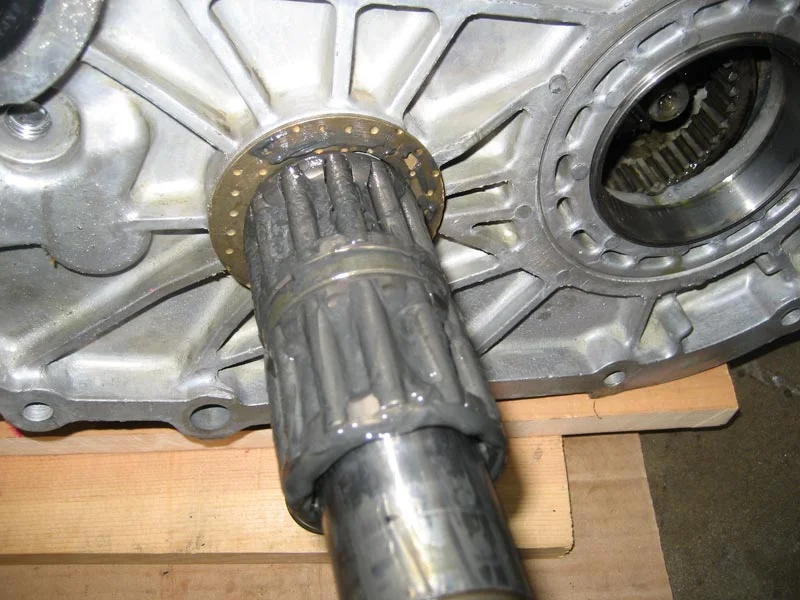

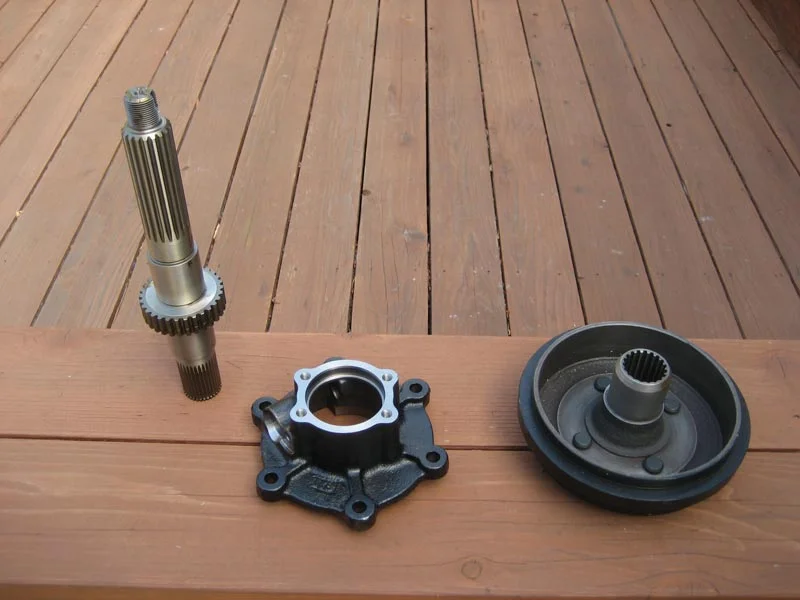

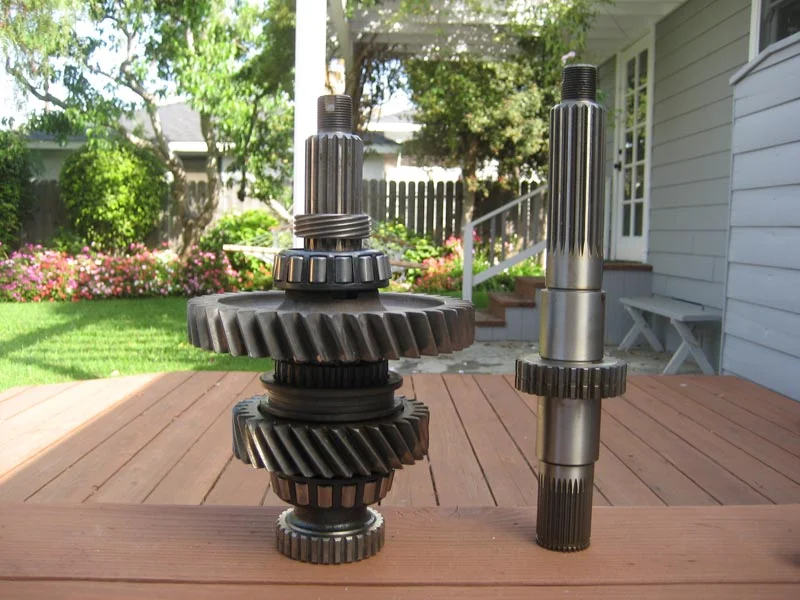

and then a pic of the original shaft with gears next to the SOR shaft. I decided to have the machine shop press off the gears/bearings and press them on the new shaft. I didn't have the right tools and was a bit weary of this one.
|
|
|
05-22-07, 12:31 AM
|
#10 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
I read in the Tech section about tapping and plugging a hole in the Split Case when using a 5 Speed so I confirmed with a few sources which hole to plug and had the machine shop do that as well. There are a few things on this project I would like to have tried to do myself, but without any experience tapping aluminum this is another place I played it safe.
Once I was ready to put the TCase back together I replaced the seals and followed the instructions according to the FSM (Thanks MrZero)...
Last edited by DomSmith; 05-22-07 at 02:09 AM.
Reason: Bad pic
|
|
|
05-22-07, 12:34 AM
|
#11 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

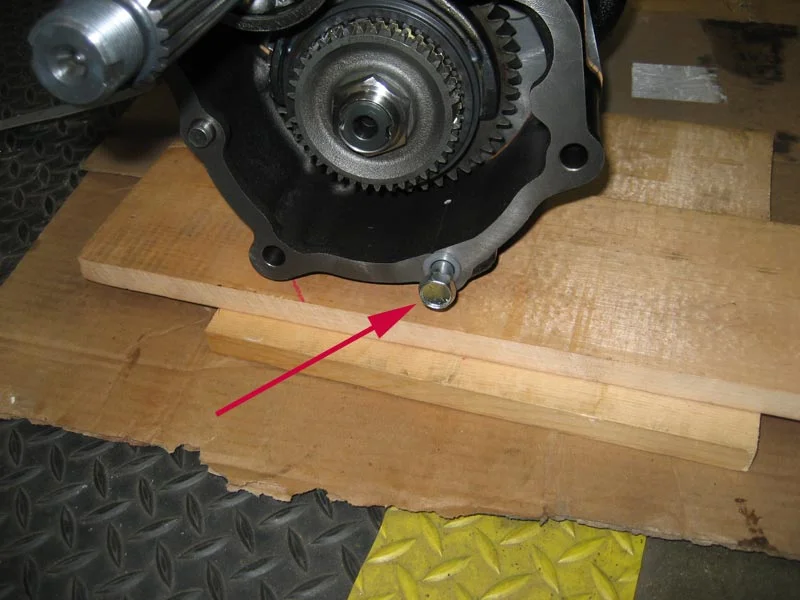

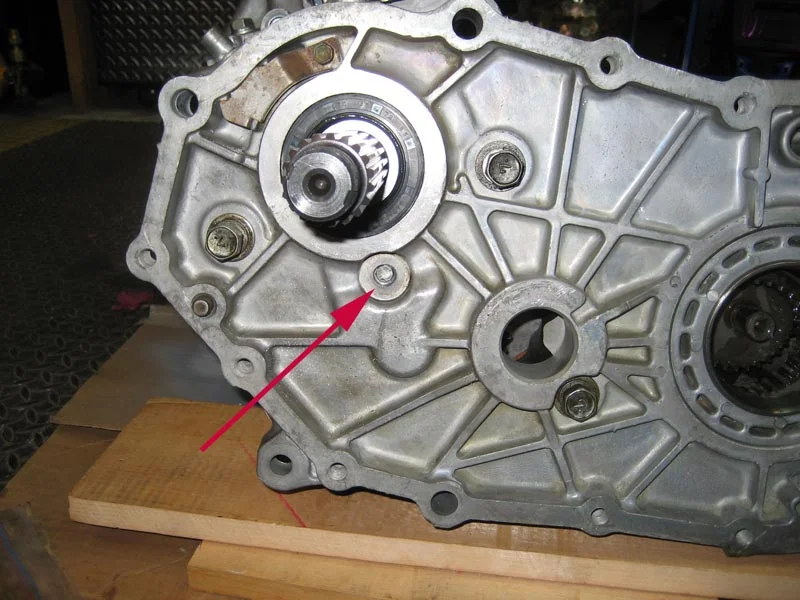

I noticed that this bolt on the bottom of the H55 had to come off to fit the Split Case. I suspect that one of the longer bolts that connects the second half of the case fits into this thread.
|
|
|
05-22-07, 12:48 AM
|
#12 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
I installed the idler shaft with thrust washer and new o-rings...
Then the bearings...
And idler gear...
|
|
|
05-22-07, 12:59 AM
|
#13 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

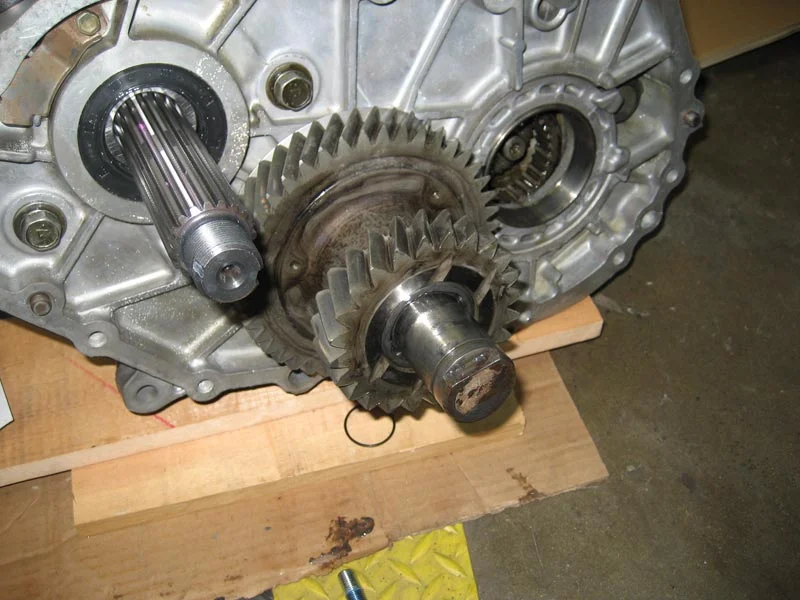

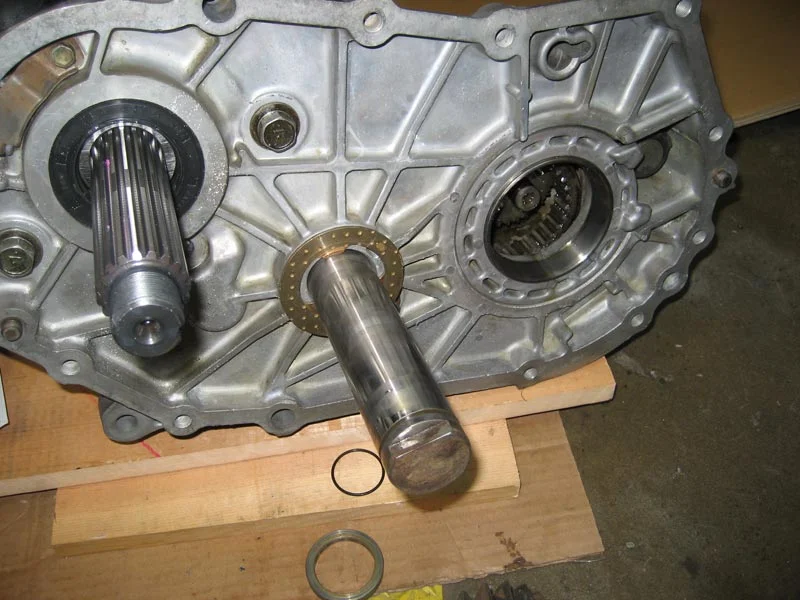

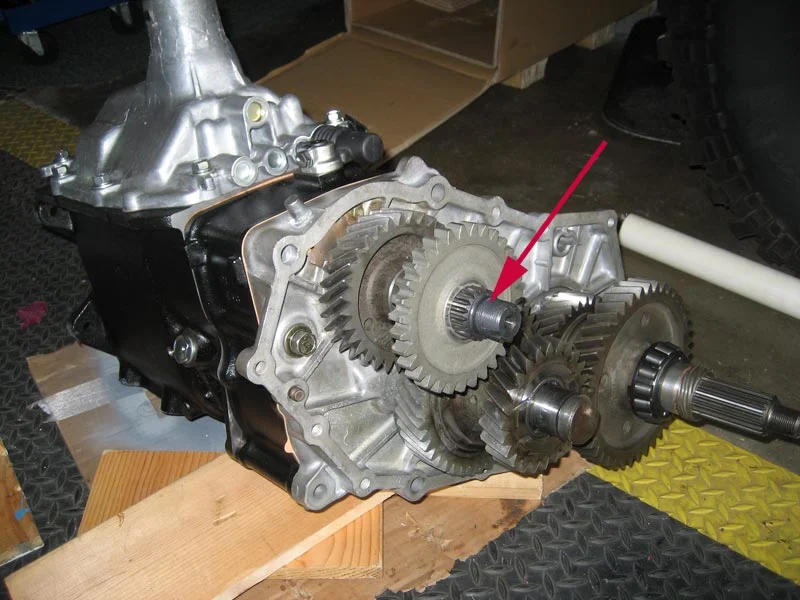

Then the transfer input gear, spacer, and PTO gear.
Rear output shaft is just placed into position for fit.
At this point I identified two problems:
#1- I never put the gasket between the tranny and TCase. So I pulled the transfer input gear and disassembled the rest and placed the gasket in its appropraite location. (Duh!)
#2- I never got the output shaft rear bearing, lock washer and nut with my transfer case. Although a slight setback I ordered them today from SOR.
This is where they go...
|
|
|
05-22-07, 01:01 AM
|
#14 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Noah-
Yeah you should come by. I'm around this week except Friday and then off again for the weekend. Give me a shout.
|
|
|
05-22-07, 01:11 AM
|
#15 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
I bought a 4 Speed to V8 bellhousing here as well and after having two threads repaired at the machine shop I tried to bolt it up...
hmmmmm....
no luck...
|
|
|
05-22-07, 01:23 AM
|
#16 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
After repositioning several times, I noticed my 3 speed ominously staring at me on the floor...
Direct fit... SHIT!
Now the frustration set in. Why would someone send me a 3 Speed adapter when I specifically asked for a 4 Speed!? Hopefully an honest mistake.
So, off to Downey Off-Road for a new one.
Last edited by DomSmith; 05-22-07 at 02:12 AM.
Reason: spelling
|
|
|
05-22-07, 01:32 AM
|
#17 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
With the Transfer Case at a standstill I moved on to prepping for moving the engine forward to accomodate the increased length of the tranny and TCase. I dropped the exhaust on each side from the collector plate and then had to make room to get the headers out...

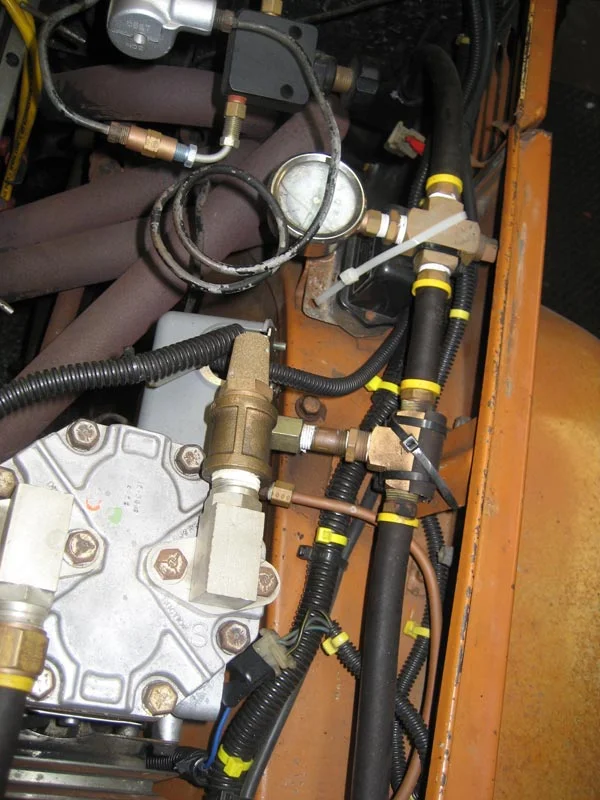

On the passenger side I had to remove one of the batteries and one tray...
On the driver side I had to remove the York compressor mount and displace a few of the air fittings...
|
|
|
05-22-07, 01:39 AM
|
#18 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

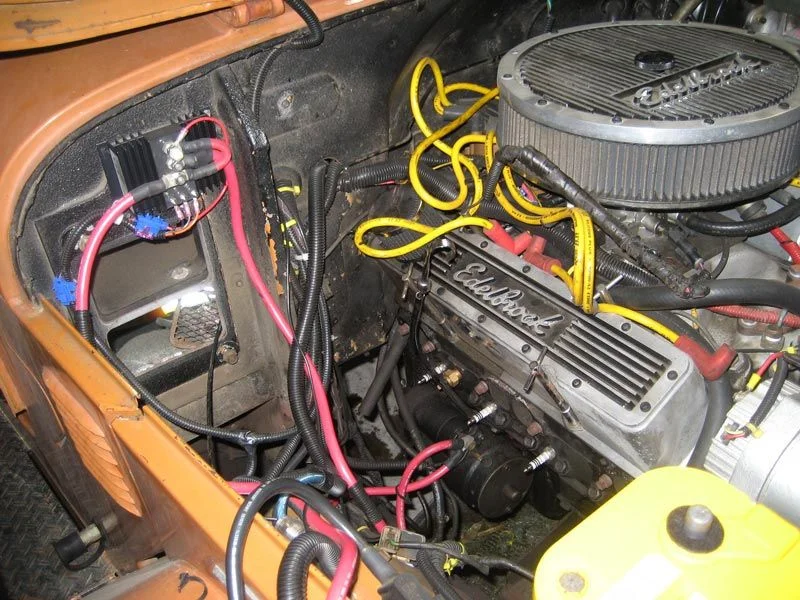

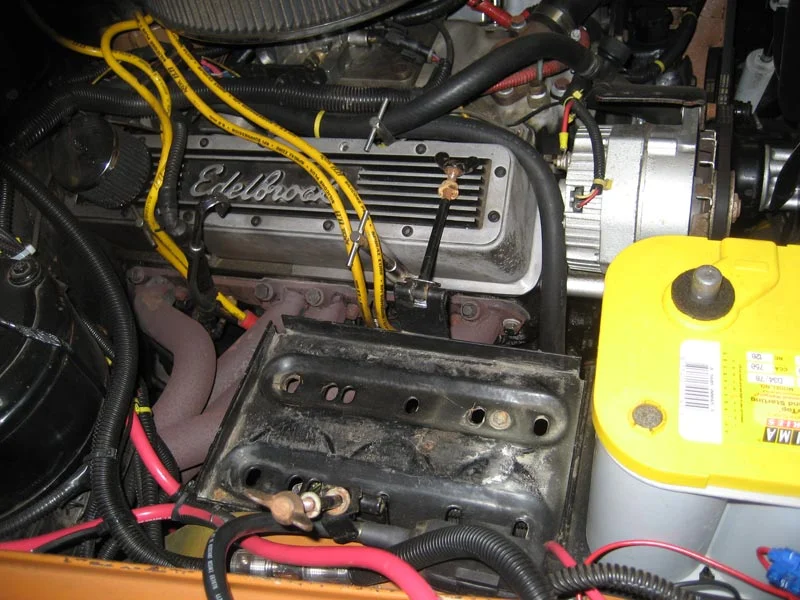

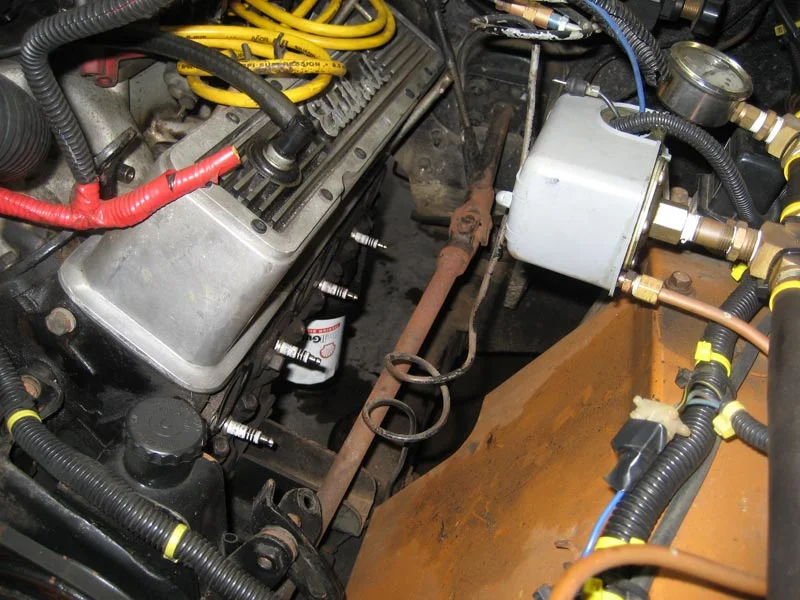

Here's the passenger side with battery/tray, fan motor and header removed. You can see how far back the engine is jammed against the firewall...
and drivers side... the rams horns should help open this up a bit.
|
|
|
05-22-07, 01:58 AM
|
#19 (permalink)
|
|
Site Addict
Join Date: Feb 2002
Location: San Diego
Posts: 1,843
|
Looks great!
did you put the oiler cup on the front of the transfercase for the 5 speed?
__________________
Brett
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants." -Thomas Jefferson
|
|
|
05-22-07, 02:44 AM
|
#20 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Hmmmmm... now you have me thinking I overlooked that. My brain is full. I recall seeing two oilers. I'll open it back up first thing in the morning just to check. I didn't add one so I must need it. Thanks for the check.
|
|
|
05-22-07, 03:01 AM
|
#21 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Brett-

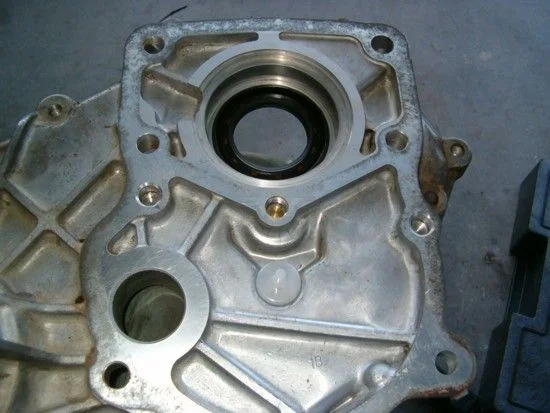

This is what I'm looking for, correct? (Pic courtesy of Cruiserdrew)...
|
|
|
05-22-07, 07:33 AM
|
#22 (permalink)
|
|
Forum Lifer
Join Date: Mar 2003
Location: Sacramento, CA
Posts: 8,739
|
Quote:
Originally Posted by DomSmith
Brett-
This is what I'm looking for, correct? (Pic courtesy of Cruiserdrew)...
|
No, the oiler cup goes on the other side of that front t-case half. You can see it in this picture.
Also, the reason your H55 will not fit in the bell housing is an easy one. The H55 has little ear extensions on the input bearing cap. You need to clearance the bell housing to fit properly. If you don't figure it out today, I can take a picture of the 3F bellhousing I have around that will show what you need to cut out. Poser posted a good pic complete with pink paint awhile back-you could search for that.
__________________
Andrew
1971 FJ-40 Rubicon tested, 2F powered, SM420, some mods
1976 FJ40 Rusting slowly in the back yard
1984 FJ-60 H41, Toybox, 4.11, SOA, twin sticks and more
1989 FJ-62 125k-Stock, daily driver
1997 FZJ-80 Driveway queen, with door dent
|
|
|
05-22-07, 09:53 AM
|
#23 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Kansastitty
Posts: 7,309
|
Pink and all.............................
__________________
My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders
|
|
|
05-22-07, 11:33 AM
|
#24 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|

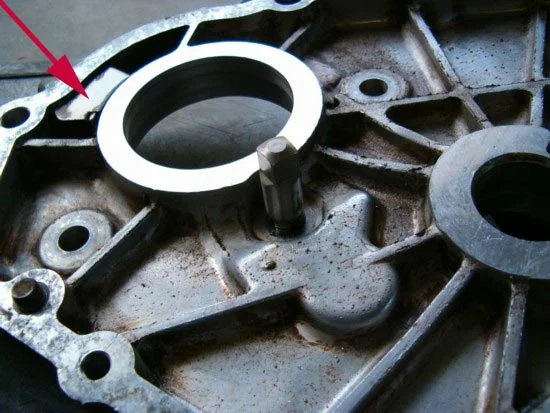

Oh now I see the oiler. The white thing below the brass plug. I had to look a little closer. Thanks boys. I'll take a look at the bell housing, it's probably my bad. I guess it makes sense that the bolt patterns are the same as the 3 and 4 Speed swaps are bolt up. I'll grind on that a bit today. The brand new housing bolted right up without grinding so I think that's what threw me. Oh yeah, and the stamped numbers are the same.
|
|
|
05-22-07, 12:24 PM
|
#25 (permalink)
|
|
No Brain No Headache
Join Date: Jul 2002
Location: Behind the Orange Curtain, CA
Posts: 1,115
|
Hi Dom,
The cruiser is looking great, nice pics of the progress. Look forward to going wheelin' with you, hopefully this fall.
|
|
|
05-22-07, 01:09 PM
|
#26 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Ok so this bellhousing issue has got me stumped. The bolt patterns are different but the parts are stamped with the same #...

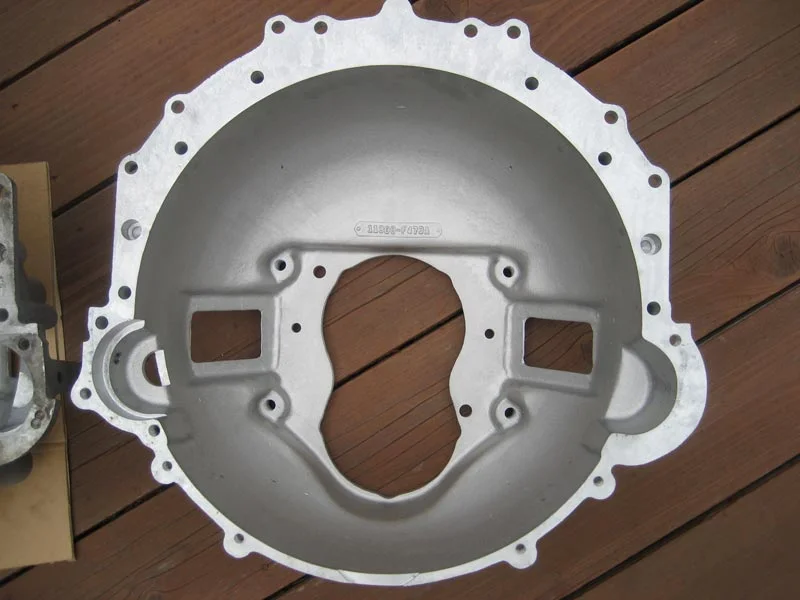

New Housing...

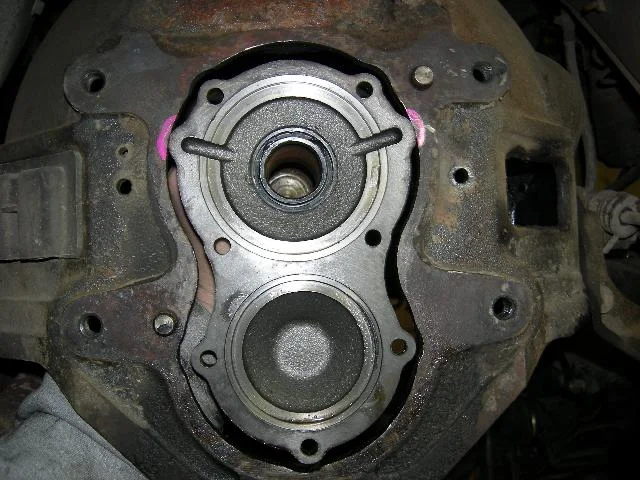

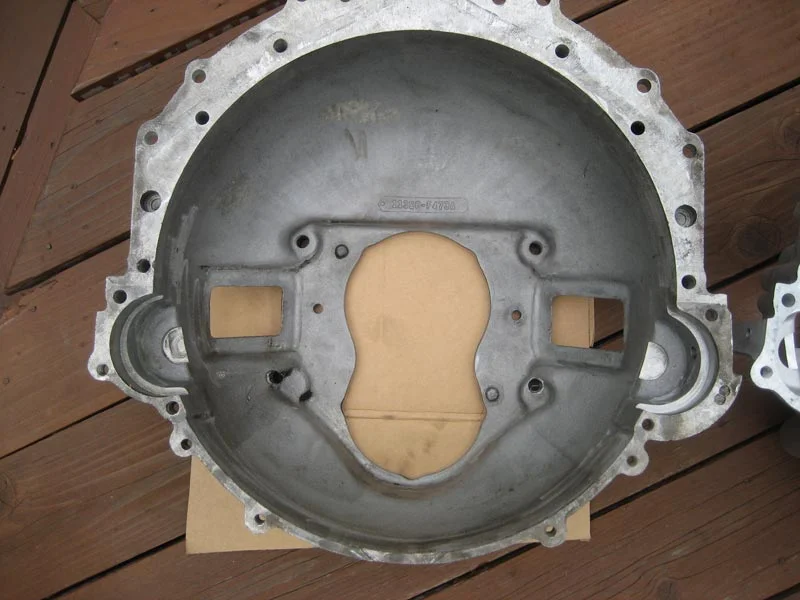

Used Housing...

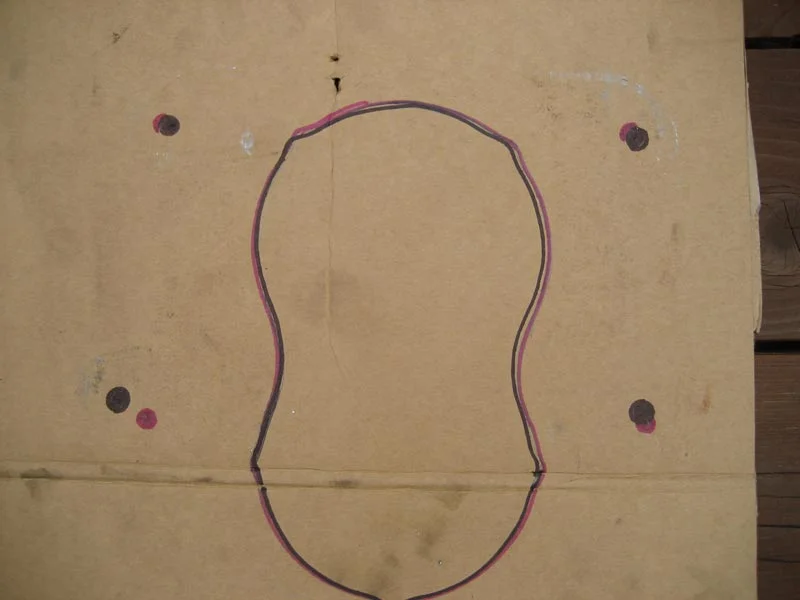

Bolt patterns... (Black= OLD Pink= NEW)
The OLD bell housing will bolt to my 3 Speed but not the 5 Speed and the NEW bell housing will bolt to the 5 Speed but not the 3 Speed...
The OLD bellhousing has to be a 3 Speed adapter, right?
Last edited by DomSmith; 05-22-07 at 01:35 PM.
Reason: Colors transposed
|
|
|
05-22-07, 01:51 PM
|
#27 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Ok I just spoke with Downey and they say the casting numbers are the same and that the bolt pattern is different. The OLD bell housing has one bolt farther out than the New one. So... this OLD bell housing is a 3 Speed adapter...
|
|
|
05-22-07, 08:34 PM
|
#28 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Ordered the oiler and it should be in tomorrow. My closest dealer wanted $8!!!! Called one about 20 minutes away... $2. What a scam.
I checked the pilot bushing today as well and it was destroyed because of all the flex from the missing bell housing bolts. So I had to use the carriage bolt method to get it out: http://forum.ih8mud.com/showthread.p...ght=pilot+bolt
Thanks again MUD.

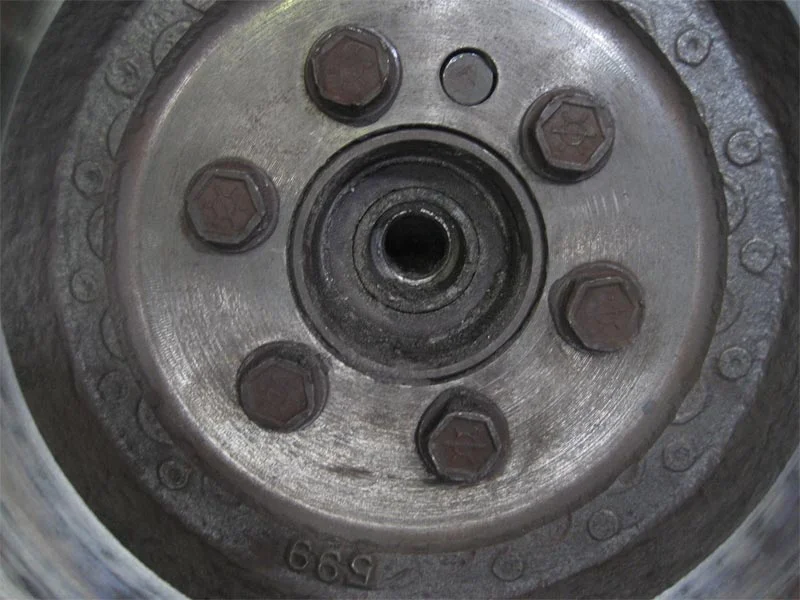

In the flywheel...

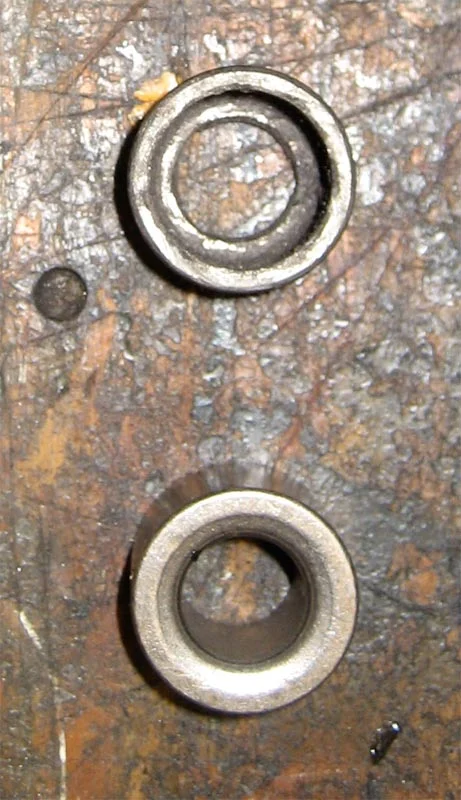

The old and the new...
|
|
|
05-22-07, 09:33 PM
|
#29 (permalink)
|
|
Dog is my co-pilot.
Join Date: Feb 2005
Location: Seattle, USA
Posts: 2,701
|
Hi All:
Great thread, Dom!  Thanks for sharing!
Good luck with the project!
Regards,
Alan
__________________
www.seattlecruiserheads.com
"Cruiserdrew" wrote:
" The very worst thing you can to to a cruiser is half thought out mods that are underfunded and never quite get finished. Then you end up with hacked junk that doesn't work, and some future owner will curse you and all of your children."
|
|
|
05-24-07, 01:08 PM
|
#30 (permalink)
|
|
Site Addict
Join Date: Nov 2004
Location: San Diego, CA (South O)
Posts: 1,261
|
Thanks guys. It's a lot of work but I'm learning a lot. Couldn't (and wouldn't) do it without the resources of MUD.
|
|
|
 |
|
