H55/Splitcase into 02/79-40 Series

Poser · 02-26-07, 11:39 AM

Pulled the H42/onepiece case from this on Saturday. The oil pan gasket/pan was leaking so that was dropped as well and will make it really easy to swap out the rear main seal, when the clutch and flywheel assembly are removed.

Poser · 02-26-07, 11:45 AM

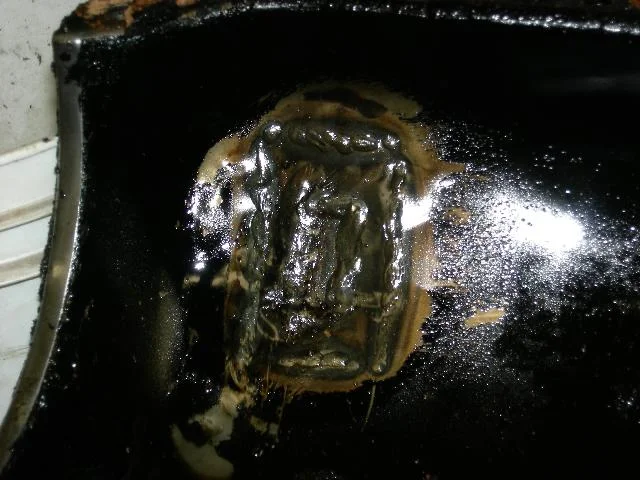

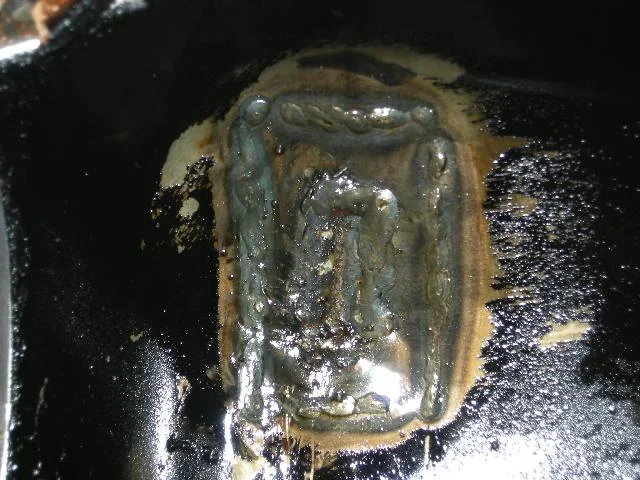

Looks like the oil pan failed to keep all the engine parts inside at one time....

Poser · 02-26-07, 11:48 AM

With the pan down I found an interesting collection of sunflower seed shells, pine needles and other little pieces of debris collected just under the oil pump screen.

The screen also has an interesting collection of hard plastic-like substance attached to it.

Poser · 02-26-07, 11:50 AM

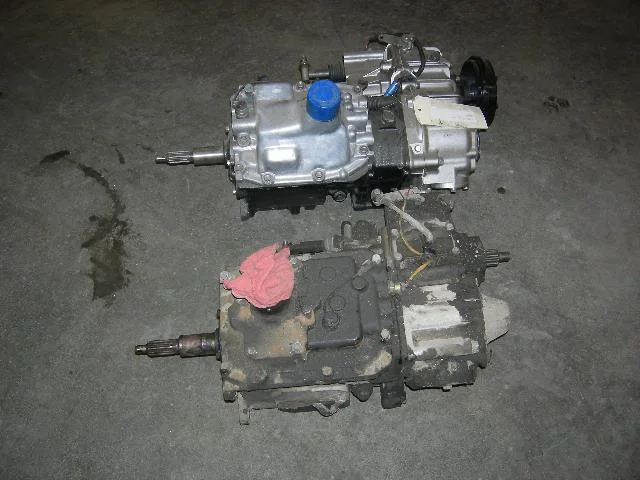

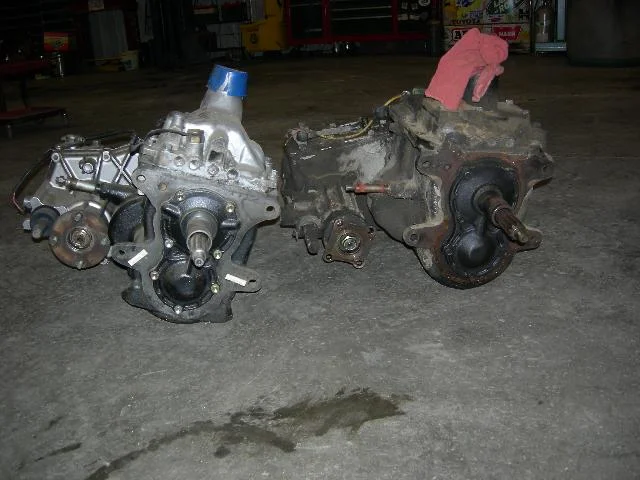

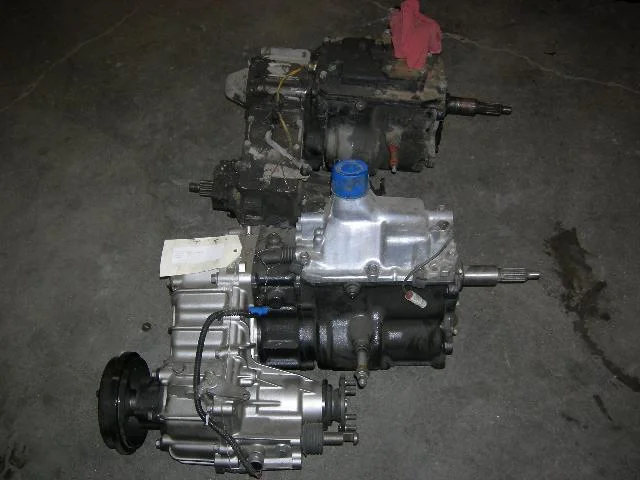

Here are a few pictures of the H55/splitcase next to the H42/onepiece case that was removed.

Poser · 02-26-07, 11:52 AM

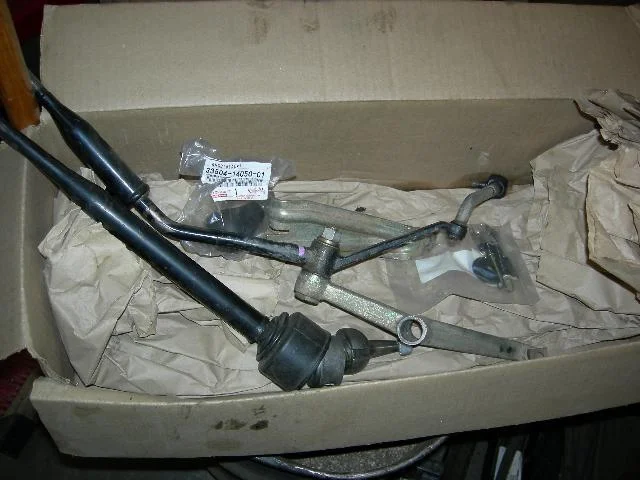

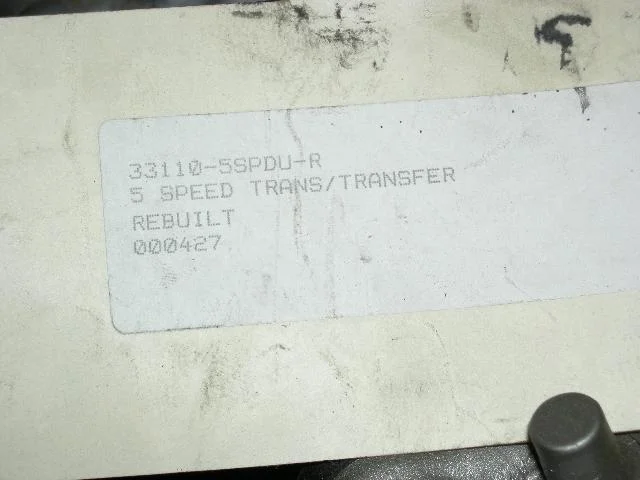

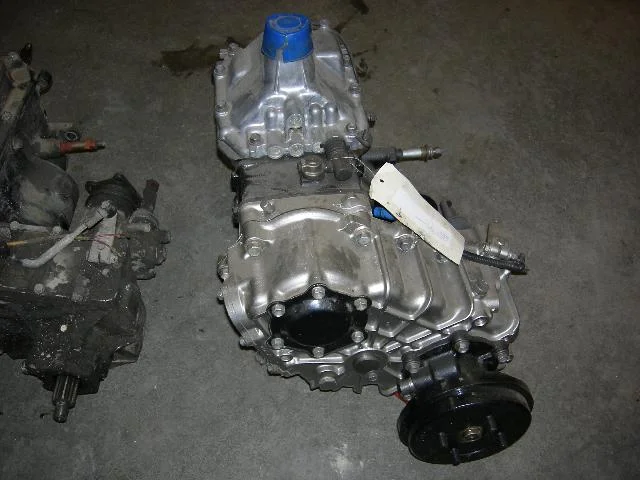

More of the H55, the box of shifter linkage pieces that came with the assembly from MAF and the tag with the part number on it.

72cruiser · 02-26-07, 11:58 AM

did you get the splitcase from MAF, too?

looks sooo clean. i guess that's kind of expected from your shop though, ha ha.

plans for a trick xmember/skid like the one on your 40?

malphrus

Poser · 02-26-07, 12:06 PM

The H55/splitcase came from MAF with the mainshaft and different rear bearing retainer changed so that the parking brake from the one piece case could be used on it.

The guy that owns this truck does not intend to pound rocks with this vehicle. After the trans is installed, I will look at the skid plate and see what can be done, but as of right now, he does not see the need for a 40MPH rock rated skid plate.

There will be something under there protecting this though.

John Smith · 02-26-07, 12:47 PM

Steve, does the H55 shift real smooth like a minitruck 5 speed or is more like a H41/2 with an extra gear? Not that the H41/2 is not smooth, but compared to my minitruck it is like a tractor tranny as far a throw and feel. I would love to know how sunflower seed shells and the rest of that mystery stuff got in the oil pan, weird...

Poser · 02-26-07, 12:50 PM

Quote:

Originally Posted by John Smith

Steve, does the H55 shift real smooth like a minitruck 5 speed or is more like a H41/2 with an extra gear? Not that the H41/2 is not smooth, but compared to my minitruck it is like a tractor tranny as far a throw and feel. I would love to know how sunflower seed shells and the rest of that mystery stuff got in the oil pan, weird...

The only H55 I ever operated was one that a customer had me install into an FJ-60 back in 1999, and it shifted smooth, just like any Land Cruiser four speed transmission, and worked really well.

The Mini-truck four and five speeds are completely different animals, and not anywhere near as heavy duty as a Land Cruiser four or five speed.

Quote:

Originally Posted by John Smith

I would love to know how sunflower seed shells and the rest of that mystery stuff got in the oil pan, weird...

Engine was open outside for a period of time is the only thing that I can think of...

That smaller black, non-magnetic, non-metallic chunk has me baffled...I have no idea what that is or where it could have come from....it is not gasket material...it looks like cam chain follower material that you would find in the pan of a 20/22R/RE....

jeffery_1965 · 02-26-07, 01:31 PM

Yeah, but where's the paper towel????

You aren't allowed to post Drool inducing pictures like that without appropriate support material!

Looks nice, except for the material in the pan.

Jeff

DaveWest5150 · 02-26-07, 03:26 PM

Steve, are you gonna swap the top pates on the trans or drill another hole in the floor?

apeterson · 02-26-07, 03:28 PM

looks great... can not wait to see how it comes out!

Poser · 02-26-07, 03:31 PM

Quote:

Originally Posted by DaveWest5150

Steve, are you gonna swap the top pates on the trans or drill another hole in the floor?

I am just going to modify the floor. I think that is far more realistic and would be applicable to others wanting to see how this is done, since the top plate for this transmission to suit a 40 series is pretty much non-existent. I have been searching for one for over a year now, and they are not that easy to come by.

DaveWest5150 · 02-26-07, 03:35 PM

You could always tell him to put a V8 in it then the hole would match up.

Josie'sLandCruiser · 02-26-07, 06:38 PM

Hi All:

Great thread Steve! Thanks for sharing.

So, how much longer is the H55F & split t-case in comparision to the H42 & one piece t-case?

What are your plans for the frame crossmember that will have to be removed? Simply re-locate it rearward a bit, or ??

Regards,

Alan

mel lowe · 02-26-07, 06:45 PM

Will a t-case from a 62 work with the h55?

DaveWest5150 · 02-26-07, 07:04 PM

you would have to drill a hole in the front half of the case and install an oiler(small little plastic piece)in it ...but yes it could work. Alan.. the cross member stay's in the same place

yotanut · 02-26-07, 07:04 PM

Quote:

Originally Posted by John Smith

Steve, does the H55 shift real smooth like a minitruck 5 speed or is more like a H41/2 with an extra gear? Not that the H41/2 is not smooth, but compared to my minitruck it is like a tractor tranny as far a throw and feel. I would love to know how sunflower seed shells and the rest of that mystery stuff got in the oil pan, weird...

The H55 esentially is a H41/42 with the addition of a 5th gear. See the pic in post #5, where the tag is. That black section behind the main box holds the fith gear, the tag is attached to the shift linkage. Of course the other major differences is the different main shaft, length and gearing. They all should be able to attach to any split case 40,60,62.

grant5127 · 02-26-07, 07:15 PM

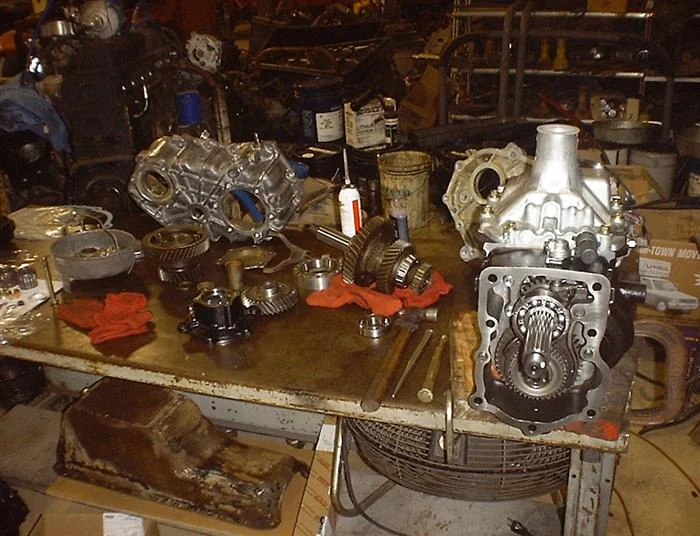

Here is a rear view of 5th gear.........

Josie'sLandCruiser · 02-26-07, 07:27 PM

Hi All:

I'm sorry, "DaveWest5150," but I don't see how that could work!

No disrespect intended, but there is simply not enough room to squeeze in a F Series engine, H55F, and "split" t-case in between the front motor mounts and the mid-chassis crossmember on a FJ40 that came with the H41/42 four speed tranny!

Sure, if it was a B Series engine and H55F and t-case drivetrain it might fit. But, there will definitely be clearance issues with a 2F and a H55f and that mid-chassis crossmember!

Regards,

Alan

--------------------------------------------------------------------------

Quote:

Originally Posted by DaveWest5150

<snip> >Alan.. the cross member stay's in the same place

Poser · 02-26-07, 07:35 PM

Quote:

Originally Posted by Josie'sLandCruiser

What are your plans for the frame crossmember that will have to be removed? Simply re-locate it rearward a bit, or ??

Hey Alan-

The cross member that attaches to the underside of the transmission was not installed in a 40 series until 08/80, when they went to the 19 spline H41/42 transmission and split transfer case, different spring/shackle hangers, parking brake on the semi-float rear axle assemblies, among other things.

I have a later model cross member assembly that I am going to install in this truck and remove the mounts on the sides of the flywheel housing.

-Steve

Poser · 02-26-07, 07:41 PM

Quote:

Originally Posted by Josie'sLandCruiser

Hi All:

I'm sorry, "DaveWest5150," but I don't see how that could work!

No disrespect intended, but there is simply not enough room to squeeze in a F Series engine, H55F, and "split" t-case in between the front motor mounts and the mid-chassis crossmember on a FJ40 that came with the H41/42 four speed tranny!

Sure, if it was a B Series engine and H55F and t-case drivetrain it might fit. But, there will definitely be clearance issues with a 2F and a H55f and that mid-chassis crossmember!

Regards,

Alan

--------------------------------------------------------------------------

Oh it fits Alan,

Marv has a 1984 40 series that he purchased out of Saudi Arabia that has a 2F, H55 and split case. Apparently it is in incredible condition.

When I installed this transmission in the FJ 60 I did not have to move the cross member that the H42 and split case was mounted to. I just had to shorten the rear shaft and lengthen the front. It is my understanding that the housing of the H55 where the transmission isolator mounts is in the same location as it would be if it were on the H41/42 in relation to the front of the transmission housing.

72cruiser · 02-26-07, 07:47 PM

yeah, doesn't that come from the fact that the 5th gear is just that extension?

the xmember mount is forward of that location on both the H41/42 and the H55F. i went and looked at the xmember on the later H42 with the spacer that i've got in the backyard...never really put all that together, but it makes sense now, ha ha

malphrus

Cruiserdrew · 02-26-07, 07:49 PM

Quote:

Originally Posted by Poser

It is my understanding that the housing of the H55 where the transmission isolator mounts is in the same location as it would be if it were on the H41/42 in relation to the front of the transmission housing.

Your understanding is 100% correct. The mount bolts in the same holes in the same place on the tranny. The mounts themselves are different, and you'll want an early one, unless you make a custom crossmember. I learned that bit the hard way. If I was doing a custom crossmember, I would use the 85+ mount, since the mounting studs to the cross member are vertical, and not splayed at an angle.

cruiserhead · 02-26-07, 07:53 PM

Quote:

Originally Posted by Poser

Hey Alan-

The cross member that attaches to the underside of the transmission was not installed in a 40 series until 08/80, when they went to the 19 spline H41/42 transmission and split transfer case, different spring/shackle hangers, parking brake on the semi-float rear axle assemblies, among other things.

I have a later model cross member assembly that I am going to install in this truck and remove the mounts on the sides of the flywheel housing.

-Steve

Is that the cross member I sent you last spring?
David

landlord · 02-26-07, 08:13 PM

Poser,
Could you please give the information for the wheels and tires that are on that truck? That's the look I am aiming for on my rig....I've got a long way to go but a nice looking truck like that sure keeps me motivated to work on mine!

Thanks,
Patrick

Poser · 02-26-07, 08:14 PM

Quote:

Originally Posted by cruiserhead

Is that the cross member I sent you last spring?
David

That is in the pile of parts, along with a few others......

72cruiser · 02-26-07, 08:31 PM

Quote:

Originally Posted by landlord

Poser,
Could you please give the information for the wheels and tires that are on that truck? That's the look I am aiming for on my rig....I've got a long way to go but a nice looking truck like that sure keeps me motivated to work on mine!

Thanks,
Patrick

they look like bfg mud terrains and some jive ol' white wagon spoke wheels...i like that look too on a stocker style rig

Poser · 02-26-07, 08:38 PM

Quote:

Originally Posted by landlord

Poser,
Could you please give the information for the wheels and tires that are on that truck? That's the look I am aiming for on my rig....I've got a long way to go but a nice looking truck like that sure keeps me motivated to work on mine!

Thanks,
Patrick

This is the thread that details the info you are looking for.... <--- this is a link

landlord · 02-26-07, 09:01 PM

Thanks for the replies and the link!
Regards,
Patrick
