Saginaw twisted spline?
Well...I guess this either happened on "Bends and Dents" at Gray Rock or in my yard when I broke the drag link on a unseen stump.

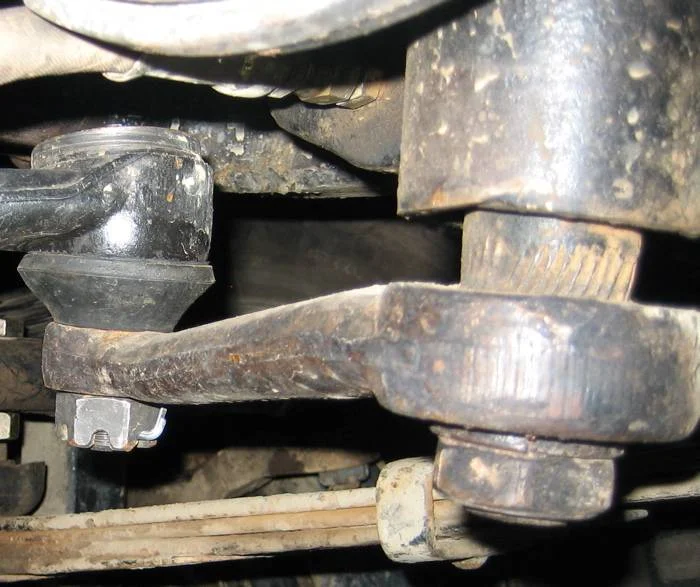

As you can see below I "candy-caned" the splined output shaft on the Saginaw gear which begs the question...what do I do now? Do I have to have a new box drilled and tapped ( I have WTOR's ram assist) or can I just replace the output shaft?
BTW Poser, the H41/Orion is great! More to follow on that soon..
Fire away...
__________________
Please donate to the Rescue Tellico Fund and help save the Tellico OHV area
--Todd
Chattanooga, TN
1980 FJ40, H41/0rion, SOA, 38.5 TSL/SX, LF Beadlocks, Longs, Sag pwr steer w/ ram assist.
1994 FZJ80 w/ 6.5 Turbo Diesel, 6" Slee, Metaltech bumper, Kaymar R bumper.
TLCA#: 4920
STLCA Vice President
Rescue Tellico Committee ( SFWDA)
 And yep...I am White Trash
David: is drinking a Blue Coconut Bacardi slushee! Ardenne is too! --Fireman on FB 2/7/09
|
|
|
|
02-10-07, 09:40 PM
|
#2 (permalink)
|
|
250+ Club
Join Date: Jan 2005
Location: Vancouver eh?
Posts: 359
|
that is bad ass! first time i ever saw that.
I think you can just swap the shaft. Maybe get your next one cryo'd
|
|
|
|
|
02-10-07, 09:40 PM
|
#3 (permalink)
|
|
Oh...Durka Durka Durka.
Join Date: Oct 2003
Location: in the shop
Posts: 16,019
|
Todd-
I replaced my steering gear in '99 with a Cadilac/J20 steering gear when the used '71 Impala steering gear that I had been using since '91 did that.
I have since installed a ported steering gear from PSC for the hydraulic assist set up that I am using.
Glad that everything went smoothly with the H41/Orion.
Thank you!
-Steve
__________________
|
|
|
|
|
02-11-07, 08:51 AM
|
#4 (permalink)
|
|
IH8MUD Reader
Join Date: May 2004
Location: Chattanooga, TN
Posts: 689
|
So...in other words...just replace the whole box...
__________________
Please donate to the Rescue Tellico Fund and help save the Tellico OHV area
--Todd
Chattanooga, TN
1980 FJ40, H41/0rion, SOA, 38.5 TSL/SX, LF Beadlocks, Longs, Sag pwr steer w/ ram assist.
1994 FZJ80 w/ 6.5 Turbo Diesel, 6" Slee, Metaltech bumper, Kaymar R bumper.
TLCA#: 4920
STLCA Vice President
Rescue Tellico Committee ( SFWDA)
And yep...I am White Trash
David: is drinking a Blue Coconut Bacardi slushee! Ardenne is too! --Fireman on FB 2/7/09
|
|
|
|
|
02-11-07, 02:21 PM
|
#5 (permalink)
|
|
Oh...Durka Durka Durka.
Join Date: Oct 2003
Location: in the shop
Posts: 16,019
|
Absolutely, that would be the best way to go.
If the pinion is twisted like that, what is the condition of everything else? Just get a quality steering gear ported and ready to go and swap it out.
__________________
|
|
|
|
|
02-11-07, 09:50 PM
|
#6 (permalink)
|
|
IH8MUD Reader
Join Date: May 2004
Location: Chattanooga, TN
Posts: 689
|
Thanks bud!
Guess I'll be calling PSC this week.
__________________
Please donate to the Rescue Tellico Fund and help save the Tellico OHV area
--Todd
Chattanooga, TN
1980 FJ40, H41/0rion, SOA, 38.5 TSL/SX, LF Beadlocks, Longs, Sag pwr steer w/ ram assist.
1994 FZJ80 w/ 6.5 Turbo Diesel, 6" Slee, Metaltech bumper, Kaymar R bumper.
TLCA#: 4920
STLCA Vice President
Rescue Tellico Committee ( SFWDA)
And yep...I am White Trash
David: is drinking a Blue Coconut Bacardi slushee! Ardenne is too! --Fireman on FB 2/7/09
|
|
|
|
|
02-11-07, 10:35 PM
|
#7 (permalink)
|
|
elder statesman
Join Date: Apr 2004
Location: so cal, going 45
Posts: 8,270
|
I saw a twisted sector ONCE, a couple of years ago at the Hammers.
Belonged to some guy from TX named Nolen.
He said it was "work hardened".
x2 on what Steve said. The force that 'created' that presumably is strong enough to damage any other part in the box of a smaller size [which is pretty much EVERYTHING!]
__________________
A carbureted man in a fuel injected world.
65SWB45, 64LWB45, 68FJ40,72V840, 76HJ45[gone],84FJ60[gone], 76K5, 73Sub454, 97Sub5.7, 2002 Trailblazer
TLCA delegate, Trail Crew-LAC TLCA, The White Trash of the Elwood Chapter
my website:
http://www.marksoffroad.net
IT'S FASTER if you CALL ME!
|
|
|
|
|
02-28-07, 05:33 PM
|
#8 (permalink)
|
|
IH8MUD Reader
Join Date: May 2004
Location: Chattanooga, TN
Posts: 689
|

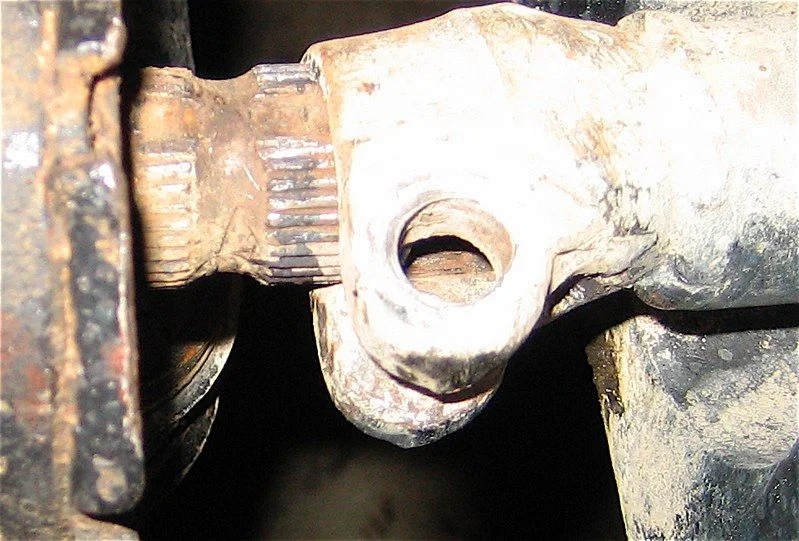

While getting ready to call PSC tomorrow and went out to count the input shaft splines and measure and found this...
