[paranoid56]

well, didnt get much done this weekend. satruday was welding subaru parts all day. and sunday i felt like i was going to die

so, made up the Tcase crossmember bushing joints. these will weld to the inside of the frame. all parts were made from 1/4" steel and the bushing is a 2" version. should be strong enough

[airon23]

That thing looks really nice. Keep it up. I was thinking about doing the same to mine. I'll keep following this thread and keep it in mind for when or if I get it done.

[paranoid56]

ok, just a heads up. i am selling the old chassis as i am loosing my shop (lame)
http://forum.ih8mud.com/sale-parts/164071-1971-fj40-rolling-chassis-v8-pics.html

[paranoid56]

well, got a little done. was too damn hot today to work on anything.
finished up the engine cage.

made the part to where you weld the bracket to the shock hoop


then fully welded up. this should help strengthen up the shock setup.




I angled it forward some, so i could put oil in the damn thing

[72cruiser]

looks nice...still diggin the clean work on this

[Fast Eddy]

Shades of a Ford 292 with a top crossover exhaust pipe.

[PScottBx]

Just digging a bit... anything new these days??




Bx

[FJota]

We are beng patient but updates are needed.Pls.

[Volunteer]

Its been a while

[1974FJ]

you still around? Hows it coming?

[FJota]

Any progress lately?

[paranoid56]

well, GF got me a new fuel tank
woot. 22ga jaz setup. need to figure out about a sending unit and such, but it looks good

Shane

[paranoid56]

well, did some more work finally.
trying to figure out the fuelcell setup.
cut a hole in the floor and am making a holder for the tank.


looking at this its a little low, as if the diff moves up it can hit the tank. not that it will go that high, but i think i might mount it a few inches higher in the back of the 40.

[paranoid56]

ok, fuel tank is on hold till i get the tubing and die in. going to make the holder from 1" tubing
but did work on some rear shackle mounts. my only issue is that i dont know if i should cap them or not. i like to leave them open so i can plug weld them also.
i just took some 2.5" square tubing that was 5" long. drilled a hole then cut the angles.

a pic with the insert in. these are just some 2" autofab bushings.


i will fully weld the outside and inside later on this week. then mount it under th frame on the rear. should work very well


Got the tubing in finally, did some work on the cradle that will hold the fuelcell. the way i made it was the main piece then 4 side pcs that are just sliped on and will be welded after inal fit. i sleaved the 1" with some 1.25" to give it some more strenght at the ends.


i even fish mouthed the sleaves to give more welding area. i will still need to plate the bottom ti give full suport to the fuel cell.

[Volunteer]

Looks good I like the Orange tank and am glad to see you're back in business

[paranoid56]

The tank is red, my iphone takes shitty pics
well got some work done today, not much. but some

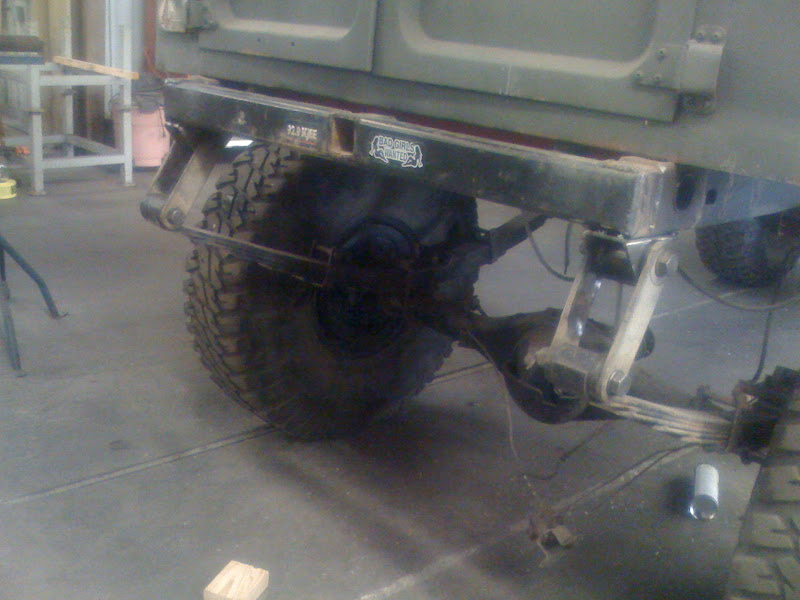

i was having issues with the shaclels, so i redid the mounts to be under the frame, that way i dont have any issues.

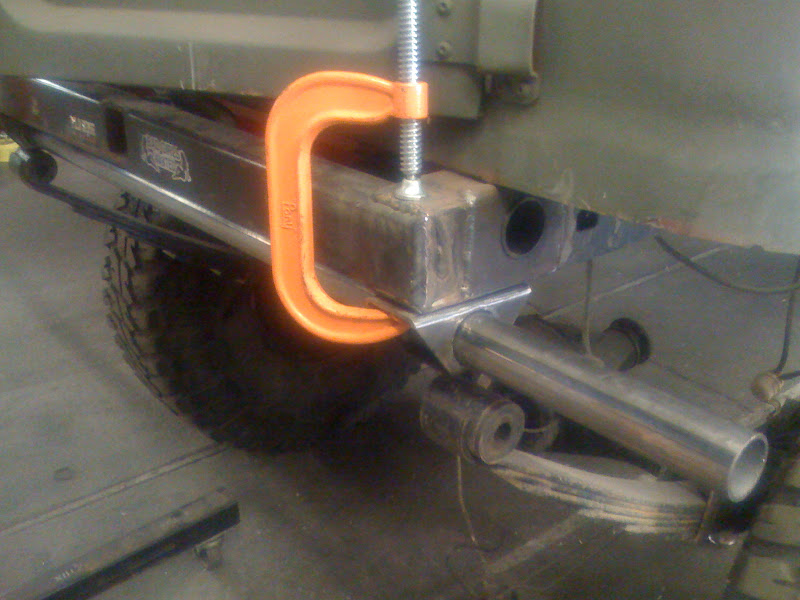

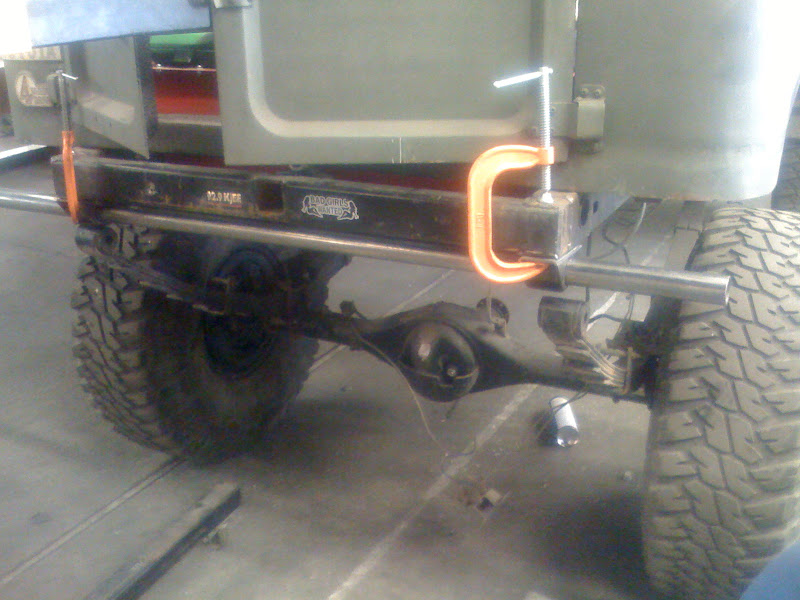

i needed to make sure they were aligned, so i uses a piece of tubing.

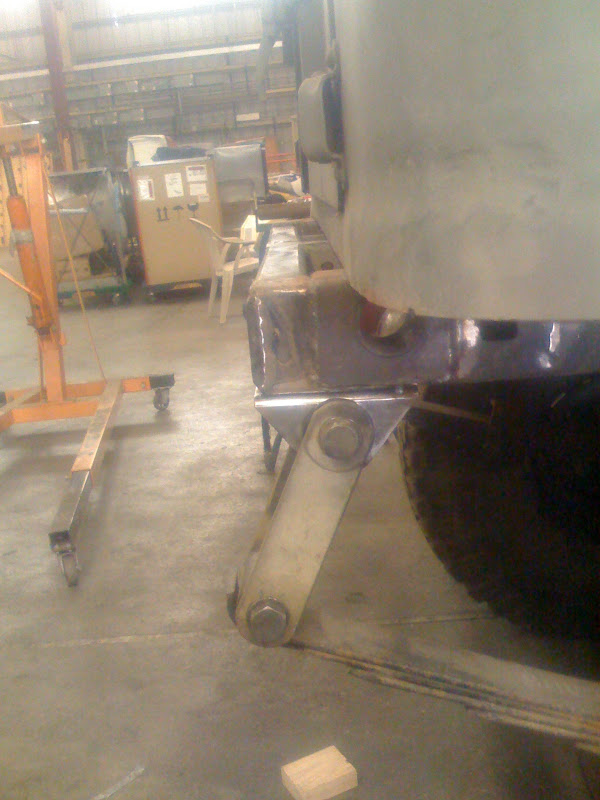

shackle angle is looking good. i only tacked the hangers on as i will be still putting on more weight on teh back. tired of cutting full beads off LOL

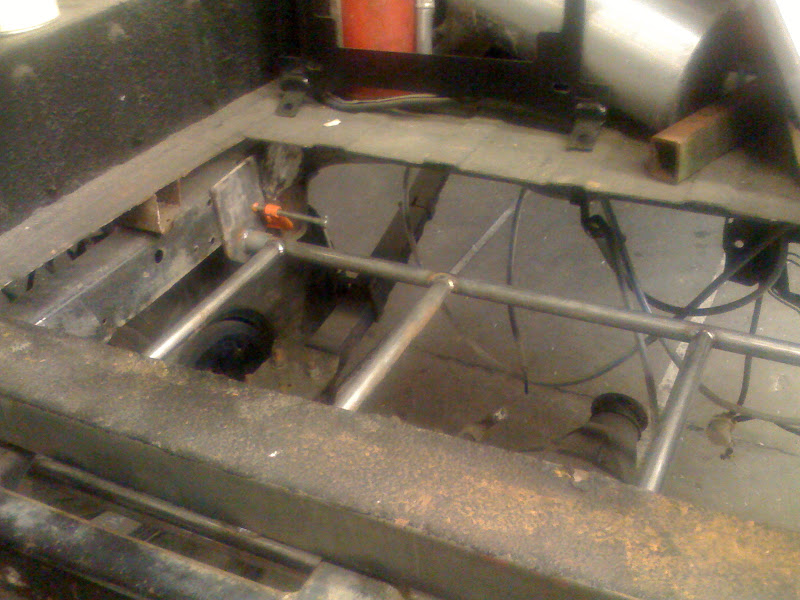

after that i mocked up the fuel cell holder. its just clamped in place for now.



sorry for the blurry pic

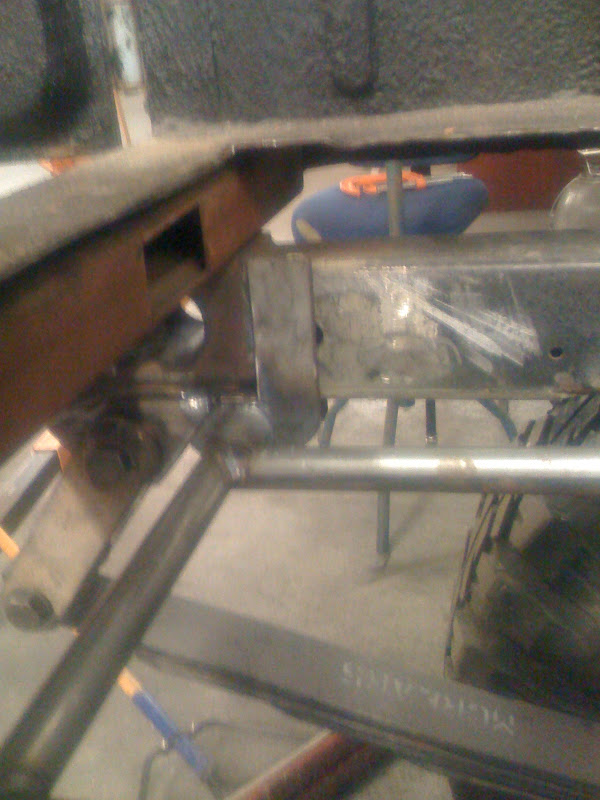

back side, ready to weld.



next up was making a plate for the for the frame. i needed something to hold the fuel cell fully. i was just going to leave it solid, but then i had this great (STUPID) idea to drill and dimple it.

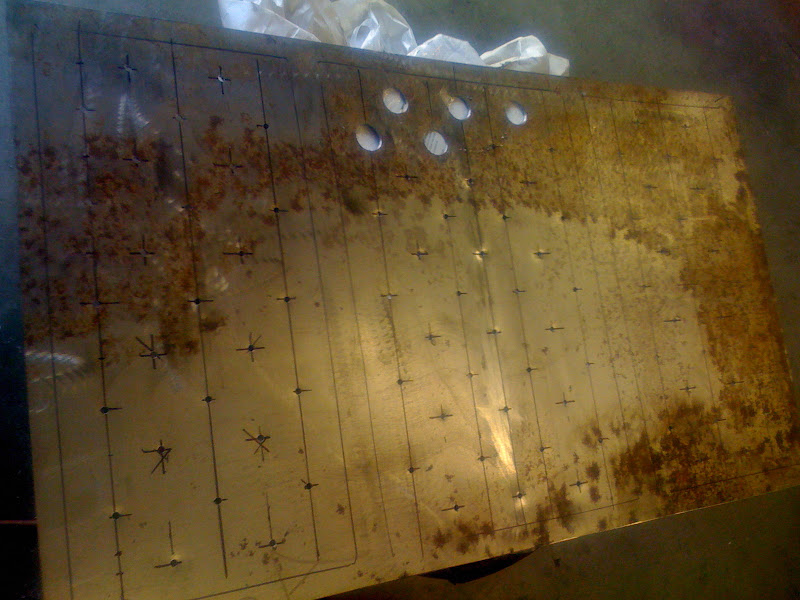

so a hour later i had it all laid out where all the holes should go and started drilling

[paranoid56]

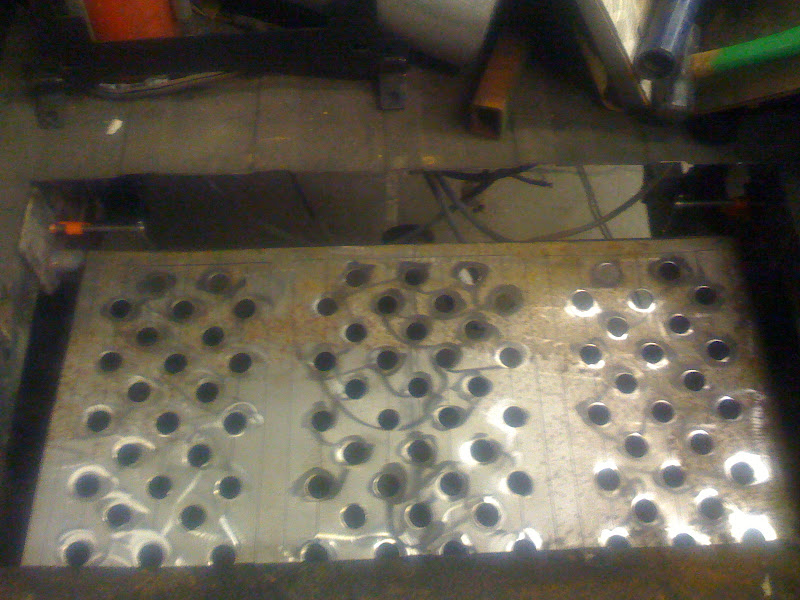

so like an hour later after drilling 80 some 1" holes i was done. i really need to invest in a 1" unibit. as the 1" hole saw really showed me how much runout my damn drill press had LOL
here it is in its final resting place.

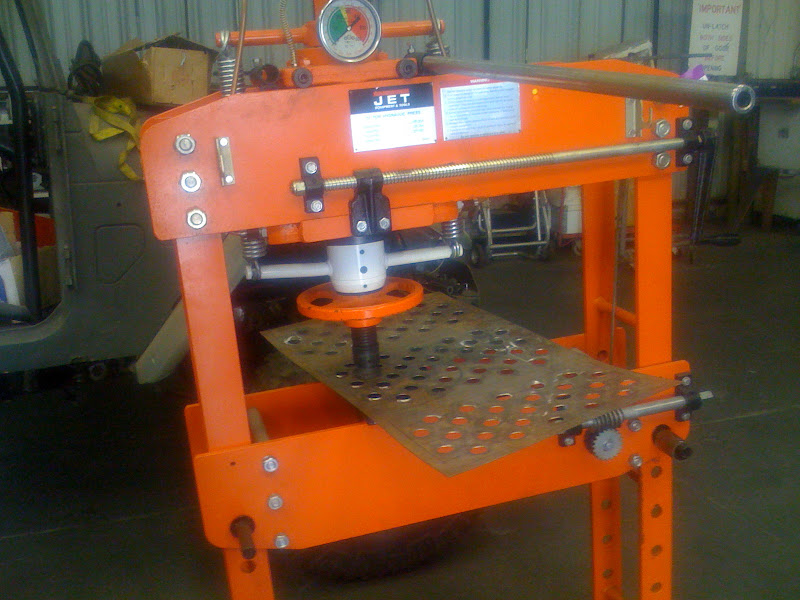

now onto the press. there went another hour LOL, and damn my arms were tired.

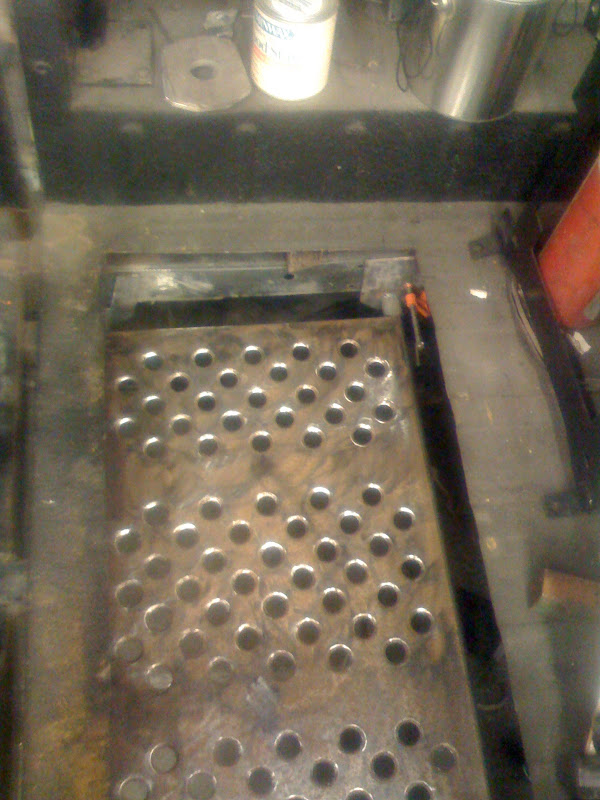

sitting in place

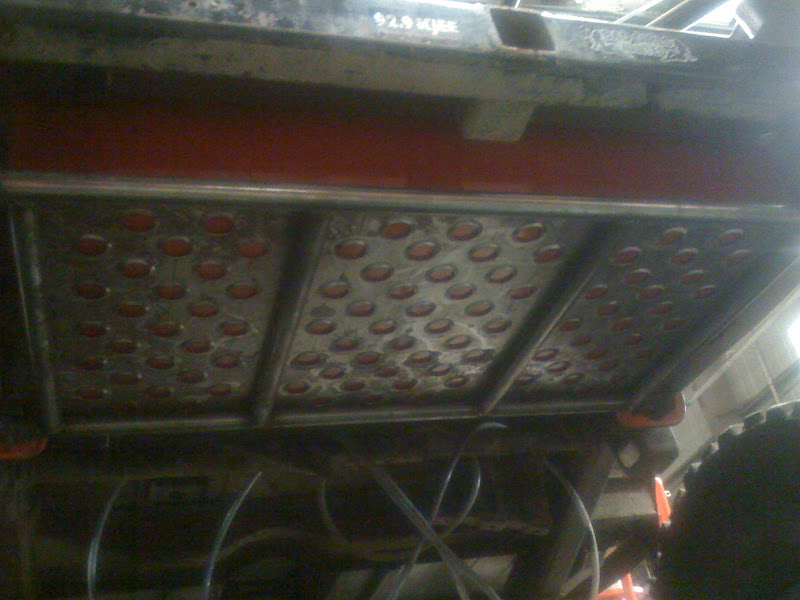

underside pic. man that looks pimp

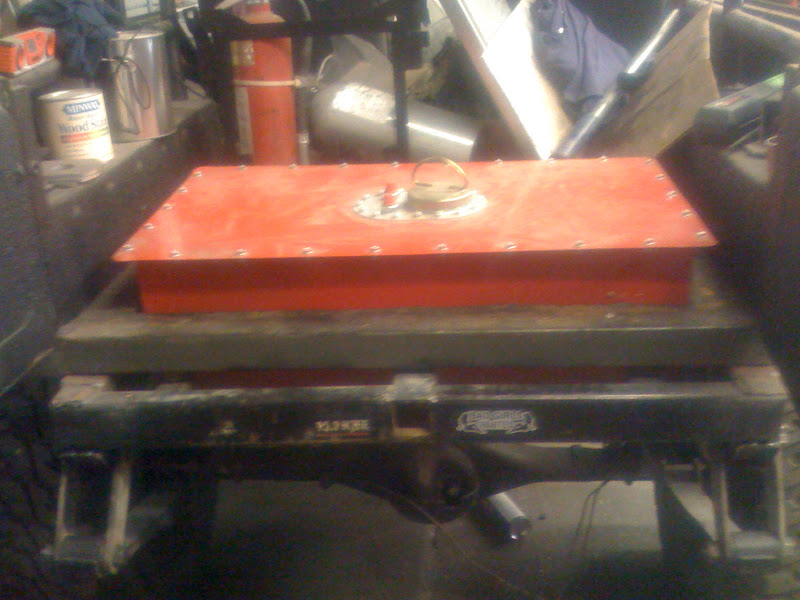

about final spot for the tank.

[Coolerman]

That is one cool $2138 press! (Had to look it up!)

Looking good man, wish I had your welding skills...

[paranoid56]

Originally Posted by Coolerman

That is one cool $2138 press! (Had to look it up!)

Looking good man, wish I had your welding skills...

lol, we got it off a jobsite for free i love free shit


Shane

[julstirn]

your skilled dude, cant wait for more, this is an awesome build

[Mtrunner]

Any more pics of the whole rig so far?
Any predictions on how much it'll weigh?

[65FJ45]

The concept is great to lighten thing us, get the overdrive, lighter and more efficient motor, power steering, etc. etc. What I don't understand is why you had to shorten the frame and lengthen the body. Do you think it is possible do do this without the body lengthening? How about on a 55? I had the same idea about doing this to a 40 or a custom 55. Thanx. Great work.

[hawkeye]

This is the best build I have ever seen.

[MOTERRA]

This thread rocks! cheers to you and your hours of labor on this build. that is the best meld of to rigs and it's streched!

nice work on all those dimple dies 2.




40 series wannabee

[paranoid56]

Originally Posted by 65FJ45

The concept is great to lighten thing us, get the overdrive, lighter and more efficient motor, power steering, etc. etc. What I don't understand is why you had to shorten the frame and lengthen the body. Do you think it is possible do do this without the body lengthening? How about on a 55? I had the same idea about doing this to a 40 or a custom 55. Thanx. Great work.

well, the chassis was a 84 xcab so it was a little long for the body. so i make it a little shorter, but i also wanted a little longer fj40 so i made that longer LOL. anything is posable, but i just like the idea of having a longer fj40

[paranoid56]

did a little more work today, i installed my Allpro xmember.
the main piece.


tiged up the bushing tubes.


welded up the brackets on the frame. i ran out of gas on the tig so had to pick up the mig. man, feel like i forgot how to use the damn thing LOL


i couldnt seem to get all the holds aligned up, not sure why. i think i was having issues
but i got like 6 of them bolted up.


all painted up.


and all installed. i got the ap one with the parking brake brackets so i could add those later on if i wanted to.

[SteelArt]

Did this rig ever get finished ?

[julstirn]

thats a good question I forgot about and got excited when i saw it had been updated thanks for getting my hopes up. I f I recall, the shop he was in was getting sold or he was losing his job or something, maybe it went awol! Anybody know?
