| Determining Engine Build Year
I recently bought a spare engine for my 78 FJ40. The guy said it was out of a 78 but I wondered if there is a way to determine the build year for sure. Is there some kind of number on the block that will tell the year, etc?
__________________ Ron
1978 FJ40 - Restoration project with 58K miles
1994 FZJ80 129K miles Locked with 295 Terra Grapplers, OME heavies, ARB front bumper, Warn 9000
1994 FZJ80 with 43k miles. Tons of Parts for Sale Thread and pics here: http://forum.ih8mud.com/parting-out/...pick-part.html
1984 FJ60 - Fairly Rustfree Texas Truck, Rebuilt Engine with 5K ( For Sale)
1984 Harley FLTC |
|  |
|
07-14-06, 04:11 PM
|
#2 (permalink)
| | Team Bullsac
Join Date: Feb 2002 Location: washington state
Posts: 3,106
| | |
| | |
07-14-06, 04:28 PM
|
#3 (permalink)
| | Forum Lifer
Join Date: Jan 2003 Location: Kansastitty
Posts: 7,353
| Quote: |
Originally Posted by toyman317 I recently bought a spare engine for my 78 FJ40. The guy said it was out of a 78 but I wondered if there is a way to determine the build year for sure. Is there some kind of number on the block that will tell the year, etc? | Aside from that, and it is a good link, you can find out the day, month and year the block was cast...

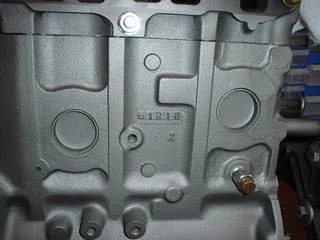

Can you see the numbers cast into the driver's side of my block? the first # is the year...so 1976. The second and third are the month, so December and the last two are the day the 18th.
Dec 18, 1976
Ed
EDIT: Should have read "driver's" not Pass
__________________ My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders
Last edited by Degnol; 07-16-06 at 10:07 AM.
| |
| | |
07-14-06, 06:32 PM
|
#4 (permalink)
| | Site Addict
Join Date: Aug 2003 Location: Indianapolis
Posts: 1,303
| Very interesting. Thanks.
__________________ Ron
1978 FJ40 - Restoration project with 58K miles
1994 FZJ80 129K miles Locked with 295 Terra Grapplers, OME heavies, ARB front bumper, Warn 9000
1994 FZJ80 with 43k miles. Tons of Parts for Sale Thread and pics here: http://forum.ih8mud.com/parting-out/...pick-part.html
1984 FJ60 - Fairly Rustfree Texas Truck, Rebuilt Engine with 5K ( For Sale)
1984 Harley FLTC | |
| | |
07-14-06, 07:24 PM
|
#5 (permalink)
| | Forum Lifer
Join Date: Jan 2003 Location: Kansastitty
Posts: 7,353
| Quote: |
Originally Posted by toyman317 Very interesting. Thanks. |
Credit for that info goes to Jim Chenoweth, not me
I don't know whether it holds true for F engines or not.
Ed
__________________ My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders | |
| | |
07-14-06, 10:03 PM
|
#6 (permalink)
| | Forum Regular
Join Date: Dec 2004 Location: Charlotte NC
Posts: 233
| sweet...my 2f is a december 1974....Right after christmas
__________________
1975 fj40 1968 fj40
| |
| | |
07-16-06, 01:34 AM
|
#7 (permalink)
| | Site Addict
Join Date: Sep 2005 Location: Las Vegas
Posts: 1,775
| would the day/year casting numbers be in the same place for the F engine?
__________________
"Those who would give up essential liberty to purchase a little temporary safety, deserve neither liberty nor safety." -Benjamin Franklin
| |
| | |
07-16-06, 05:36 AM
|
#8 (permalink)
| | Site Addict
Join Date: Aug 2003 Location: Indianapolis
Posts: 1,303
| Point of clarification. My numbers were on the drivers side of the engine. Guess the PO didn't know much about this engine afterall. It was built in 75...not 78. The serial number is also on the drivers side up toward the front and is a very pronounced stamp. Didn't see any number on the passenger side of the block at all.
__________________ Ron
1978 FJ40 - Restoration project with 58K miles
1994 FZJ80 129K miles Locked with 295 Terra Grapplers, OME heavies, ARB front bumper, Warn 9000
1994 FZJ80 with 43k miles. Tons of Parts for Sale Thread and pics here: http://forum.ih8mud.com/parting-out/...pick-part.html
1984 FJ60 - Fairly Rustfree Texas Truck, Rebuilt Engine with 5K ( For Sale)
1984 Harley FLTC | |
| | |
07-16-06, 10:04 AM
|
#9 (permalink)
| | Forum Lifer
Join Date: Jan 2003 Location: Kansastitty
Posts: 7,353
| Quote: |
Originally Posted by projektdotnet would the day/year casting numbers be in the same place for the F engine? | They are on my '74 F..........31215. I don't know about earlier Fs, though.
Ed
__________________ My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders | |
| | |
07-16-06, 10:05 AM
|
#10 (permalink)
| | Forum Lifer
Join Date: Jan 2003 Location: Kansastitty
Posts: 7,353
| Quote: |
Originally Posted by toyman317 Point of clarification. My numbers were on the drivers side of the engine. Guess the PO didn't know much about this engine afterall. It was built in 75...not 78. The serial number is also on the drivers side up toward the front and is a very pronounced stamp. Didn't see any number on the passenger side of the block at all. |
Can you post a pic of that? Where was it stamped on the driver's side?
Thanks,
Ed
__________________ My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders | |
| | |
07-16-06, 01:47 PM
|
#11 (permalink)
| | Site Addict
Join Date: Aug 2003 Location: Indianapolis
Posts: 1,303
| Pictures above are the same as mine.
__________________ Ron
1978 FJ40 - Restoration project with 58K miles
1994 FZJ80 129K miles Locked with 295 Terra Grapplers, OME heavies, ARB front bumper, Warn 9000
1994 FZJ80 with 43k miles. Tons of Parts for Sale Thread and pics here: http://forum.ih8mud.com/parting-out/...pick-part.html
1984 FJ60 - Fairly Rustfree Texas Truck, Rebuilt Engine with 5K ( For Sale)
1984 Harley FLTC | |
| | |
07-16-06, 03:24 PM
|
#12 (permalink)
| | Forum Lifer
Join Date: Jan 2003 Location: Kansastitty
Posts: 7,353
| Quote: |
Originally Posted by toyman317 Pictures above are the same as mine. |
Ron, I went back and edited my post from driver's side to pass side with respect to the casting date numbers, but the pic above of the serial number is on the passenger side between the dipstick and the starter. I've never seen a serial number on the driver's side. That's why I asked for a pic.
Ed
__________________ My Anger-Management Class really pisses me off
'66FJ40, Fresh 2F, H42/Orion(By Poser... LCR4WD), ARB Front/rear(By Poser... LCR4WD), MetalTech Cage installed by Poser, Screw-ups fixed(by Poser) 4WDB Corvette Master, Mini Truck PS, 3.5" Lift, Warn 8274, 33s on stockers, WhiteKnuckle sliders | |
| | |
07-16-06, 04:11 PM
|
#13 (permalink)
| | Site Addict
Join Date: Aug 2003 Location: Indianapolis
Posts: 1,303
| Mine is definately on the drivers side and resembles the picture which John0089 posted. I wonder if there was a change somewhere in the mid 70s of where they put the numbers. On that smooth place above the starter, i don't see a number unless it is so faint as to be obscured by gunk etc. I will try to post up a picture but right now I am on crutches and it is difficult to maneuver around in my garage to take a picture of it.
__________________ Ron
1978 FJ40 - Restoration project with 58K miles
1994 FZJ80 129K miles Locked with 295 Terra Grapplers, OME heavies, ARB front bumper, Warn 9000
1994 FZJ80 with 43k miles. Tons of Parts for Sale Thread and pics here: http://forum.ih8mud.com/parting-out/...pick-part.html
1984 FJ60 - Fairly Rustfree Texas Truck, Rebuilt Engine with 5K ( For Sale)
1984 Harley FLTC | |
| | |
