Thread: Overkill Armor Protection 101 - Belly Skid Plate
View Single Post
Old 10-11-08, 11:48 AM   #74 (permalink)
Ebag333
Forum Lifer


Ebag333's Avatar

Join Date: Oct 2006
Location: Medford, OR
TLCA# 18864
Posts: 3,316

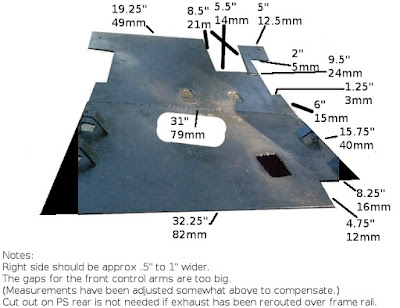

As promised (better late than never, neh?) the "schematics".

Or my poorly photoshopped measurements.



(Click for larger version.)


These are anything but precise, but they should be close. But it's a skid plate, not a watch, yes?
