Quote:
Originally Posted by RHINO
i am in the process of going for it right now, pig is gutted and im piecing together the new drivetrain right now. if everything goes right it'll be back on the road in two weeks. believe it or not wiring the alternator is going to be the hardest part for me.
|
The alternator connections are very simple. The standard Isuzu alternator has an integral regulator which makes it even easier to wire up. Check Fig. 9 on page 6D-14 of the FSM for detailed wiring.

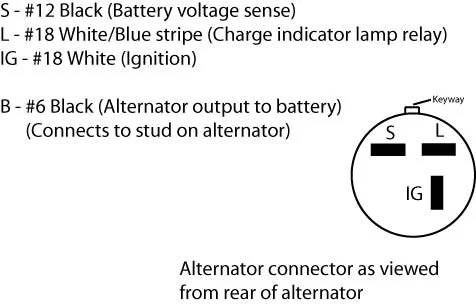

Basically, you have three wires going to a round connector on the back of the alternator plus a heavy black wire (B) going to the output stud also on the back of the alternator. This black wire should be heavy enough to handle the full alternator output (70 A) and goes directly to the (+) of the battery (might be a good idea to protect it with a fusible link or big fuse). The black wire (S) from the round connector also goes directly to the (+) of the battery. It serves to sense the actual voltage at the battery which the regulator uses to control the output voltage of the alternator. The white wire (IG) from the round connector goes to the ignition switch and should be hot only when the ignition switch is in the "run" position. This wire turns the charging system on and off. The white with blue stripe (L) is used to control the "Charge" indicator light and is optional. When the alternator is charging, the (L) wire is hot and turns on the "charge indicator relay". Since the indicator light is wired through the normally closed set of contacts on the relay, when the relay is turned on, the indicator light goes out. Hope that makes sense.
