100 Series Rear Drawer System Build (w/picks)

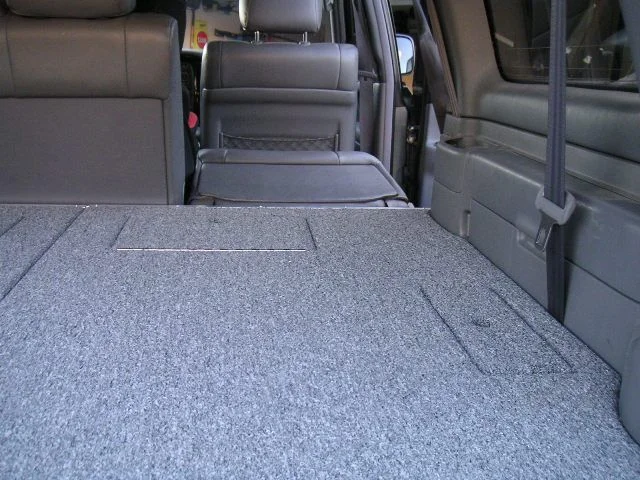

Well, I just finished up my rear storage drawer system for my 100. I built most of it out of 1/2" pine and the top out of 3/4" Pine to keep the weight down. I purchased the drawer runners, latches, handles, aluminum angle, etc. from Lowes and carpet from a local carpet store. I had a bunch of aluminum tread plate laying around and cut and used them for the face of the drawers.

I built the drawers so that I can take one side out and leave the other and still be able to put in one of the rear jump seats. I am using small u-bolts that attach to the latching system for the rear jump seats to hold the drawer system to the floor.

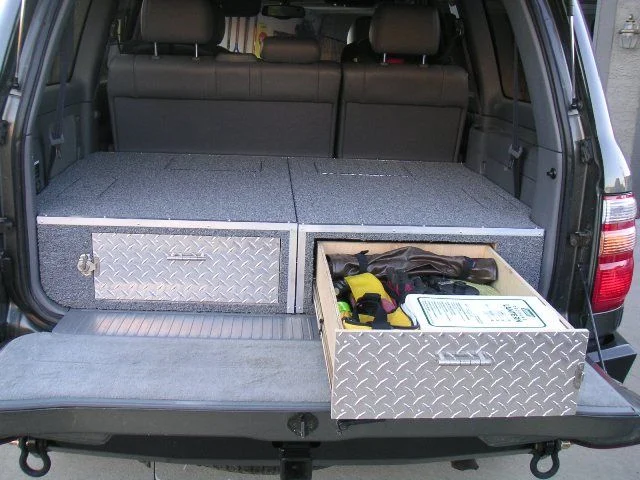

My camera was in the shop so I was not able to take pictures during the build and only have the after shots. Enjoy!
Attached Images


__________________
Zane

2000 UZJ100: 285/75/16 BFG KM2's, OME Torsion Bars, OME 863, Diff Drop, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's, Safari Snorkel, National Luna Dual Bat, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT
Zane is offline   Reply With Quote
Old 10-16-08, 07:54 PM   #2
250+ Club



Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 933

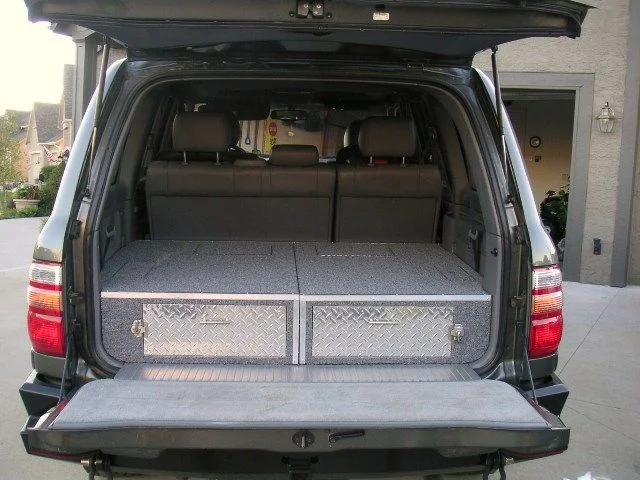

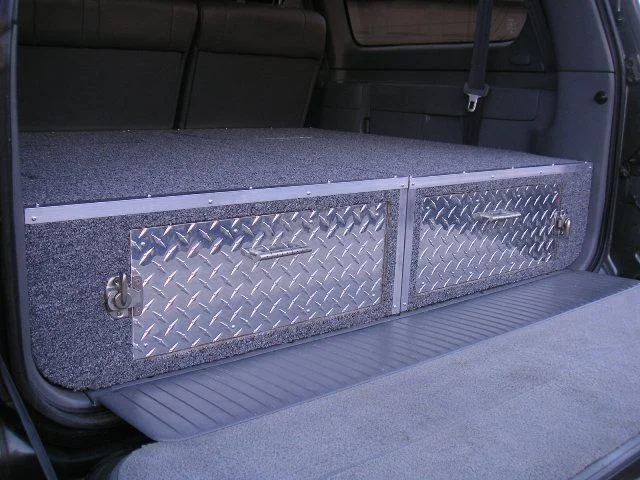

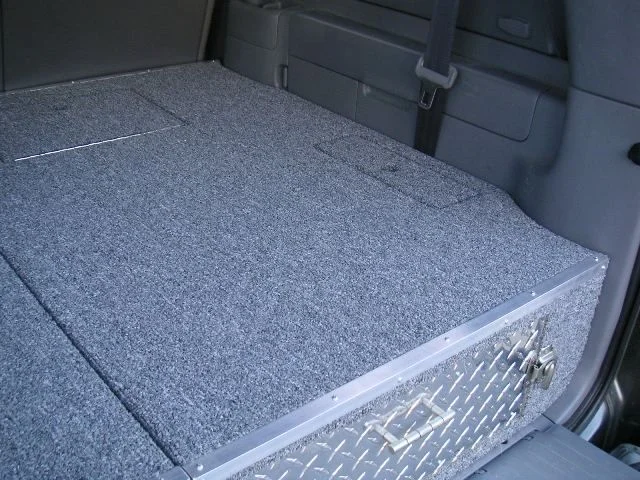

more pics
Attached Images


__________________
Zane

2000 UZJ100: 285/75/16 BFG KM2's, OME Torsion Bars, OME 863, Diff Drop, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's, Safari Snorkel, National Luna Dual Bat, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT
Zane is offline   Reply With Quote
Sponsor 10-16-08, 07:57 PM
Sponsored Link
advertisement
Old 10-16-08, 07:57 PM   #3
250+ Club



Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 933

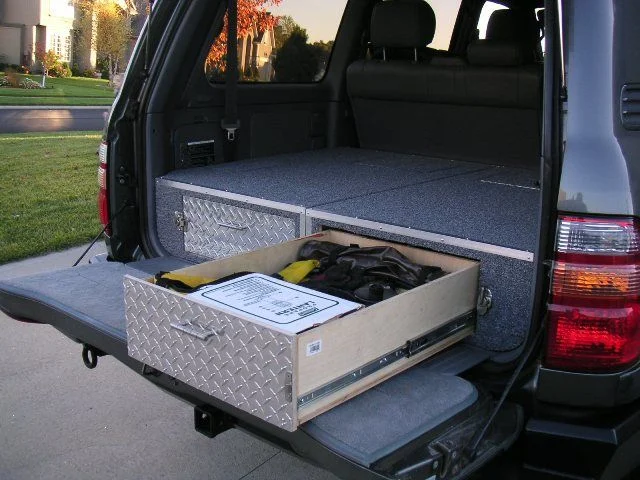

I built the drawers so that I can fold the rear seats down and place an air bed in the back and it makes a perfect platform for queen size bed.

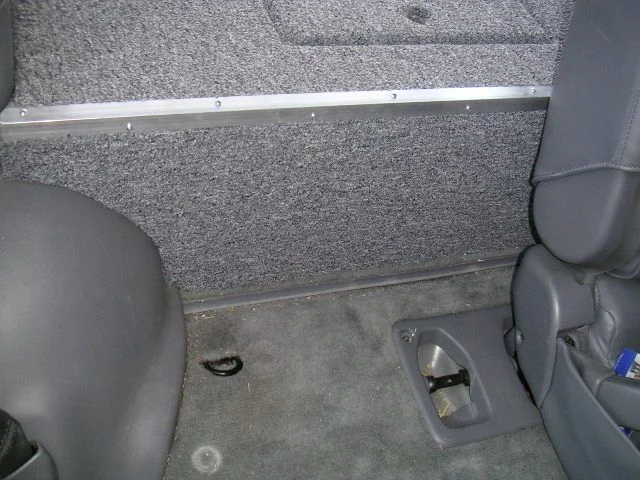

The last picture is the back of the drawer system that is behind the rear seats.
Attached Images


__________________
Zane

2000 UZJ100: 285/75/16 BFG KM2's, OME Torsion Bars, OME 863, Diff Drop, ARB Sahara Bar, Slee Rear Bumper, Hella 4000's, Safari Snorkel, National Luna Dual Bat, Custom Built Sliders, Custom Built Rear Tire Carrier, Modified Mombassa RTT
Zane is offline   Reply With Quote
Old 10-16-08, 08:22 PM   #4
Forum Lifer



spressomon's Avatar

Join Date: Jan 2005
Location: Reno
Posts: 9,125
Nice job Zane! You're going to become addicted to those drawers real fast!

__________________
1999 100-Series. 2009 Kimberley Kamper Sports RV.

ROTM: spressoWAGON ROTM


ARE YOU RUNNING A BUMPER WITHOUT SOLID RECOVERY POINTS (ARB Sahara, ARB Combo, Ironman, OEM, etc.)?
Then you need these: spressoFAB FRBv2
spressomon is online now   Reply With Quote
Old 10-16-08, 11:01 PM   #5
250+ Club



Join Date: Mar 2007
Location: Albuquerque, NM
Posts: 779
Garage
They look great, and I like that they can be used independently.

__________________
1999 Toyota Landcruiser - 285/75/16 BFG AT, Slee SliderSteps™
slimbuddha is offline   Reply With Quote
Old 10-17-08, 12:46 AM   #6
250+ Club



anthonycds's Avatar

Join Date: May 2006
Location: Oak Brook Mall
Posts: 837
wow, looks great! almost looks like a factory option.

__________________
'01 UZJ100 Black

Need a new starter for your 100? http://forum.ih8mud.com/sale-parts/4...00-series.html
100 Series factory rear springs For Sale
98-05 OEM turn signal housings (L/R) For Sale
anthonycds is offline   Reply With Quote
Old 10-17-08, 01:53 AM   #7
Forum Regular



oro-o's Avatar

Join Date: Oct 2008
Location: Seattle, Eastside
Posts: 63
Wow. So very nice! I/we really need something like that to tidy up our cargo area, given the tools and tack I keep back there. If you feel like giving better details on the build, and some photos of the units removed so I could see how to copy them, I would so like to do this project.

Very, very nice. So the pop-out panels are to access space otherwise wasted behind/beide the drawers? Like where to stuff thing you don't need often but want to have (socket sets, jumper cables, etc.?). Nice. Two tiers of access based on need. Neat.

Last edited by oro-o; 10-17-08 at 01:59 AM.
oro-o is offline   Reply With Quote
Old 10-17-08, 03:19 AM   #8
Site Addict



gearguywb's Avatar

Join Date: Mar 2006
Location: confused as h***
Posts: 1,078
Nicely done!

__________________
06 100 series, Manny
gearguywb is offline   Reply With Quote
Old 10-17-08, 05:27 AM   #9
KLF
Forum Lifer



KLF's Avatar

Join Date: Apr 2003
Location: Southern NH
Posts: 4,258
Garage
Very nice. Seriously nice.

I think you should have them drawn up in AutoCAD and make the plans available for a few $$ to cover your costs. I know if I had a 100 I'd gladly pay for them.

__________________
KB1OSF
'87 Toyota xcab SR5 - SAS'd, e-lockers, stuff (22RE/R151F/4.7's) - currently undergoing frame-off restore
'05 Lexus ES330 - Nav/ML/17's
'04 Toyota Highlander
KLF is online now   Reply With Quote
Old 10-17-08, 06:12 AM   #10
Keeping it Weird



davegonz's Avatar

Join Date: Sep 2004
Location: Austin, TX
Posts: 4,038
Garage
That came out nice Zane. Maybe when you're in town next time, you can help me finish up my system. I'm modding one that I had into half storage and half fridge slide.

__________________
David Gonzalez
__________________________________________________
"Yeti" 1994 4BT80 Cummins 4BTA Powered 80 Series, 4" OME lift, 315 BFG MT KM2's, Locked, AATLAS'd, Wagon Racked, Slee'd, Junk'd
"Machete" 1979 FJ40 from South America-SOA, 35's, 4x4 Labs Frombe Hi-Steer
Ghosts:1993 FZJ80 White, 1993 FZJ80 Green, 1991 4BTJ62 "Princess", 2000 UZJ100 "Penny"

**The Best Thread on MUD** Saving The Old Rustbucket--My 1982 FJ40 Tale
Weird Austin Land Cruiser Society
CRUISERHEAD SHIRTS
davegonz is offline   Reply With Quote
Old 10-17-08, 06:17 AM   #11
250+ Club



CrusrDug's Avatar

Join Date: Mar 2006
Location: Folsom, CA
Posts: 653
Very nice custom look. One of the better template jobs I've seen!

__________________
06 LC, Toyo A/T 285/60/18
CrusrDug is offline   Reply With Quote
Old 10-17-08, 06:32 AM   #12
Loosing it



1loudLX's Avatar

Join Date: Jan 2006
Location: through the river and over the woods.
Posts: 9,057
How much? I'll pay for your flight to NY to come build me some! That looks awesome, great job.

__________________
2000 Lexus LX470 - Stealth mode: Engaged
2005 Lexus LX470 - ExPo White/'mud Black
2005 Lexus LS430
hidden message
1loudLX is offline   Reply With Quote
Old 10-17-08, 06:49 AM   #13
Forum Lifer



Trunk Monkey's Avatar

Join Date: Apr 2003
Location: Salt Lake City
Posts: 6,507
So wish I didn't need my 3rd row . . . .

Nice work!

__________________
99 UZJ
Cult member

Join or renew your TLCA membership - CLICK HERE
Trunk Monkey is offline   Reply With Quote
Old 10-17-08, 08:02 AM   #14
250+ Club



Zane's Avatar

Join Date: Nov 2004
Location: Kansas City, Missouri
Posts: 933
Quote:
Originally Posted by oro-o View Post
Wow. So very nice! I/we really need something like that to tidy up our cargo area, given the tools and tack I keep back there. If you feel like giving better details on the build, and some photos of the units removed so I could see how to copy them, I would so like to do this project.

Very, very nice. So the pop-out panels are to access space otherwise wasted behind/beide the drawers? Like where to stuff thing you don't need often but want to have (socket sets, jumper cables, etc.?). Nice. Two tiers of access based on need. Neat.
Like I said I didn't take any pictures during the build due to my camera being in the shop, but I did do a more detailed write up on the rear drawer system I built for my 80 I used to have. I used similar method in the build for my 100 with the exception of the 100 can be split and my 80 was one solid unit. Link found here.

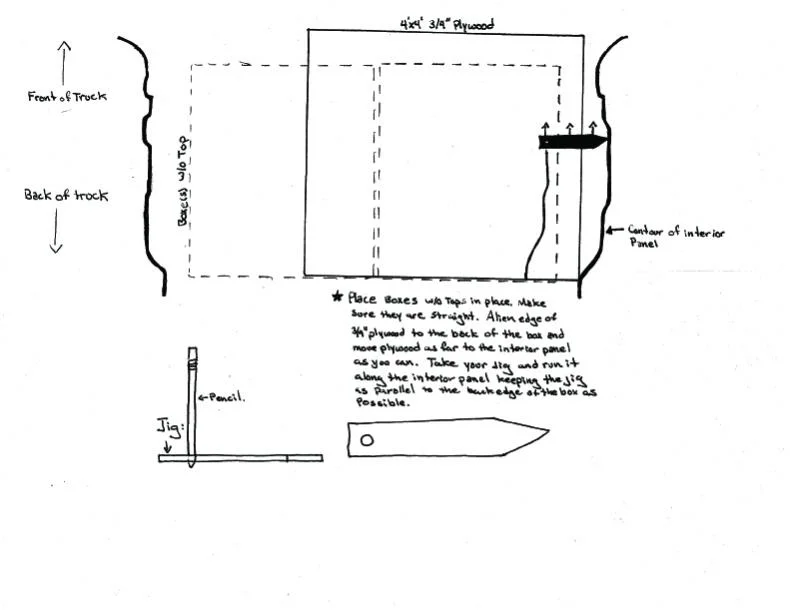

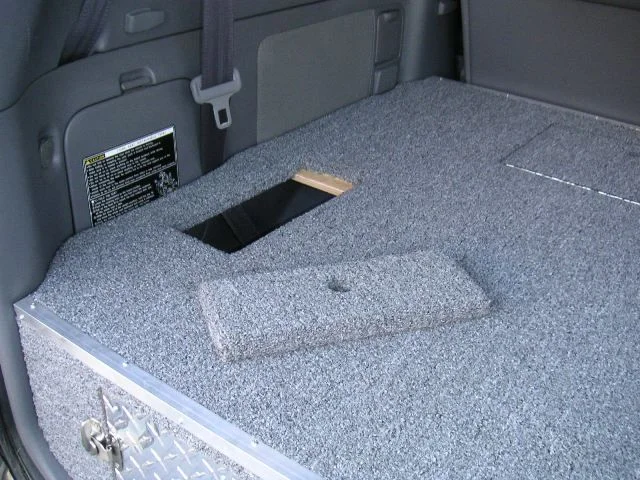

Yes the side pop out panels are to stuff anything you want in the empty space to the right and left of the drawers. I built hatches on hinges for larger storage that i can fit my tool bags, portable air pump and or things that I need to be able to get to without having to get out of my rig and open the tailgate.
